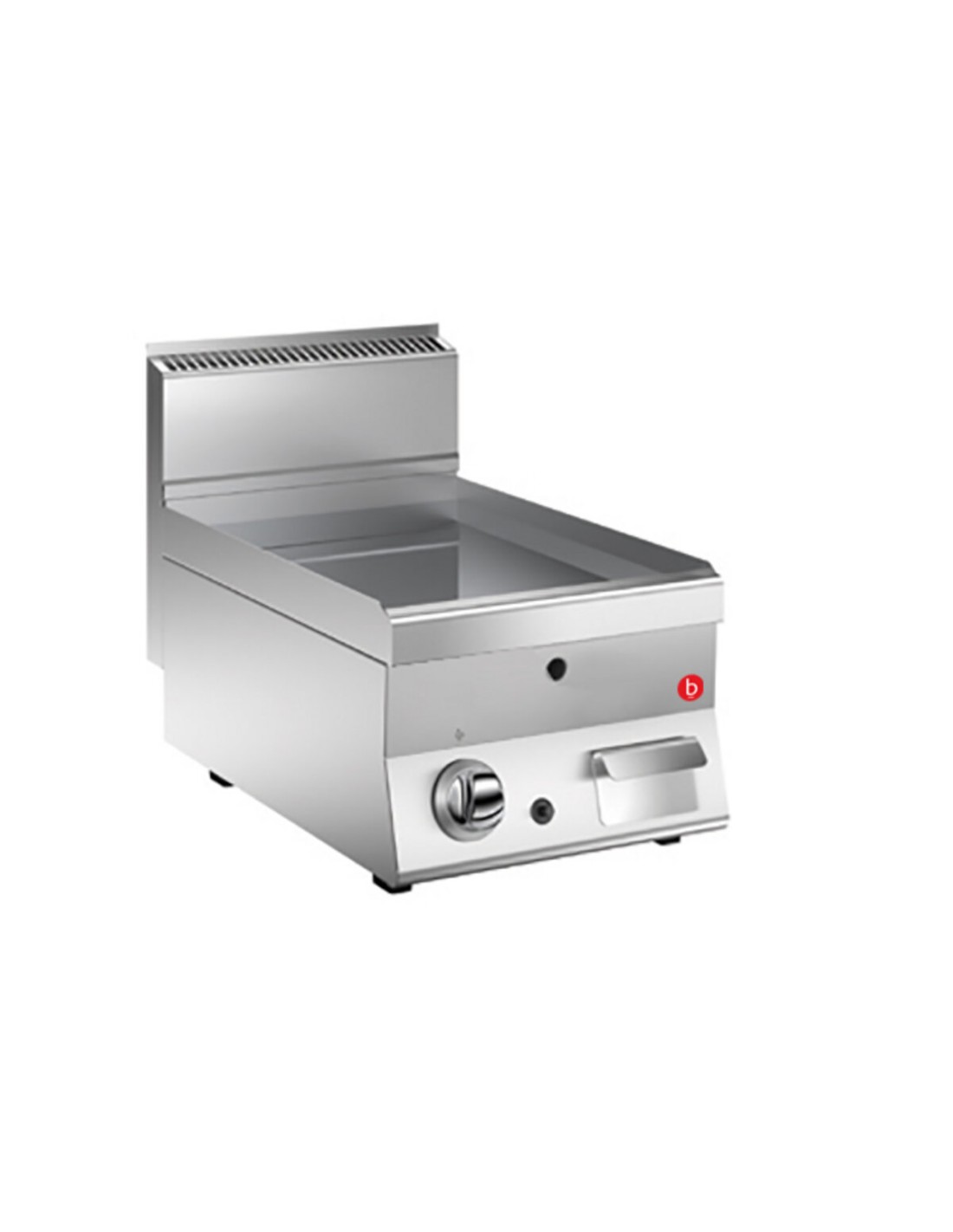

GAS FRY TOP SMOOTH PLATE L400


Tipo Alimentazione
Print
Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values. For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C. The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface. The work surface is slightly inclined so as to channel sauces, fats and condiments, into the large-capacity collection drawer. Gas models are equipped with piezo ignition, pilot flame, thermocouple and valved faucet to ensure maximum safety.


The fry tops are equipped with a perimeter splash guard and a removable drip tray.

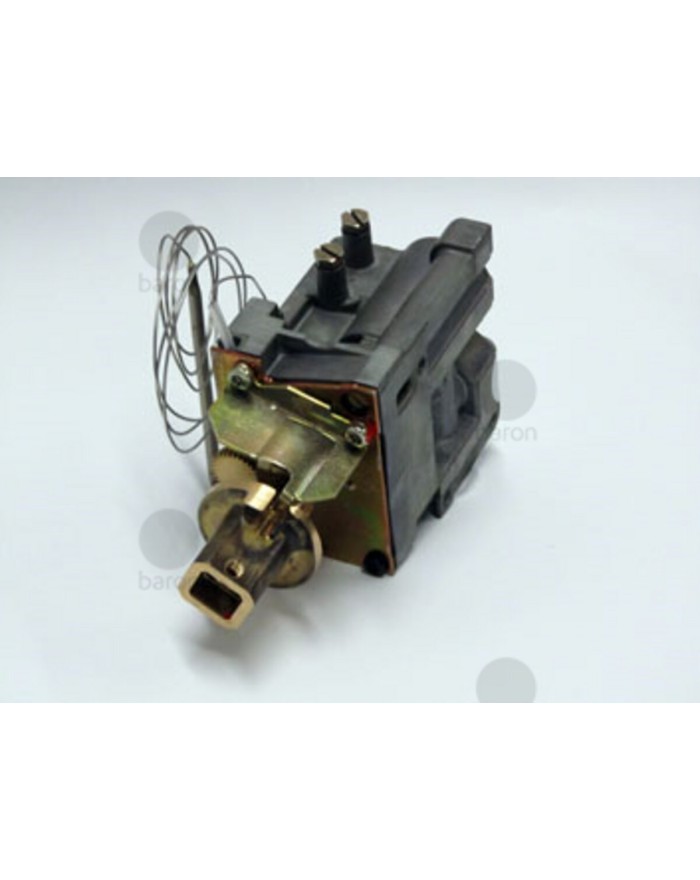

Thermostat gas versions with made-in-Italy regulation valve, which allows precise temperature control 110°C - 280°C , even for the most delicate cooking

N6FT/G400
CR0999759 - Metano Standard

Data sheet

Model
N6FT/G400
Code
CR0999759
Material type
ZPF
Definition
N6FT/G400 FTG L 60 M40
Width
400mm
Height
295mm
Depth
650mm
Volume
0.077m3
Gross volume
0220
Net weight
37Kg
Gross weight
43Kg
Certified model
N6FT/G400
CE-certified
CE-0085DL0171
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
740
Packaging height
680
Packaging length
440
Alimentazione
GAS
Commercial code
N6FT/G400
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
6.5Kw
Gas power (G25.3/25 mbar)
6,25Kw
Gas power Kcal
5375Kcal
Chimney type
A1
III1a2H3B-P
DK/SE
Production start year
2021

Specific References

mpn
N6FT/G400

Download

CR0999759_it.pdf

Download (580.96KB)

CR0999759_de.pdf

Download (582.62KB)

CR0999759_en.pdf

Download (580.33KB)

CR0999759_es.pdf

Download (580.31KB)

CR0999759_fr.pdf

Download (583.43KB)
