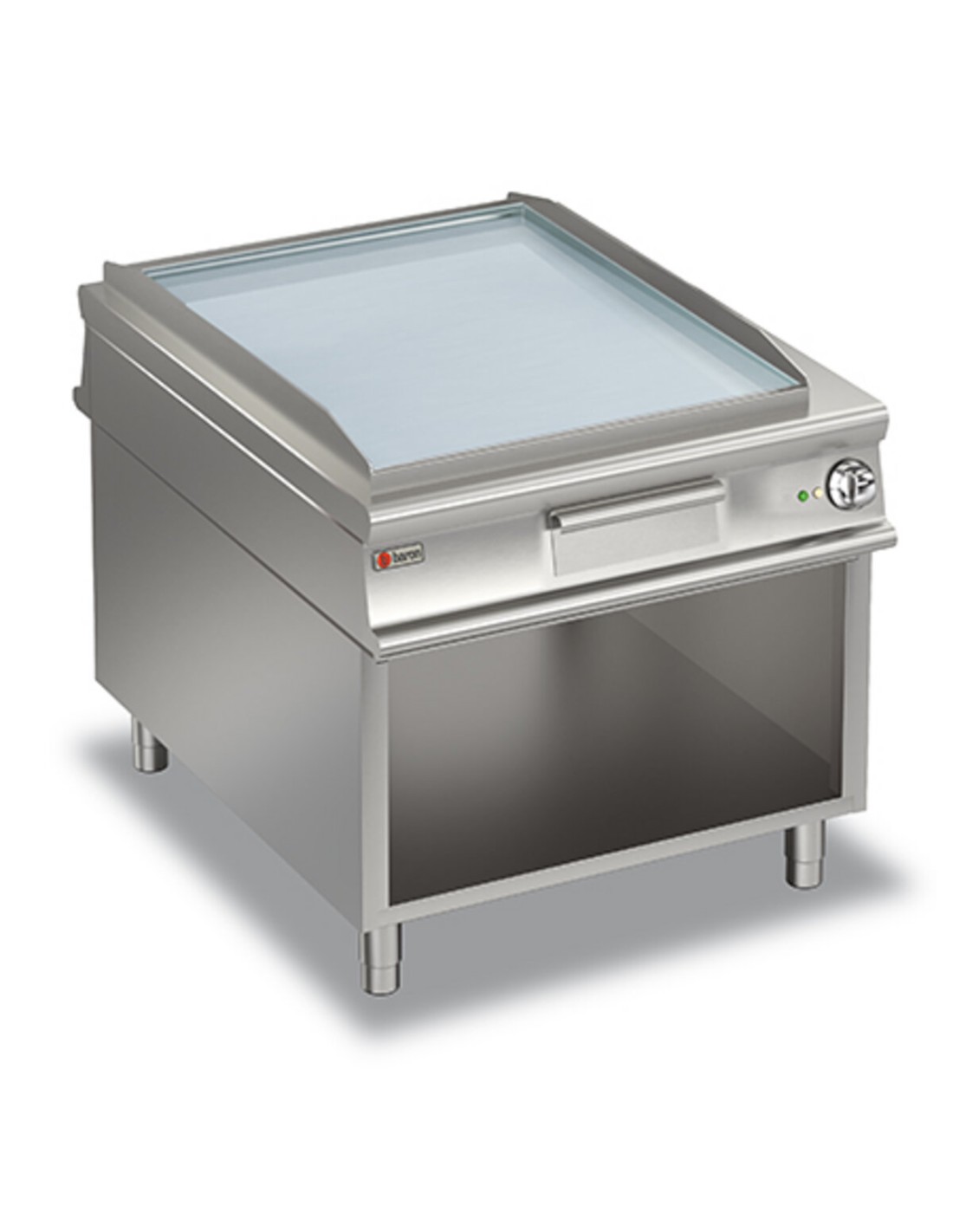

ELECTRIC THROUGH-TOP FRY-TOP SMOOTH CHROME PLATE - ON CABINET


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
N1100FTV/E905
CR1011029

Data sheet

Model
N1100FTV/E905
Code
CR1011029
Material type
ZPF
Definition
N1100FTV/E905 FTE LISCIO CROM. M90 A/G
Width
900mm
Height
870mm
Depth
1100mm
Volume
0.861m3
Electrical power
20Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
1410
Net weight
131.75Kg
Gross weight
155Kg
IP grade
IPX4
Certified model
N1100FTV/E905
Company
0232
Commercial Line
SERIE 1100
Packaging width
1260
Packaging height
1100
Packaging length
1020
Alimentazione
ELETTRICA
Commercial code
N1100FTV/E905
Production site
BELLUNO
