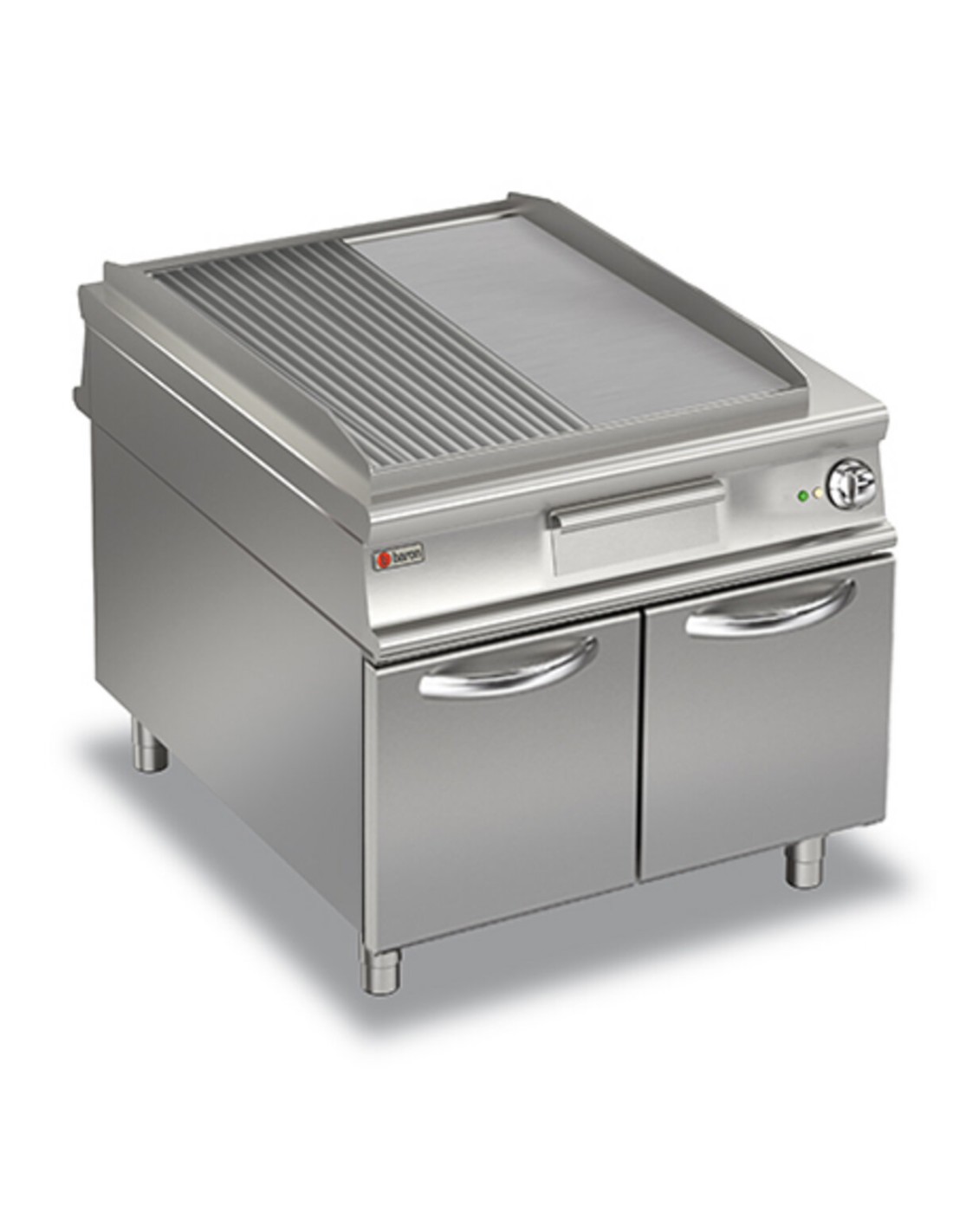

ELECTRIC PASS-THROUGH FRY-TOP PLATE 1/2 SMOOTH 1/2 GROOVED - ON CABINET WITH DOORS

Tipo Alimentazione
Promo
Print
Home , COOKING , SERIE GIANO , ELECTRIC GRIDDLES
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
N1100FTVP/E920
CR1011019 - Standard Standard

Data sheet

Electrical power
20,000Kw
380-415V 3N
Depth
1100mm
Frequency
50-60 HzHz
Height
870mm
Volume
0.861m3
IP grade
IPX4
Gross volume
1410
Materiale Piastra
AISI430
Net weight
131.75Kg
Gross weight
155Kg
Production site
BELLUNO
Certified model
N1100FTVP/E920
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1260
Model
N1100FTVP/E920
Packaging height
1100
CODE
CR1011019
Width
900mm
Commercial code
N1100FTVP/E920
Packaging length
1020000
Material type
ZPF
Alimentazione
ELETTRICA
Definition
N1100FTVP/E920 FTE 1/2 RIG. M90 A/G C/P

Specific References

mpn
N1100FTVP/E920
