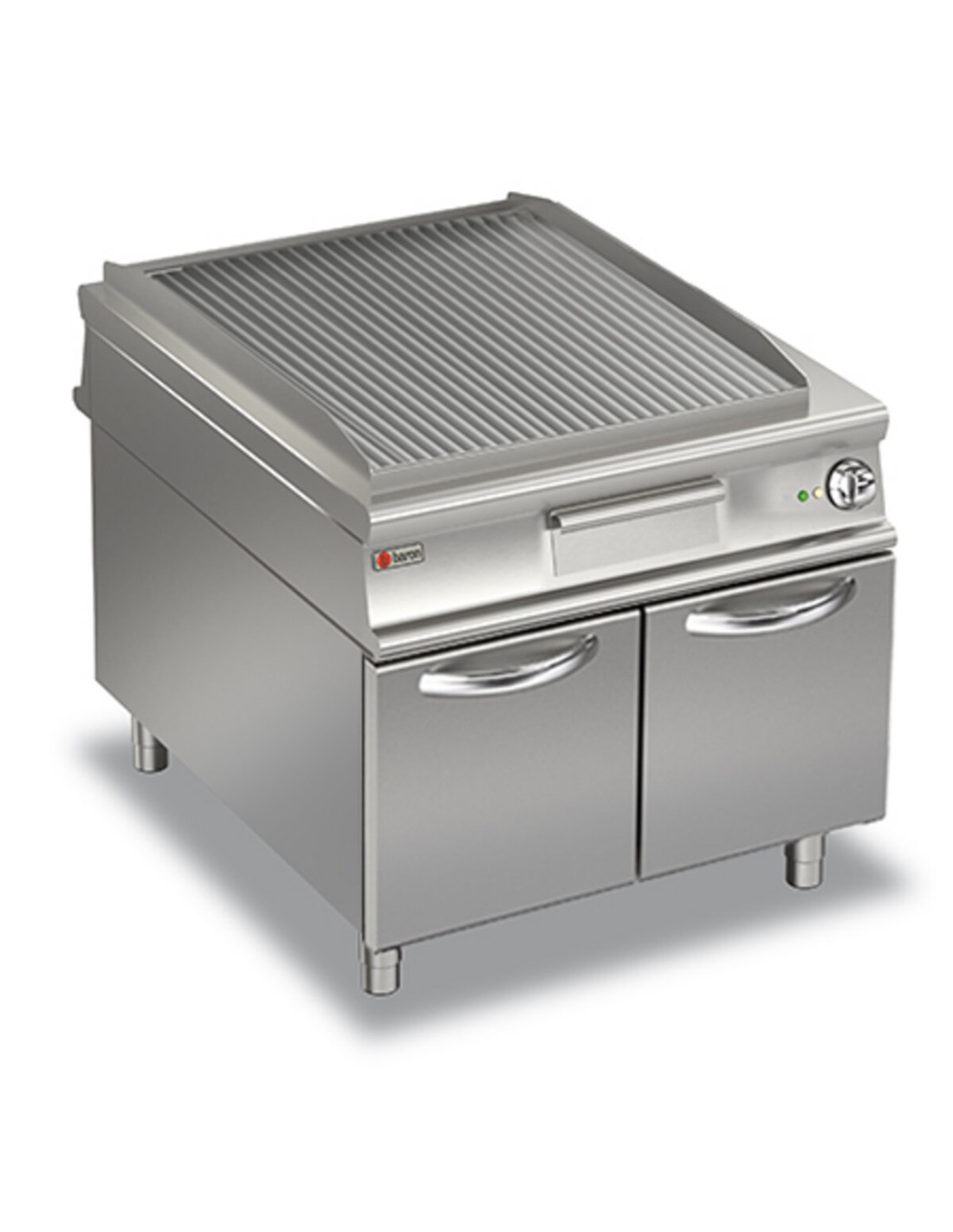

ELECTRIC THROUGH-TOP FRY-TOP GROOVED PLATE - ON CABINET WITH DOORS


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
N1100FTVP/E910
CR1010999

Data sheet

Model
N1100FTVP/E910
Code
CR1010999
Material type
ZPF
Definition
N1100FTVP/E910 FTE RIGATO M90 A/G C/P
Width
900mm
Height
870mm
Depth
1100mm
Volume
0.861m3
Electrical power
20Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
1414
Net weight
134Kg
Gross weight
160Kg
IP grade
IPX4
Certified model
N1100FTVP/E910
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1020
Packaging height
1100
Packaging length
1260
Alimentazione
ELETTRICA
Commercial code
N1100FTVP/E910
Production site
BELLUNO
