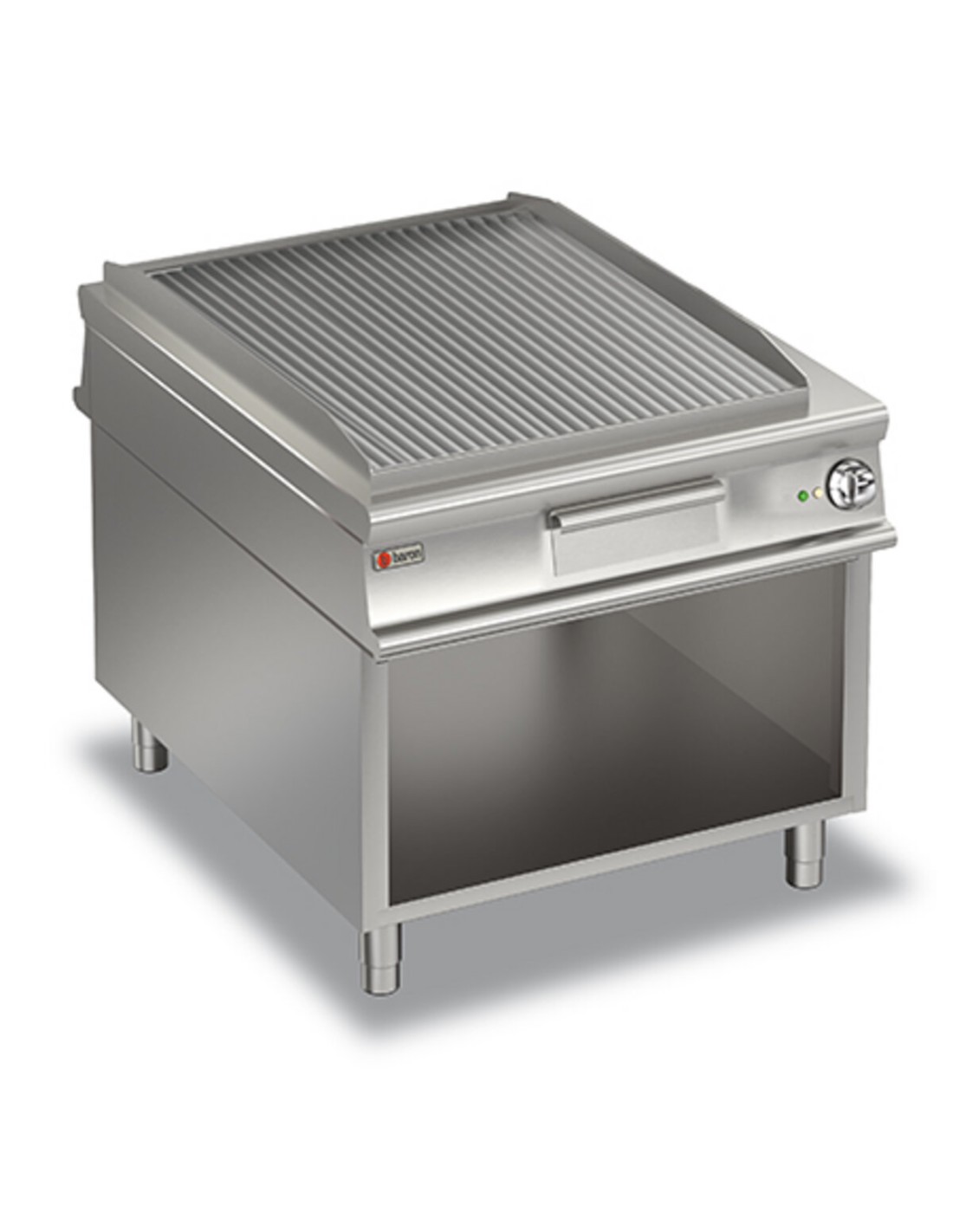

ELECTRIC THROUGH-TOP FRY-TOP GROOVED PLATE - ON CABINET
CR1010989_it.pdfDWG-3D
CR1010989-3R.dwgPictures
CR1010989.jpgStainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate).
Large fat collection drawer.
Heating by means of armoured incoloy heating elements.
Thermostatically controlled and adjustable baking temperature from 50 to 300°C.
Safety thermostat.
N1100FTV/E910
CR1010989
Data sheet
- MODEL
- N1100FTV/E910
- CODE
- CR1010989
- Commercial code
- N1100FTV/E910
- Material type
- ZPF
- Definition
- N1100FTV/E910 FTE RIGATO M90 VANO A/G
- Height
- 870mm
- Width
- 900mm
- Depth
- 1100mm
- Volume
- 0.861m3
- Gross volume
- 1410
- Net weight
- 131.75Kg
- Gross weight
- 155Kg
- Production site
- BELLUNO
- Certified model
- N1100FTV/E910
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 1100
- Packaging width
- 1260
- Packaging height
- 1100
- Packaging length
- 1020
- Alimentazione
- ELETTRICA
- Tipo piastra
- RIBBED
- Electrical power
- 20Kw
380-415V 3N - Frequency
- 50-60 HzHz
- IP grade
- IPX4
- Materiale Piastra
- AISI430
