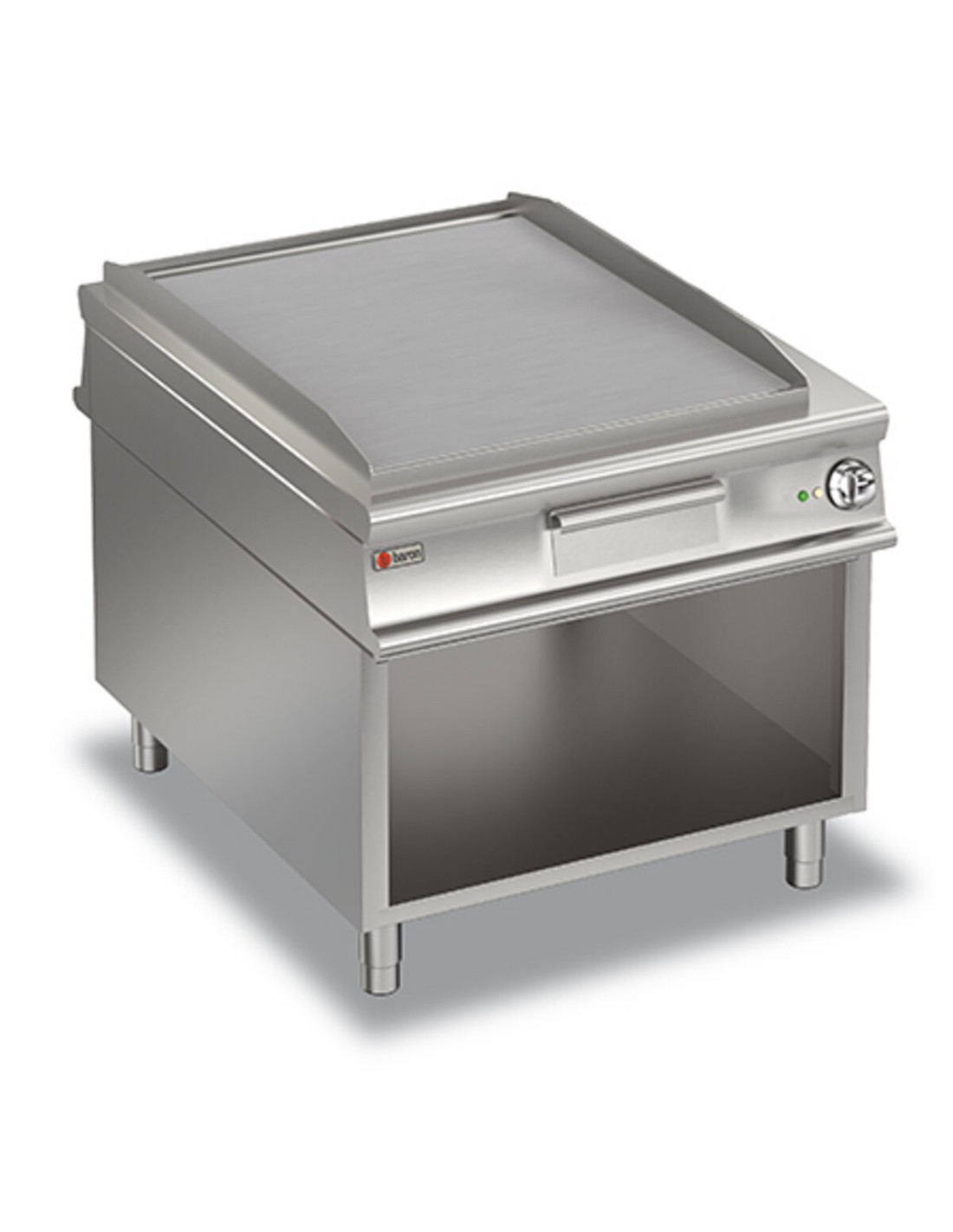

ELECTRIC THROUGH-THE-HOLE FRY-TOP SMOOTH PLATE - ON CABINET
CR1010969_it.pdfDWG-3D
CR1010969-3R.dwgPictures
CR1010969.jpgStainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate).
Large fat collection drawer.
Heating by means of armoured incoloy heating elements.
Thermostatically controlled and adjustable baking temperature from 50 to 300°C.
Safety thermostat.
N1100FTV/E900
CR1010969
Data sheet
- MODEL
- N1100FTV/E900
- CODE
- CR1010969
- Commercial code
- N1100FTV/E900
- Material type
- ZPF
- Definition
- N1100FTV/E900 FTE LISCIO M90 VANO A/G
- Height
- 870mm
- Width
- 900mm
- Depth
- 1100mm
- Volume
- 0.861m3
- Gross volume
- 1414
- Net weight
- 104Kg
- Gross weight
- 130Kg
- Production site
- BELLUNO
- Certified model
- N1100FTV/E900
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 1100
- Packaging width
- 1020
- Packaging height
- 1150
- Packaging length
- 1260
- Alimentazione
- ELETTRICA
- Tipo piastra
- SMOOTH
- Electrical power
- 20Kw
380-415V 3N - Frequency
- 50-60 HzHz
- IP grade
- IPX4
- Materiale Piastra
- AISI430
