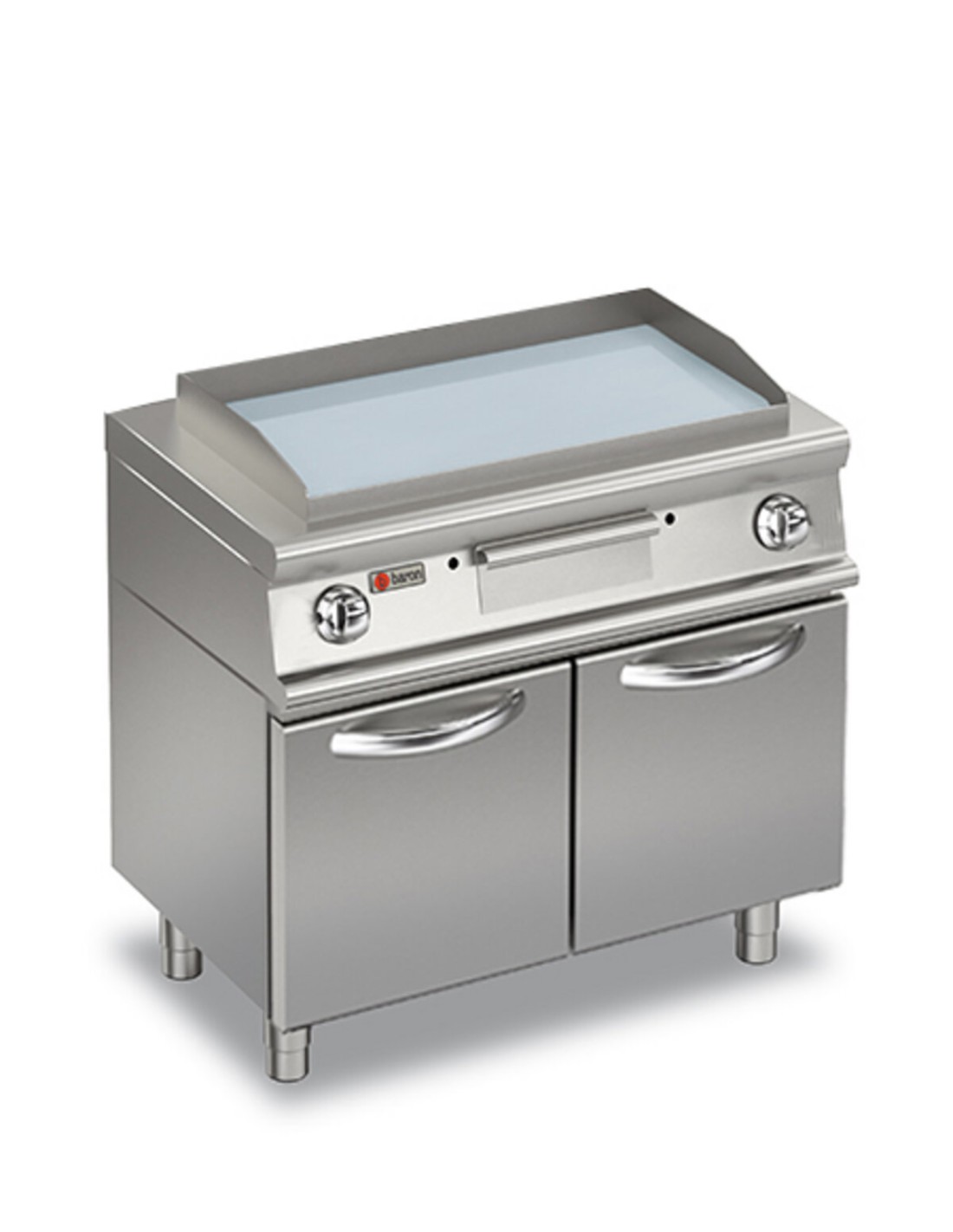

ELECTRIC FRY-TOP SMOOTH CHROME-PLATED PLATE - ON CABINET WITH DOORS


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
N550FTVP/E905
CR1010879

Data sheet

Model
N550FTVP/E905
Code
CR1010879
Material type
ZPF
Definition
N550FTVP/E905 FTE LIS. CROM. M90 A/G C/P
Width
900mm
Height
870mm
Depth
550mm
Volume
0.431m3
Electrical power
10Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
1414
Voltage
400
IP grade
IPX4
Certified model
N550FTVP/E905
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1260
Packaging height
1100
Packaging length
1020
Alimentazione
ELETTRICA
Commercial code
N550FTVP/E905
Production site
BELLUNO
Product variant
PIASTRA LISCIA

Download

CR1010879_it.pdf

Download (435.86KB)

CR1010879_de.pdf

Download (437.85KB)

CR1010879_en.pdf

Download (434.94KB)

CR1010879_es.pdf

Download (436.04KB)

CR1010879_fr.pdf

Download (436.97KB)
