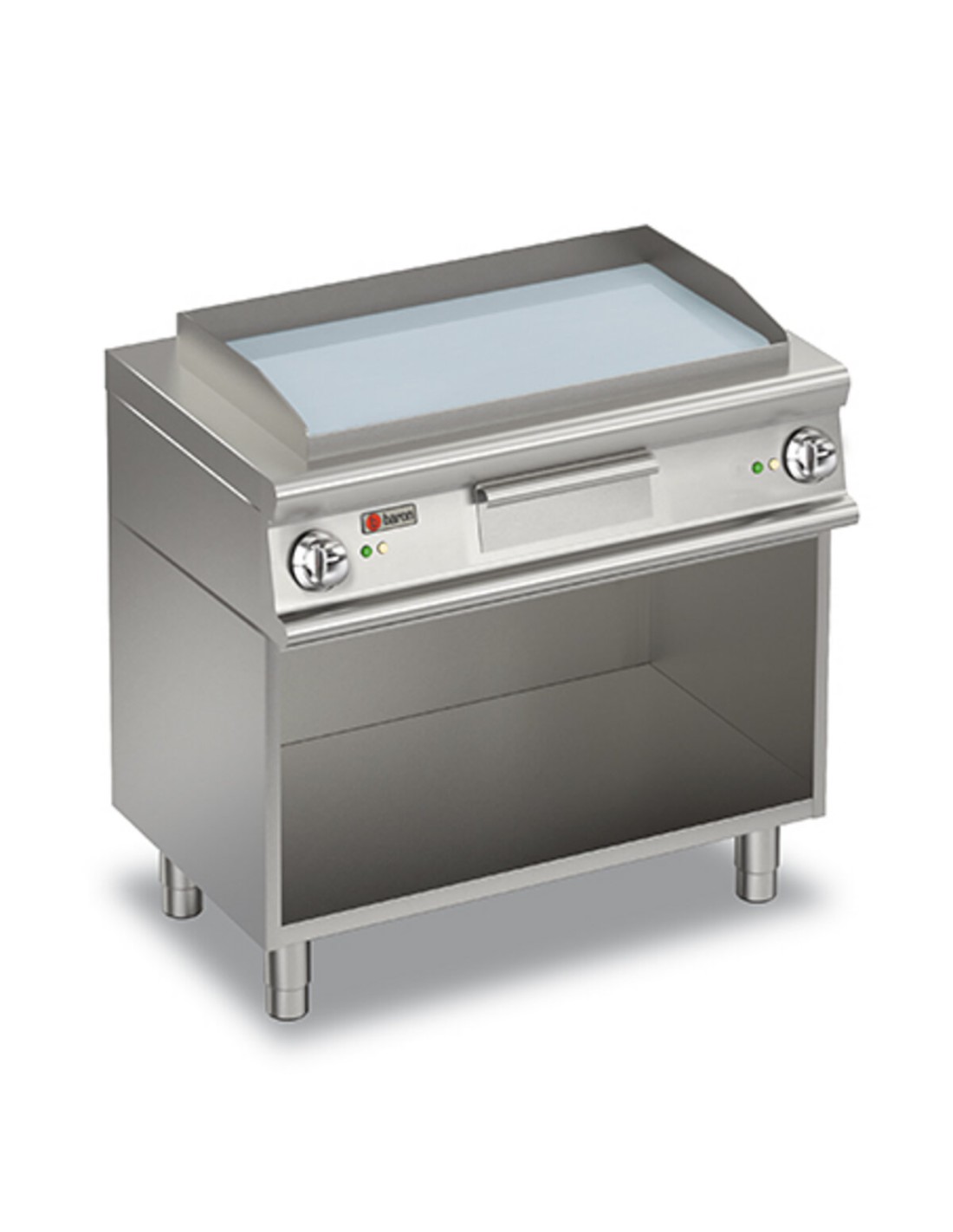

ELECTRIC FRY-TOP SMOOTH CHROME PLATE - ON CABINET


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
N550FTV/E905
CR1010869

Data sheet

Model
N550FTV/E905
Code
CR1010869
Material type
ZPF
Definition
N550FTV/E905 FTE LISCIO CROM. M90 A/G
Width
900mm
Height
870mm
Depth
550mm
Volume
0.431m3
Electrical power
10Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0782
Net weight
94Kg
Gross weight
120Kg
Voltage
400
IP grade
IPX4
Certified model
N550FTV/E905
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
650
Packaging height
1280
Packaging length
940
Alimentazione
ELETTRICA
Commercial code
N550FTV/E905
Production site
BELLUNO
Product variant
PIASTRA LISCIA
