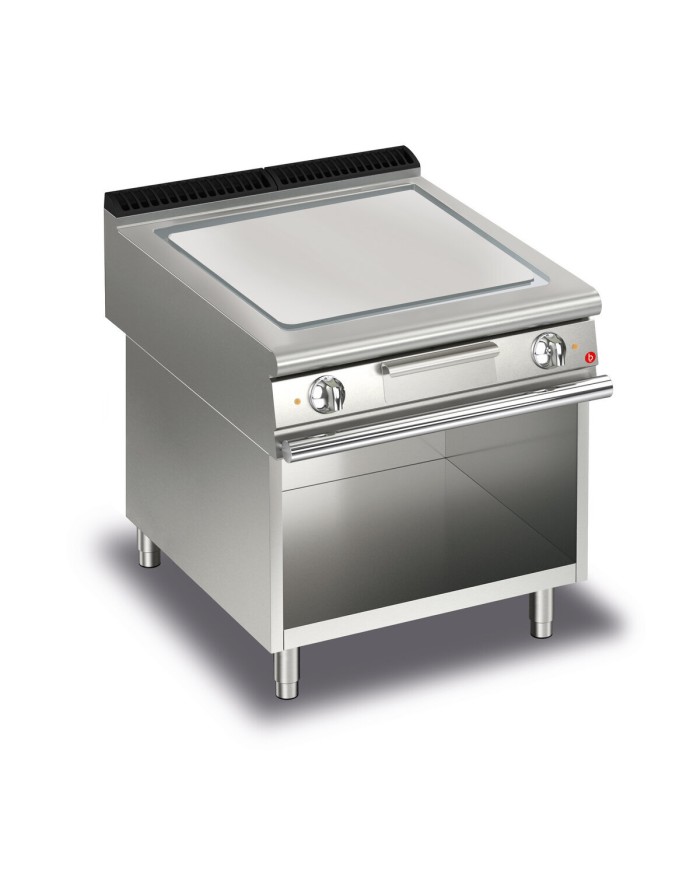

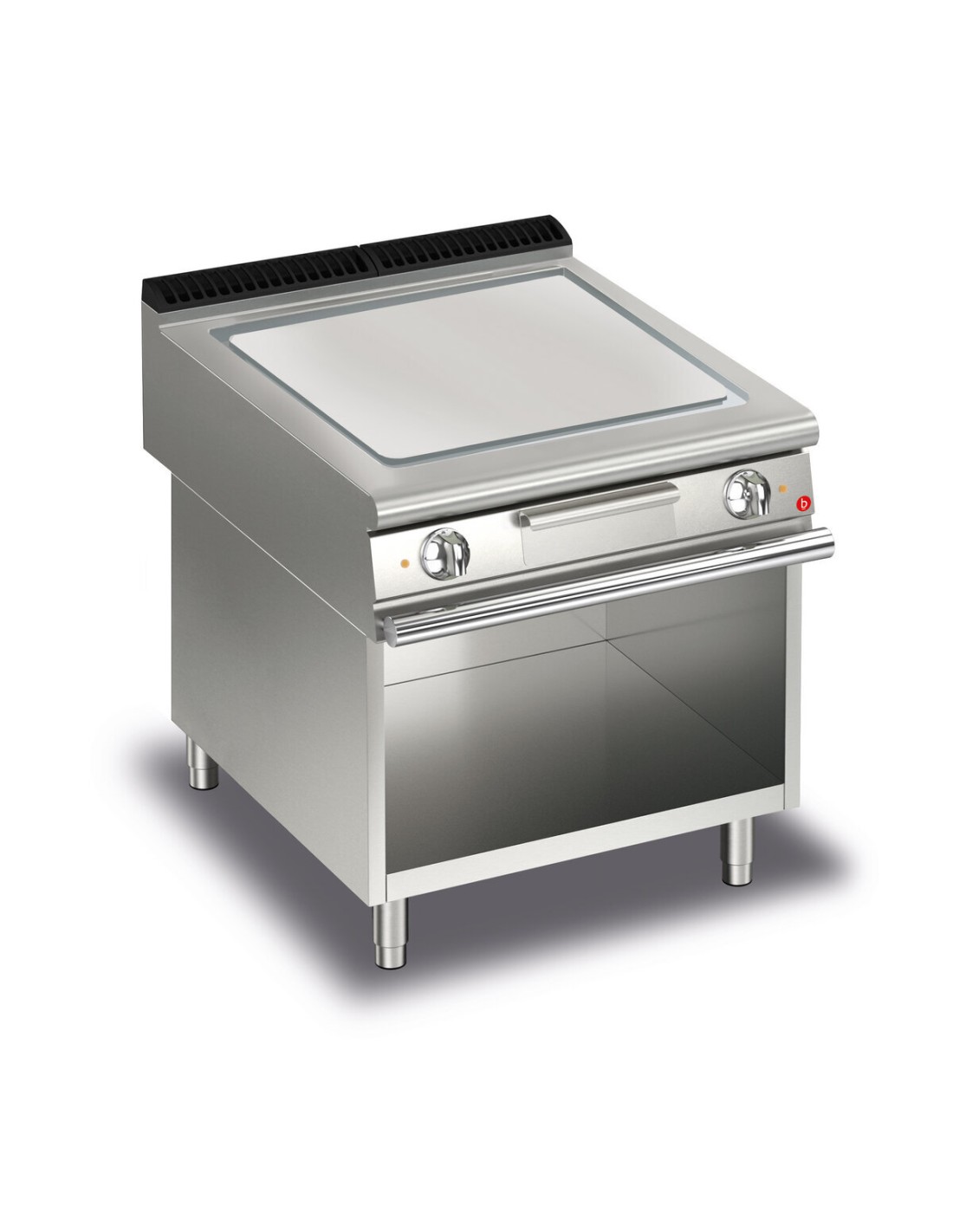

FRY TOP S Electric M80 Brushed Chrome Plate - Smooth - On thermostat compartment

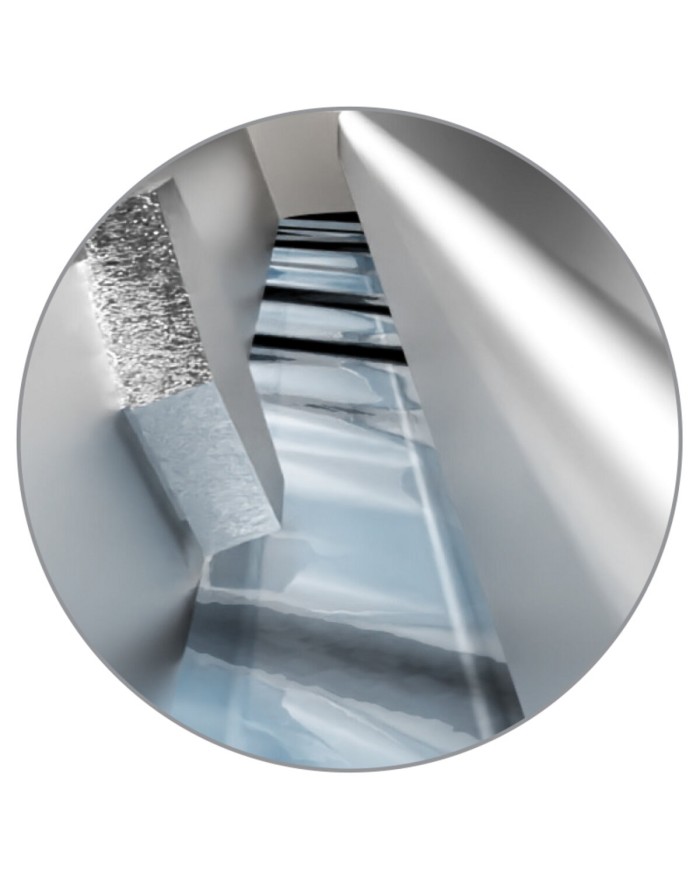

The GraphiTherm gasket, made of high-quality fiberglass and treated with graphite, withstands extreme temperatures and ensures effective sealing even in demanding conditions, protecting the fry top with safety and reliability.

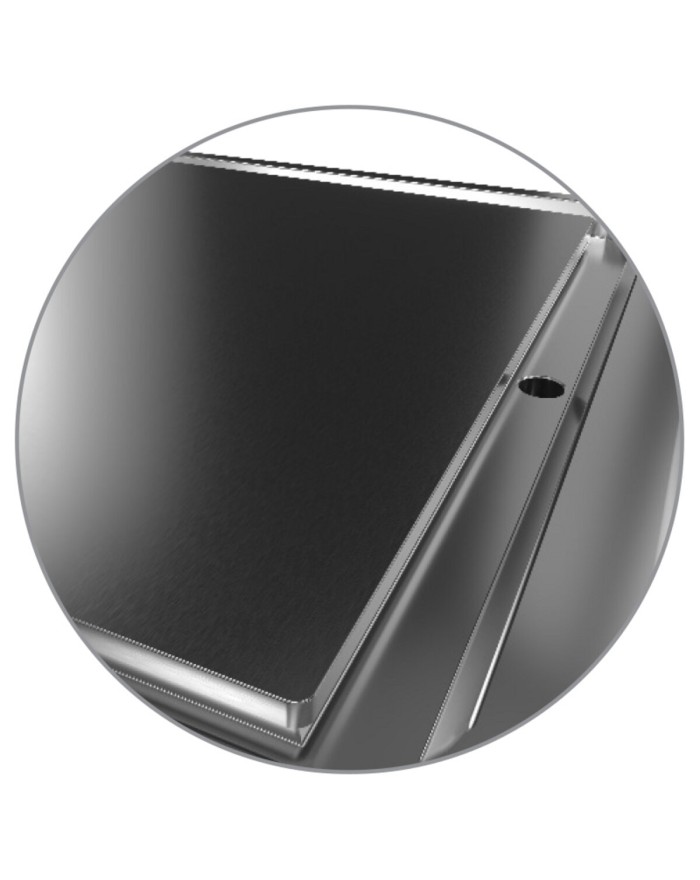

Brushed chrome plate surface designed to resist scratches and facilitate daily cleaning. complies with Regulation (EC) No. 1935/2004

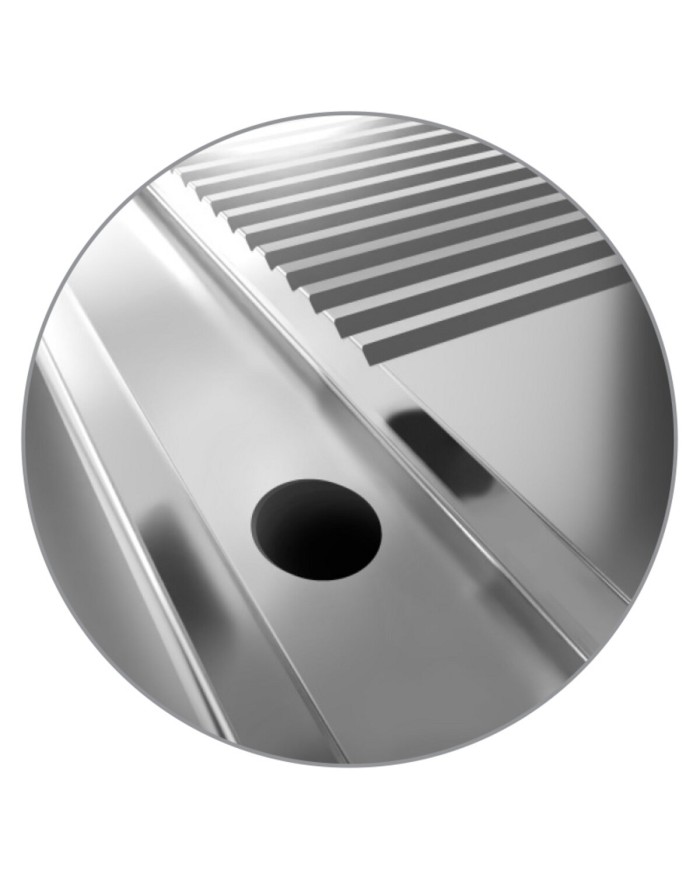

Grooved plate design ensures cleanliness right to the end of the plate

Non-welded plate to speed up maintenance and possible replacement in utilities.

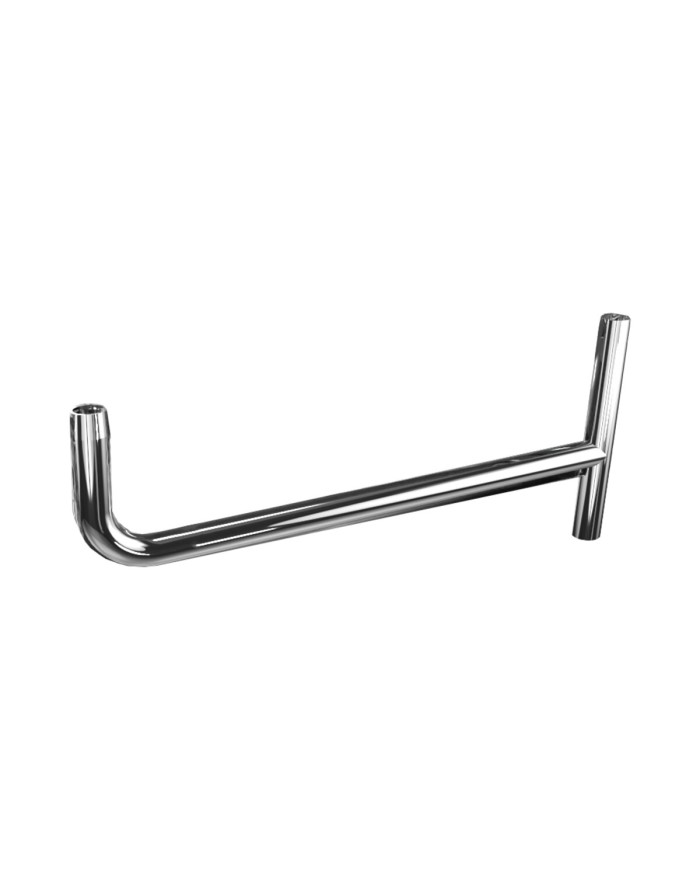

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

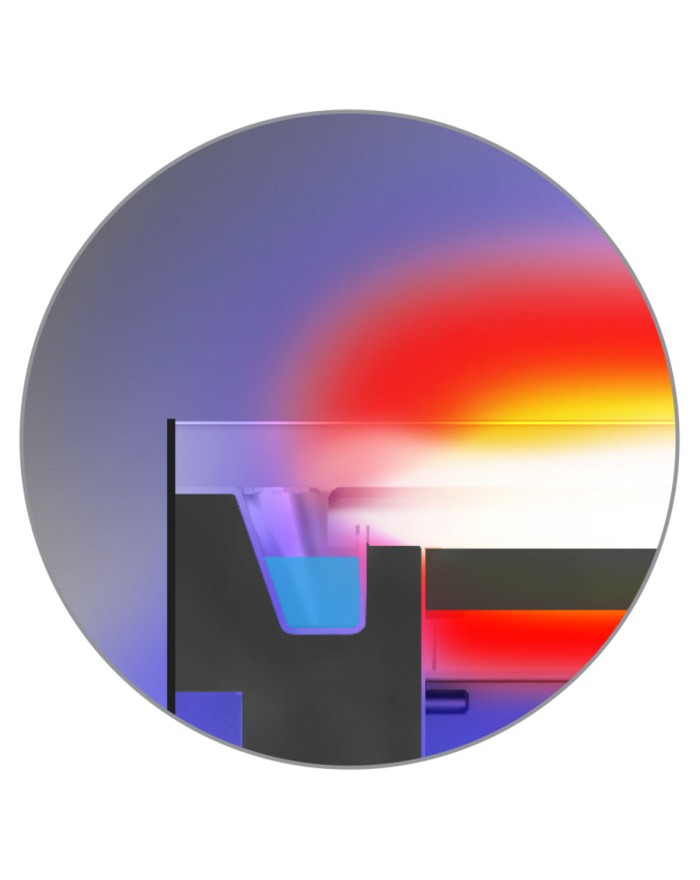

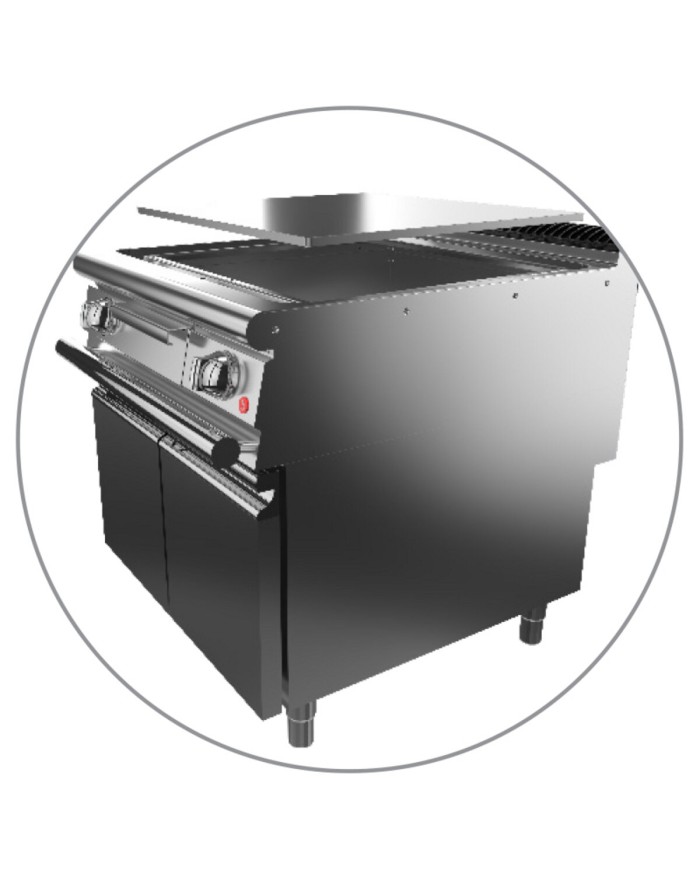

Thermal cutting that facilitates the user and adjacent machinery.

Water dispenser kit available as an accessory

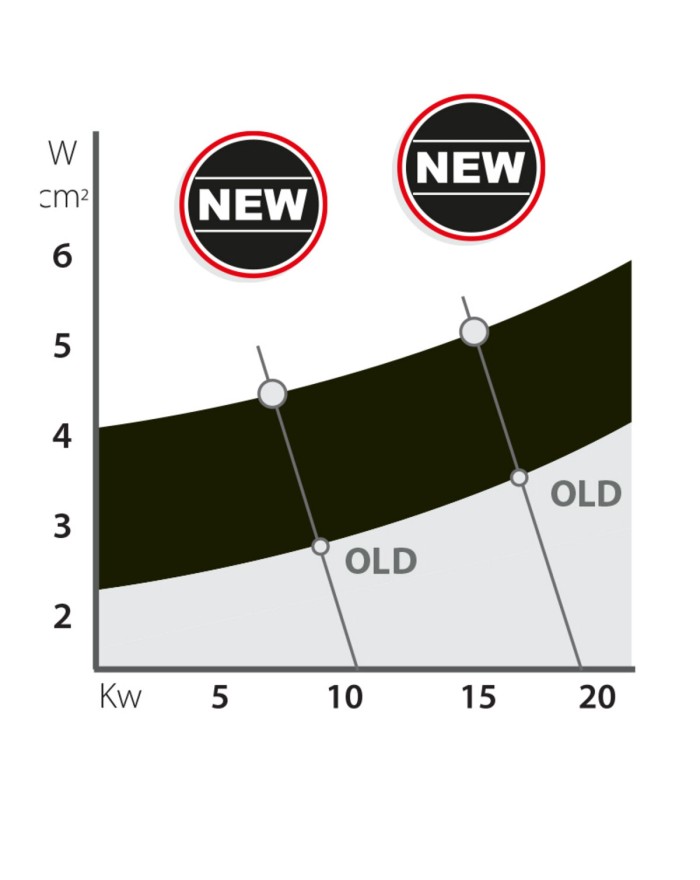

New version with identical useful cooking surface area and reduced energy output. An increase in output per cm2 that allows a reduction in consumption of up to 15% compared to conventional versions.

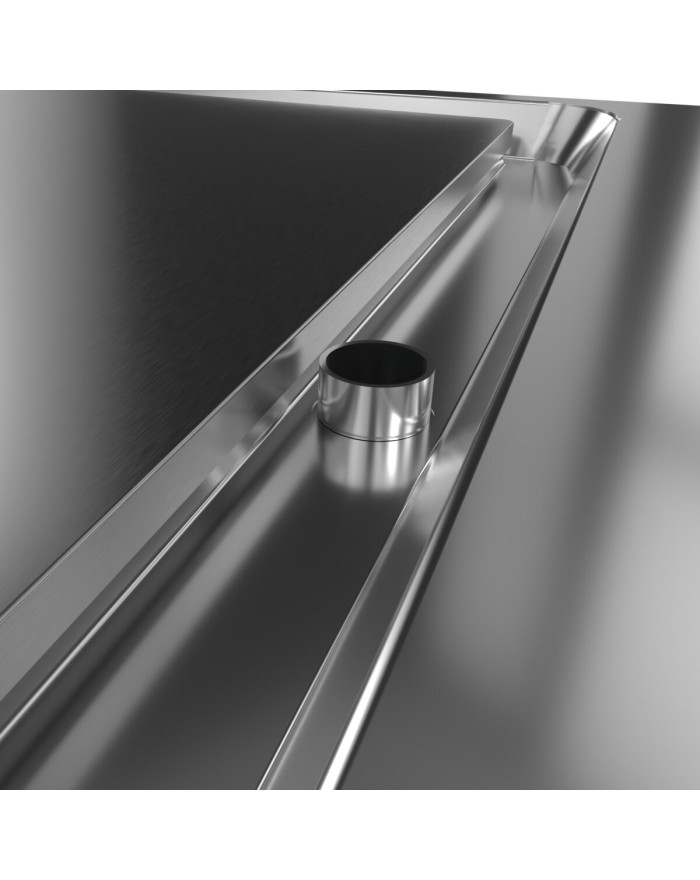

Stainless steel overflow plug provided as standard for gutter flooding management.

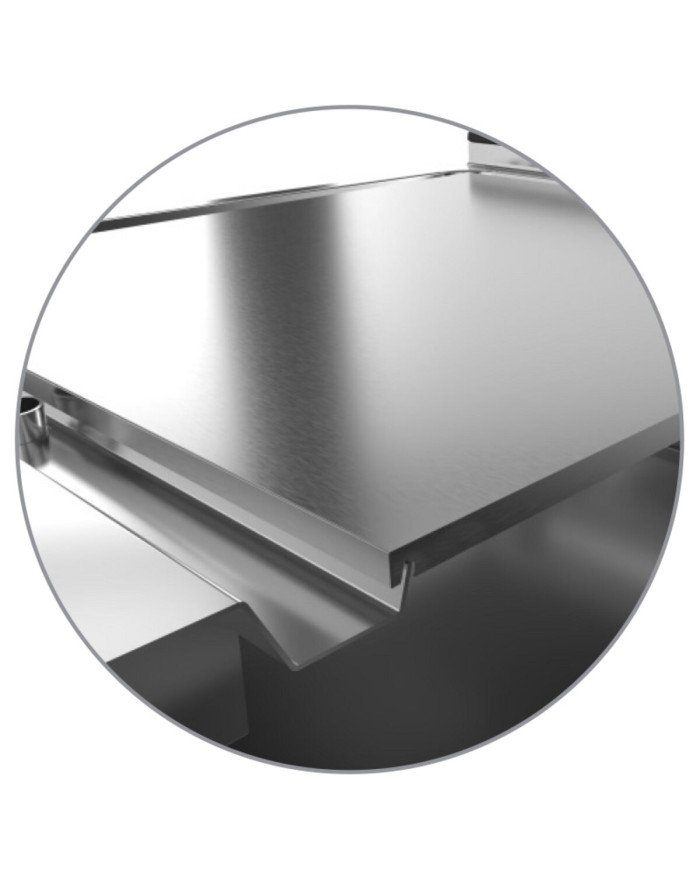

Plate not welded to the machine table with optimization of structural points subjected to thermal stress.

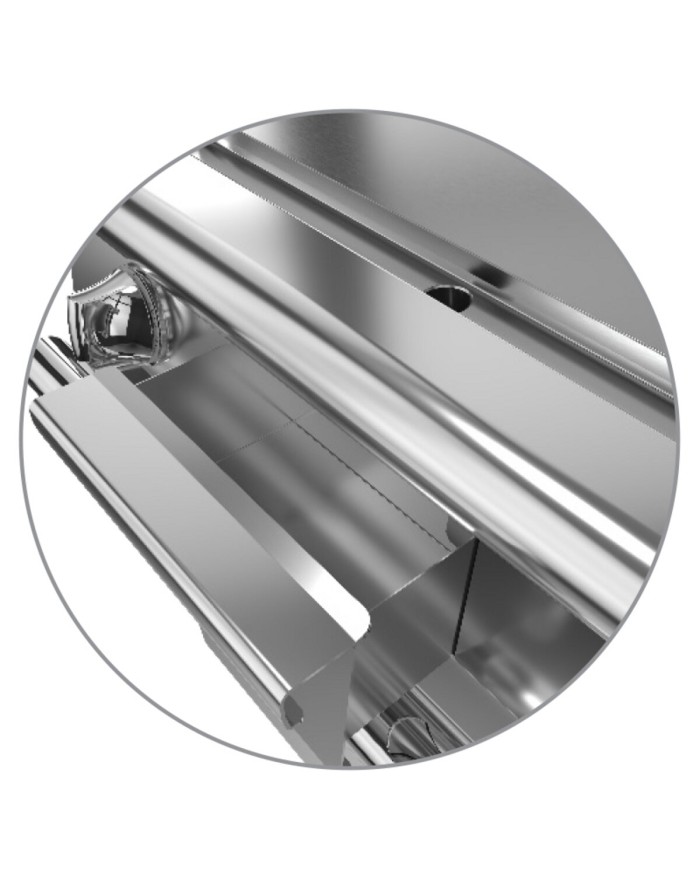

Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.

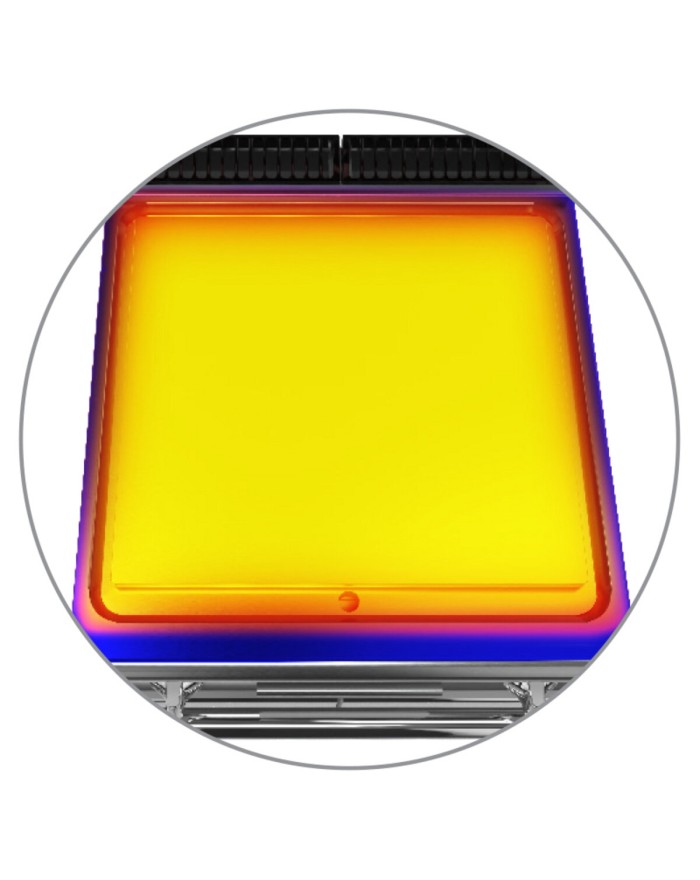

Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen.

Capacious grease collection drawer with capacity of the entire volume of the perimeter channel.
Data sheet
- Model
- Q70SFTV/E807
- CODE
- CR1770809
- Commercial code
- Q70SFTV/E807
- Material type
- ZPF
- Definition
- Q70SFTV/E807 FTE LISCIO CR40 M80 A/G
- Height
- 870mm
- Width
- 800mm
- Depth
- 700mm
- Volume
- 0.487m3
- Gross volume
- 0836
- Net weight
- 94Kg
- Gross weight
- 104.8Kg
- Production site
- BELLUNO
- Product variant
- PIASTRA LISCIA CROMATA
- Certified model
- Q70SFTV/E807
- Production start year
- 2025
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 850
- Packaging height
- 1170
- Packaging length
- 840
- Alimentazione
- ELETTRICA
- Tipo piastra
- SMOOTH
- Electrical power
- 10,800Kw
380-415V 3N - Frequency
- 50-60 HzHz
- IP grade
- IPX5
- Materiale Piastra
- SOLID CHROME
- Controllo
- THERMOSTATATE
Specific References
- mpn
- Q70SFTV/E807
