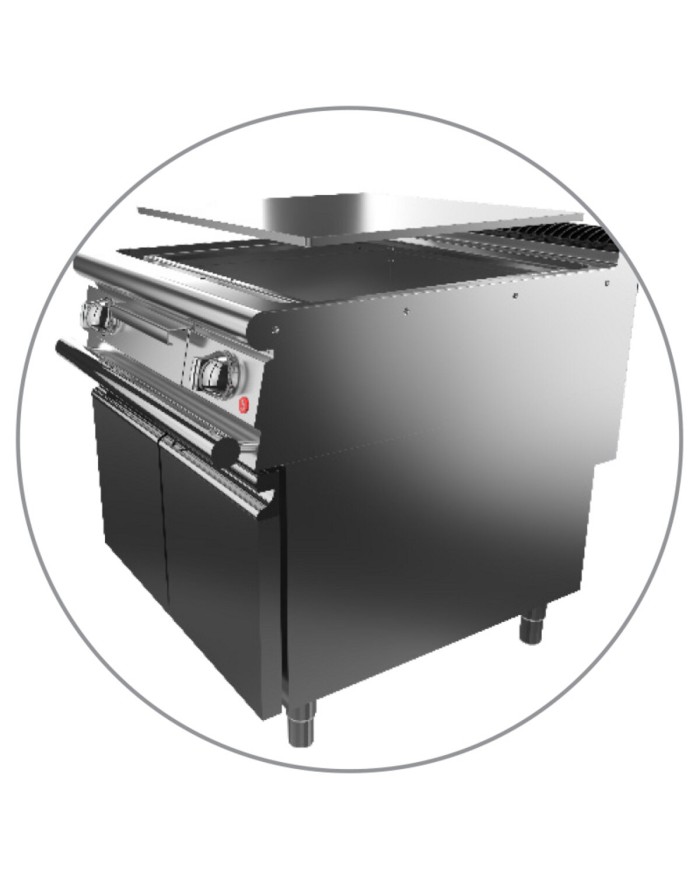

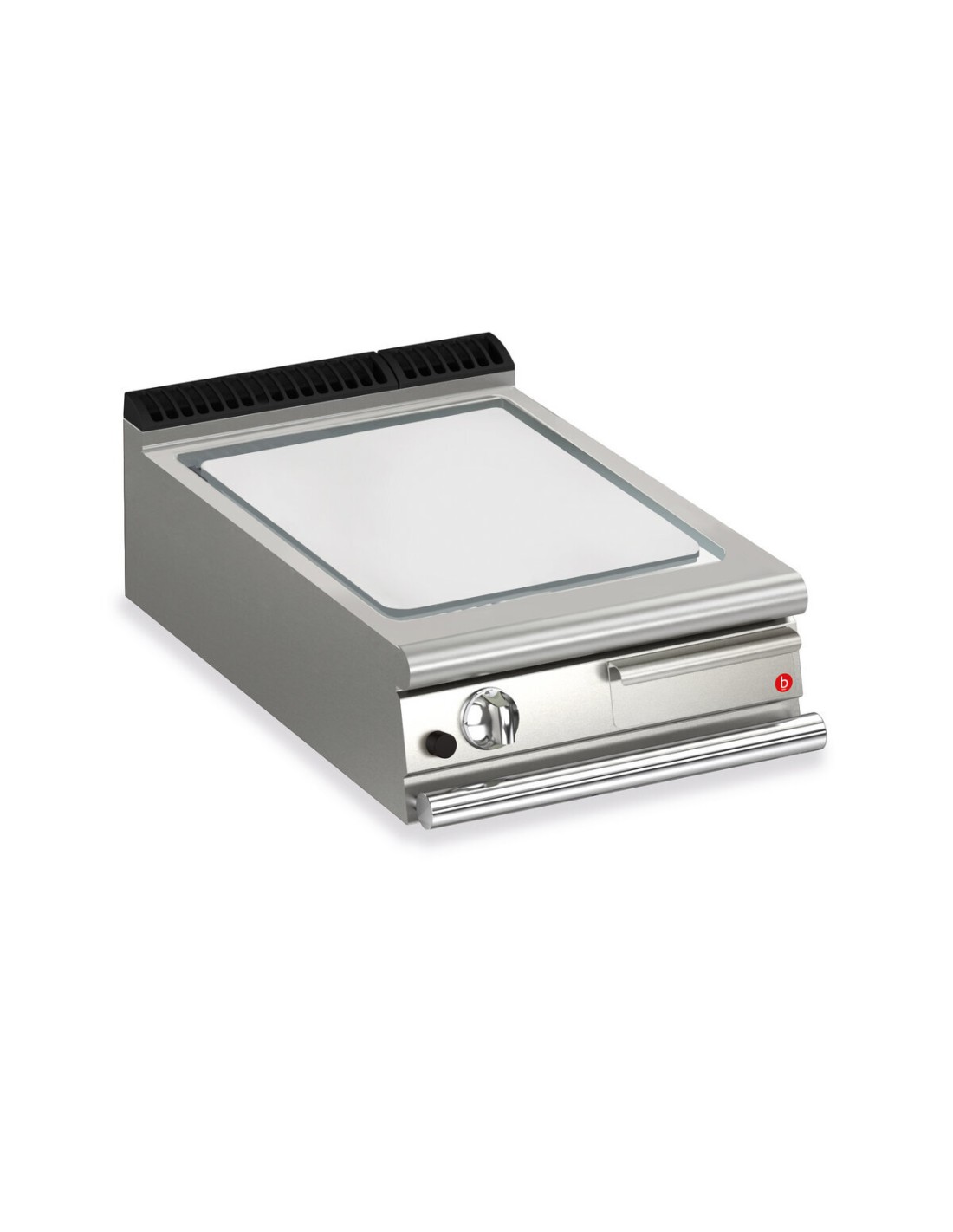

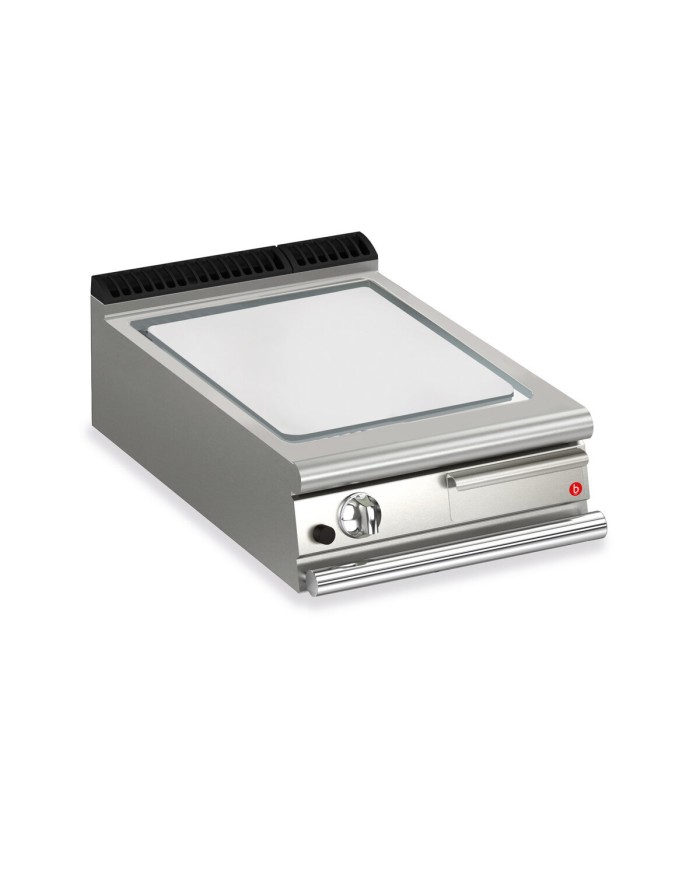

FRY TOP S GAS M60 Chrome Plate - 1/3 RIBBED - Thermostated Top Version
Fry Top: 15mm thick cooking plate, fully independent from the surface. It features a wide, drainable channel around the entire perimeter of the plate to collect cooking residues, sloped towards the front for liquid drainage into a large grease collection drawer. The plate is not welded, allowing for quicker maintenance and potential replacements on-site. It ensures thermal uniformity, with a thermal cut that benefits both the user and adjacent machinery, reducing energy consumption by 15% compared to traditional models.
Data Sheet
DWG-3D
Pictures
Fry Top: 15mm thick cooking plate, fully independent from the surface. It features a wide, drainable channel around the entire perimeter of the plate to collect cooking residues, sloped towards the front for liquid drainage into a large grease collection drawer. The plate is not welded, allowing for quicker maintenance and potential replacements on-site. It ensures thermal uniformity, with a thermal cut that benefits both the user and adjacent machinery, reducing energy consumption by 15% compared to traditional models.Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Baking plate 15 mm thick totally independent of the top.
Large floodable channel around the perimeter of the hotplate for collecting cooking residues, sloping towards the front for draining liquids into the large drawer.
Firing plates made with satin-finished surface and surface coated with soft iron, AISI430 steel, or polished hard chrome, all available in smooth, mixed, or ribbed versions.
Large grease collection drawer.
Module sizes: 40,60,80
In the 120-width modules, the cooking plate is lowered from the top by 40 mm and tilted 10 mm toward the front of the machine.
Gas version: tubular burner with self-stabilized flame with great uniformity of heat distribution.
Temperature regulation by modulating tap (temperature above 300°C) or thermostatic safety valve with thermocouple (90-280°C).
Large fat collection drawer with capacity of the entire volume of the perimeter channel Grooved plate design ensures cleanliness right to the end of the plate Plate not welded to the machine bed with optimisation of structural points under thermal stress Plate not welded to the machine bed with optimisation of structural points under thermal stress Thermal cutting that facilitates the user and adjacent machinery. Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen. Water dispenser kit available as an accessory
The GraphiTherm gasket, made of high-quality fiberglass and treated with graphite, withstands extreme temperatures and ensures effective sealing even in demanding conditions, protecting the fry top with safety and reliability.

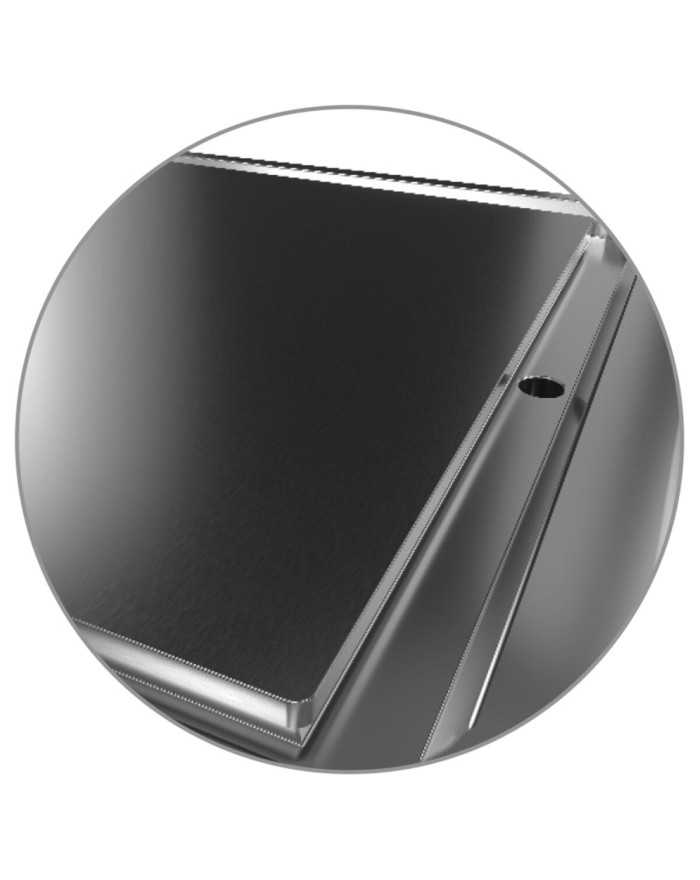

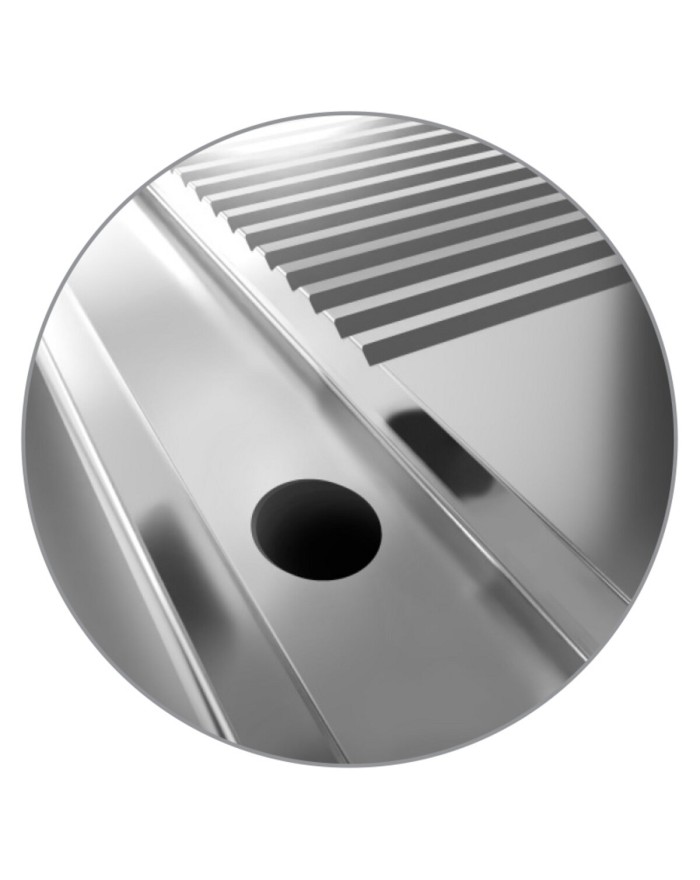

Grooved plate design ensures cleanliness right to the end of the plate
Non-welded plate to speed up maintenance and possible replacement in utilities.

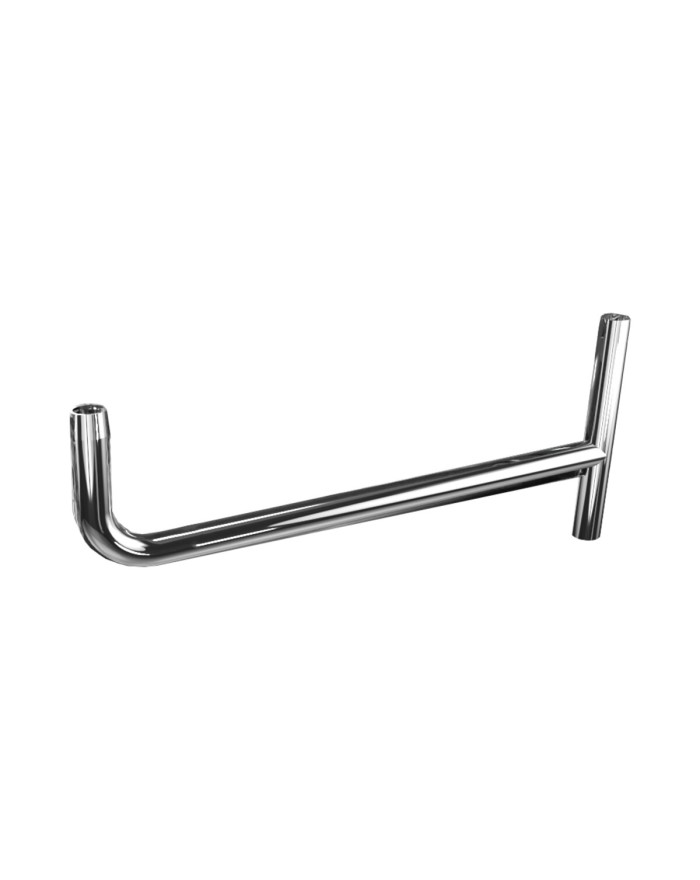

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

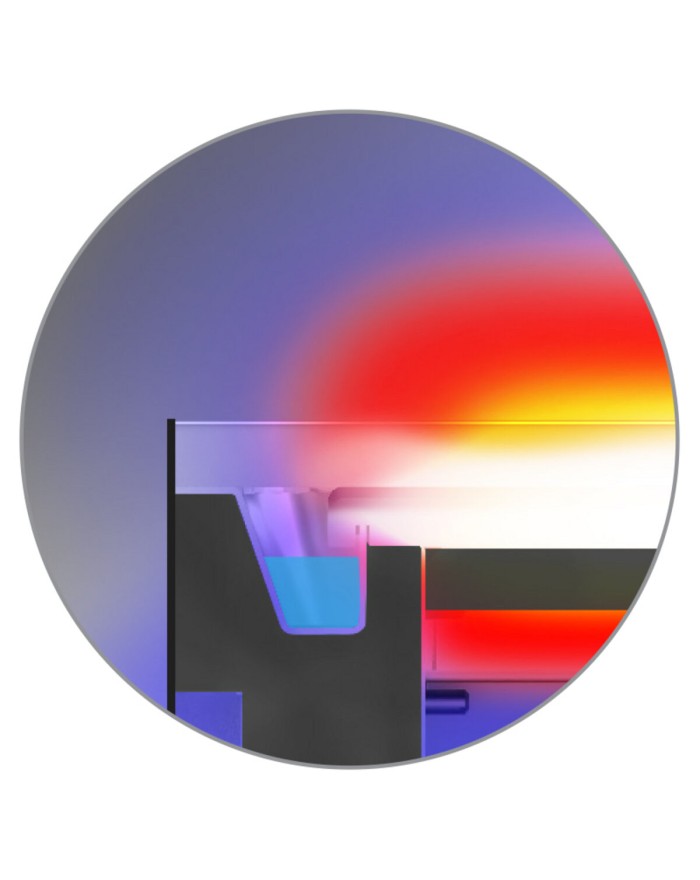

Thermal cutting that facilitates the user and adjacent machinery.
Water dispenser kit available as an accessory

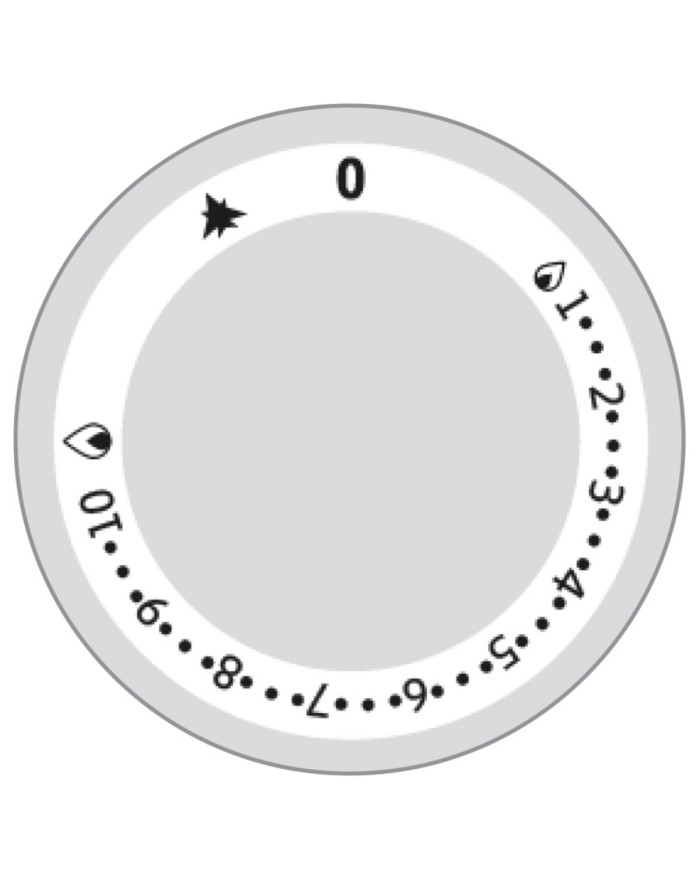

In the tap versions, the power is regulated by a Type 22PP enhanced flow tap that can be modulated for continuous operation to adapt the heat of the hotplate according to the type of cooking.

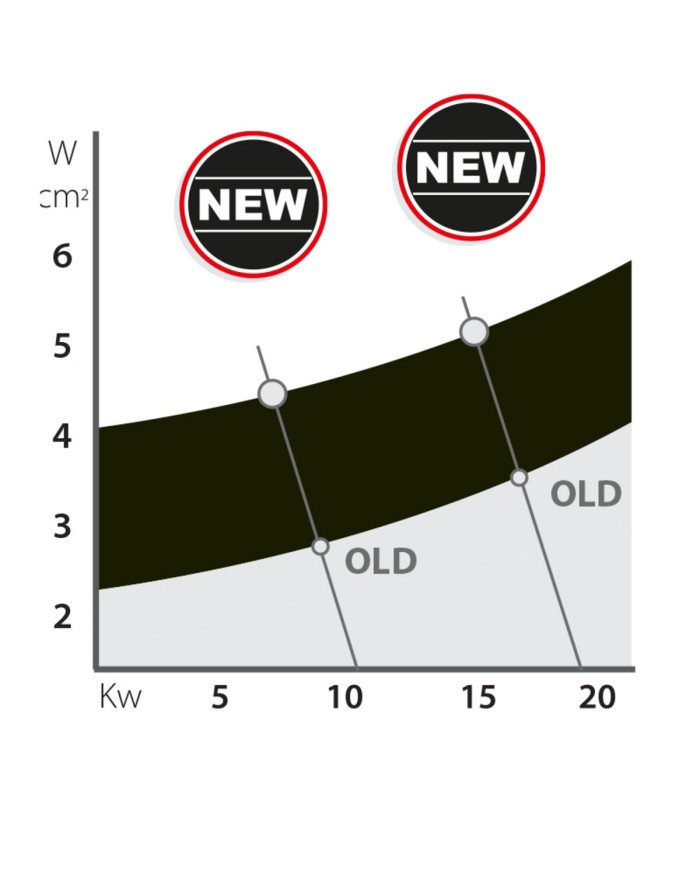

New version with identical useful cooking surface area and reduced energy output. An increase in output per cm2 that allows a reduction in consumption of up to 15% compared to conventional versions.

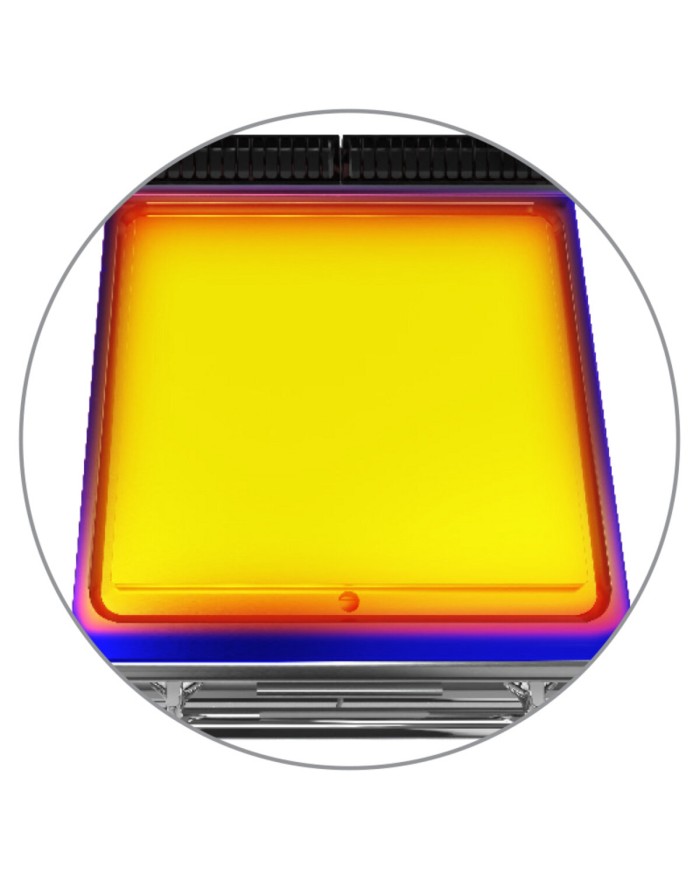

Uniform cooking temperature across the entire plate. Optimizing heat in the cooking area by increasing the comfort of operators in the kitchen.

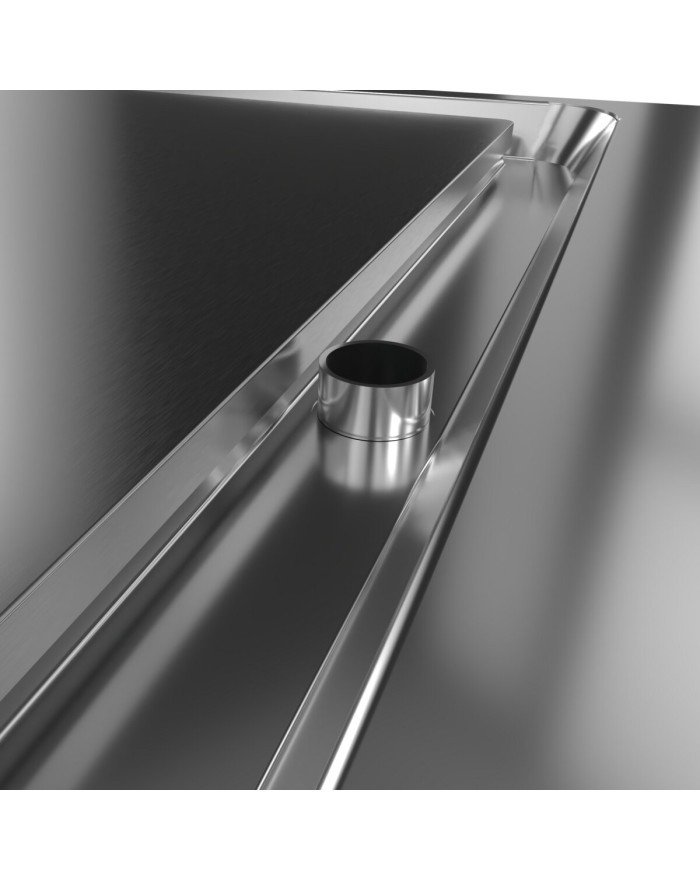

Stainless steel overflow plug provided as standard for gutter flooding management.

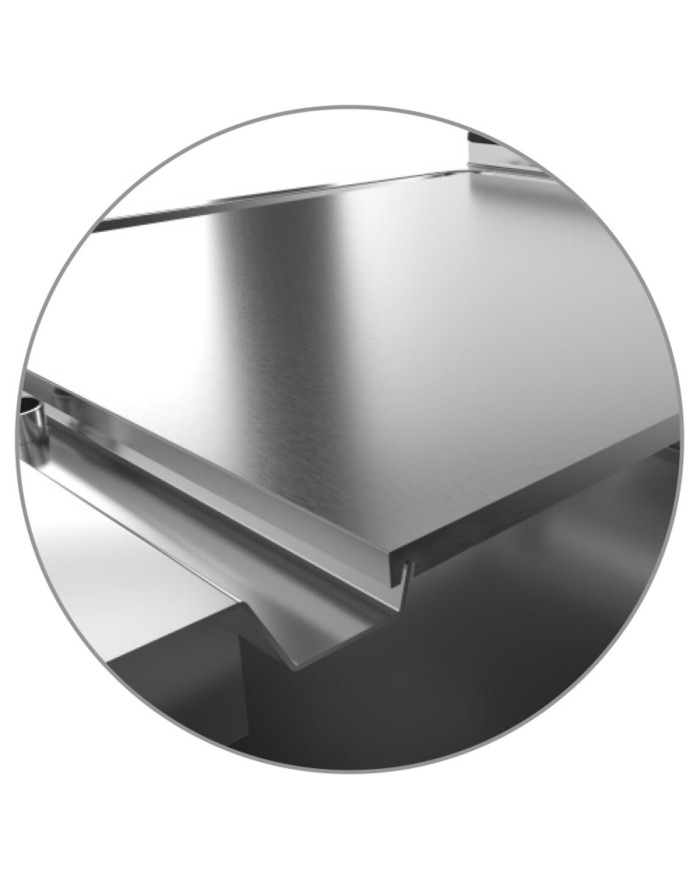

Plate not welded to the machine table with optimization of structural points subjected to thermal stress.

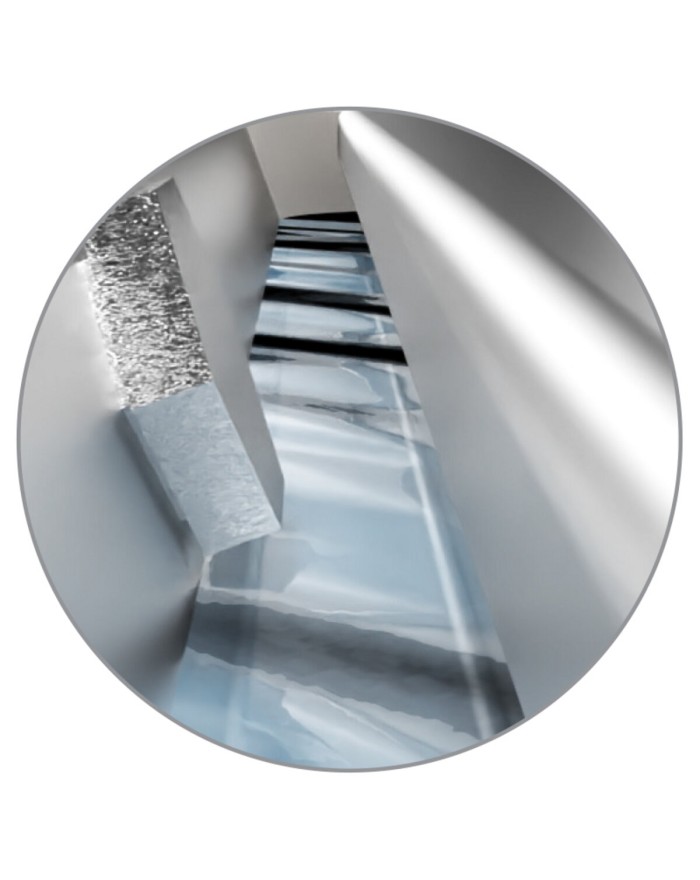

Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.
In thermostat versions, the temperature of the hotplate can be adjusted from 90 to 280 °C to optimize consumption and adapt to the most delicate cooking.

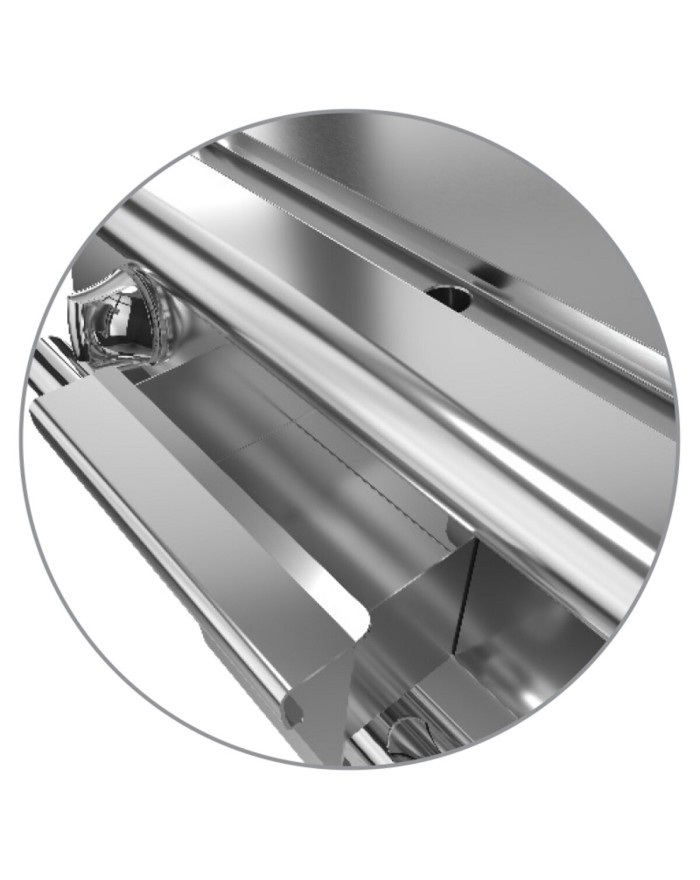

Large fat collection drawer with capacity of the entire volume of the perimeter channel
Q70SFTT/G625
CR1652969 - Standard Standard
Data sheet
- Height
- 250mm
- Commercial Line
- QUEEN
- Volume
- 0.105m3
- Packaging width
- 850
- Gas power Kw
- 9,00Kw
- Packaging height
- 550
- Gas power (G25.3/25 mbar)
- 9,00Kw
- Width
- 600mm
- Gas power Kcal
- 7740Kcal
- Packaging length
- 640
- Gross volume
- 0300
- PROMO
- READY
- Net weight
- 22Kg
- Alimentazione
- GAS
- Gross weight
- 29Kg
- Tipo piastra
- 1/3RIBBED
- Production site
- BELLUNO
- Materiale Piastra
- CHROME
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Product variant
- PIASTRA LISCIA/RIGATA CROMATA
- III1a2H3B-P
- DK/SE
- Model
- Q70SFTT/G625
- Chimney type
- A1
- Plate size
- 505 x 490 mm
- Controllo
- THERMOSTATATE
- CODE
- CR1652969
- Certified model
- 70SFTT/G6
- Commercial code
- Q70SFTT/G625
- CE-certified
- CE-0051DN5080
- Material type
- ZPF
- Production start year
- 2022
- Definition
- Q70SFTT/G625 FTG 1/3RC M60 TOP
- Product type
- STANDARD
- Depth
- 700mm
- Company
- 0232
Specific References
- mpn
- Q70SFTT/G625
