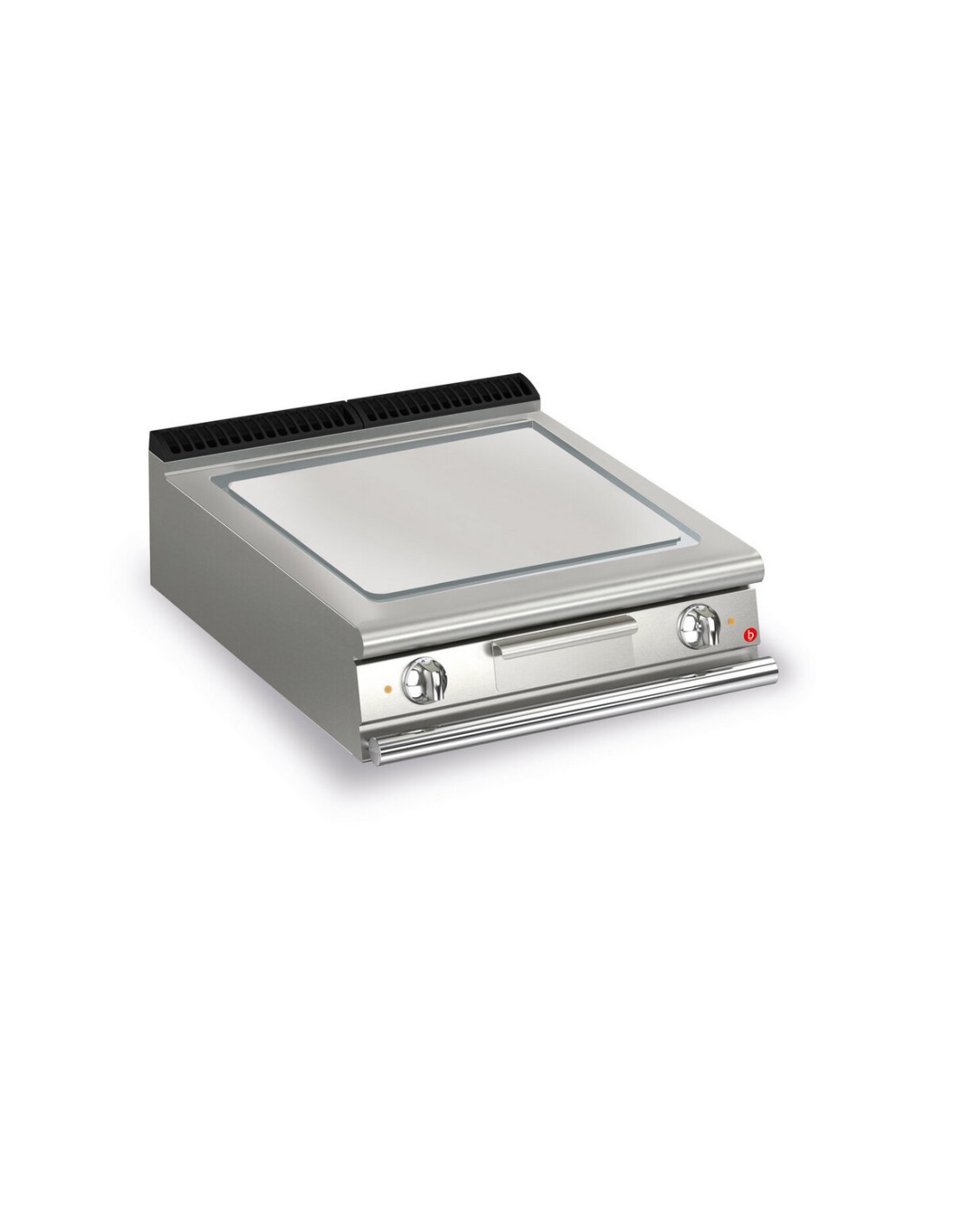

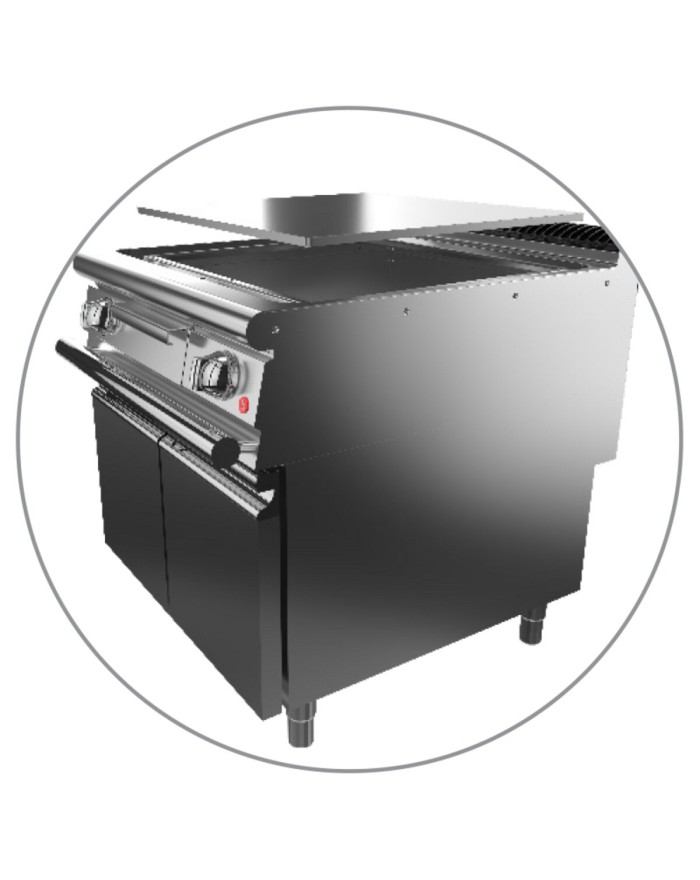

FRY TOP S Electric M80 AISI Plate - 1/3 RIBBED - Thermostat Top Version

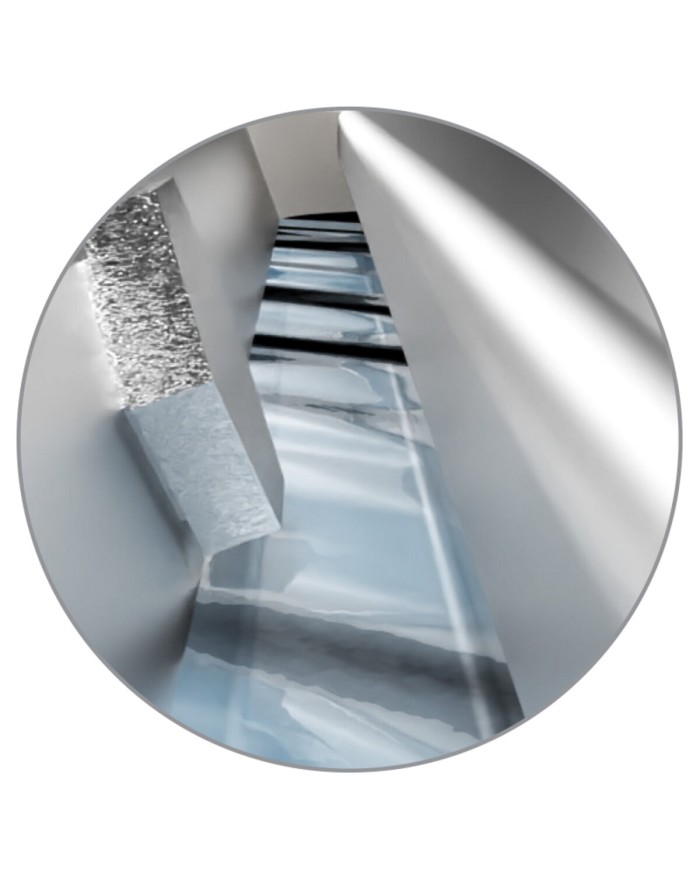

The GraphiTherm gasket, made of high-quality fiberglass and treated with graphite, withstands extreme temperatures and ensures effective sealing even in demanding conditions, protecting the fry top with safety and reliability.

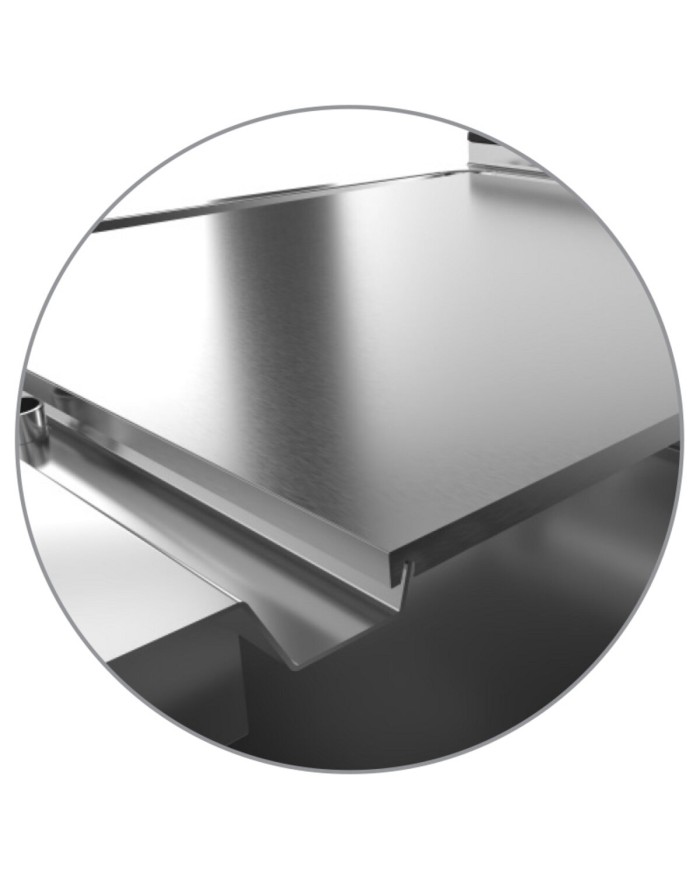

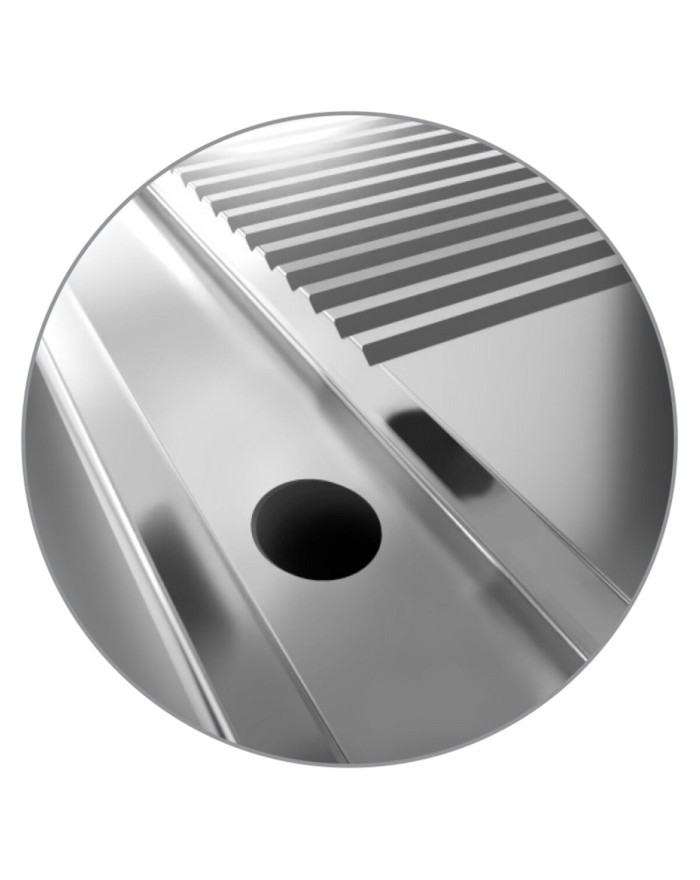

Grooved plate design ensures cleanliness right to the end of the plate

Non-welded plate to speed up maintenance and possible replacement in utilities.

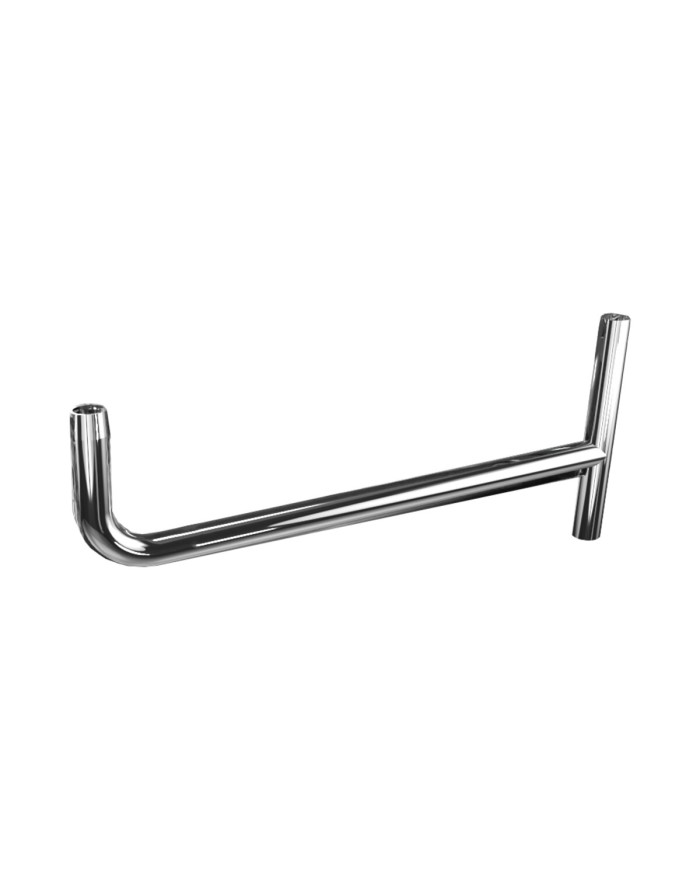

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

Thermal cutting that facilitates the user and adjacent machinery.

Water dispenser kit available as an accessory

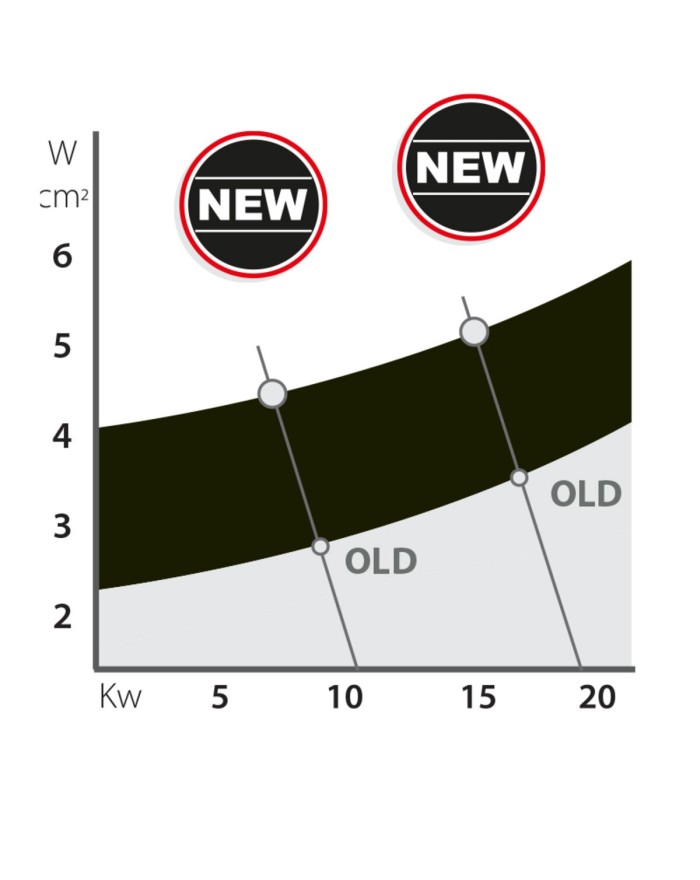

New version with identical useful cooking surface area and reduced energy output. An increase in output per cm2 that allows a reduction in consumption of up to 15% compared to conventional versions.

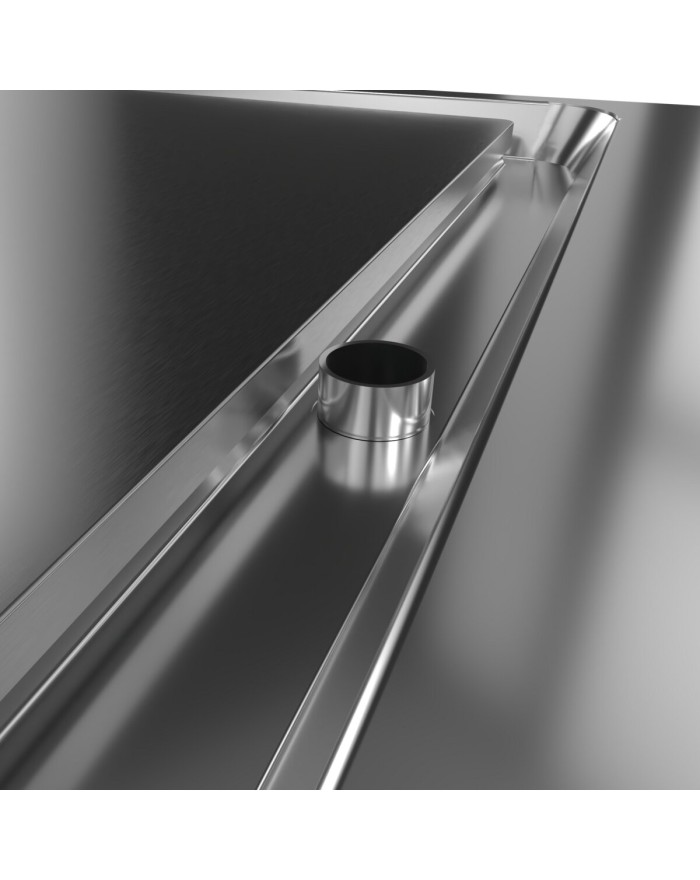

Stainless steel overflow plug provided as standard for gutter flooding management.

Plate not welded to the machine table with optimization of structural points subjected to thermal stress.

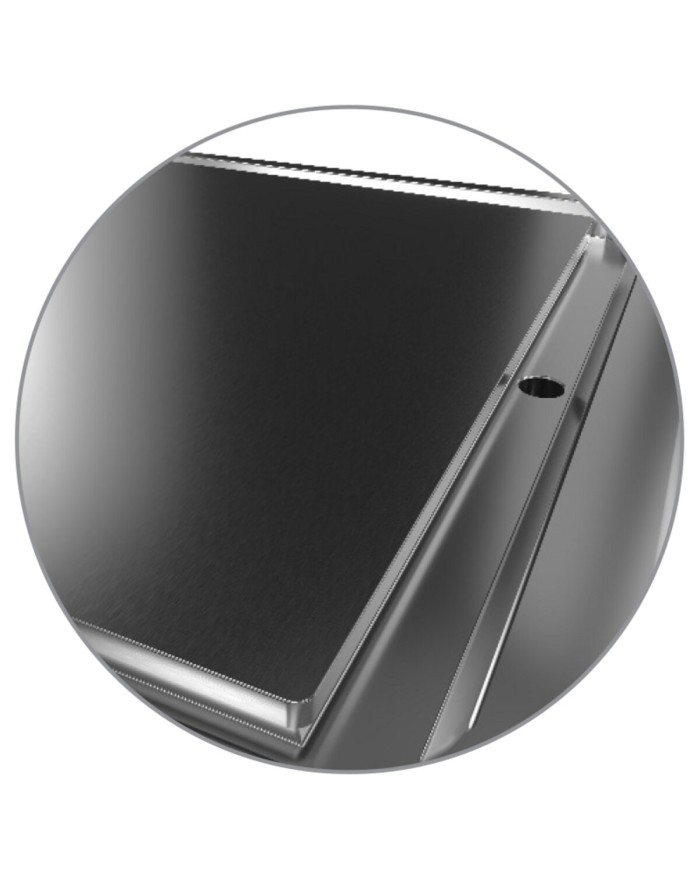

Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.

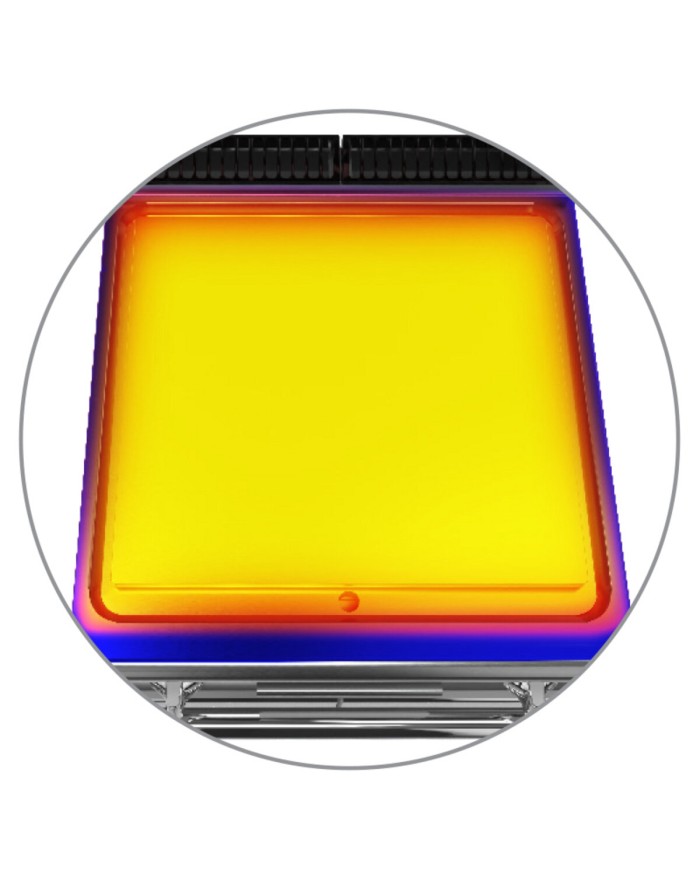

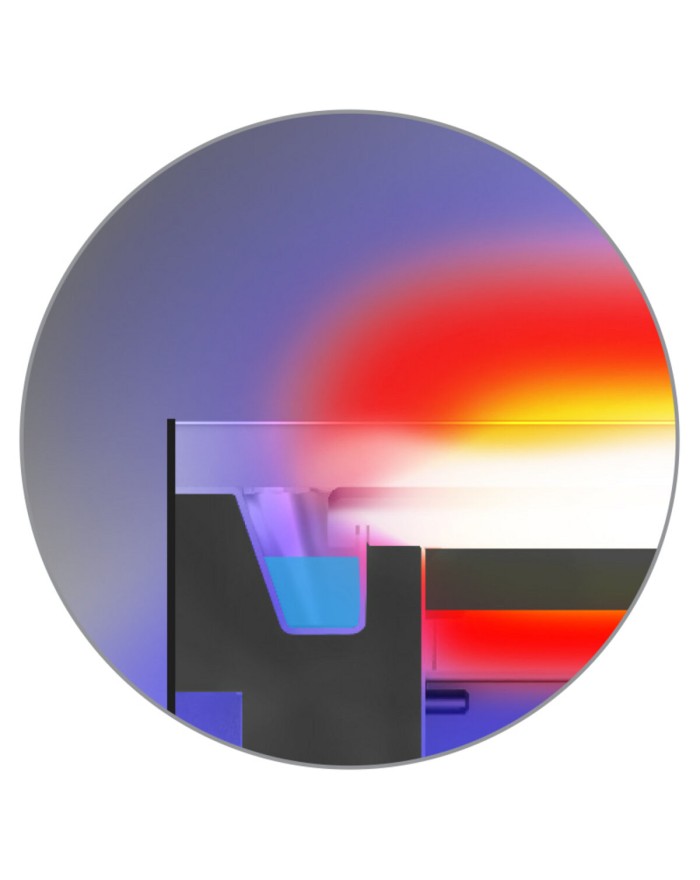

Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen.

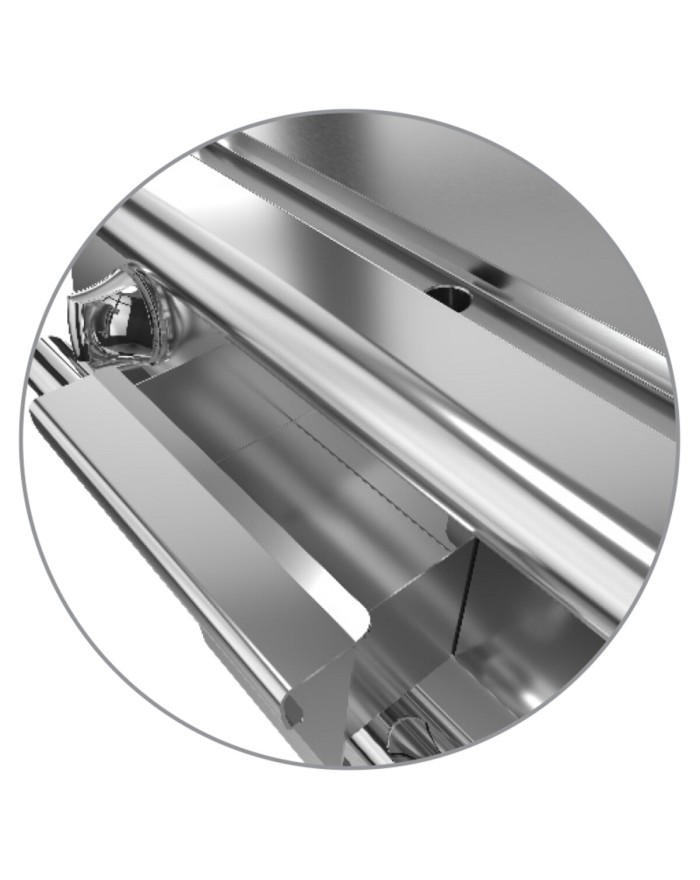

Capacious grease collection drawer with capacity of the entire volume of the perimeter channel.
Data sheet
- Production site
- BELLUNO
- Electrical power
- 10,800Kw
380-415V 3N - Product variant
- PIASTRA LISCIA /RIGATA
- IP grade
- IPX5
- Certified model
- Q70SFT/E823
- Materiale Piastra
- AISI430
- Production start year
- 2022
- Plate size
- 705 x 490 mm
- Product type
- STANDARD
- RATED CURRENT
- 16,40(A)
- Model
- Q70SFT/E823
- Company
- 0232
- Controllo
- THERMOSTATATE
- CODE
- CR1653799
- Commercial Line
- QUEEN
- Commercial code
- Q70SFT/E823
- Packaging width
- 850
- Material type
- ZPF
- Packaging height
- 550
- Definition
- Q70SFT/E823 FTE 1/3R 430 M80 TOP
- Width
- 800mm
- Depth
- 700mm
- Packaging length
- 840
- Height
- 250mm
- PROMO
- READY
- Volume
- 0.14m3
- Alimentazione
- ELETTRICA
- Gross volume
- 0396
- Tipo piastra
- 1/3RIBBED
- Net weight
- 77Kg
- Gross weight
- 87Kg
- Frequency
- 50-60 HzHz
Specific References
- mpn
- Q70SFT/E823
