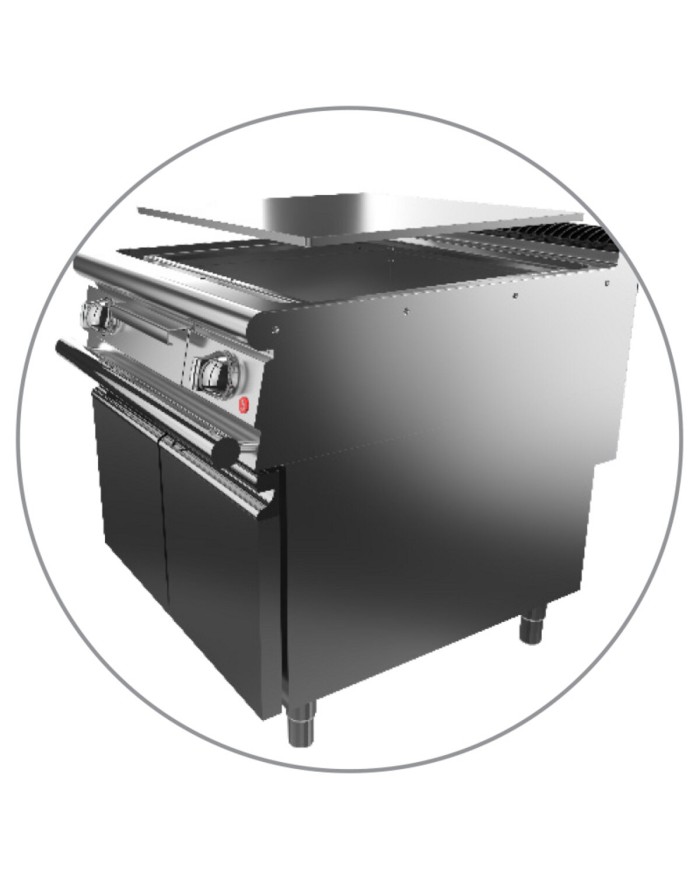

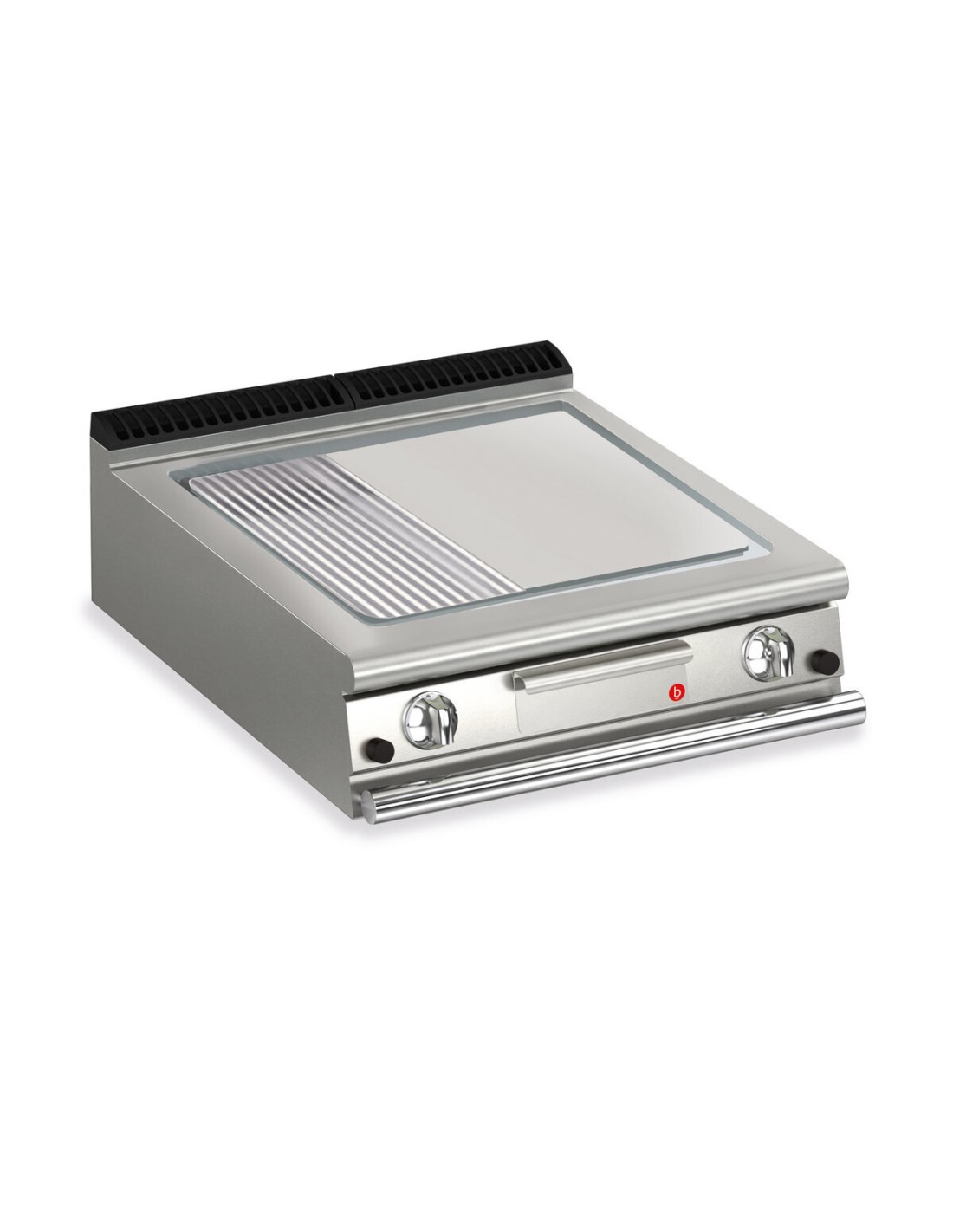

FRY TOP S GAS M80 Chrome Plate - 1/3 RIBBED - Top Version - Thermostat
Fry Top: 15mm thick cooking plate, fully independent from the surface. It features a wide, drainable channel around the entire perimeter of the plate to collect cooking residues, sloped towards the front for liquid drainage into a large grease collection drawer. The plate is not welded, allowing for quicker maintenance and potential replacements on-site. It ensures thermal uniformity, with a thermal cut that benefits both the user and adjacent machinery, reducing energy consumption by 15% compared to traditional models.
CR1654279_it.pdfDWG-3D
CR1654279-3R.dwgPictures
CR1654279.jpgFry Top: 15mm thick cooking plate, fully independent from the surface. It features a wide, drainable channel around the entire perimeter of the plate to collect cooking residues, sloped towards the front for liquid drainage into a large grease collection drawer. The plate is not welded, allowing for quicker maintenance and potential replacements on-site. It ensures thermal uniformity, with a thermal cut that benefits both the user and adjacent machinery, reducing energy consumption by 15% compared to traditional models.Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Baking plate 15 mm thick totally independent of the top.
Large floodable channel around the perimeter of the hotplate for collecting cooking residues, sloping towards the front for draining liquids into the large drawer.
Firing plates made with satin-finished surface and surface coated with soft iron, AISI430 steel, or polished hard chrome, all available in smooth, mixed, or ribbed versions.
Large grease collection drawer.
Module sizes: 40,60,80
In the 120-width modules, the cooking plate is lowered from the top by 40 mm sloping 10 mm toward the front of the machine.
Gas version: tubular burner with self-stabilized flame with great uniformity of heat distribution.
Temperature regulation by modulating tap (temperature above 300°C) or thermostatic safety valve with thermocouple (90-280°C).

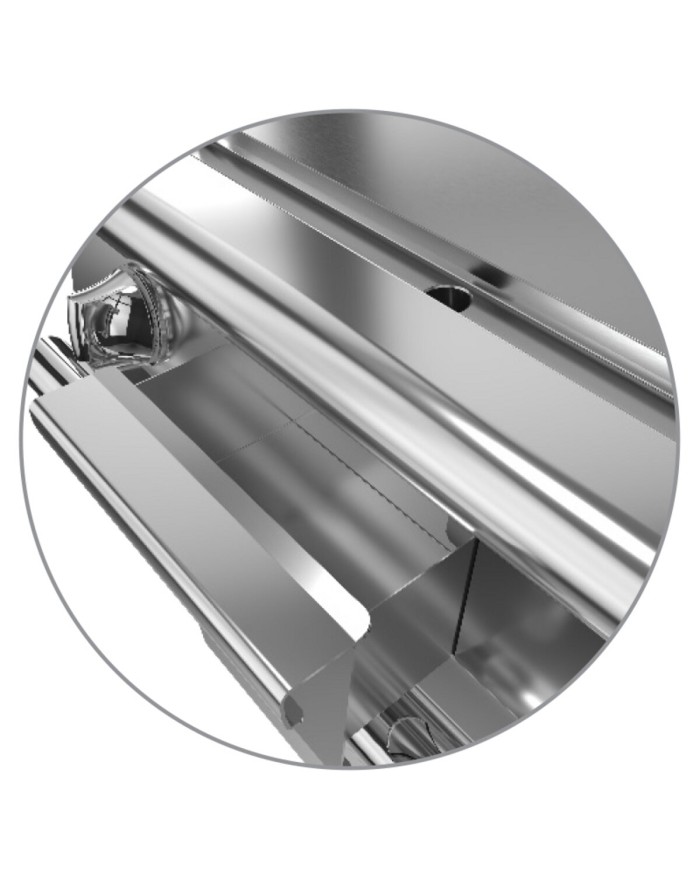

Large fat collection drawer with capacity of the entire volume of the perimeter channel Grooved plate design ensures cleanliness right to the end of the plate Plate not welded to the machine bed with optimisation of structural points under thermal stress Plate not welded to the machine bed with optimisation of structural points under thermal stress Thermal cutting that facilitates the user and adjacent machinery. Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen. Water dispenser kit available as an accessory

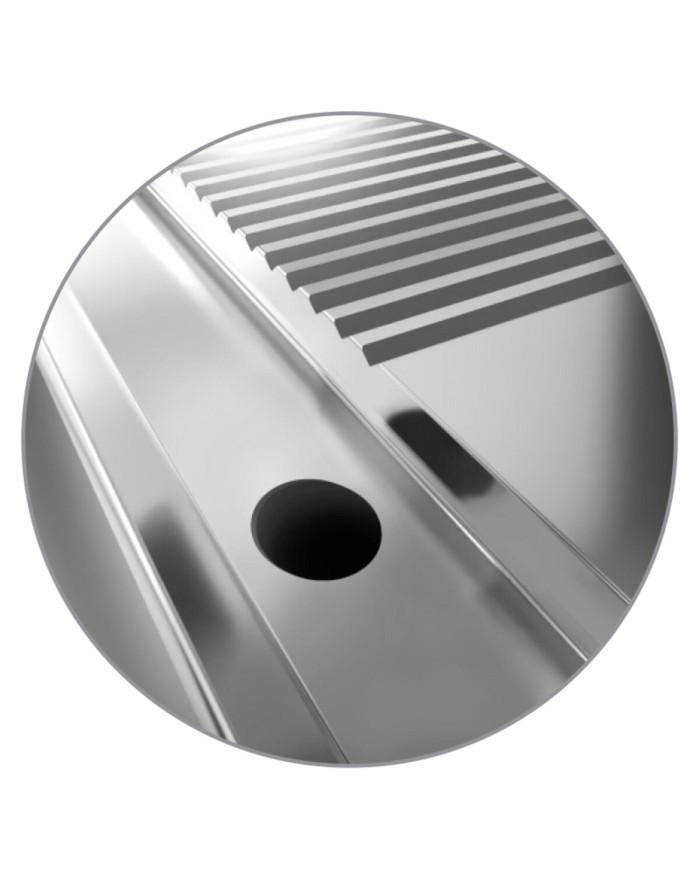

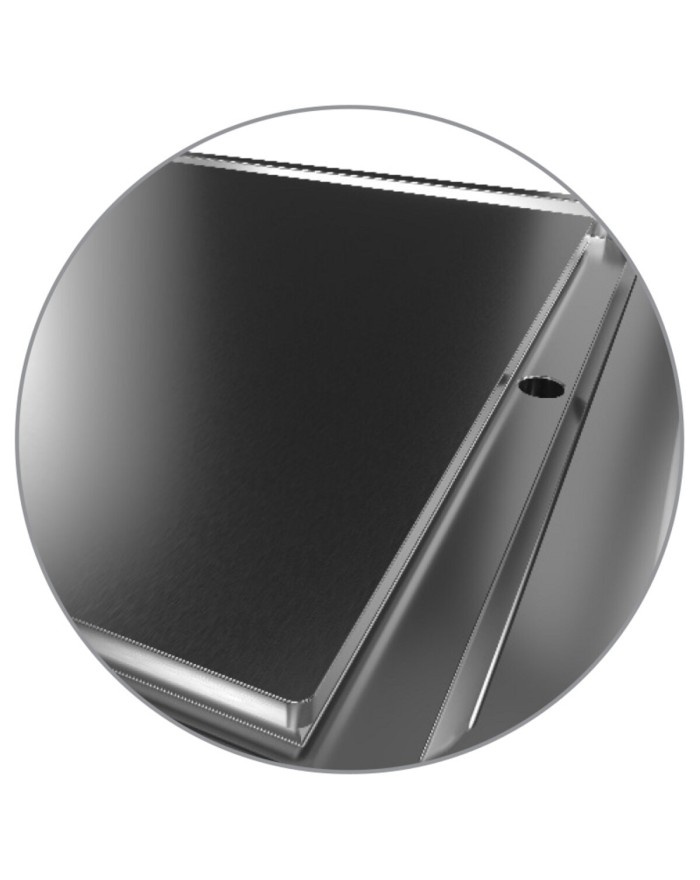

Grooved plate design ensures cleanliness right to the end of the plate

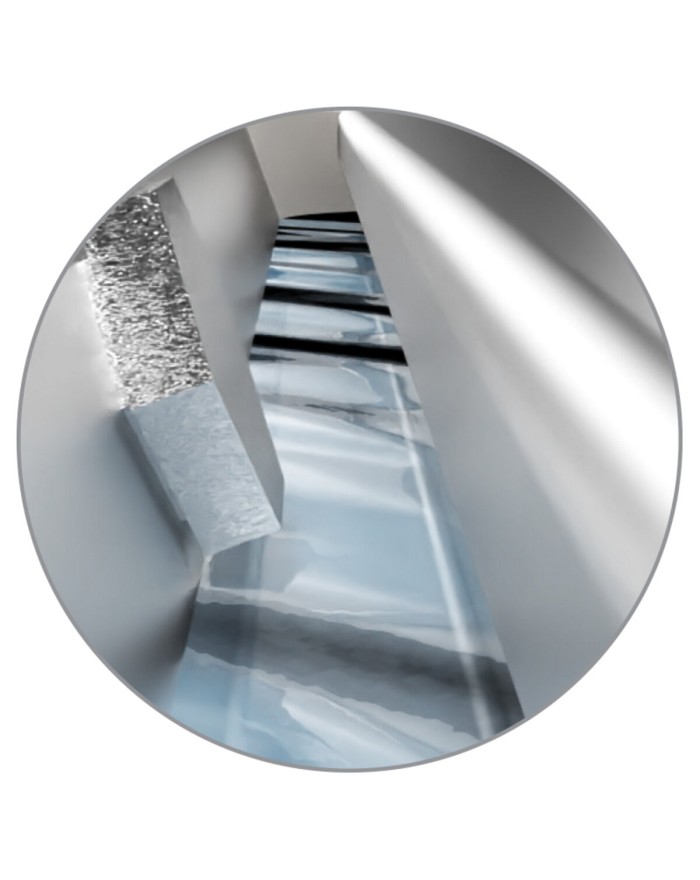

Non-welded plate to speed up maintenance and possible replacement in utilities.

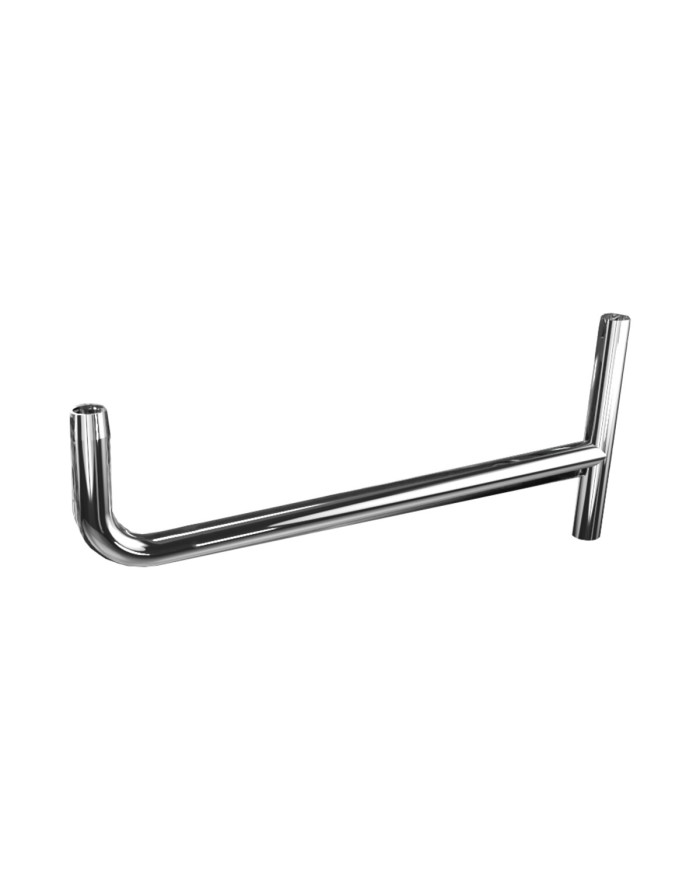

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

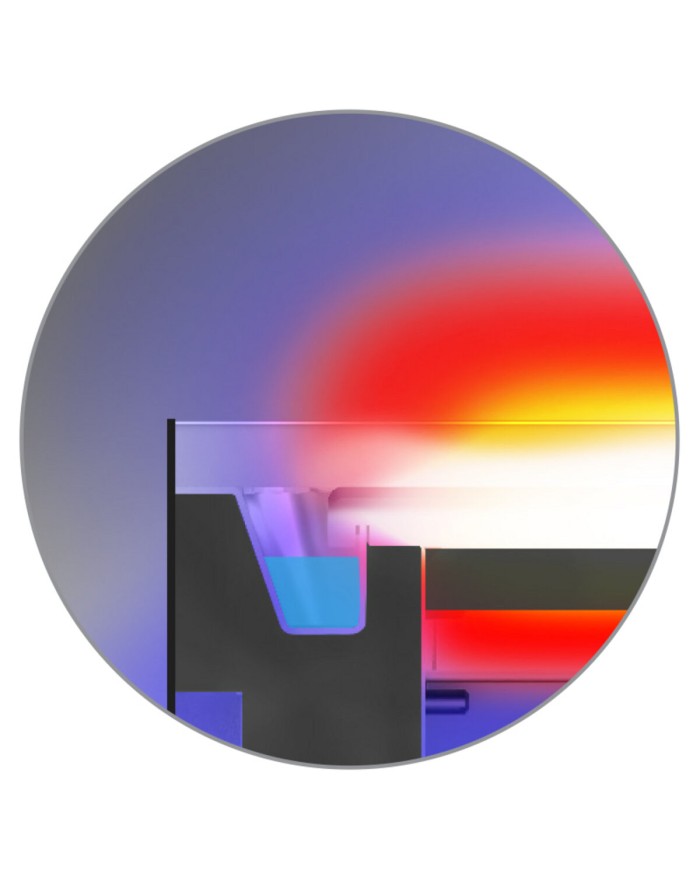

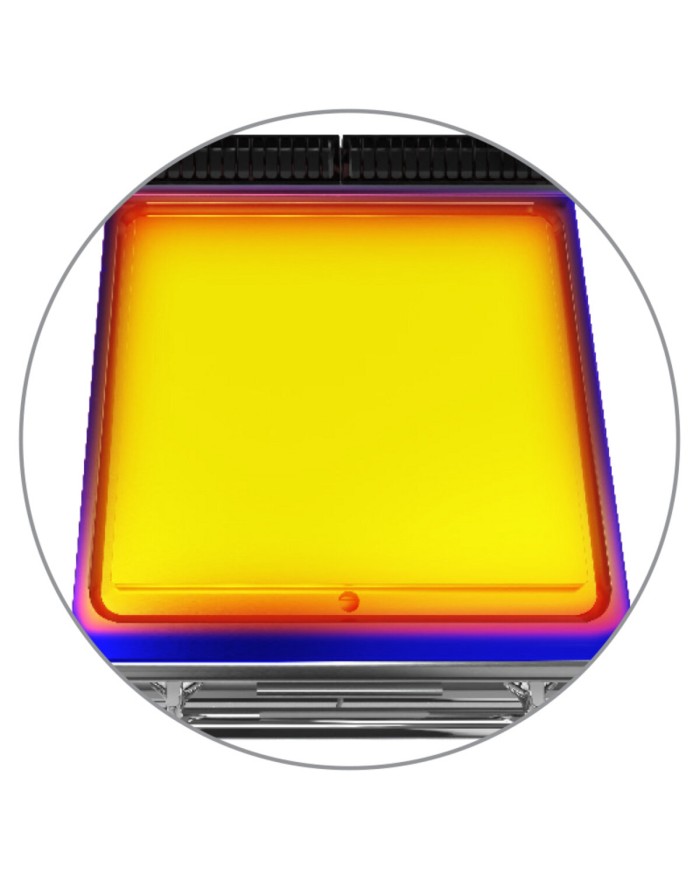

Thermal cutting that facilitates the user and adjacent machinery.
Water dispenser kit available as an accessory

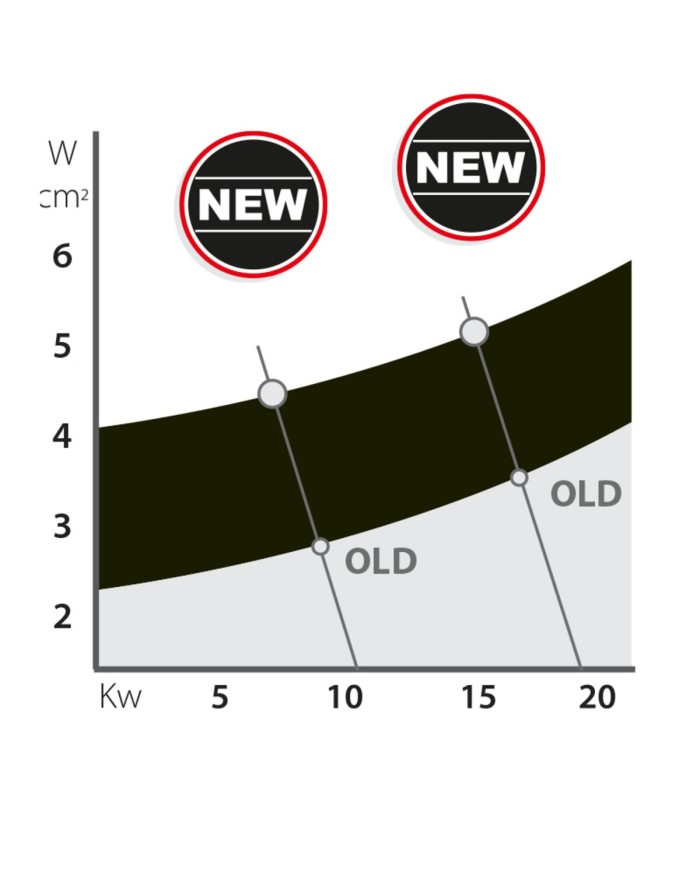

New version with identical useful cooking surface area and reduced energy output. An increase in output per cm2 that allows a reduction in consumption of up to 15% compared to conventional versions.
Water dispenser kit available as an accessory

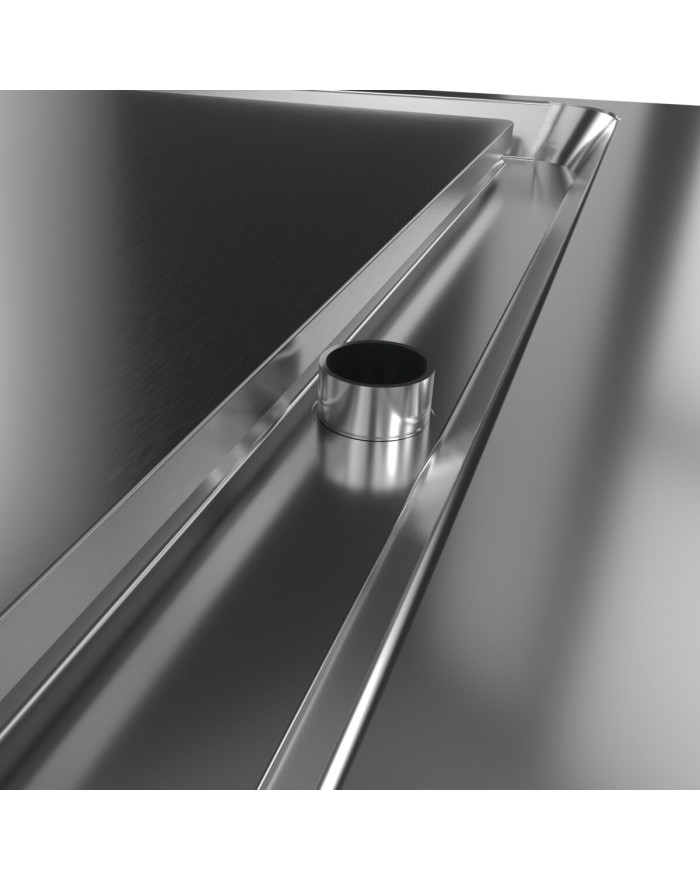

Stainless steel overflow plug provided as standard for gutter flooding management.

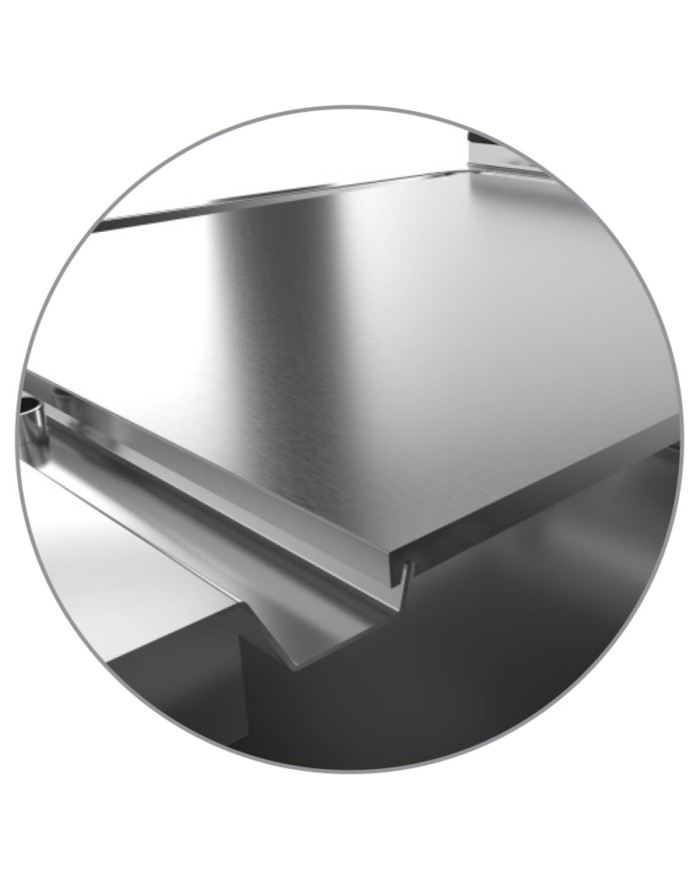

Plate not welded to the machine table with optimization of structural points subjected to thermal stress.
Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.

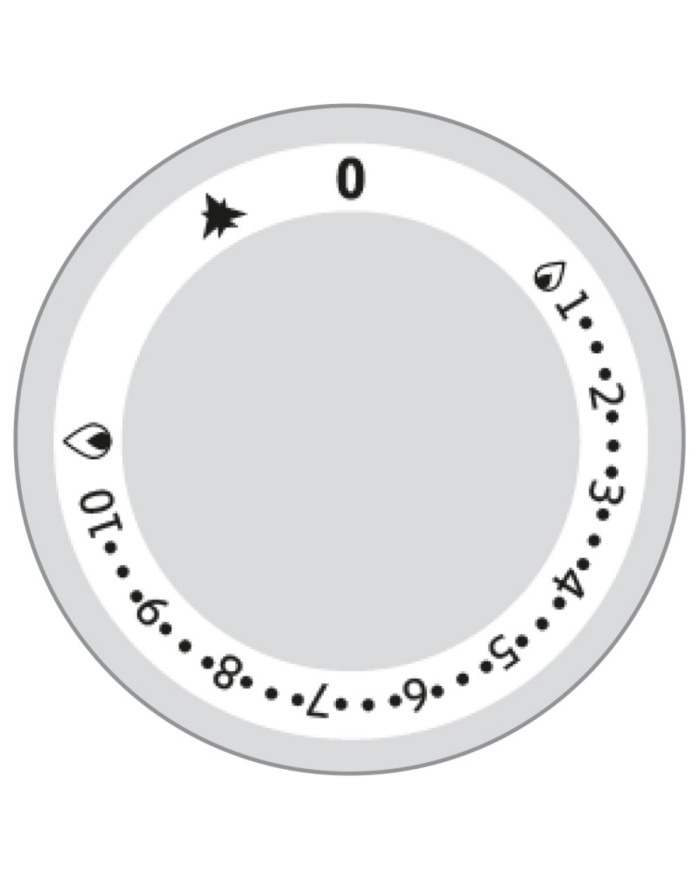

In thermostat versions, the temperature of the hotplate can be adjusted from 90 to 280 °C to optimize consumption and adapt to the most delicate cooking.
Grooved plate design ensures cleanliness right to the end of the plate
Q90SFTT/G825
CR1654279 - Standard Standard
Data sheet
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- MODEL
- Q90SFTT/G825
- CODE
- CR1654279
- Commercial code
- Q90SFTT/G825
- Material type
- ZPF
- Definition
- Q90SFTT/G825 FTG 1/3RC M80 TOP
- Height
- 250mm
- Width
- 800mm
- Depth
- 900mm
- Volume
- 0.18m3
- Gas power Kw
- 20Kw
- Gas power (G25.3/25 mbar)
- 20,00Kw
- Gas power Kcal
- 17200Kcal
- Gross volume
- 0494
- Net weight
- 90Kg
- Gross weight
- 105.8Kg
- Production site
- BELLUNO
- Product variant
- PIASTRA LISCIA/RIGATA CROMATA
- Chimney type
- A1-B11-B21
- Certified model
- 90SFTT/G8
- CE-certified
- CE-0051DN5080
- Production start year
- 2022
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 1020
- Packaging height
- 570
- Packaging length
- 850
- PROMO
- READY
- AGA Certificate
- SI
- Alimentazione
- GAS
- Tipo piastra
- 1/3RIBBED
- Materiale Piastra
- CHROME
- III1a2H3B-P
- DK/SE
- Plate size
- 705 x 66 x 145h
