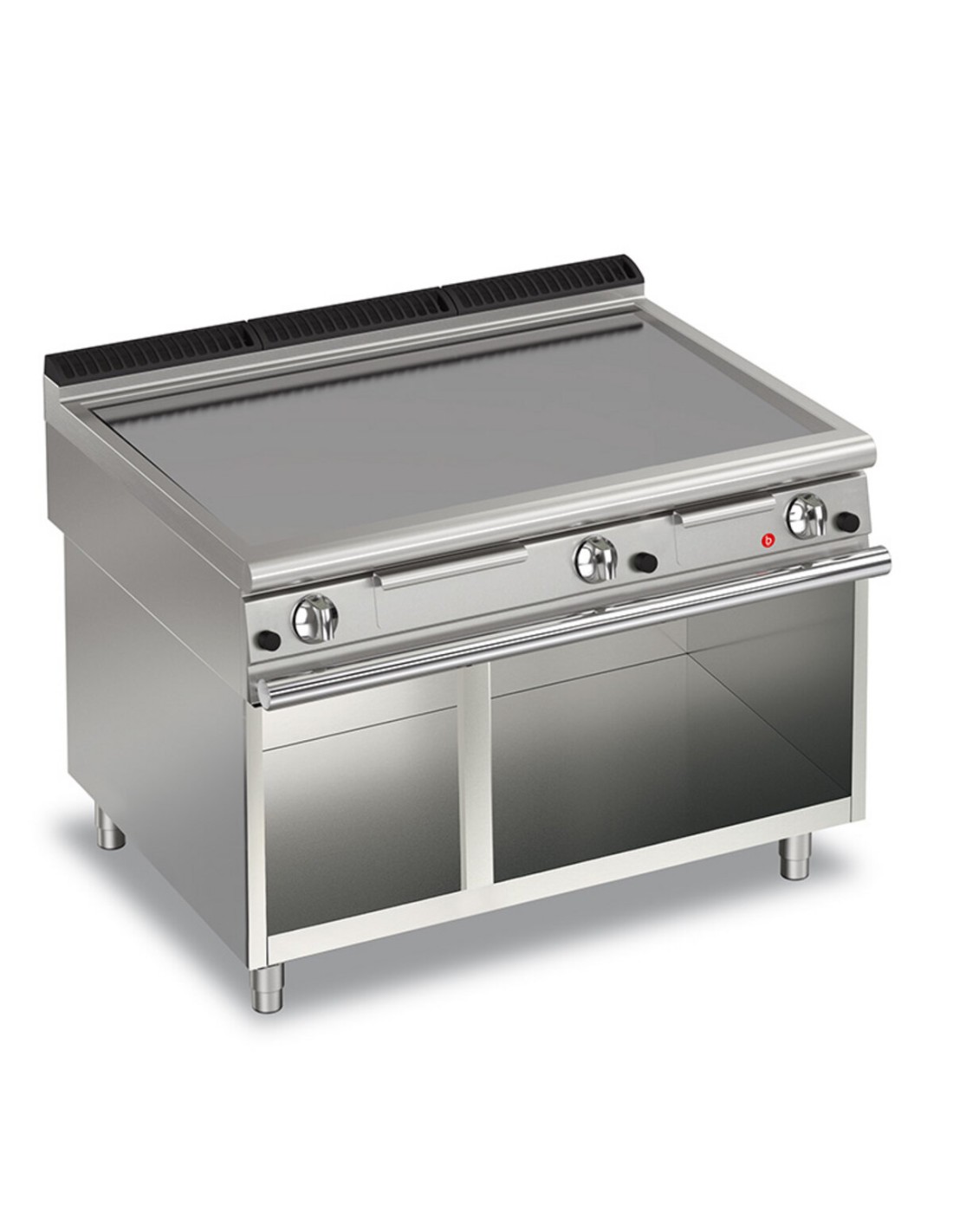

GAS FRY TOP SMOOTH PLATE ON OPEN COMPARTMENT - THERMOSTATED

Tipo Alimentazione
Promo
Print
Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. Available with soft iron plate or polished chrome plate. Stabilized flame burners with piezo ignition. Independent controls every 1/2 module. Temperature regulation from 200°c to 400°c with thermocouple safety tap or from 100°c to 280°c with thermostatic valve. For the chrome version, the adjustment ranges from 100° to 280°. Available in three versions: - mild steel (for non-EU markets) - in AISI 430 - chrome-plated Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. Mild steel plate (for non-EU markets). Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

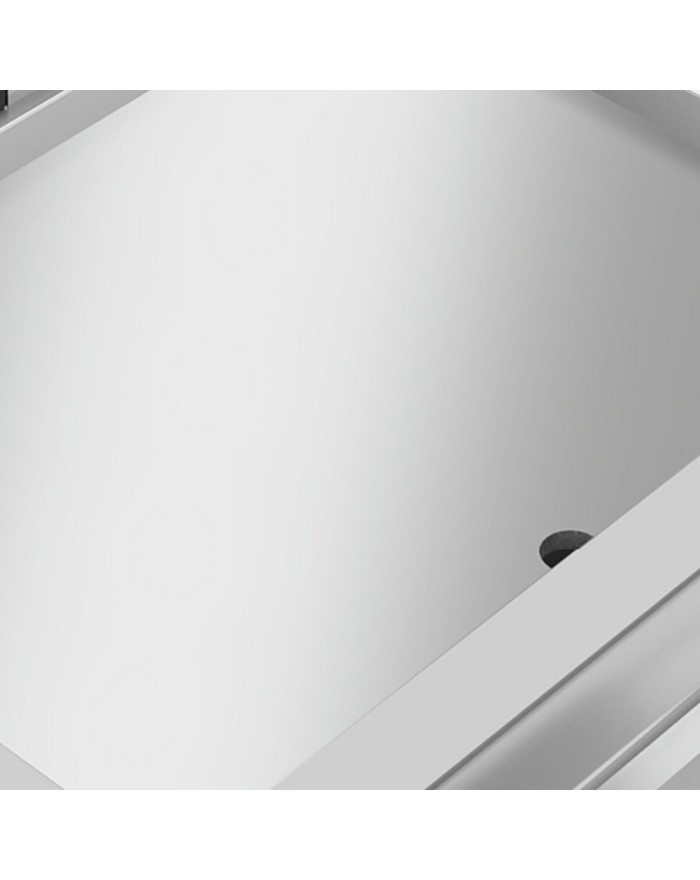

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

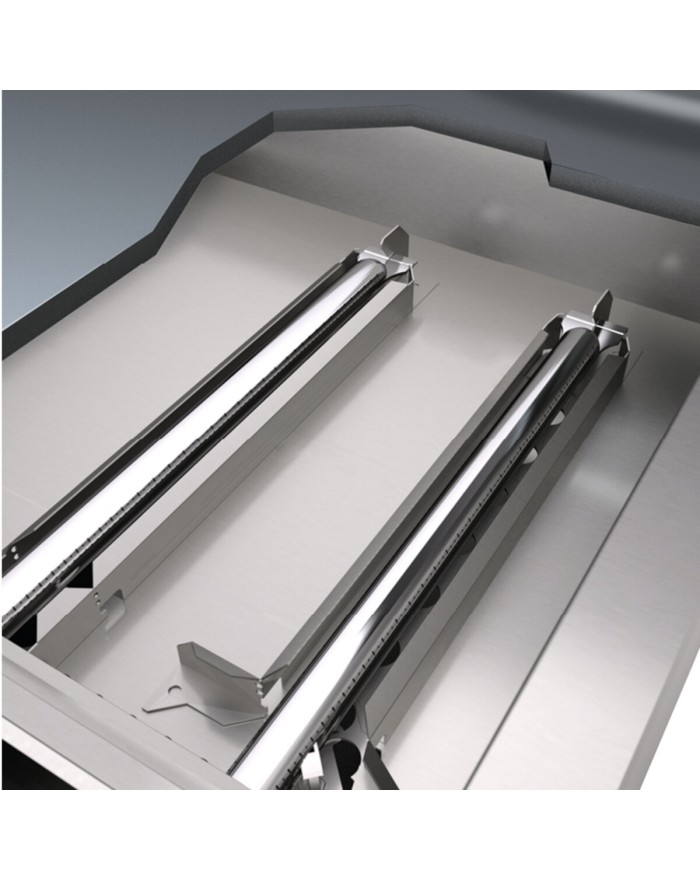

Even heat distribution thanks to several burners under the hotplate.

Q90FTTV/G1200
CR1017169 - Standard Standard

Data sheet

Volume
0.94m3
Packaging height
1170
Gas power Kw
31,50Kw
Width
1200mm
Gas power (G25.3/25 mbar)
30,00Kw
Packaging length
1020
Gas power Kcal
25800Kcal
Alimentazione
GAS
Gross volume
1500
Tipo piastra
SMOOTH
Net weight
94.2Kg
Materiale Piastra
IRON
Gross weight
204.2Kg
III1a2H3B-P
DK
Production site
BELLUNO
Plate size
113 x 73
Product variant
PIASTRA LISCIA
Controllo
THERMOSTATATE
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1-B11-B21
Model
Q90FTTV/G1200
Certified model
Q90FTTV/G1200
CODE
CR1017169
CE-certified
CE-0085BS0203
Commercial code
Q90FTTV/G1200
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
Q90FTTV/G1200 FTG LISCIO M120 A/G
Commercial Line
QUEEN
Depth
900mm
Height
870mm
Packaging width
1250

Specific References

mpn
Q90FTTV/G1200
