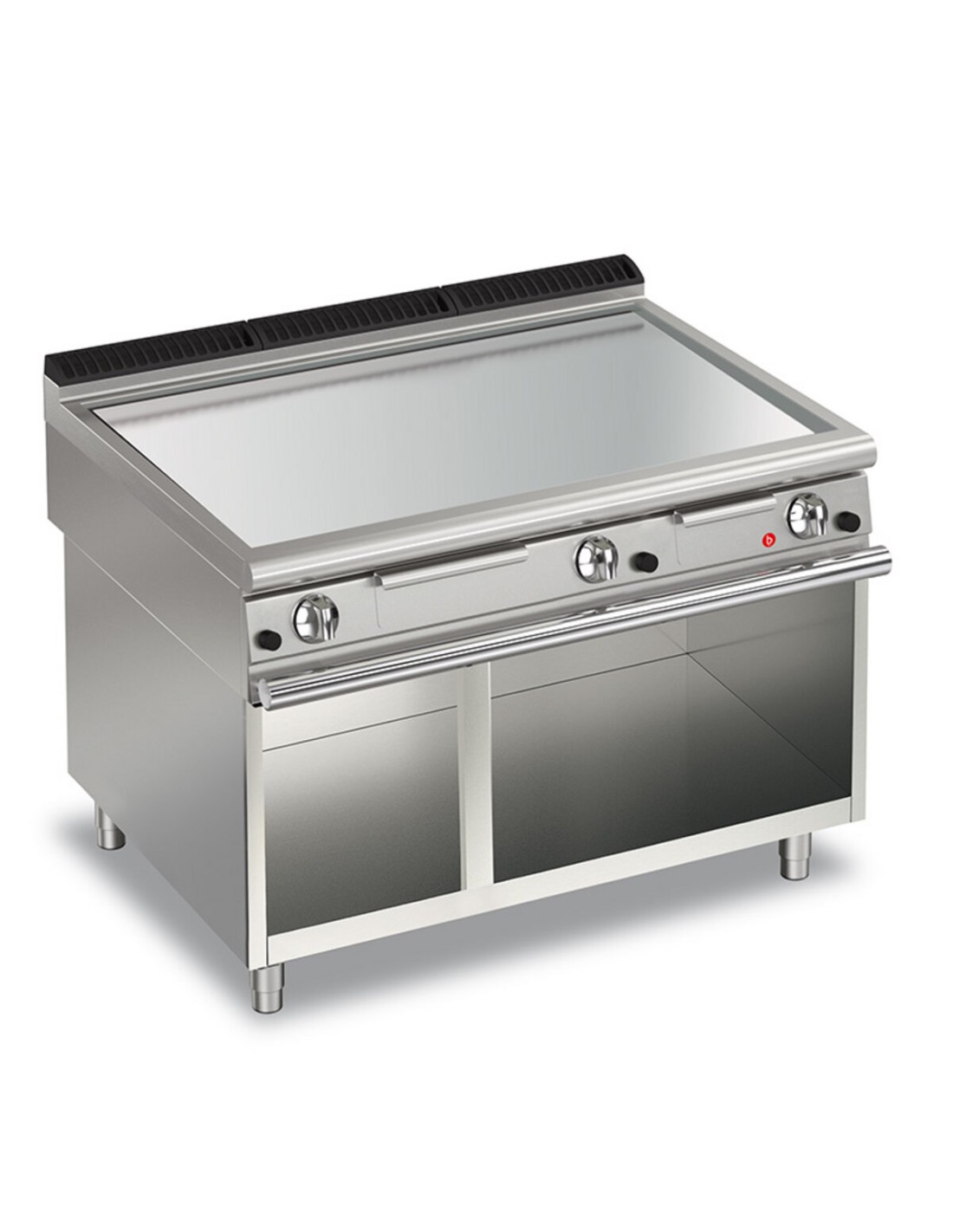

GAS FRY TOP SMOOTH CHROME-PLATED PLATE ON OPEN COMPARTMENT - THERMOSTATED
Data Sheet
DWG-3D
Pictures
Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage.
Large grease collecting drawer.
Available with soft iron plate or polished chrome plate.
Stabilized flame burners with piezo ignition.
Independent controls every 1/2 module.
Temperature regulation from 200°c to 400°c with thermocouple safety tap or from 100°c to 280°c with thermostatic valve.
For the chrome version, the adjustment ranges from 100° to 280°.
Available in three versions:
- mild steel (for non-EU markets)
- in AISI 430
- chrome-plated
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. Chrome-plated plate. Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.




A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

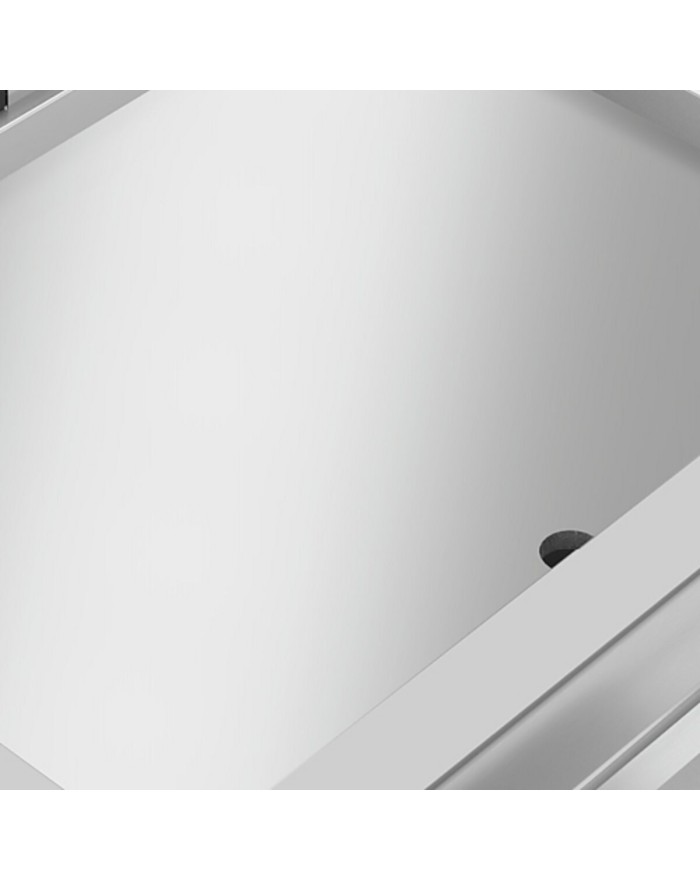

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

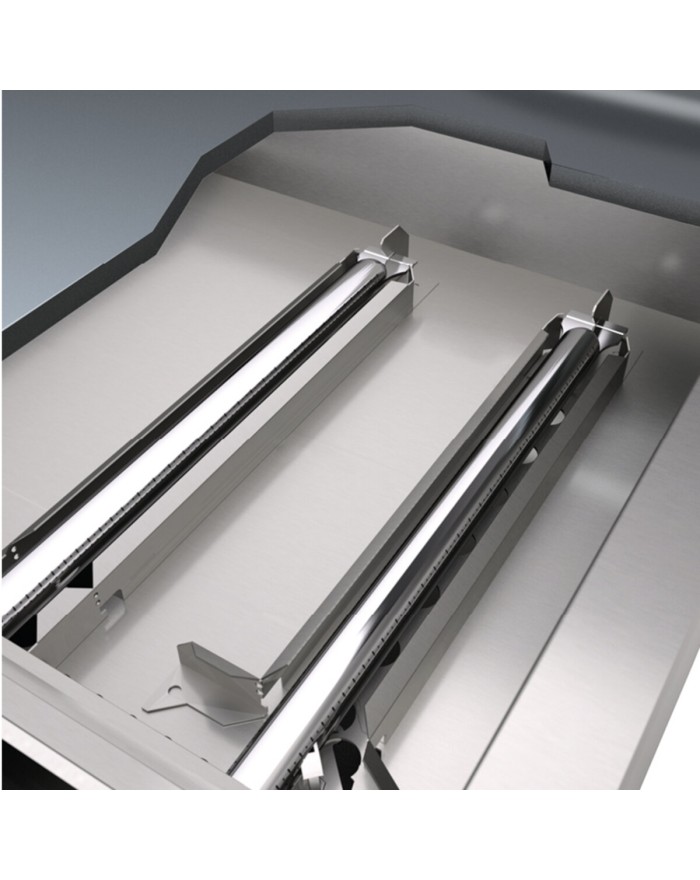

Even heat distribution thanks to several burners under the hotplate.
Q90FTTV/G1205
CR1017189 - Standard Standard
Data sheet
- III1a2H3B-P
- DK
- Gross weight
- 197.8Kg
- Plate size
- 113 x 73
- Production site
- BELLUNO
- Controllo
- THERMOSTATATE
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Product variant
- PIASTRA LISCIA CROMATA
- Model
- Q90FTTV/G1205
- Chimney type
- A1-B11-B21
- CODE
- CR1017189
- Certified model
- Q90FTTV/G1205
- Commercial code
- Q90FTTV/G1205
- CE-certified
- CE-0085BS0203
- Product type
- STANDARD
- Material type
- ZPF
- Company
- 0232
- Definition
- Q90FTTV/G1205 FTG LISCIO CROM. M120 A/G
- Commercial Line
- QUEEN
- Depth
- 900mm
- Packaging width
- 1020
- Height
- 870mm
- Packaging height
- 1170
- Volume
- 0.94m3
- Width
- 1200mm
- Gas power Kw
- 31,50Kw
- Packaging length
- 1250
- Gas power (G25.3/25 mbar)
- 30,00Kw
- Alimentazione
- GAS
- Gas power Kcal
- 25800Kcal
- Tipo piastra
- SMOOTH
- Gross volume
- 1460
- Materiale Piastra
- CHROME
- Net weight
- 187.8Kg
Specific References
- mpn
- Q90FTTV/G1205
