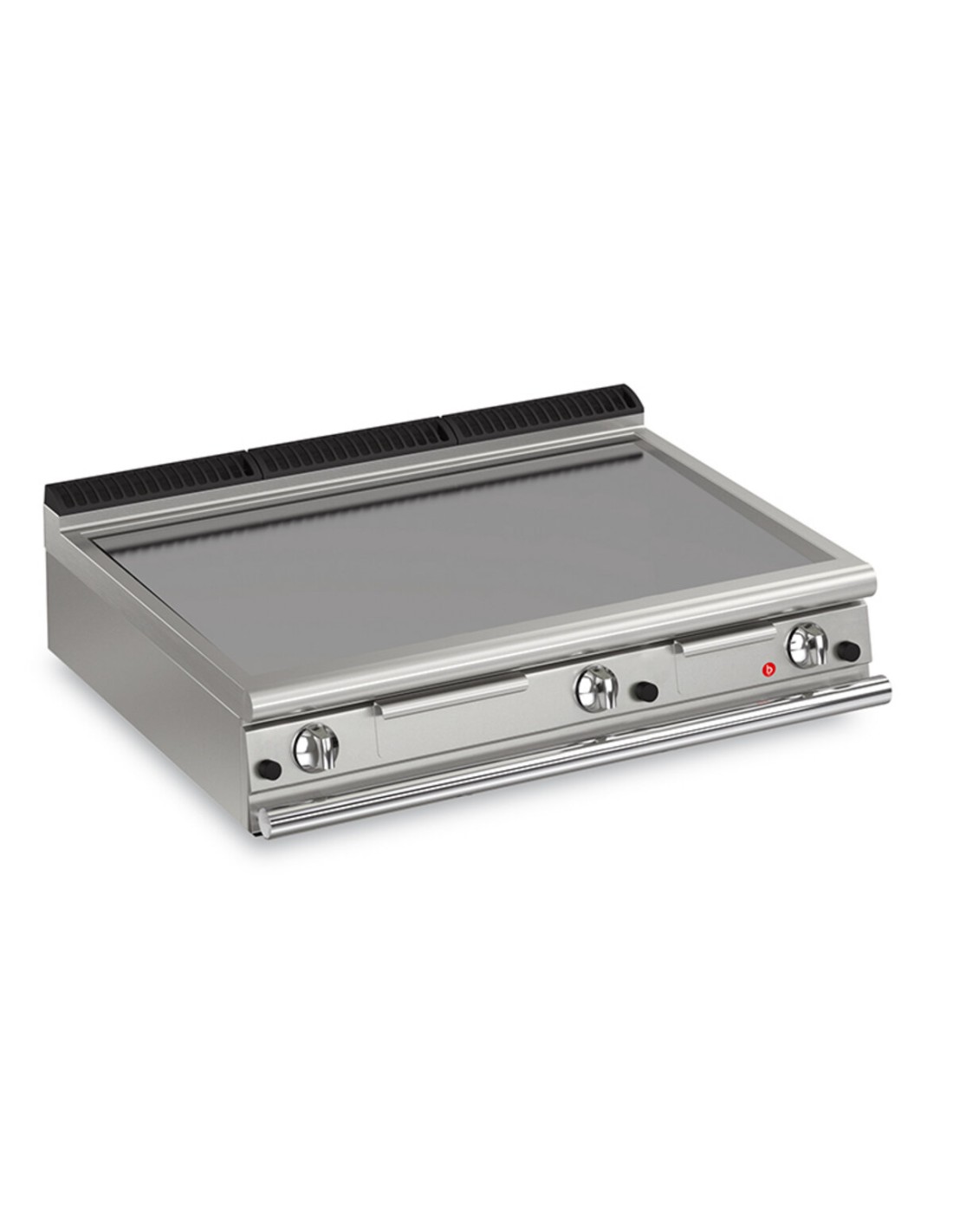

GAS FRY TOP SMOOTH PLATE VERSION - THERMOSTAT-CONTROLLED

Tipo Alimentazione
Promo
Print
Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. Available with soft iron plate or polished chrome plate. Stabilized flame burners with piezo ignition. Independent controls every 1/2 module. Temperature regulation from 200°c to 400°c with thermocouple safety tap or from 100°c to 280°c with thermostatic valve. For the chrome version, the adjustment ranges from 100° to 280°. Available in three versions: - mild steel (for non-EU markets) - in AISI 430 - chrome-plated Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. Mild steel plate (for non-EU markets). Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

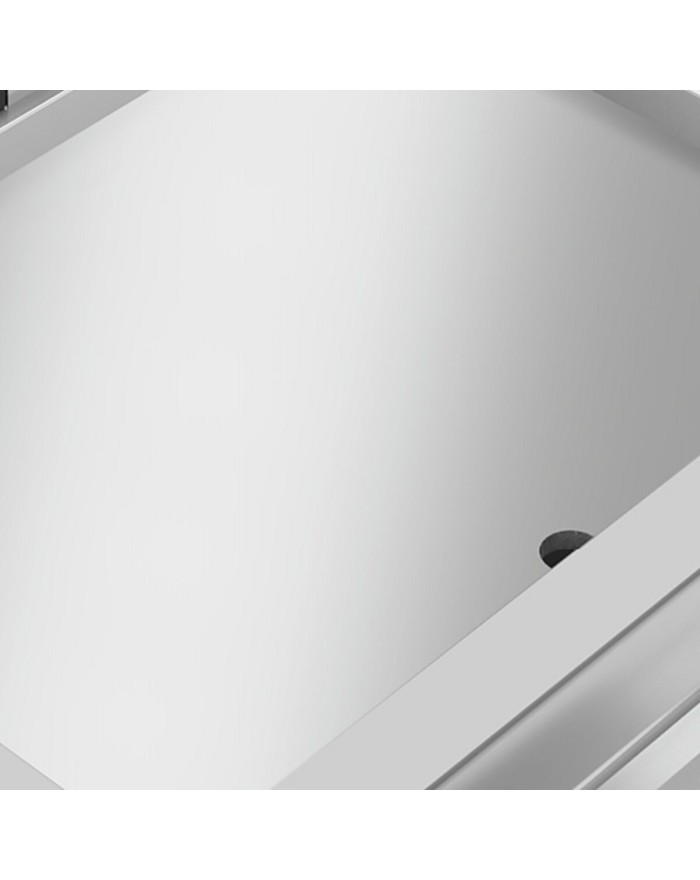

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

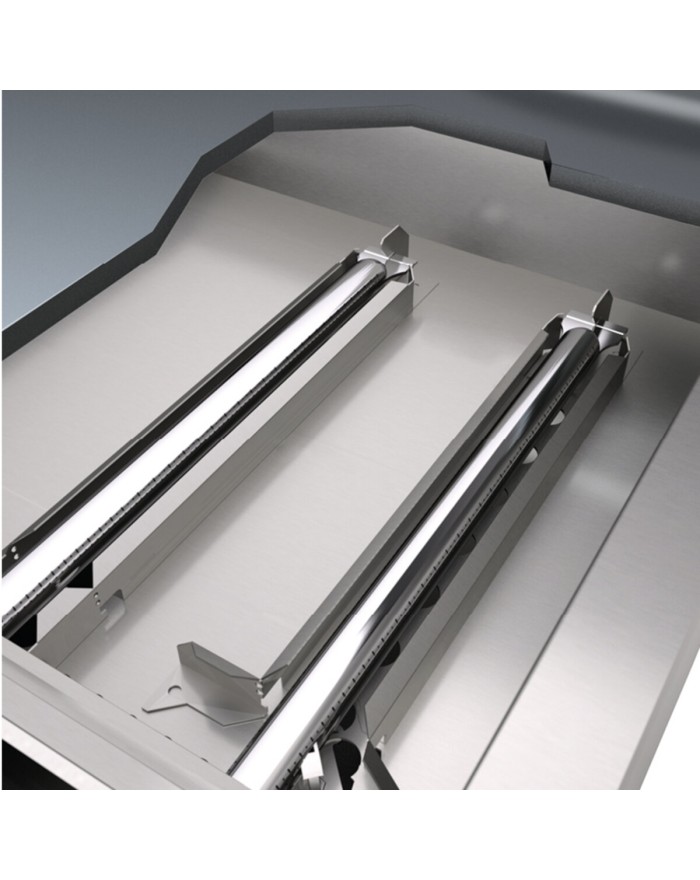

Even heat distribution thanks to several burners under the hotplate.

Q90FTT/G1200
CR1016649 - Standard Standard

Data sheet

Width
1200mm
Gas power Kw
31,50Kw
Gas power (G25.3/25 mbar)
30,00Kw
Packaging length
440
Gas power Kcal
25800Kcal
AGA Certificate
SI
Gross volume
0540
Alimentazione
GAS
Net weight
110Kg
Tipo piastra
1/3RIBBED
Gross weight
125Kg
Materiale Piastra
AISI430
Production site
BELLUNO
III1a2H3B-P
DK
Product variant
PIASTRA LISCIA/RIGATA CROMATA
Gas/refrigerant type
GPL 28-30/37 mbar
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1-B11-B21
Plate size
113 x 73
Model
Q90FTT/G1200
Certified model
Q90FTT/G1200
Controllo
THERMOSTATATE
CODE
CR1016649
CE-certified
CE-0085BS0203
Commercial code
Q90FTT/G1200
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
Q90FTT/G1200 FTG LISCIO M120 TOP
Commercial Line
QUEEN
Depth
900mm
Packaging width
980
Height
250mm
Packaging height
500
Volume
0.27m3

Specific References

mpn
Q90FTT/G1200
