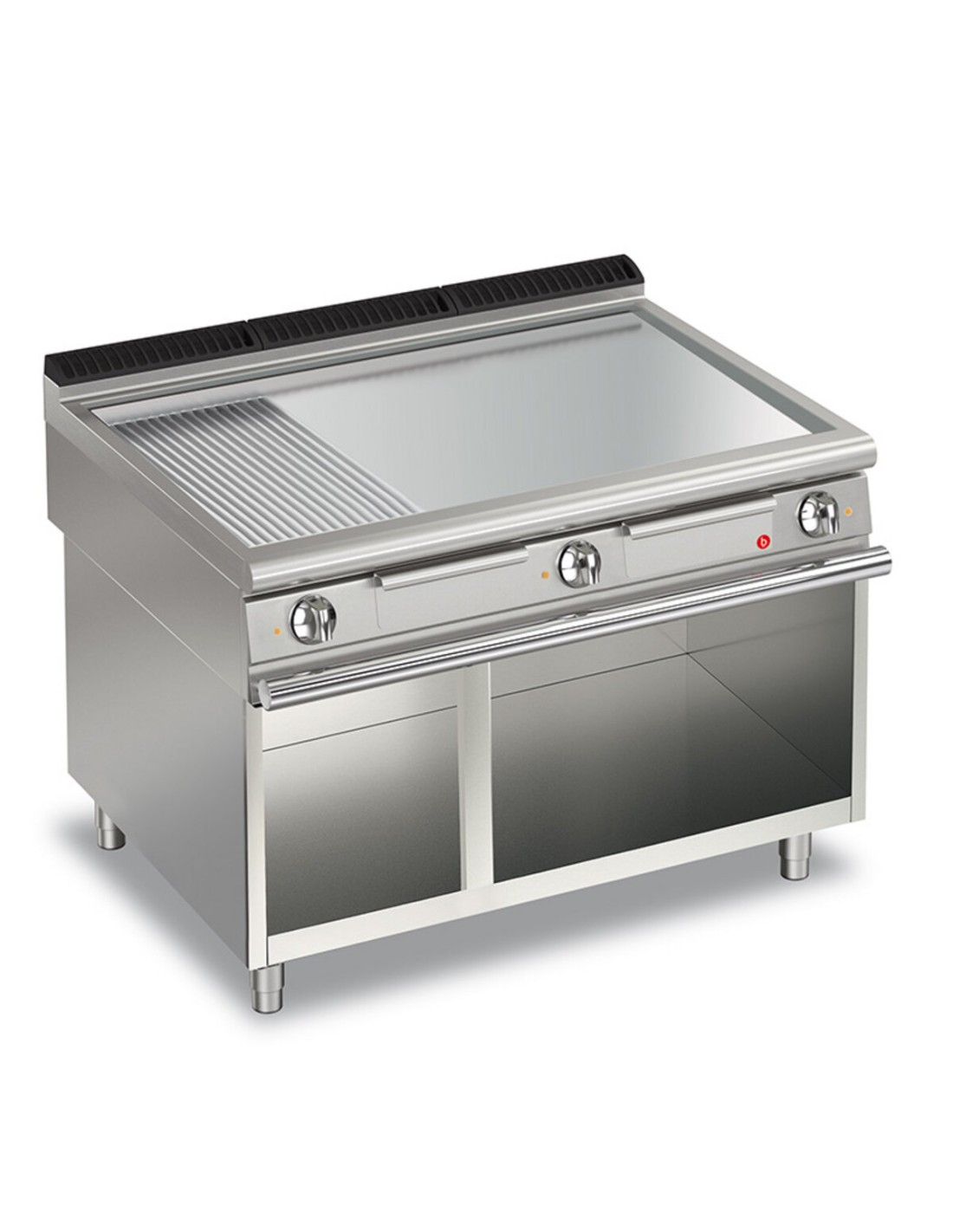

ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. Available with soft iron plate or polished chrome plate. High-power armored heating elements made of steels stainless steel. Thermostatic safety control adjustable from 110 to 280°C for all versions. Available in three versions: - mild steel (for non-EU markets) - in AISI 430 Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Chrome-plated plate. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

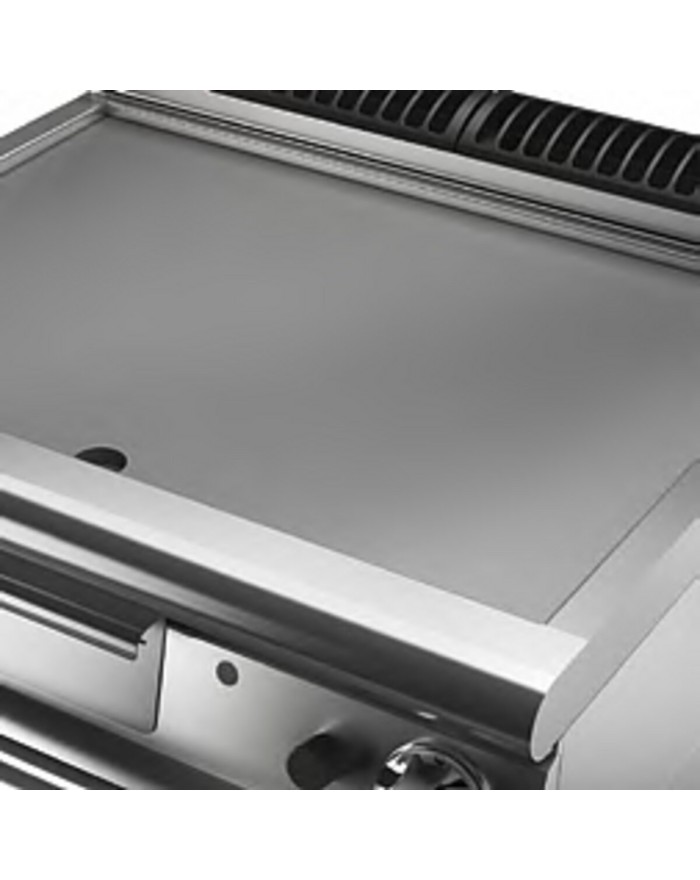

Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity.



A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

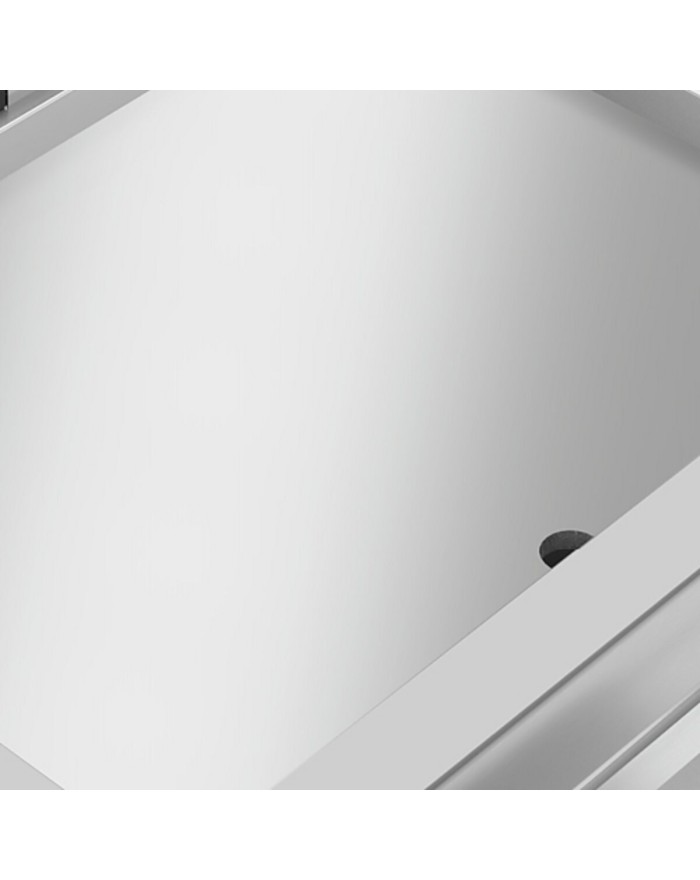

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

Q90FTV/E1225
CR1017829 - Standard Standard

Data sheet

Gross volume
0980
Frequency
50-60 HzHz
Net weight
129Kg
Electrical power
22,500Kw
380-415V 3N
Gross weight
143Kg
IP grade
IPX5
Production site
BELLUNO
Materiale Piastra
CHROME
Product variant
PIASTRA LISCIA/RIGATA CROMATA
Plate size
113 x 73
Certified model
Q90FTV/E1225
Controllo
THERMOSTATATE
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
Q90FTV/E1225
Packaging width
980
CODE
CR1017829
Packaging height
500
Commercial code
Q90FTV/E1225
Width
1200mm
Material type
ZPF
Packaging length
440
Definition
Q90FTV/E1225 FTE 1/3 RIG. CROM. M120 A/G
Alimentazione
ELETTRICA
Depth
900mm
Height
870mm
Tipo piastra
1/3RIBBED
Volume
0.94m3

Specific References

mpn
Q90FTV/E1225
