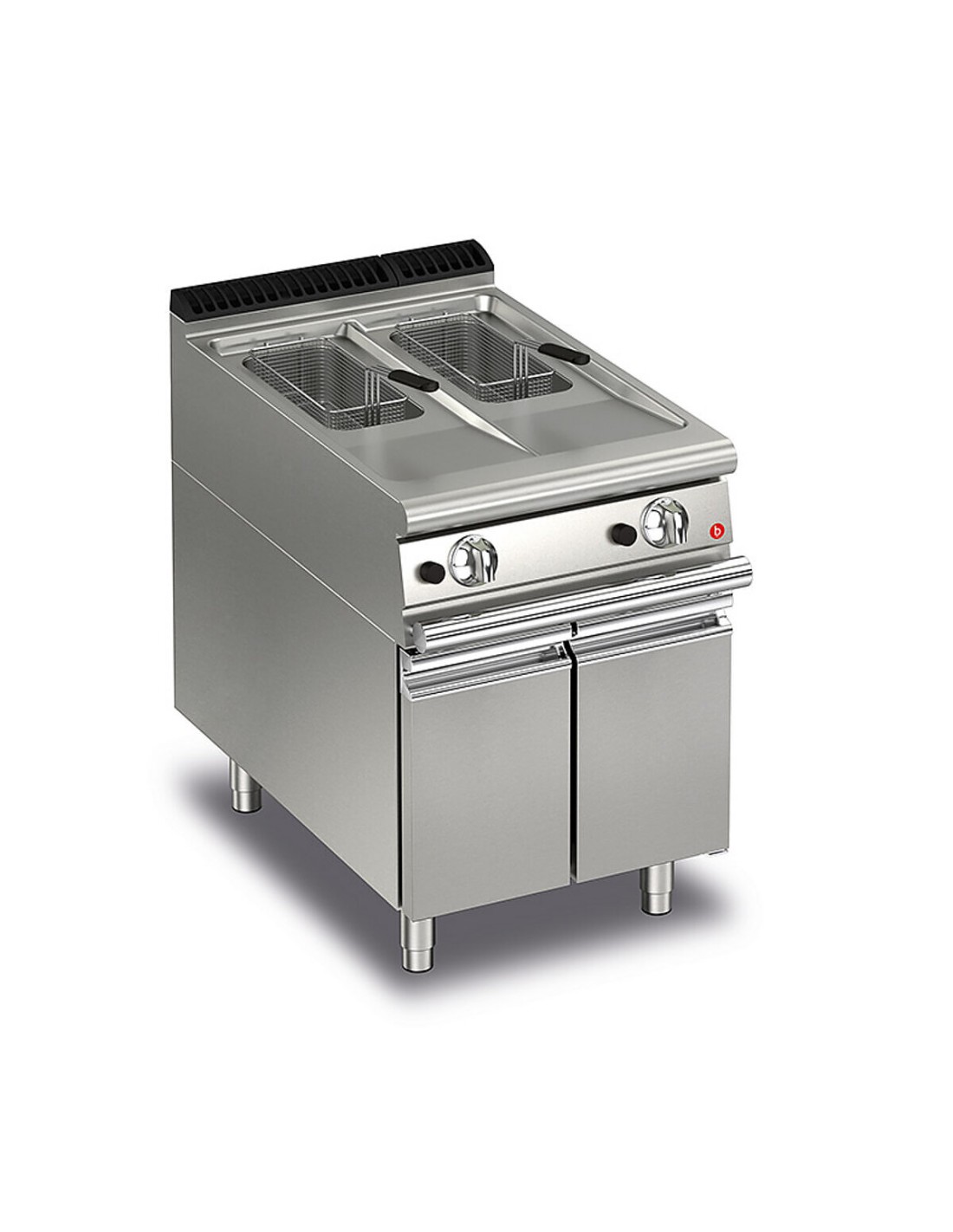

GAS FRYER 2 TANKS 10+10 L

Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.
Tipo Alimentazione
Print
Home , COOKING , QUEEN 7 , FRYERS
Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.Moulded upper surface machined from a single sheet of thick stainless steel. Large-capacity contoured firing tanks with large vertical expansion zone that prevents foam from settling during loading. Automatic regulation thermostat of the Fire safety thermostat (230°C). Oil drain taps. Holder for baskets and lids. Gas models Tubular steel burners outside the tank. Piezoelectric ignition of the pilot burner. Electric models Liftable and removable stainless steel armoured heating elements. Optical signal when the programmed temperature has been reached. Indicator light "equipment under voltage. The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Dirt collecting convector included. This element facilitates the deposition of dirt in the cold zone, preventing dirt from depositing in the hot zones of the tank. The life cycle of the oil is thus longer. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.



Tank depth and width increased to increase capacity.

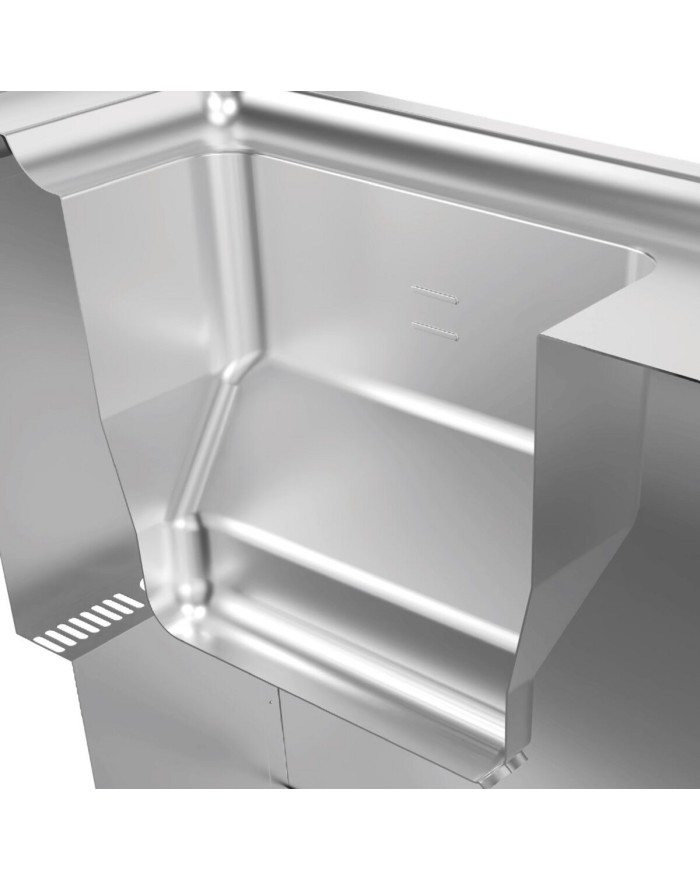

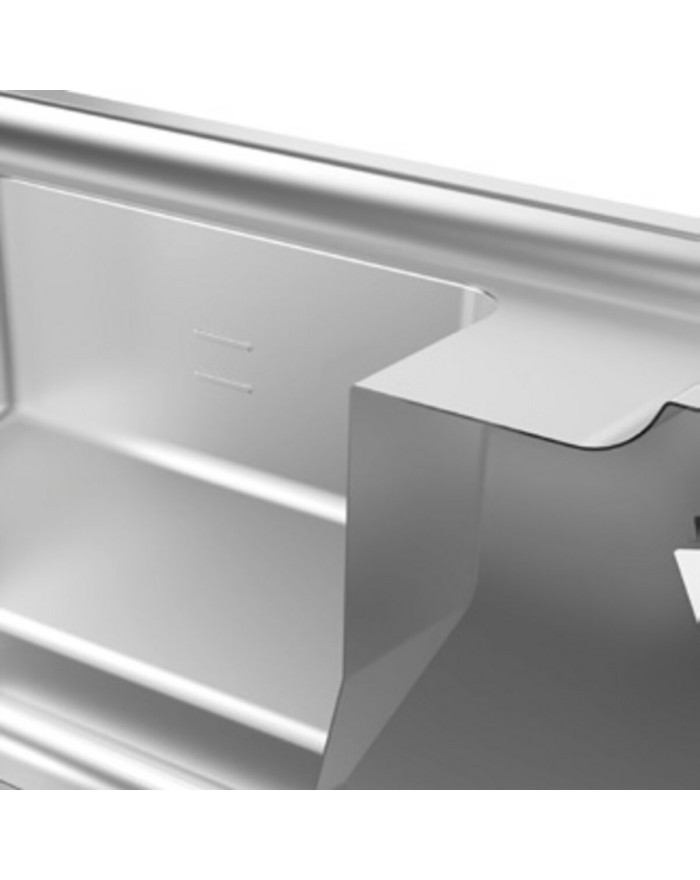

Moulded basin with flat top and large cold zone for easy cleaning.



Heating element completely removable from the tank to allow faster and more complete cleaning. In 10- and 15-liter versions

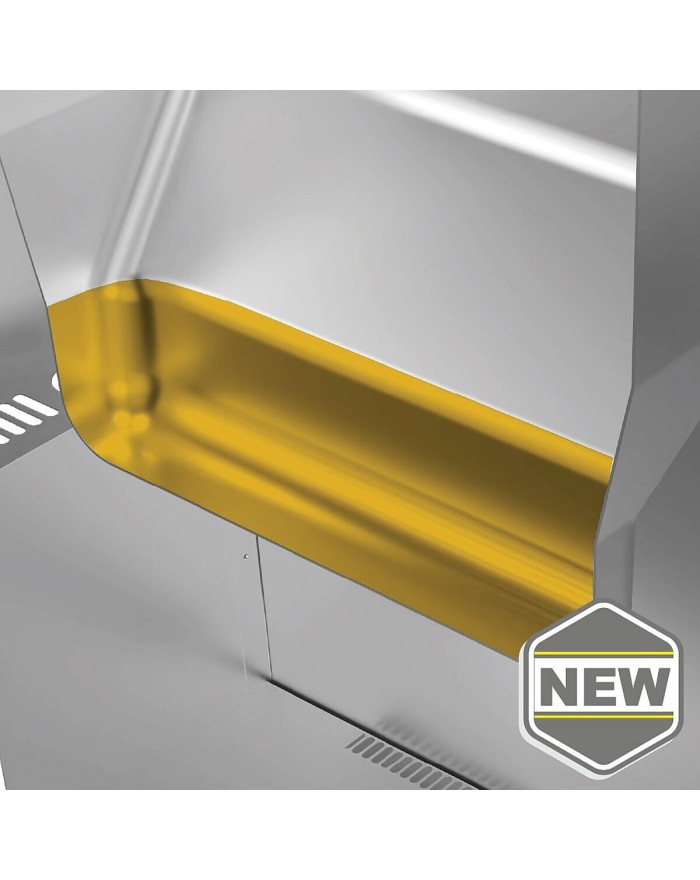

The large cold zone allows frying residues to settle, significantly extending the quality and life of the oil.

Q70FRI/G610
CR1014849 - Metano Standard

Data sheet

II2H3+
ES/GB/GR/IE/IT/PT/SK
MODEL
Q70FRI/G610
CODE
CR1014849
Commercial code
Q70FRI/G610
Material type
ZPF
Definition
Q70FRI/G610 FRIGG. GAS 2V. 10+10LT M60
Height
870mm
Width
600mm
Depth
700mm
Volume
0.365m3
Gas power Kw
19Kw
Gas power (G25.3/25 mbar)
19,00Kw
Gas power Kcal
16340Kcal
Gross volume
0702
Net weight
76Kg
Gross weight
86Kg
Production site
BELLUNO
Chimney type
A1-B11-B21
Certified model
Q70FRI/G610
CE-certified
CE-0051DM5041/M1
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
890
Packaging height
1230
Packaging length
640
AGA Certificate
SI
Alimentazione
GAS
Capacity
10 litri
Capacità litri
10+10L
III1a2H3B-P
DK/SE
Cestelli
2 x CF10

Specific References

mpn
Q70FRI/G610
