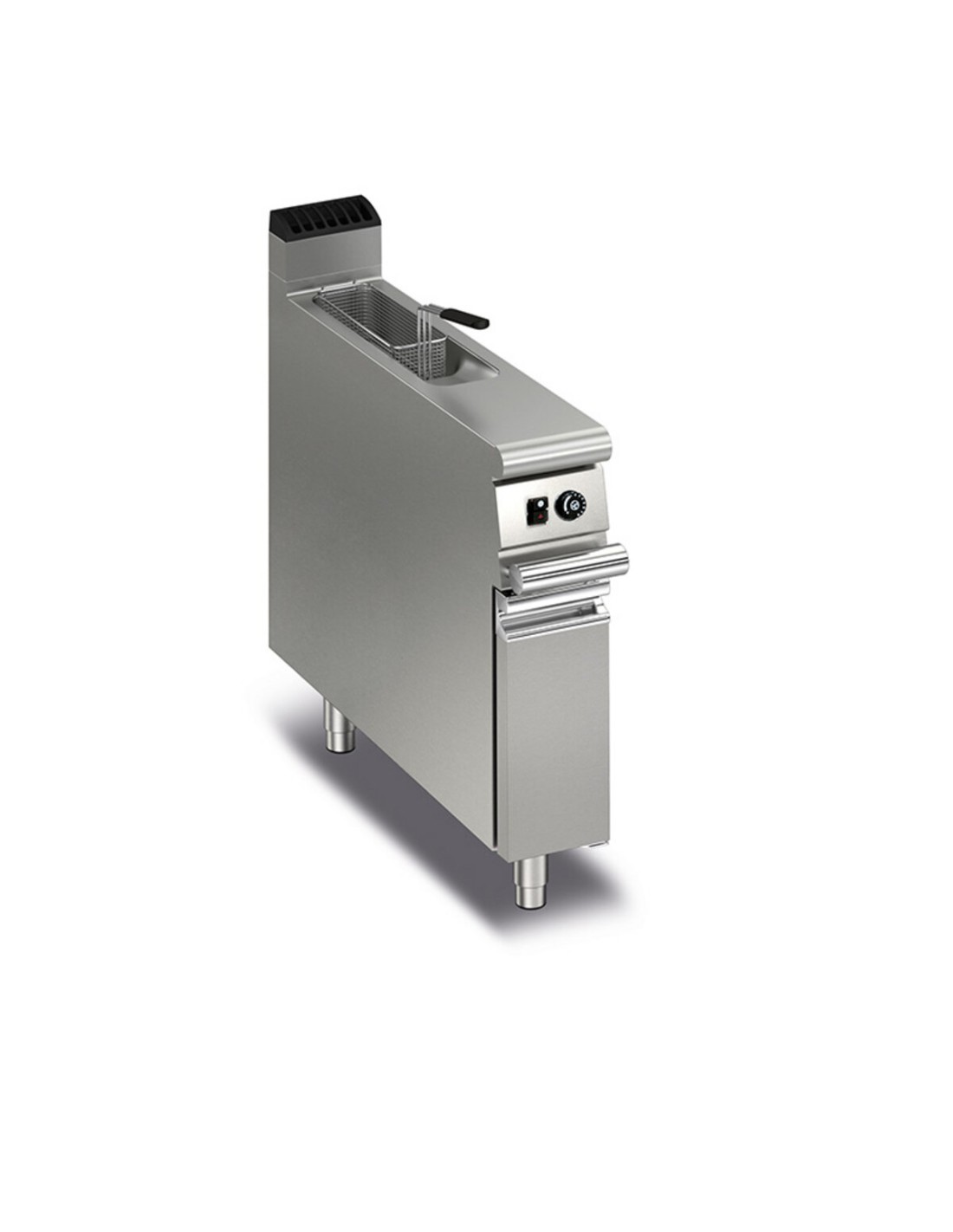

GAS FRYER 1 BOWL 7 L
Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.
Data Sheet
DWG-3D
Pictures
Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.Moulded upper surface machined from a single sheet of thick stainless steel.
Large-capacity contoured firing tanks with large vertical expansion zone that prevents foam from settling during loading.
Automatic regulation thermostat of the
Fire safety thermostat (230°C).
Oil drain taps.

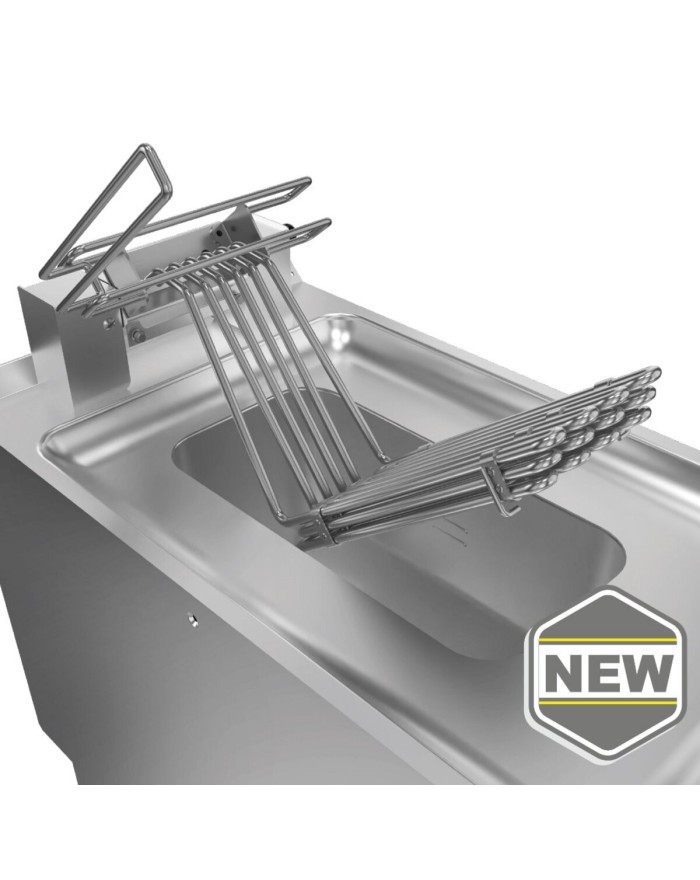

Holder for baskets and lids.
Gas models
Tubular steel burners outside the tank.
Piezoelectric ignition of the pilot burner.
Electric models
Liftable and removable stainless steel armoured heating elements.
Optical signal when the programmed temperature has been reached.
Indicator light "equipment under voltage.
The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
In the gas version, the molded inner tank is clean with external burners for easy cleaning.

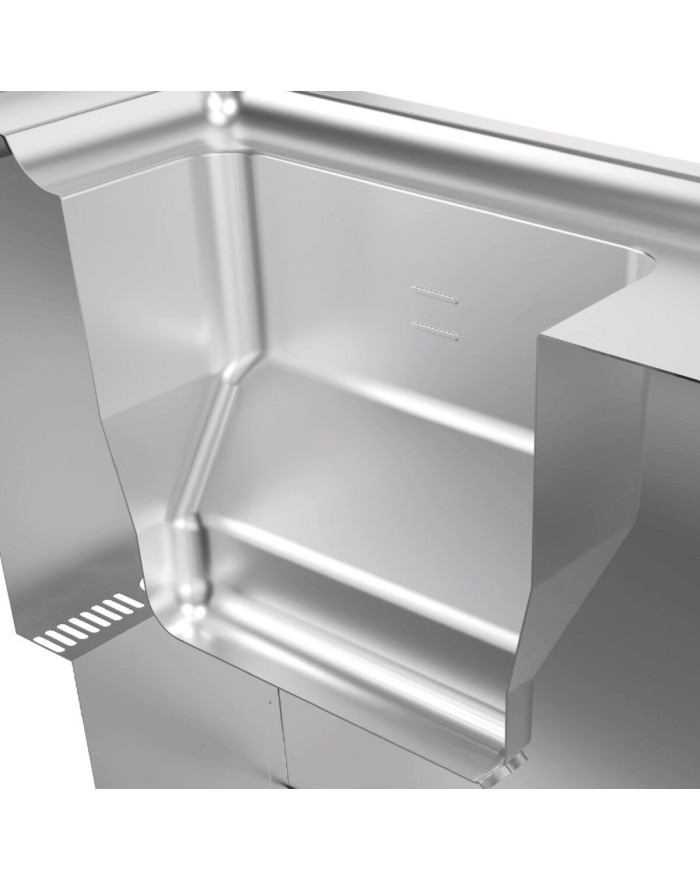

Tank depth and width increased to increase capacity.

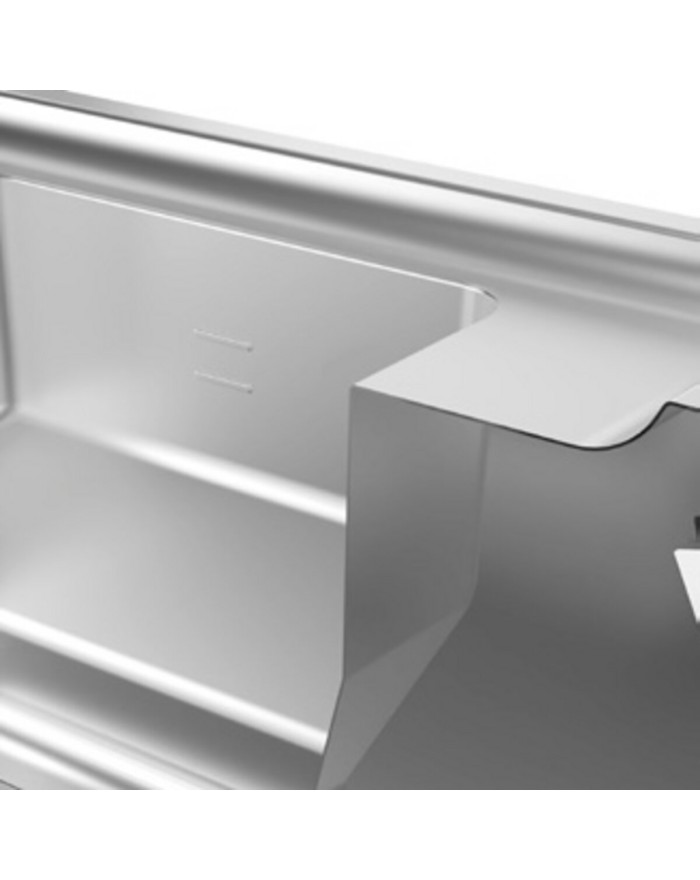

Moulded basin with flat top and large cold zone for easy cleaning.
Heating element completely removable from the tank to allow faster and more complete cleaning. In 10- and 15-liter versions

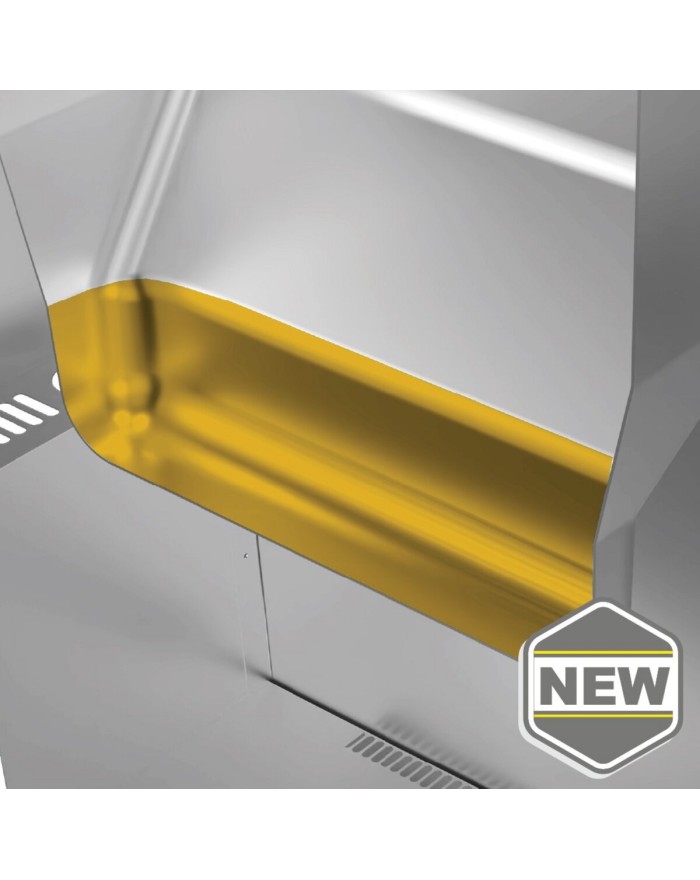

The large cold zone allows frying residues to settle, significantly extending the quality and life of the oil.
Q70FR/G210
CR1014829 - Standard Standard
Data sheet
- Material type
- ZPF
- Company
- 0232
- Definition
- Q70FR/G210 FRIGGITRICE GAS 1V. 10LT M20
- Commercial Line
- QUEEN
- Depth
- 700mm
- Packaging width
- 1020
- Height
- 870mm
- Packaging height
- 1050
- Volume
- 0.122m3
- Width
- 200mm
- Gas power Kw
- 5,80Kw
- Packaging length
- 440
- Gas power (G25.3/25 mbar)
- 5,80Kw
- Alimentazione
- GAS
- Gas power Kcal
- 4988Kcal
- Capacity
- 10 litri
- Gross volume
- 0960
- Capacità litri
- 7L
- Net weight
- 117Kg
- III1a2H3B-P
- DK
- Gas/refrigerant type
- METANO "H E" G20 20/25mbar
- Gross weight
- 130Kg
- Cestelli
- 1 x CF10M
- Production site
- BELLUNO
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Chimney type
- A1
- Model
- Q70FR/G210
- Certified model
- Q70FR/G210
- CODE
- CR1014829
- CE-certified
- CE-0085CT0099
- Commercial code
- Q70FR/G210
- Product type
- STANDARD
Specific References
- mpn
- Q70FR/G210
