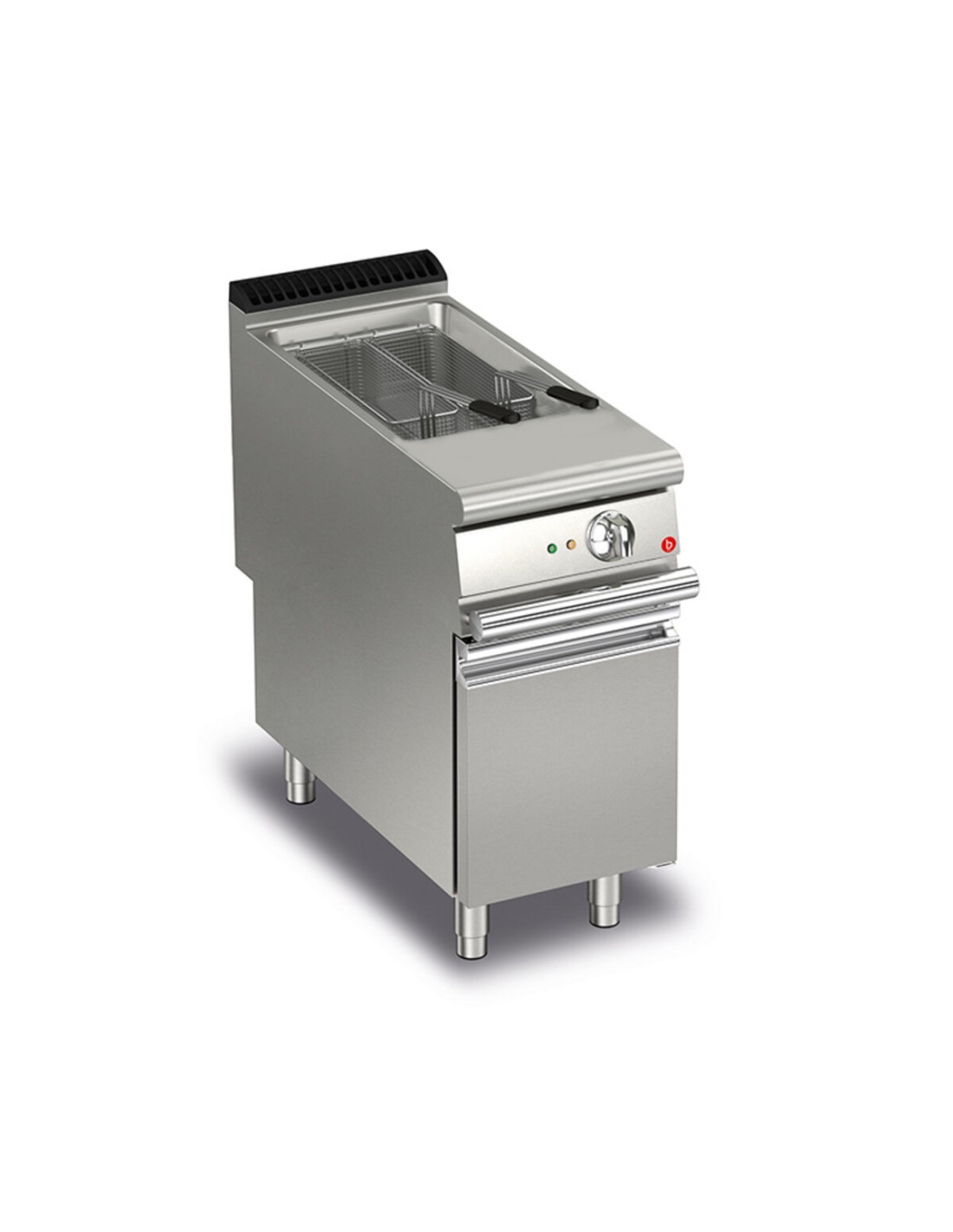

ELECTRIC FRYER 1 BASIN 22 L - WITH 2 BASKET KIT

Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.
Tipo Alimentazione
Promo
Print
Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.Stainless steel outer shells and feet. Working table height adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain taps. Oil drip pans on request. Safety thermostat (230°C) against excessive oil temperatures Gas version: Heating by stainless steel burner outside the tank (1-tank model with in-tank burner also available). Oil temperature controlled by mechanical thermostat with adjustment from 100 to 185°C. Electric version: Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version. Fully removable heating element in das 10 and 15-liter tank version. Optical signal when the programmed temperature has been reached. Indicator light 'equipment under voltage'. Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.



Tank depth and width increased to increase capacity.

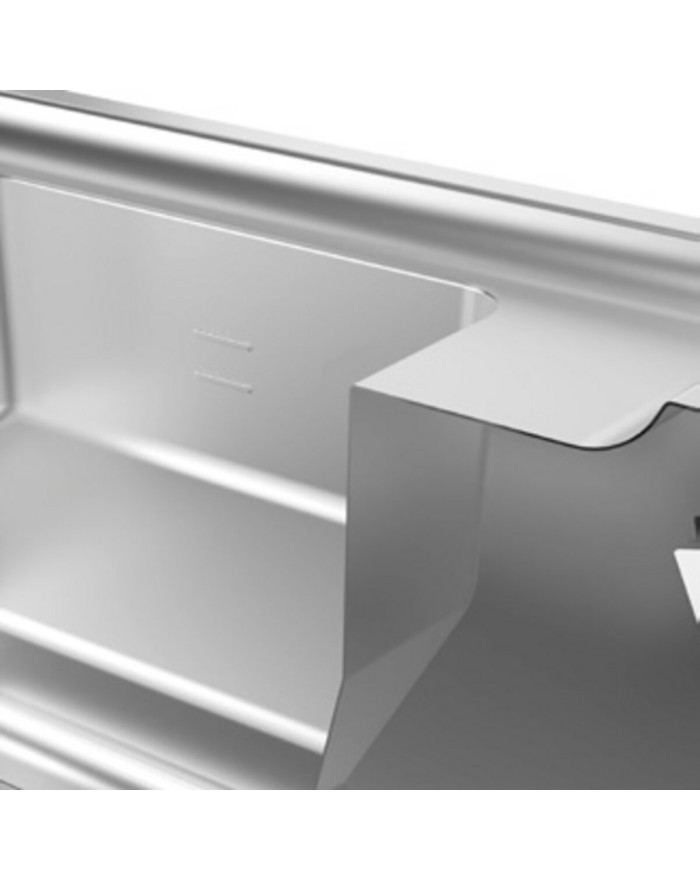

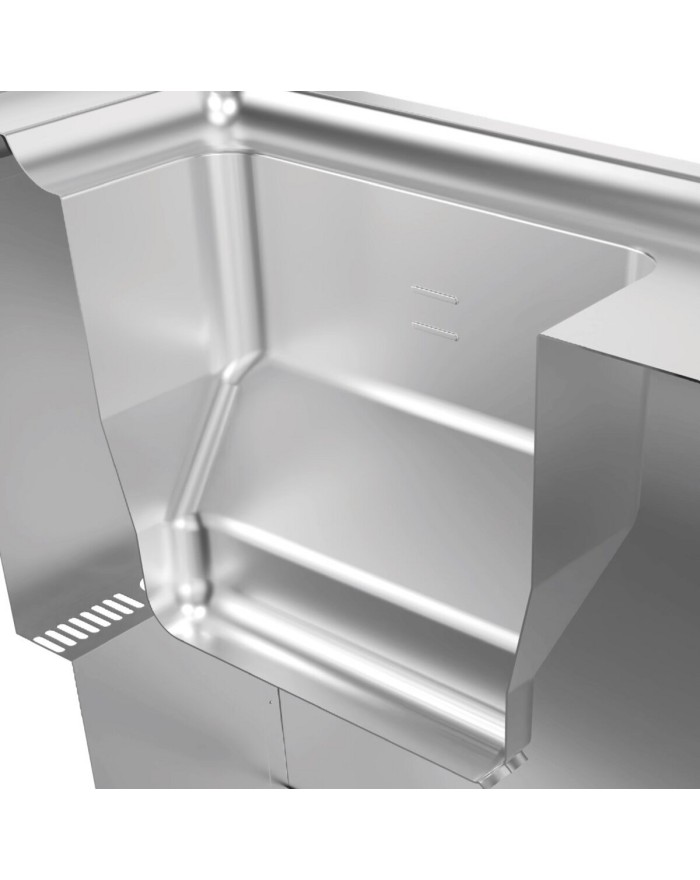

Moulded basin with flat top and large cold zone for easy cleaning.

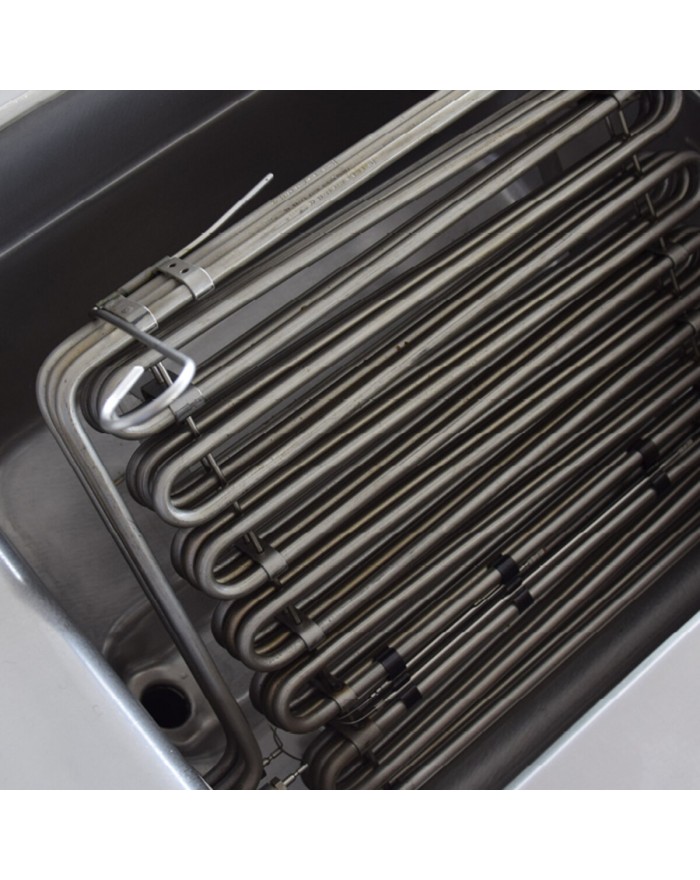

In the electric version, the heating element can be rotated by more than 90°.

Q90FRI/E422
CR1353799 - Standard Standard

Data sheet

Production site
BELLUNO
Electrical power
18,000Kw
380-415V 3N
Certified model
Q90FRI/E422
IP grade
IPX4
CE-certified
-
Capacità litri
22L
Production start year
2021
Cestelli
2 x QCF22/23P + Bottom Grid
Product type
STANDARD
Model
Q90FRI/E422
Company
0232
CODE
CR1353799
Commercial Line
QUEEN
Commercial code
Q90FRI/E422
Packaging width
1020
Material type
ZPF
Packaging height
1160
Definition
Q90FRI/E422 FRIGGITRICE EL.1V 22LT M40
Width
400mm
Depth
900mm
Packaging length
440
Height
850mm
PROMO
RAPIDO
Volume
0.306m3
Alimentazione
ELETTRICA
Gross volume
0522
Net weight
55Kg
Frequency
50/60 HzHz
Gross weight
65Kg
Capacity
22 litri

Specific References

mpn
Q90FRI/E422
