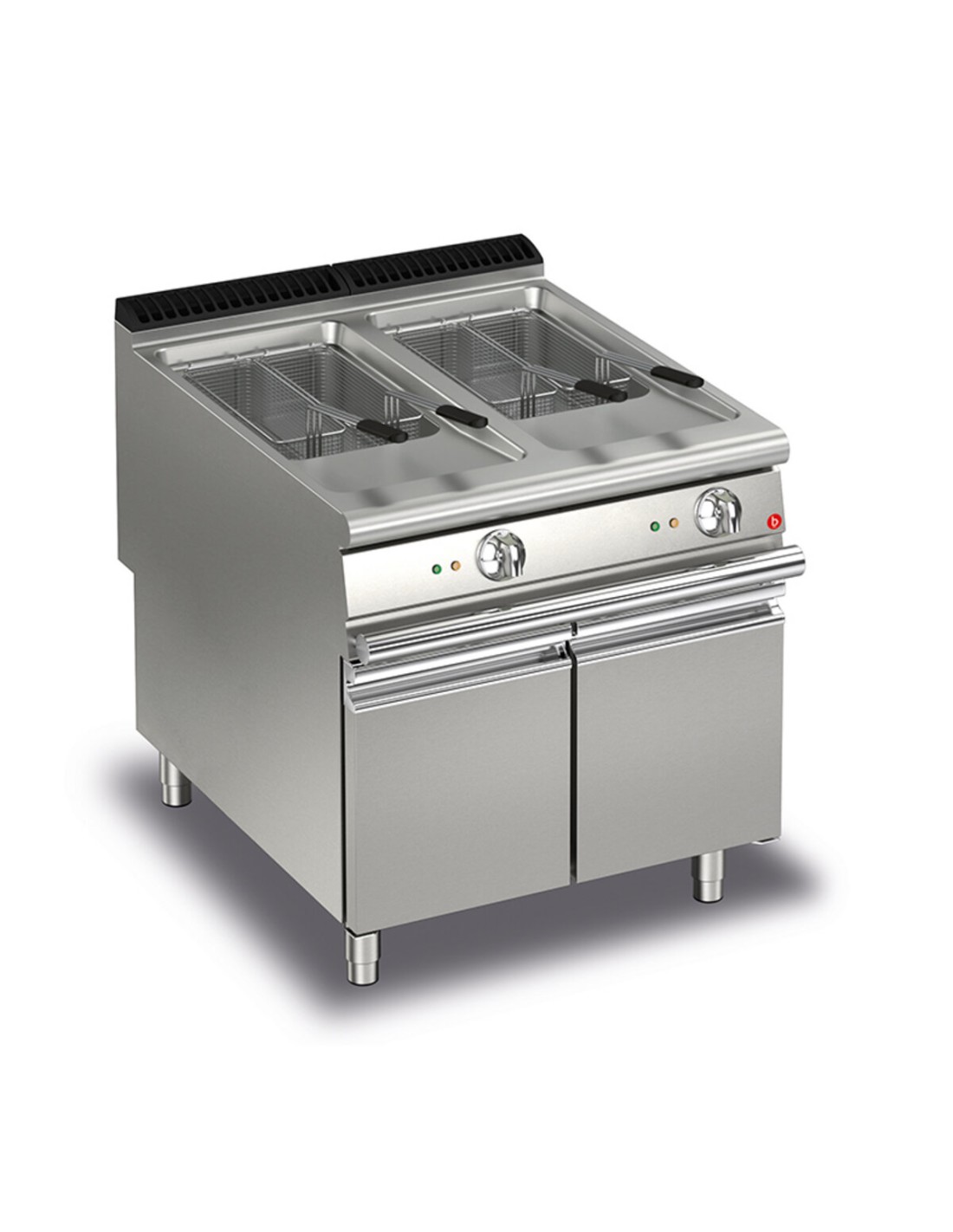

GAS FRYER 2 TANKS 23+23 L - WITH 4 BASKET KIT

Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.
Tipo Alimentazione
Promo
Print
Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.Stainless steel outer shells and feet. Working table height adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain taps. Oil drip pans on request. Safety thermostat (230°C) against excessive oil temperatures Gas version: Heating by stainless steel burner outside the tank (1-tank model with in-tank burner also available). Oil temperature controlled by mechanical thermostat with adjustment from 100 to 185°C. Electric version: Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version. Fully removable heating element in das 10 and 15-liter tank version. The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Dirt collecting convector included. This element facilitates the deposition of dirt in the cold zone, preventing dirt from depositing in the hot zones of the tank. The life cycle of the oil is thus longer. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.



Tank depth and width increased to increase capacity.

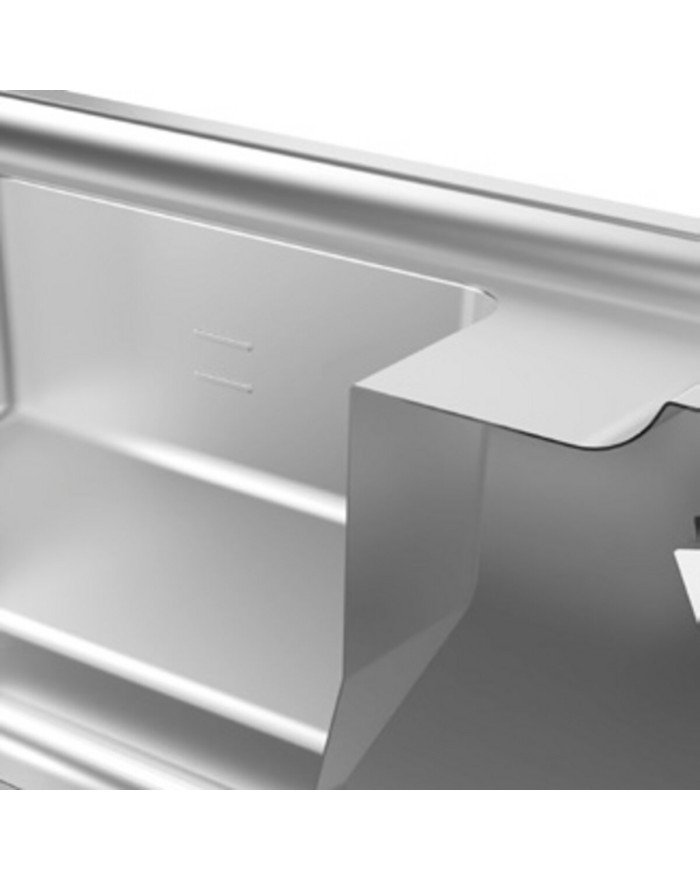

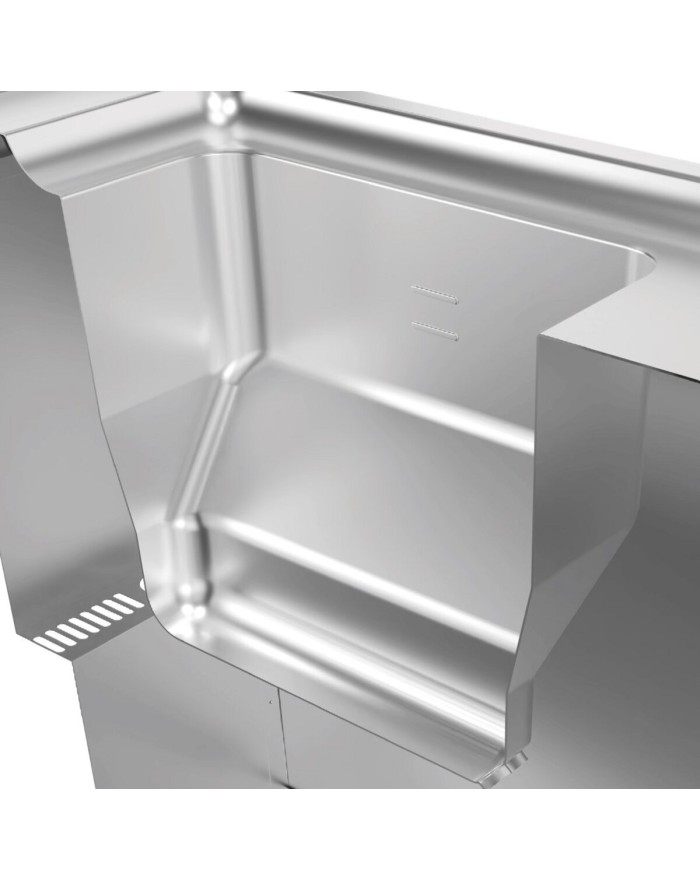

Moulded basin with flat top and large cold zone for easy cleaning.



Heating element completely removable from the tank to allow faster and more complete cleaning. In 10- and 15-liter versions

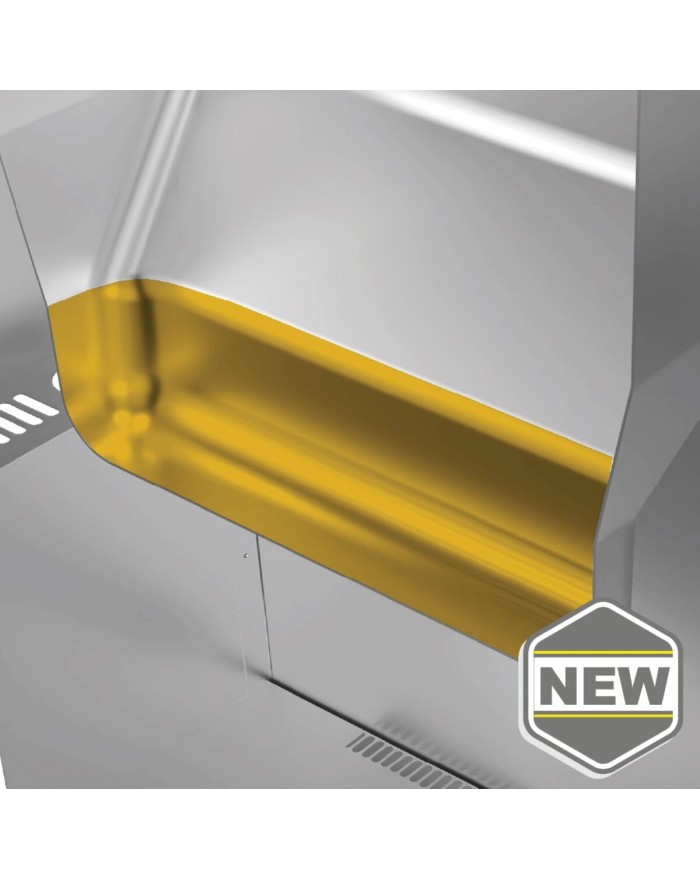

The large cold zone allows frying residues to settle, significantly extending the quality and life of the oil.

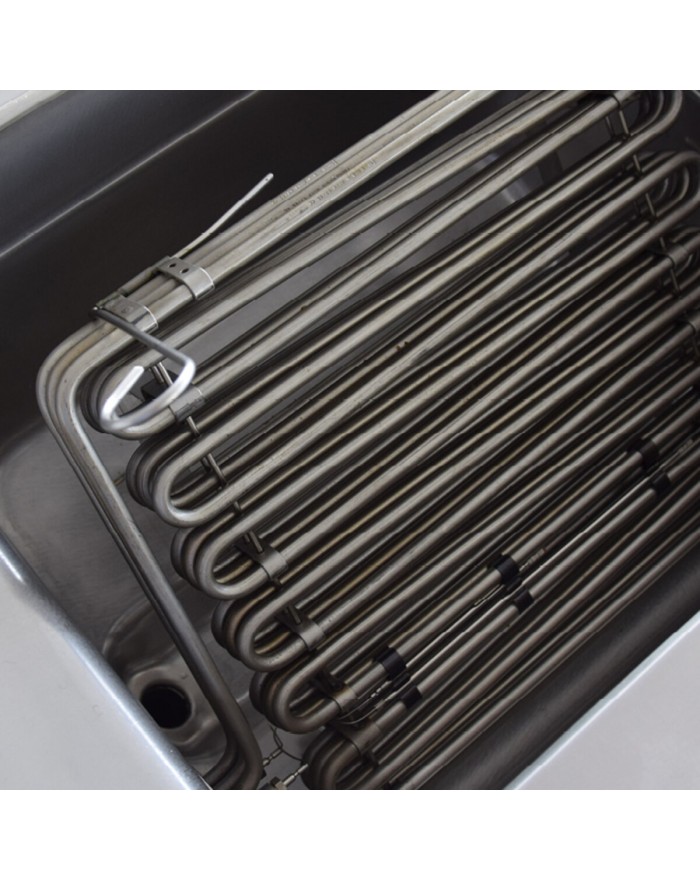

In the electric version, the heating element can be rotated by more than 90°.

Q90FRI/G823
CR1353789 - Standard Standard

Data sheet

Net weight
115Kg
Capacità litri
23+23L
Gross weight
133Kg
Cestelli
4 x QCF22/23P + Bottom Grid
Production site
BELLUNO
Chimney type
A1-B11-B21
II2H3+
ES/GB/GR/IE/IT/PT/SK
Certified model
Q90FRI/G823
Model
Q90FRI/G823
CE-certified
CE-0051DM5041
CODE
CR1353789
Production start year
2021
Commercial code
Q90FRI/G823
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
Q90FRI/G823 FRIGG. GAS 2V. 23+23LT M80
Commercial Line
QUEEN
Depth
900mm
Packaging width
1020
Height
870mm
Packaging height
1170
Volume
0.626m3
Width
800mm
Gas power Kw
42,00Kw
Packaging length
850
Gas power (G25.3/25 mbar)
40,00Kw
Alimentazione
GAS
Gas power Kcal
34400Kcal
Capacity
22 litri
Gross volume
0692

Specific References

mpn
Q90FRI/G823
