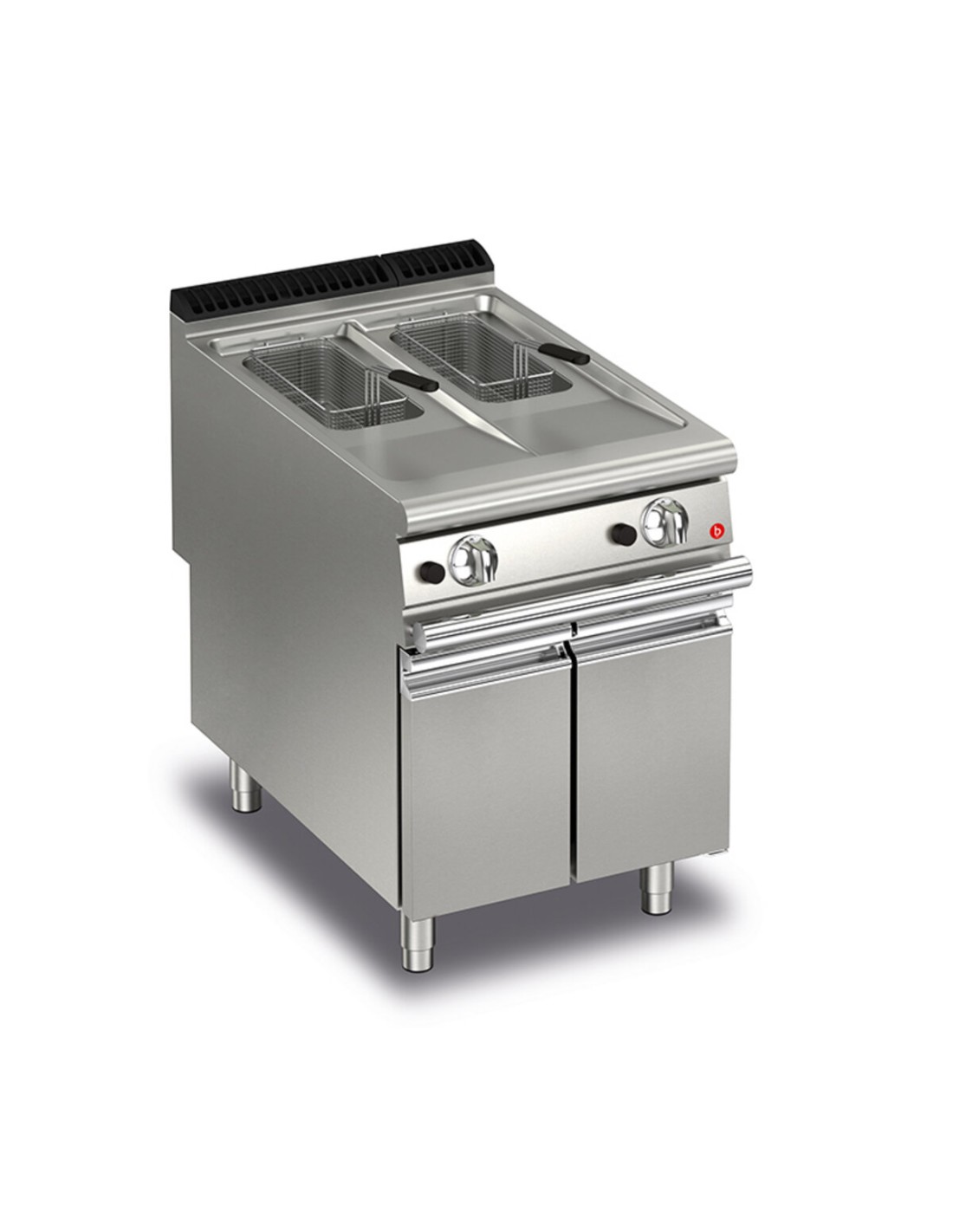

GAS FRYER 2 TANKS 10+10 L - WITH 2 BASKET KIT

Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.
Tipo Alimentazione
Promo
Print
Professional Gas Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Gas version: Heating via an external stainless steel burner (also available in a single-tank model with an in-tank burner). Oil temperature controlled by a mechanical thermostat, adjustable from 100 to 185°C.Stainless steel outer shells and feet. Working table height adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain taps. Oil drip pans on request. Safety thermostat (230°C) against excessive oil temperatures Gas version: Heating by stainless steel burner outside the tank (1-tank model with in-tank burner also available). Oil temperature controlled by mechanical thermostat with adjustment from 100 to 185°C. Electric version: Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version. Fully removable heating element in das 10 and 15-liter tank version. The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Dirt collecting convector included. This element facilitates the deposition of dirt in the cold zone, preventing dirt from depositing in the hot zones of the tank. The life cycle of the oil is thus longer. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.



Tank depth and width increased to increase capacity.

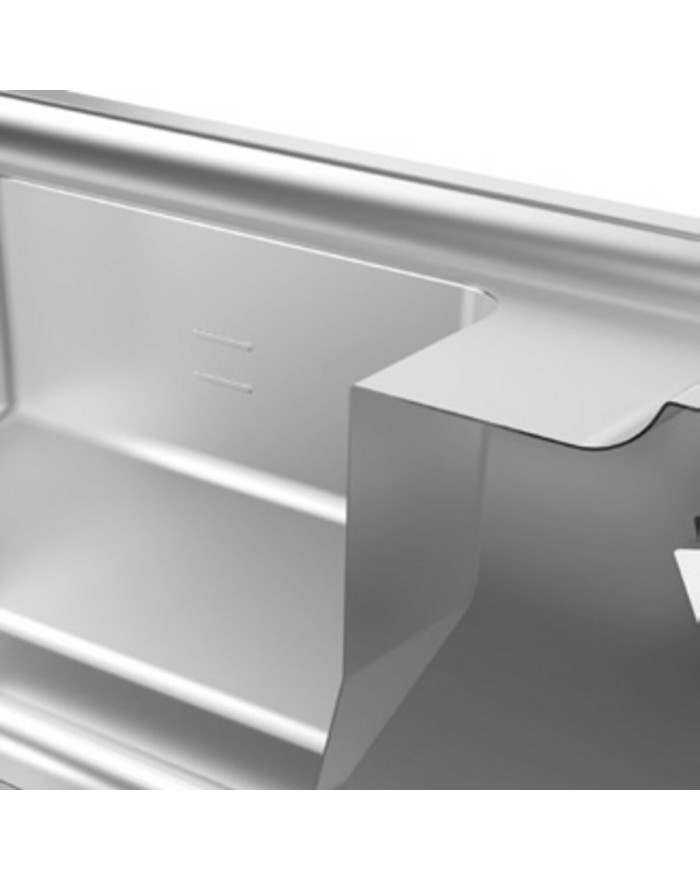

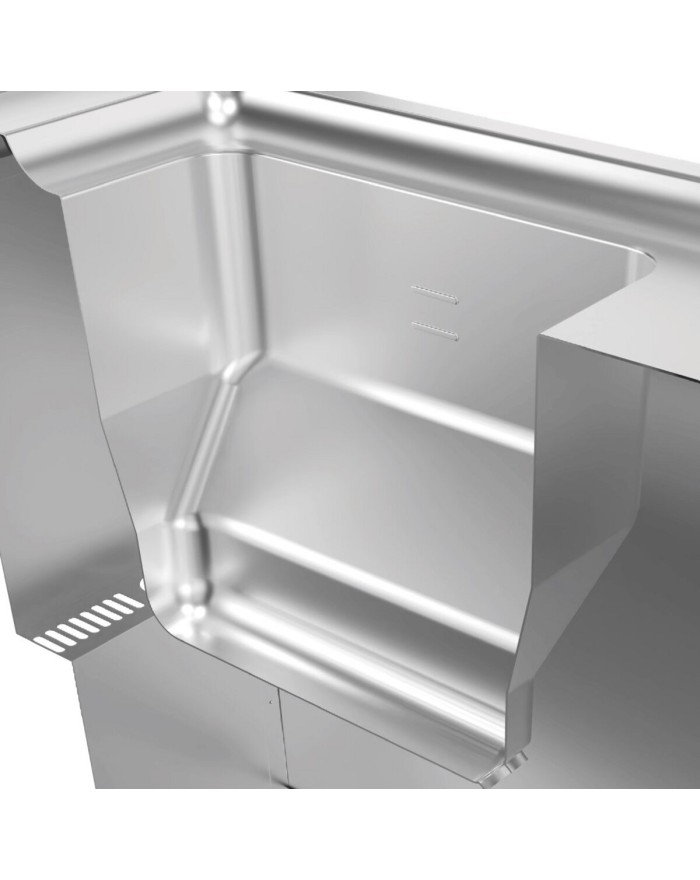

Moulded basin with flat top and large cold zone for easy cleaning.

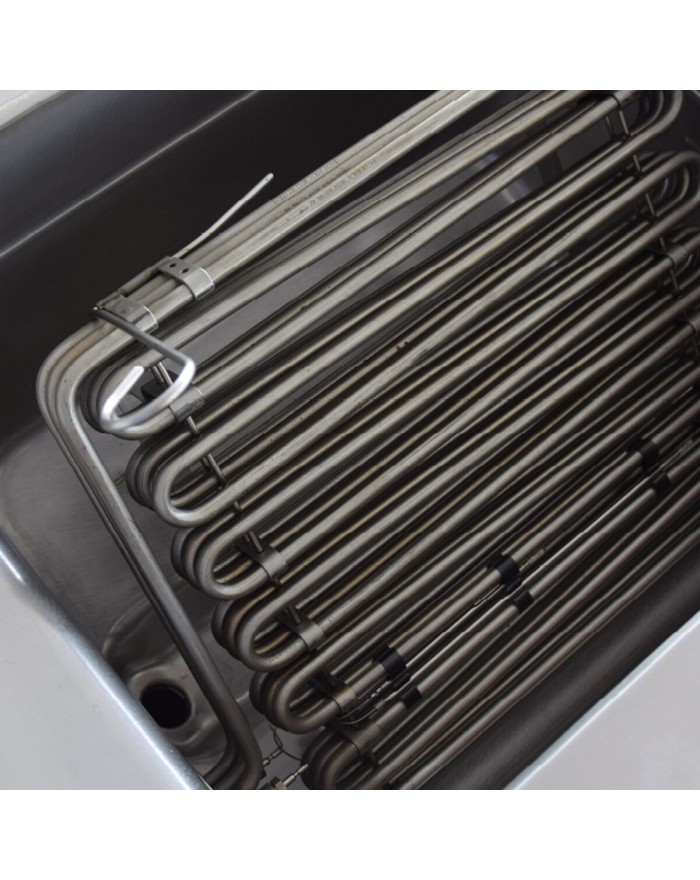

Heating element completely removable from the tank to allow faster and more complete cleaning. In 10- and 15-liter versions

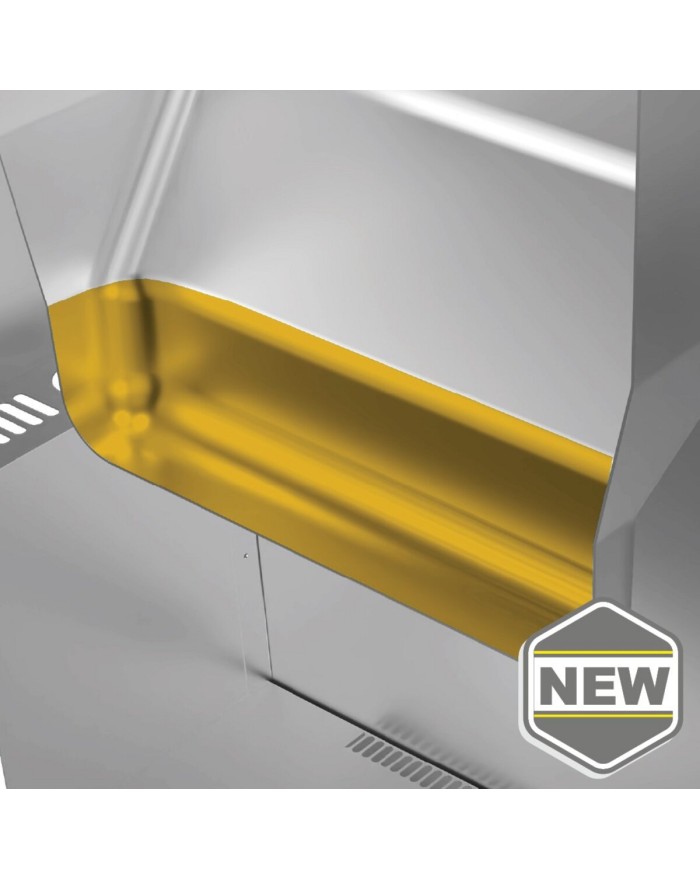

The large cold zone allows frying residues to settle, significantly extending the quality and life of the oil.



In the electric version, the heating element can be rotated by more than 90°.

Q90FRI/G610
CR1018369 - Standard Standard

Data sheet

Gas power Kcal
16340Kcal
Alimentazione
GAS
Gross volume
0836
Capacity
10 litri
Net weight
80Kg
Capacità litri
10+10L
Gross weight
92Kg
III1a2H3B-P
DK/SE
Production site
BELLUNO
Cestelli
2 x CF10
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1-B11-B21
Model
Q90FRI/G610
Certified model
Q90FRI/G610
CODE
CR1018369
CE-certified
CE-0051DM5041/M1
Commercial code
Q90FRI/G610
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
Q90FRI/G610 FRIGG. GAS 2V. 10+10LT M60
Commercial Line
QUEEN
Depth
900mm
Packaging width
1060
Height
870mm
Packaging height
1230
Volume
0.47m3
Width
600mm
Gas power Kw
19,00Kw
Packaging length
640
Gas power (G25.3/25 mbar)
19,00Kw
AGA Certificate
SI

Specific References

mpn
Q90FRI/G610
