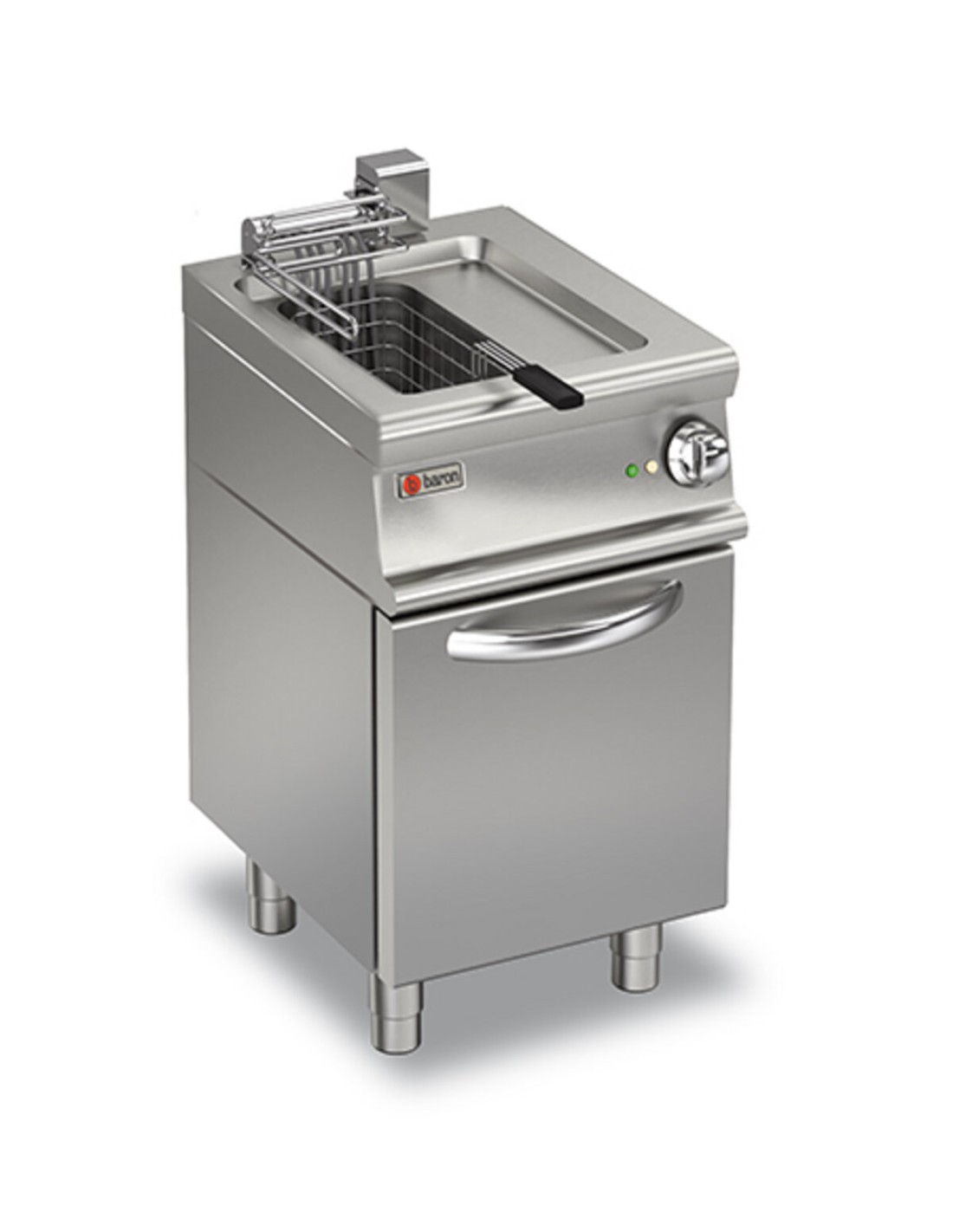

ELECTRIC FRYER 1 BOWL 10 L


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain tap. Safety thermostat (230°C) against excessive oil temperatures. Oil temperature controlled by thermostat with adjustment from 100 to 190°C. Tank with a capacity of 10 L. GAS FRYER Heating by stainless steel burner outside tank. ELECTRIC FRYER Heating by armored heating elements inside the tank and rotatable by more than 90°.
N550FR/E450
CR1010369

Data sheet

Model
N550FR/E450
Code
CR1010369
Material type
ZPF
Definition
N550FR/E450 FRIGGITRICE ELE. 1V.10LT M45
Width
450mm
Height
870mm
Depth
550mm
Volume
0.215m3
Electrical power
9Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0475
Net weight
47Kg
Gross weight
69Kg
Capacity
15 litri
Voltage
400
IP grade
IPX4
Certified model
N550FR/E450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
700
Packaging height
1280
Packaging length
530
Alimentazione
ELETTRICA
Commercial code
N550FR/E450
Production site
BELLUNO
Chimney type
A1
Gas/refrigerant type
METANO "H E" G20 20/25mbar
