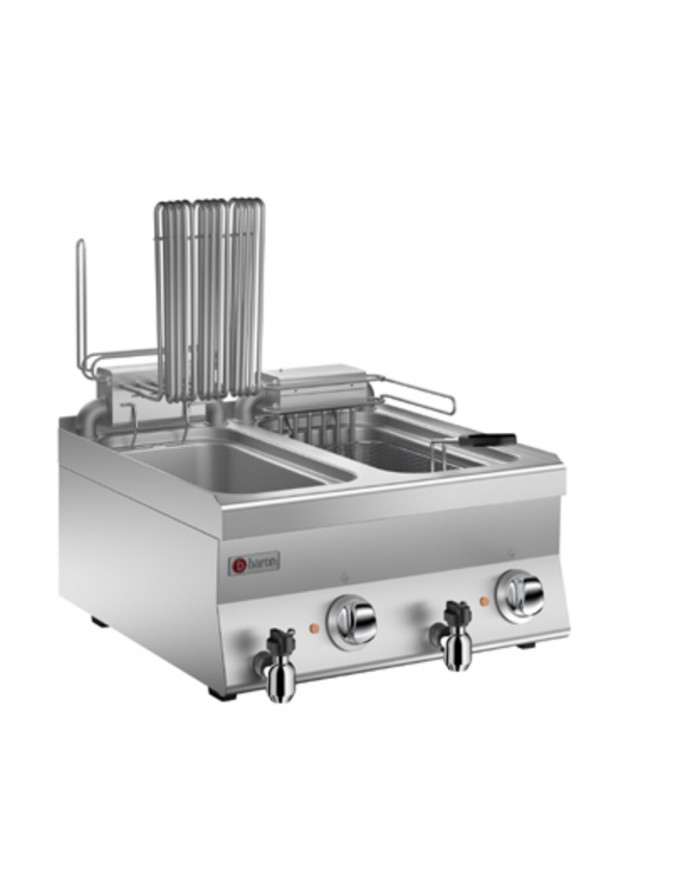

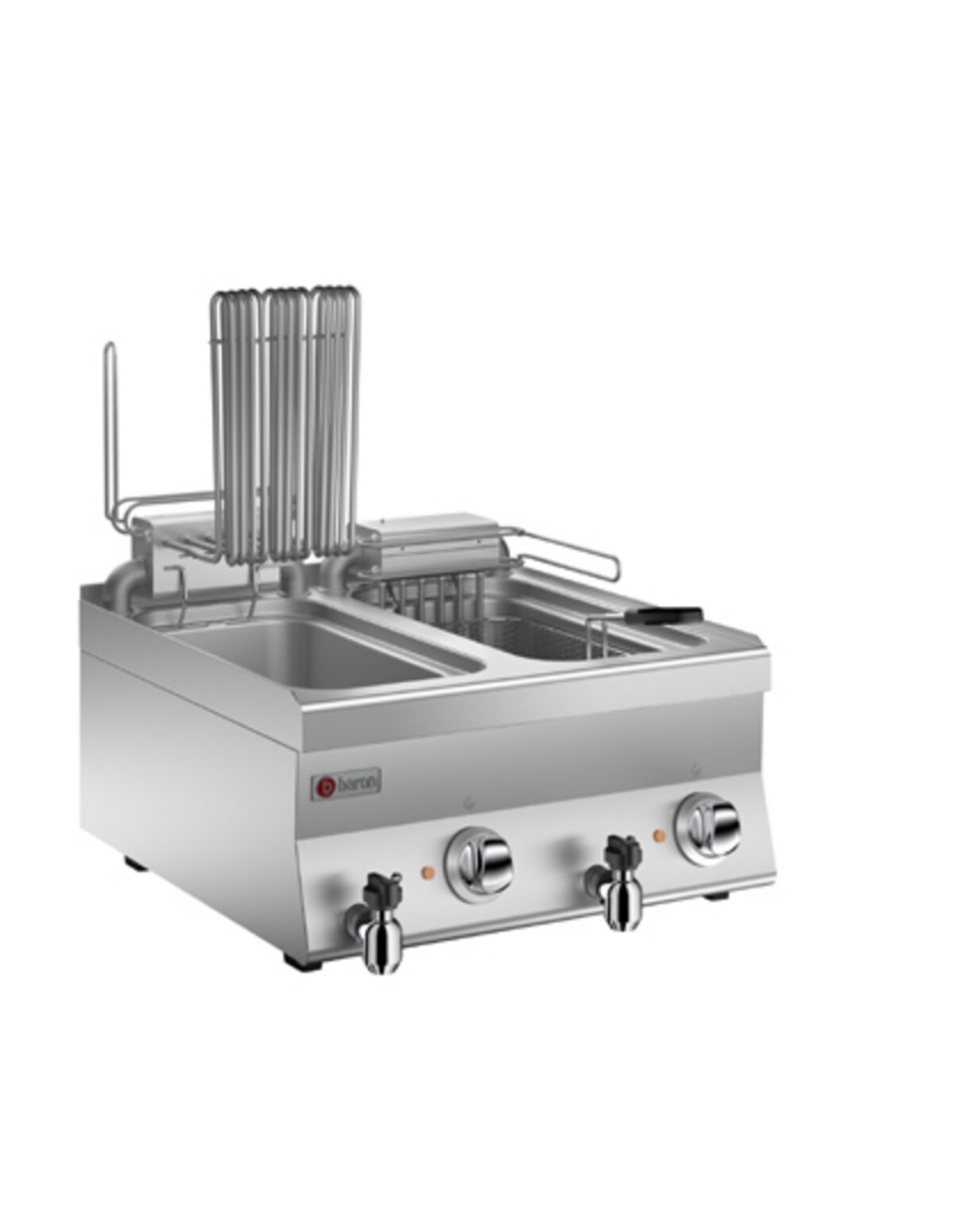

ELECTRIC FRYER 2 TANKS 10+10 L.

In the electric version, the heating elements are completely removable from the tank for optimal cleaning.
Print
Fryers have high specific powers to ensure high quality of fried product as it reduces the amount of oil absorbed. The specific powers provided of 1 kW/l for gas and 0.9 kW/l for electric in the upgraded version are typical of large professional machines. The sensitivity of the thermostat with bulb positioned in the centre of the tank ensures maximum temperature control with fast response times to temperature drops. GAS Gas models are equipped with piezo ignition, pilot flame and valve with thermocouple to ensure maximum safety. Adjustable temperature from 60 to 190°C. ELECTRICAL Electric models are equipped with temperature control, safety thermostat, power indicator lights and fully removable heating elements to allow easy cleaning. Adjustable temperature from 100 to 190°C. In the electric version, the heating elements are completely removable from the tank for optimal cleaning.


In the gas fryer, the burner is external to the tank and is made of stainless steel with a stabilised flame. Piezo ignition and safety ensured by valve with thermocouple and pilot flame.

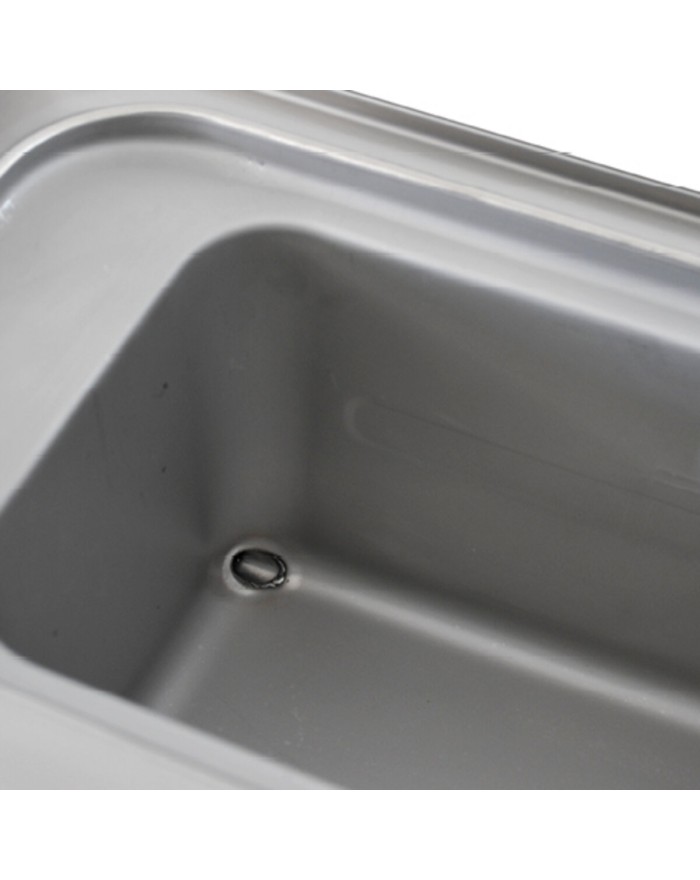

The fryers have moulded tubs with sloping bottoms to facilitate oil drainage.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NFR/E600R
CR0856119

Data sheet

Model
6NFR/E600R
Code
CR0856119
Material type
ZPF
Definition
FRIGGITR.R/ROV.E.2X10L 60 M60 6NFR/E600R
Width
600mm
Height
295mm
Depth
600mm
Volume
0.106m3
Electrical power
12Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0217
Net weight
30.7Kg
Gross weight
39Kg
Capacity
10+10
IP grade
IPX3
Certified model
6NFR/E600R
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
690
Packaging height
500
Packaging length
630
Alimentazione
ELETTRICA
Commercial code
6NFR/E600R

Download

CR0856119_it.pdf

Download (808.66KB)

CR0856119_de.pdf

Download (810.67KB)

CR0856119_en.pdf

Download (808.04KB)

CR0856119_es.pdf

Download (840.16KB)

CR0856119_fr.pdf

Download (843.11KB)
