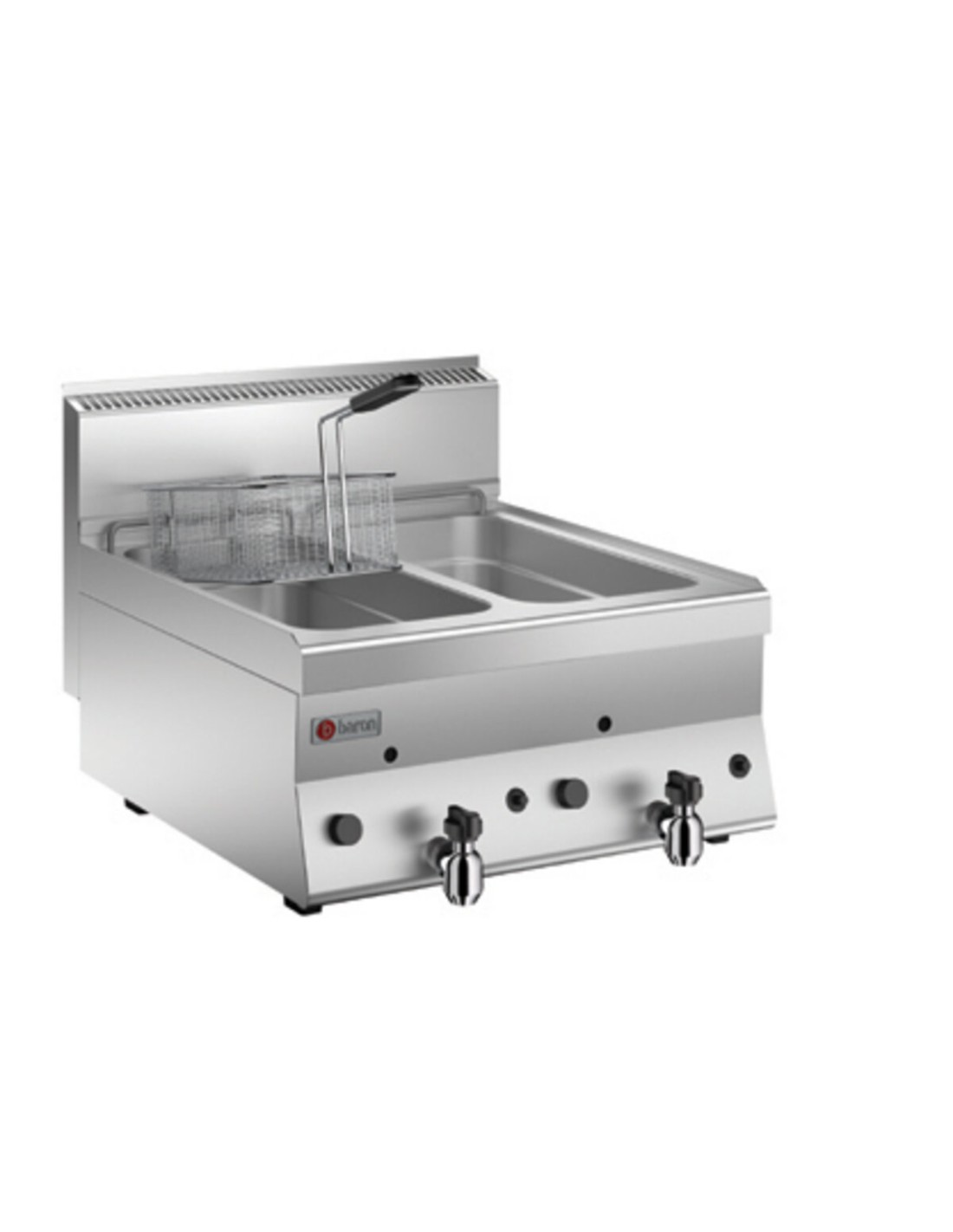

GAS FRYER 2 TANKS 8+8 L.

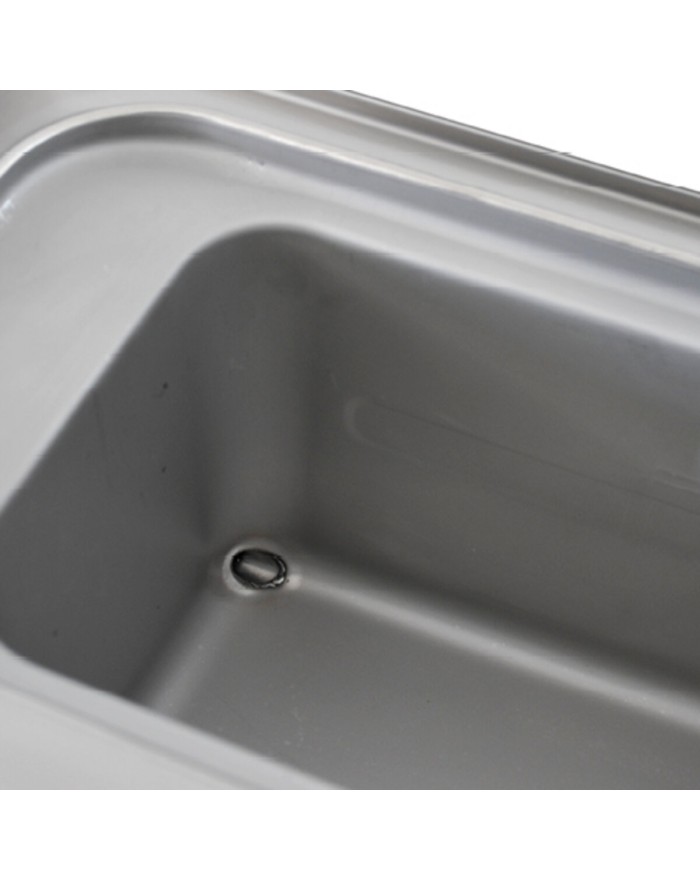

The fryers have moulded tubs with sloping bottoms to facilitate oil drainage.
Tipo Alimentazione
Print
Fryers have high specific powers to ensure high quality of fried product as it reduces the amount of oil absorbed. The specific powers provided of 1 kW/l for gas and 0.9 kW/l for electric in the upgraded version are typical of large professional machines. The sensitivity of the thermostat with bulb positioned in the centre of the tank ensures maximum temperature control with fast response times to temperature drops. GAS Gas models are equipped with piezo ignition, pilot flame and valve with thermocouple to ensure maximum safety. Adjustable temperature from 60 to 190°C. ELECTRICAL Electric models are equipped with temperature control, safety thermostat, power indicator lights and fully removable heating elements to allow easy cleaning. Adjustable temperature from 100 to 190°C. The fryers have moulded tubs with sloping bottoms to facilitate oil drainage.


In the gas fryer, the burner is external to the tank and is made of stainless steel with a stabilised flame. Piezo ignition and safety ensured by valve with thermocouple and pilot flame.



The fryers have moulded tubs with sloping bottoms to facilitate oil drainage.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NFR/G600
CR0856099 - Metano Standard

Data sheet

Model
6NFR/G600
Code
CR0856099
Material type
ZPF
Definition
FRIGGITRICE G.2x8L 60 M60 6NFR/G600
Width
600mm
Height
295mm
Depth
650mm
Volume
0.115m3
Gross volume
0217
Net weight
43Kg
Gross weight
50Kg
Capacity
8+8
Certified model
6NFR/G600
CE-certified
CE-0085DL0223
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
690
Packaging height
500
Packaging length
630
Alimentazione
GAS
Commercial code
6NFR/G600
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
14Kw
Gas power (G25.3/25 mbar)
13,30Kw
Gas power Kcal
11438Kcal
Chimney type
A1

Specific References

mpn
6NFR/G600

Download

CR0856099_it.pdf

Download (800.16KB)

CR0856099_de.pdf

Download (802.66KB)

CR0856099_en.pdf

Download (799.9KB)

CR0856099_es.pdf

Download (831.36KB)

CR0856099_fr.pdf

Download (835.55KB)
