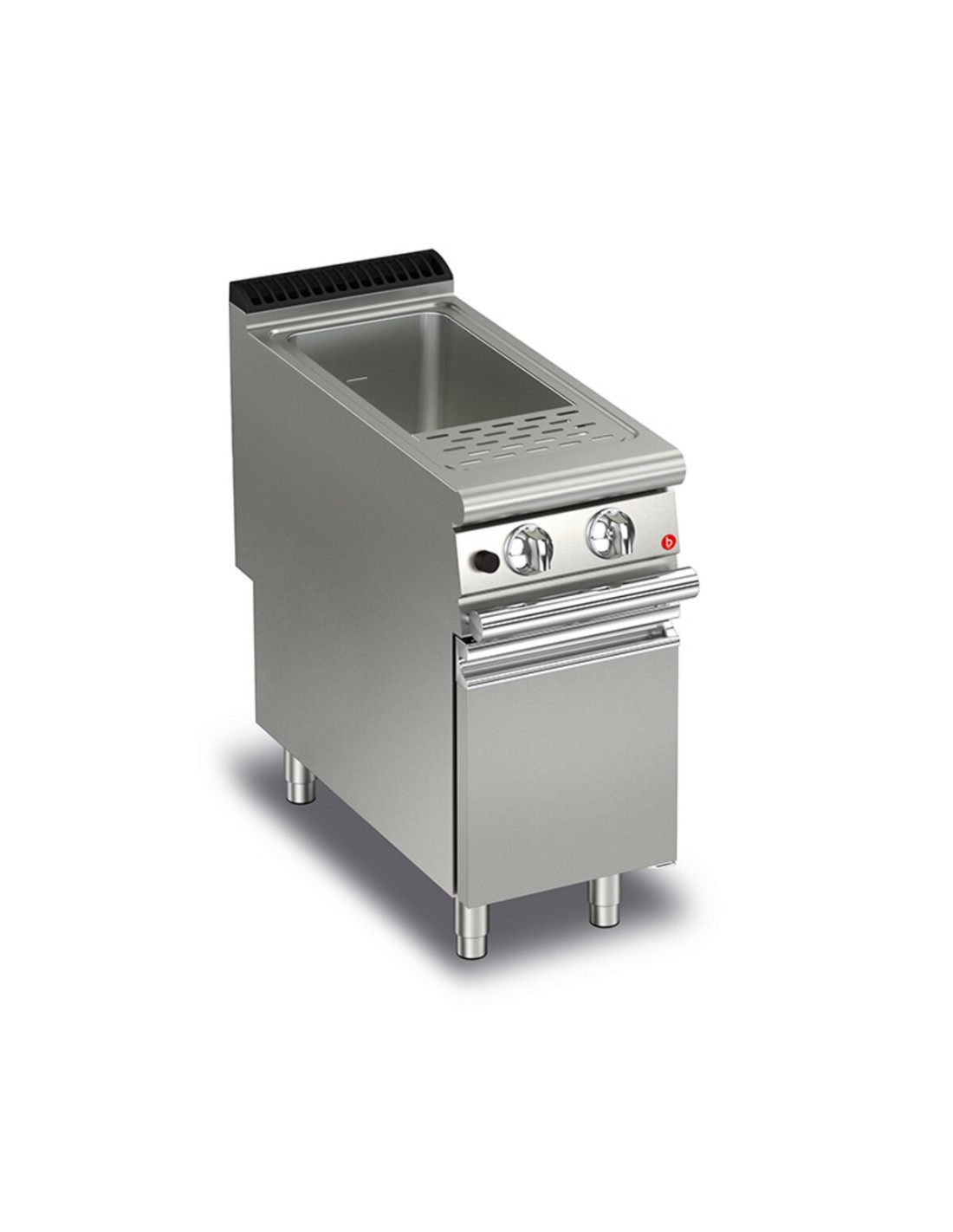

GAS PASTA COOKER 1 BOWL 40 L
Data Sheet
DWG-3D
Pictures

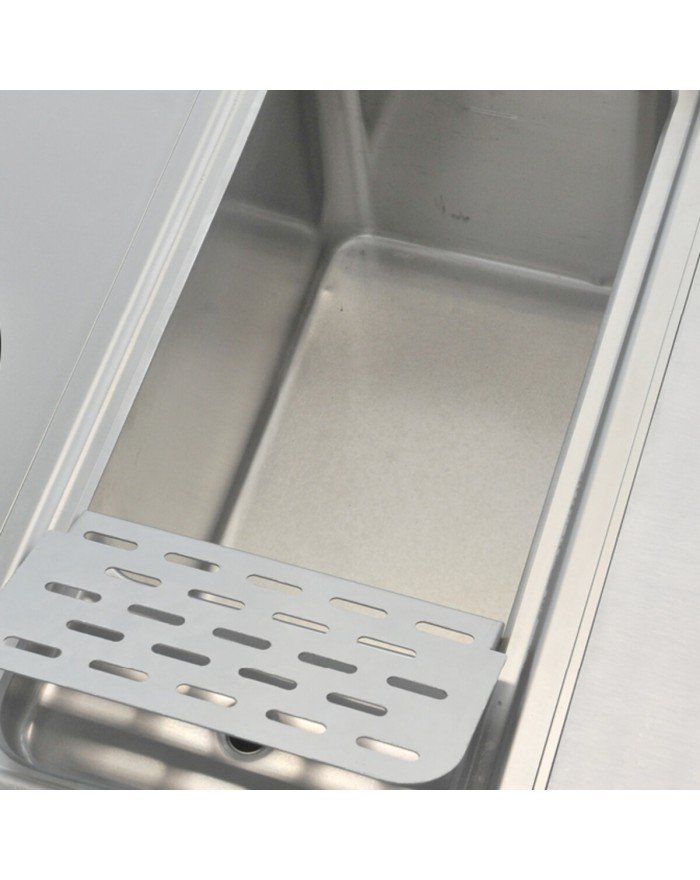

Cooking tanks made of AISI 316 stainless steel (an alloy with exceptional corrosion resistance even at high teperatures) of large capacity (42 liters), molded with inner radiused corners for maximum hygiene and cleanability, dotat ion of foam expansion, with residual starch discharge device.
Safety thermostat in tank against dry running.
Gas models
Safety pressure switch to prevent empty tank operation.
Stabilized flame burners with piezo ignition of the pilot burner.
Safety tap with thermocouple and progressive adjustment of power output independently for each tank.
Electric models
Armored stainless steel heating elements inserted into the tank.
Thermal protectors of the heating unit.
Multi-position, independent power regulator for each tank.
Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.

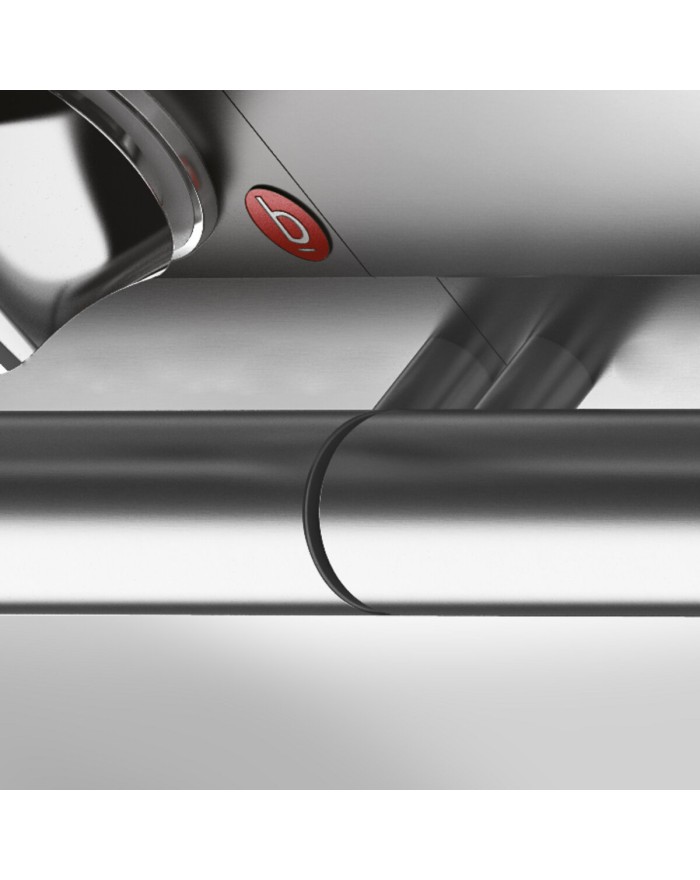

The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Non-accessible internal compartment for total user safety, closed with door for aesthetic alignment. Version with fixed panel closure available.
Q90CP/G400
CR1659329 - Standard Standard
Data sheet
- Minimum pressure
- 150
- CODE
- CR1659329
- CE-certified
- CE-0085DO0255
- Product type
- STANDARD
- Maximum pressure
- 500
- Commercial code
- Q90CP/G400
- Commercial Line
- DIAMANTE
- Material type
- ZPF
- Packaging width
- 1020
- Definition
- Q90CP/G400 ELETTRIF.1V. 40LT M40 S/CESTI
- Packaging height
- 1150
- Depth
- 900mm
- Width
- 400mm
- Height
- 870mm
- Packaging length
- 460
- Volume
- 0.313m3
- PROMO
- READY
- Gas power Kw
- 14,00Kw
- Alimentazione
- MISTA
- Gas power (G25.3/25 mbar)
- 13,50Kw
- Electrical power
- 0,015Kw
220-240V 1N - Gas power Kcal
- 11610Kcal
- Frequency
- 50 HzHz
- Gross volume
- 0540
- Capacity
- 42 litri
- Net weight
- 58.4Kg
- Gross weight
- 69Kg
- IP grade
- IPX5
- Production site
- BELLUNO
- Voltage
- 230
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Chimney type
- A1
- Gas/refrigerant type
- GPL 28-30/37 mbar
- Model
- Q90CP/G400
- Certified model
- Q90CP/G400
Specific References
- mpn
- Q90CP/G400
