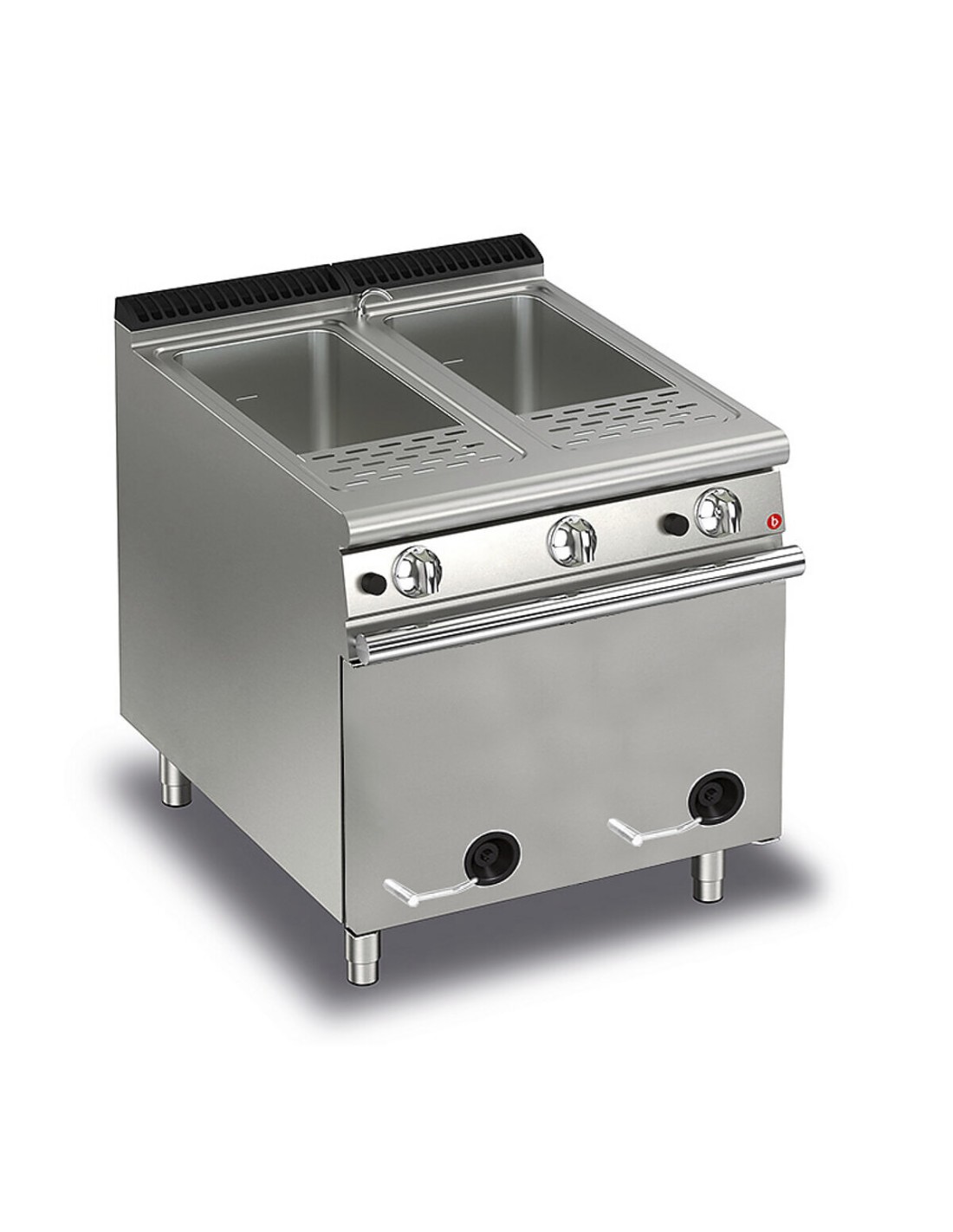

GAS PASTA COOKER 2 TANKS 40 + 40 LITRES - FIXED FRONT PANEL

Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 7 , PASTA COOKER
Cooking tanks made of AISI 316 stainless steel (alloy with exceptional resistance to corrosion even at high teperatures) of large capacity (42 liters), molded with radiused inner corners for maximum hygiene and cleanability, equipped with large foam expansion zones, with residual starch discharge device. Safety thermostat in the tank against dry running. Gas models Safety pressure switch to prevent empty tank operation. Stabilized flame burners with piezo ignition of the pilot burner. Safety tap with thermocouple and progressive adjustment of the power output independently for each tank. Electric models Armored stainless steel heating elements inserted into the tank. Thermal protectors of the heating unit. Multi-position power regulator, independent for each tank.
Q70CP/G800F
CR1659309 - Standard Standard

Data sheet

Width
800mm
Height
870mm
Packaging length
830
Volume
0.487m3
Alimentazione
MISTA
Gas power Kw
21,00Kw
Gas power (G25.3/25 mbar)
19,00Kw
Electrical power
0,030Kw
220-240V 1N
Gas power Kcal
16340Kcal
Frequency
50-60 HzHz
Gross volume
0600
Capacity
28 litri
Net weight
83Kg
Gross weight
90.8Kg
IP grade
IPX4
Production site
BELLUNO
Voltage
230
Chimney type
A1-B11-B21
III1a2H3B-P
DK
II2H3+
ES/GB/GR/IE/IT/PT/SK
Certified model
Q70CP/G800
Minimum pressure
150
Model
Q70CP/G800F
CE-certified
CE-0085DO0255
Maximum pressure
500
CODE
CR1659309
Product type
STANDARD
Commercial code
Q70CP/G800
Commercial Line
QUEEN
Material type
ZPF
Packaging width
830
Definition
Q70CP/G800 ELETTRIF.2V. 28LT M80 S/P S/C
Packaging height
1170
Depth
700mm

Specific References

mpn
Q70CP/G800F
