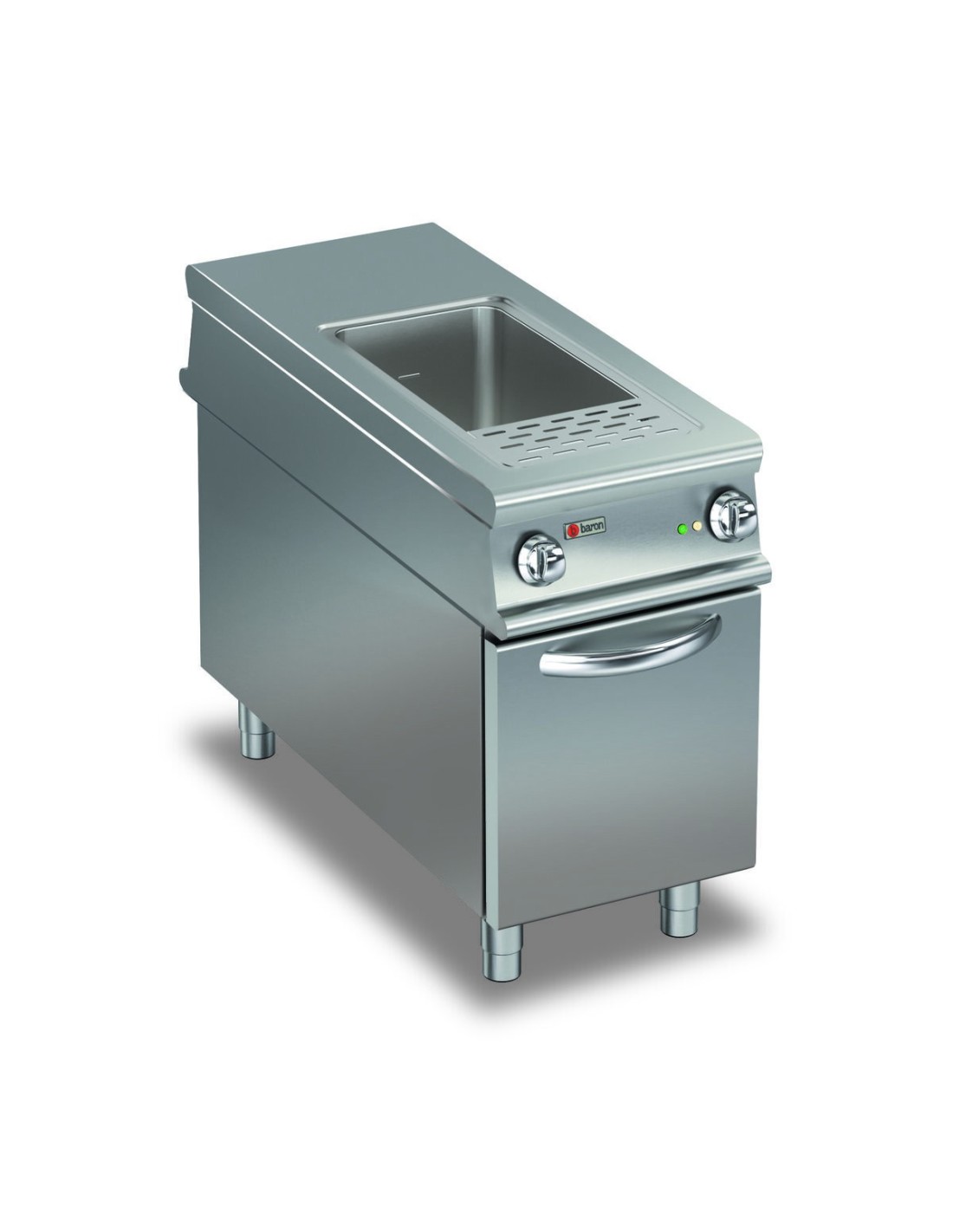

ELECTRIC PASTA COOKER 1 BASIN 40 L


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Molded tubs with rounded corners, made of AISI 316 stainless steel to ensure maximum corrosion resistance. Stainless steel water outlet and floor drain. GAS VERSION Heating by stainless steel burner positioned outside the tank. Thermostatic faucet with safety thermocouple. Piezo ignition. ELECTRIC VERSION Heating by armored heating element located in the tank. Thermostat-controlled temperature selectable from 60°-90°C (preheating) or in the continuous heating position. Safety thermostat.
N1100CP/E450
CR0993039

Data sheet

Model
N1100CP/E450
Code
CR0993039
Material type
ZPF
Definition
N1100CP/E450 CUOCIPASTA EL. 1V.42LT M45
Width
450mm
Height
870mm
Depth
1100mm
Volume
0.431m3
Electrical power
8.5Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0470
Net weight
58.14Kg
Gross weight
68.4Kg
Capacity
15 litri
Voltage
400
IP grade
IPX4
Certified model
N1100CP/E450
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
530
Packaging height
1280
Packaging length
700
Alimentazione
ELETTRICA
Commercial code
N1100CP/E450
Production site
BELLUNO

Download

CR0993039_it.pdf

Download (273.44KB)

CR0993039_de.pdf

Download (275.26KB)

CR0993039_en.pdf

Download (272.19KB)

CR0993039_es.pdf

Download (273.43KB)

CR0993039_fr.pdf

Download (275.42KB)
