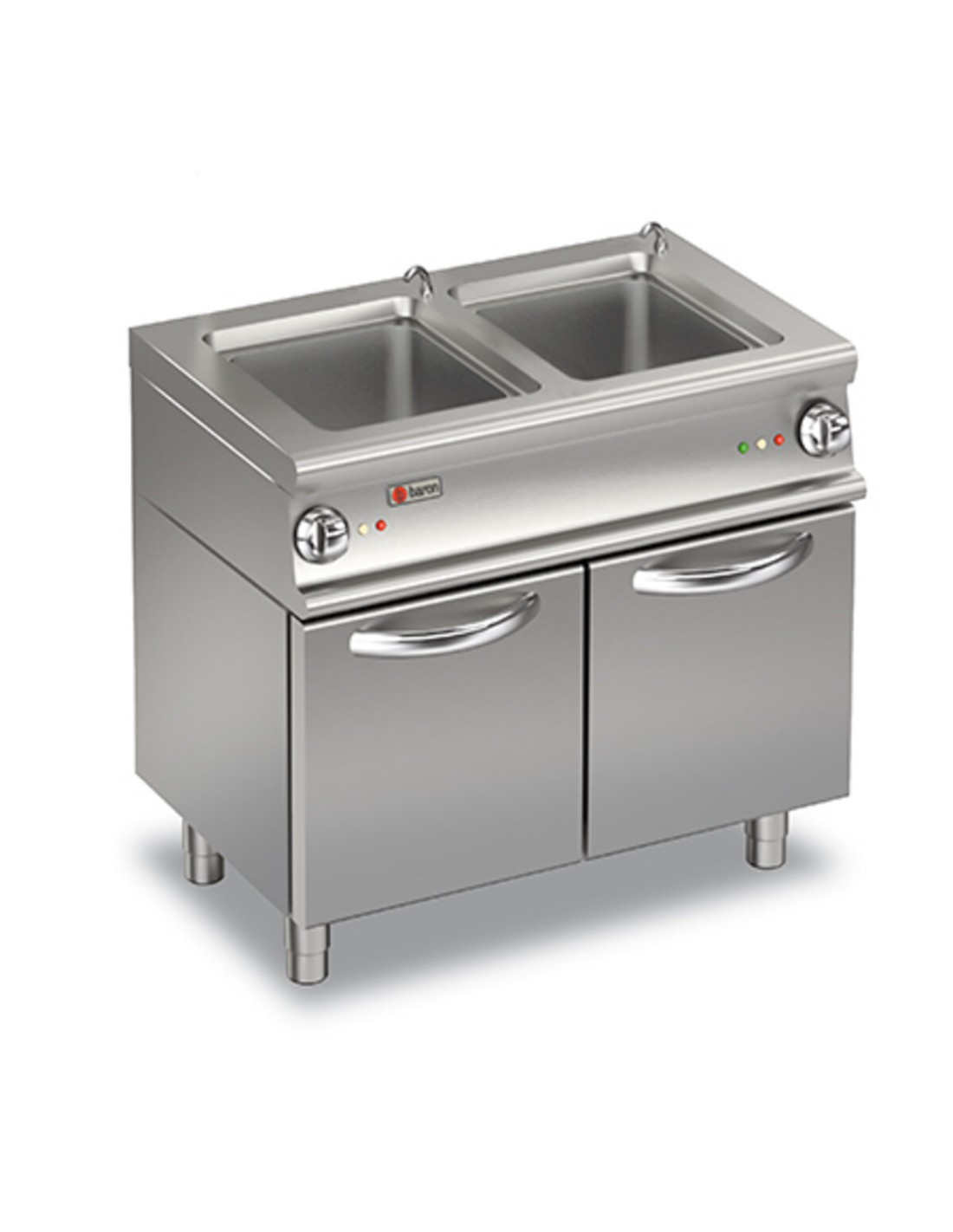

ELECTRIC PASTA COOKER 2 TANKS 26+26 LITRES
Data Sheet
DWG-3D
Pictures
Stainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Molded tubs with rounded corners, made of AISI 316 stainless steel to ensure maximum corrosion resistance.
Stainless steel water outlet and floor drain.
GAS VERSION
Heating by stainless steel burner positioned outside the tank.
Thermostatic faucet with safety thermocouple.
Piezo ignition.
ELECTRIC VERSION
Heating by armored heating element located in the tank.
Thermostat-controlled temperature selectable from 60°-90°C (preheating) or in the continuous heating position.
Safety thermostat.
N550CP/E900
CR1010339 - Standard Standard
Data sheet
- Model
- N550CP/E900
- Packaging width
- 650
- CODE
- CR1010339
- Packaging height
- 1250
- Commercial code
- N550CP/E900
- Width
- 900mm
- Material type
- ZPF
- Packaging length
- 940000
- Definition
- N550CP/E900 CUOCIPASTA EL.2V.26+26LT M90
- Alimentazione
- ELETTRICA
- Depth
- 550mm
- Electrical power
- 15,000Kw
380-415V 3N - Height
- 870mm
- Frequency
- 50-60 HzHz
- Volume
- 0.431m3
- Capacity
- 26 litri
- Gross volume
- 0764
- Net weight
- 76Kg
- IP grade
- IPX4
- Gross weight
- 102Kg
- Capacità litri
- 26+26L
- Production site
- BELLUNO
- Voltage
- 400
- Certified model
- N550CP/E900
- Minimum pressure
- 150
- Product type
- STANDARD
- Maximum pressure
- 500
- Company
- 0232
- Commercial Line
- SERIE 1100
Specific References
- mpn
- N550CP/E900
