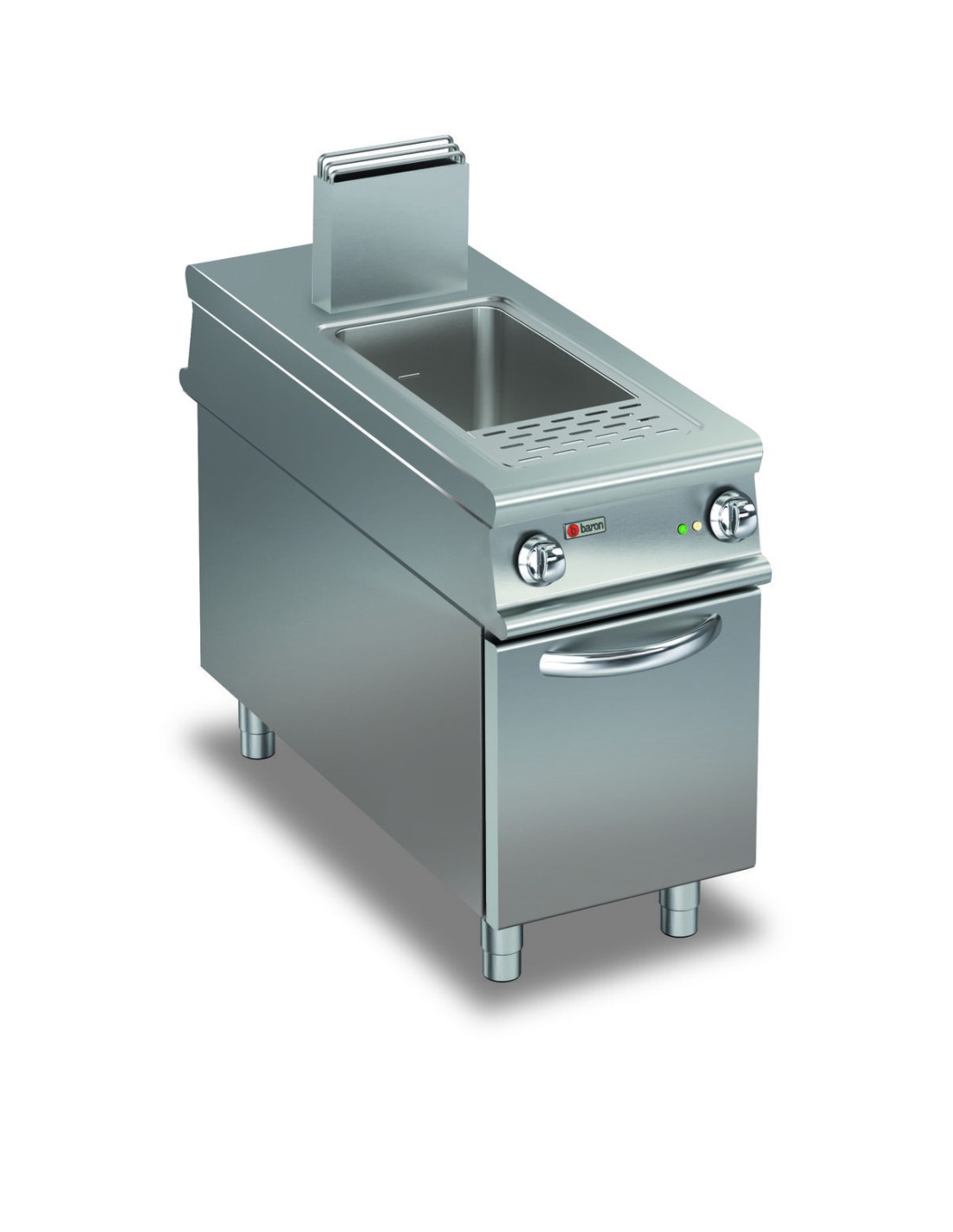

PASS-THROUGH PASTA COOKER GAS 1 BOWL 40 L
DWG-3D
Pictures
Stainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Molded tubs with rounded corners, made of AISI 316 stainless steel to ensure maximum corrosion resistance.
Stainless steel water outlet and floor drain.
GAS VERSION
Heating by stainless steel burner positioned outside the tank.
Thermostatic faucet with safety thermocouple.
Piezo ignition.
ELECTRIC VERSION
Heating by armored heating element located in the tank.
Thermostat-controlled temperature selectable from 60°-90°C (preheating) or in the continuous heating position.
Safety thermostat.
N1100CP/G450
CR0993029 - Metano Standard
Data sheet
- Model
- N1100CP/G450
- Code
- CR0993029
- Material type
- ZPF
- Definition
- N1100CP/G450 CUOCIPASTA GAS 1V.42LT M45
- Width
- 450mm
- Height
- 870mm
- Depth
- 1100mm
- Volume
- 0.431m3
- Electrical power
- 0.015Kw
220-240V 1N - Frequency
- 50 HzHz
- Gross volume
- 0780
- Net weight
- 80Kg
- Gross weight
- 96Kg
- Capacity
- 42 litri
- Voltage
- 230
- IP grade
- IPX5
- Certified model
- N1100CP/G450
- CE-certified
- CE-0085BT0057
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 1100
- Packaging width
- 540
- Packaging height
- 1100
- Packaging length
- 1320
- Alimentazione
- MISTA
- Commercial code
- N1100CP/G450
- Production site
- BELLUNO
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Gas power Kw
- 14Kw
- Gas power (G25.3/25 mbar)
- 13,50Kw
- Gas power Kcal
- 11610Kcal
- Chimney type
- A1
- Gas/refrigerant type
- GPL 28-30/37 mbar
- Minimum pressure
- 150
- Maximum pressure
- 500
- Capacità litri
- 40L
Specific References
- mpn
- N1100CP/G450
