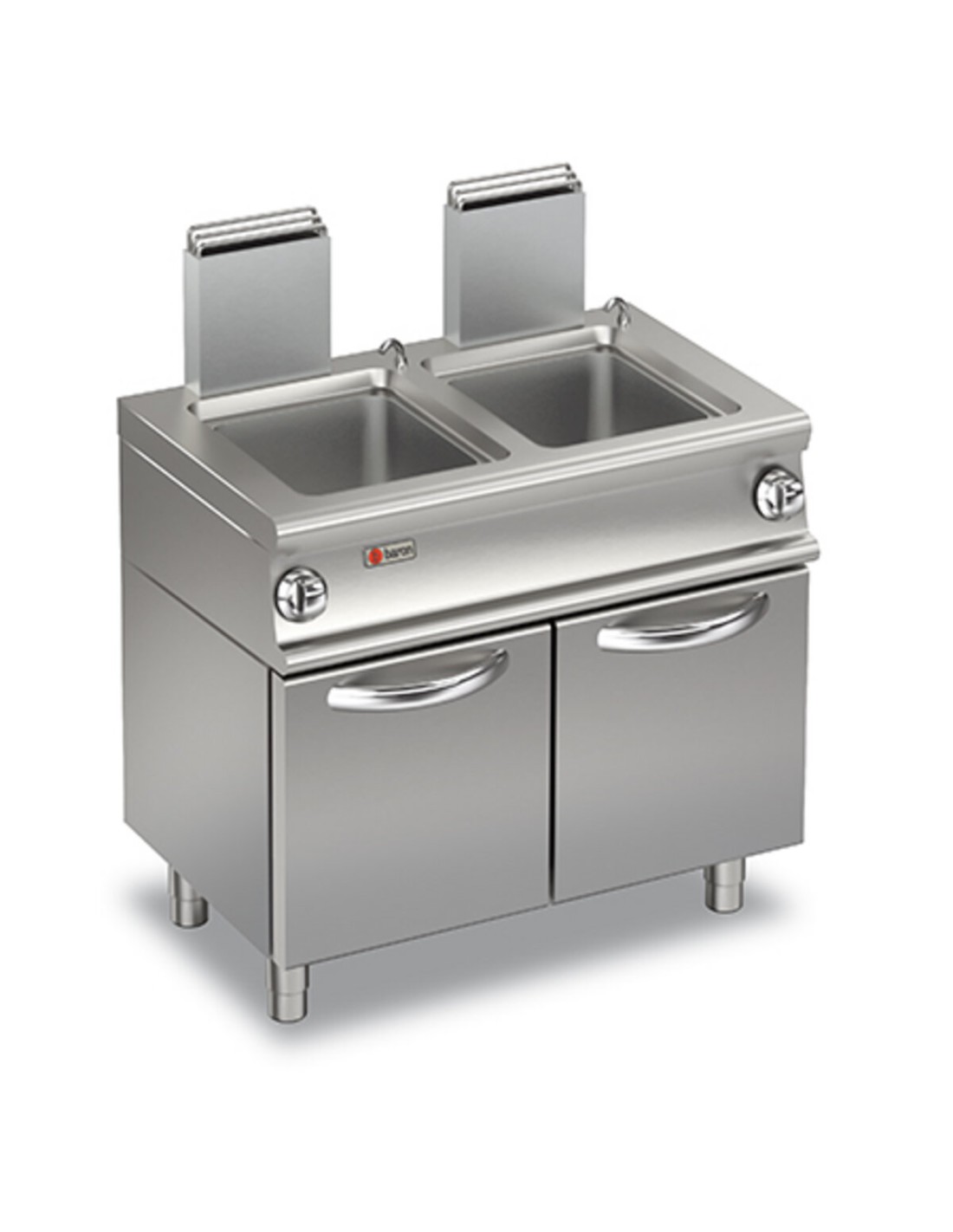

GAS PASTA COOKER 2 TANKS 26+26 LITRES


Tipo Alimentazione
Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Molded tubs with rounded corners, made of AISI 316 stainless steel to ensure maximum corrosion resistance. Stainless steel water outlet and floor drain. GAS VERSION Heating by stainless steel burner positioned outside the tank. Thermostatic faucet with safety thermocouple. Piezo ignition. ELECTRIC VERSION Heating by armored heating element located in the tank. Thermostat-controlled temperature selectable from 60°-90°C (preheating) or in the continuous heating position. Safety thermostat.
N550CP/G900
CR1010319 - Metano Standard

Data sheet

Model
N550CP/G900
Code
CR1010319
Material type
ZPF
Definition
N550CP/G900 CUOCIPAS. GAS 2V.26+26LT M90
Width
900mm
Height
870mm
Depth
550mm
Volume
0.431m3
Gross volume
0782
Net weight
84Kg
Gross weight
110Kg
Capacity
26 litri
Certified model
N550CP/G900
CE-certified
CE-0085CM0481
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
940
Packaging height
1280
Packaging length
650
Alimentazione
GAS
Commercial code
N550CP/G900
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
24Kw
Gas power (G25.3/25 mbar)
22,00Kw
Gas power Kcal
18920Kcal
Chimney type
A1-B11-B21
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Minimum pressure
150
Maximum pressure
500

Specific References

mpn
N550CP/G900

Download

CR1010319_it.pdf

Download (279.51KB)

CR1010319_de.pdf

Download (281.91KB)

CR1010319_en.pdf

Download (278.98KB)

CR1010319_es.pdf

Download (280.08KB)

CR1010319_fr.pdf

Download (283.06KB)
