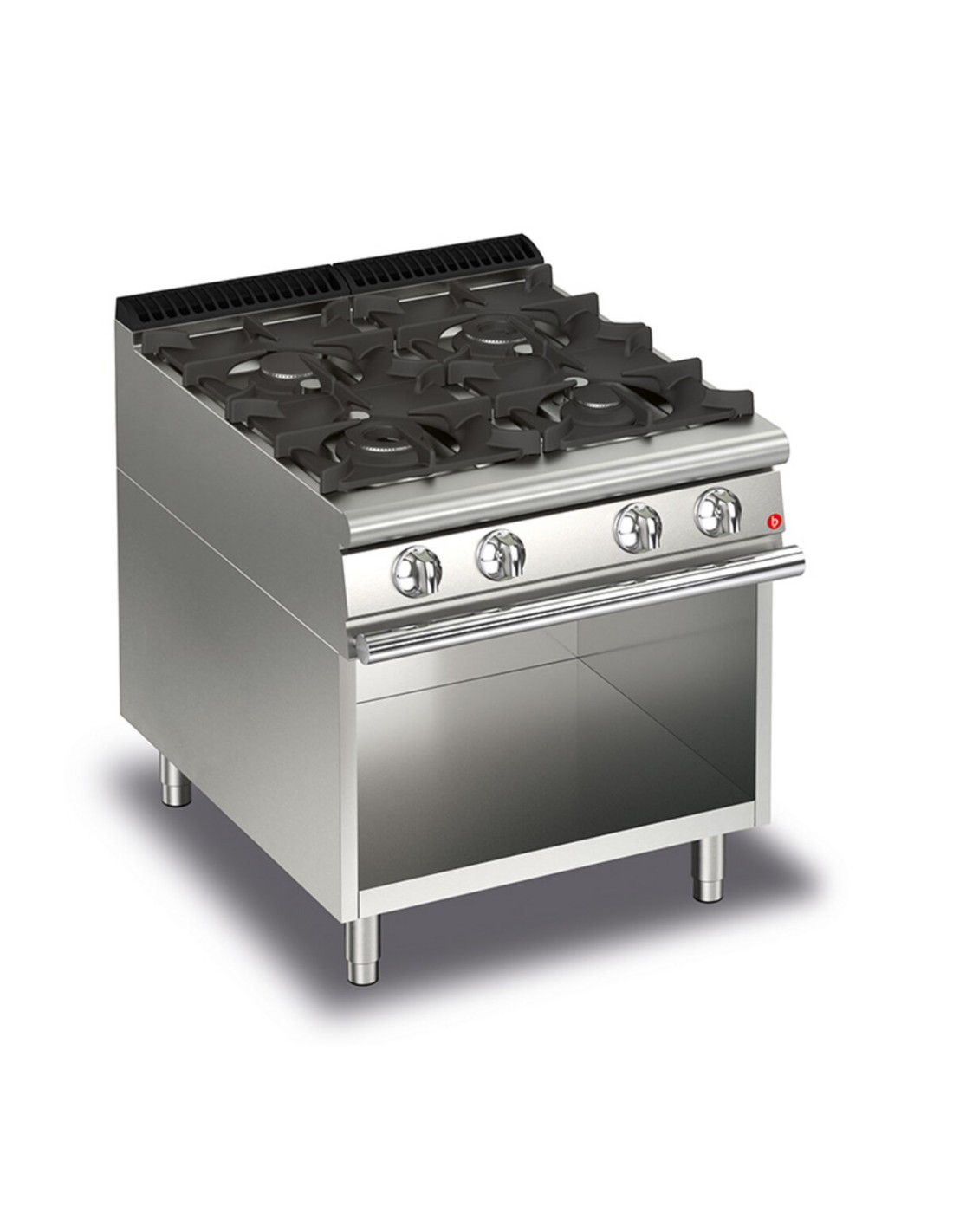

4-BURNER GAS COOKER ON OPEN COMPARTMENT

Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.
Tipo Alimentazione
Promo
Print
Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.Described as the cooking machines par excellence because they are indispensable in any environment and have great versatility for all types of cooking, gas cookers are available in many combinations, on top, on compartment or on oven. Baron kitchens have a one-piece sealed molded top and can be equipped with a liquid drain hole and, upon request, a floor drain kit for complete top cleaning. Entirely moulded top made from thick stainless steel plate. Enameled cast iron grills with long spokes for easy movement of cookware between fires; Optional stainless rod grills are available. High power cast iron burners (3.5 - 5.7 - 7 kW). Piezo ignition of burners available as an option. Oven - General Features Stainless steel cooking chamber (57.2x58x30cm), thermally insulated and equipped with 3 anti-tip rails for Gastronorm 1/1 containers; maxi oven version with dimensions 79x55x40 cm. Stainless steel door and counter door, perfectly insulated and mounted on self-balancing hinges. Ergonomic full-length, thermally insulated handle Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Entirely moulded top made from thick stainless steel plate.

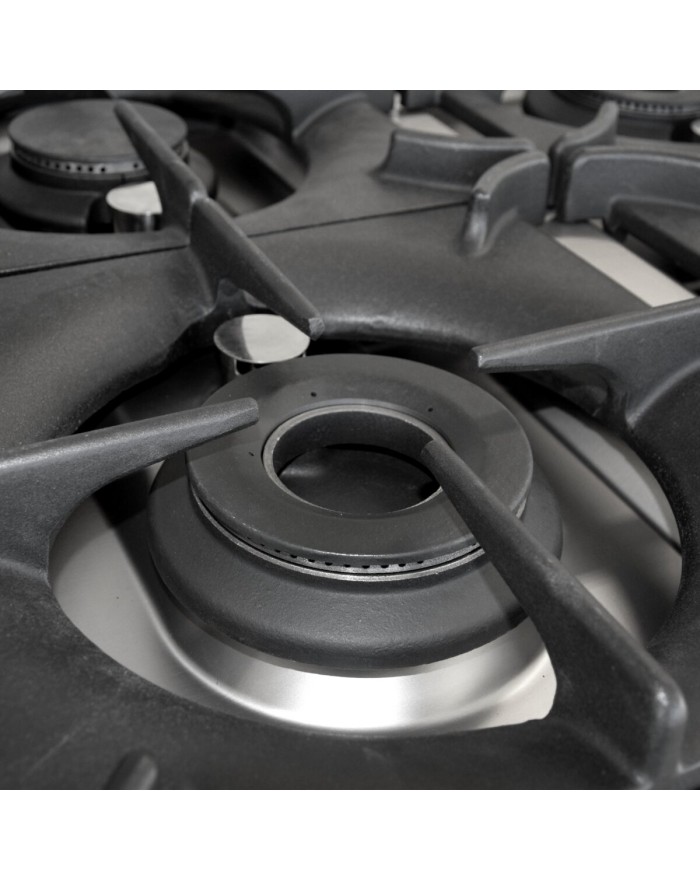

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.

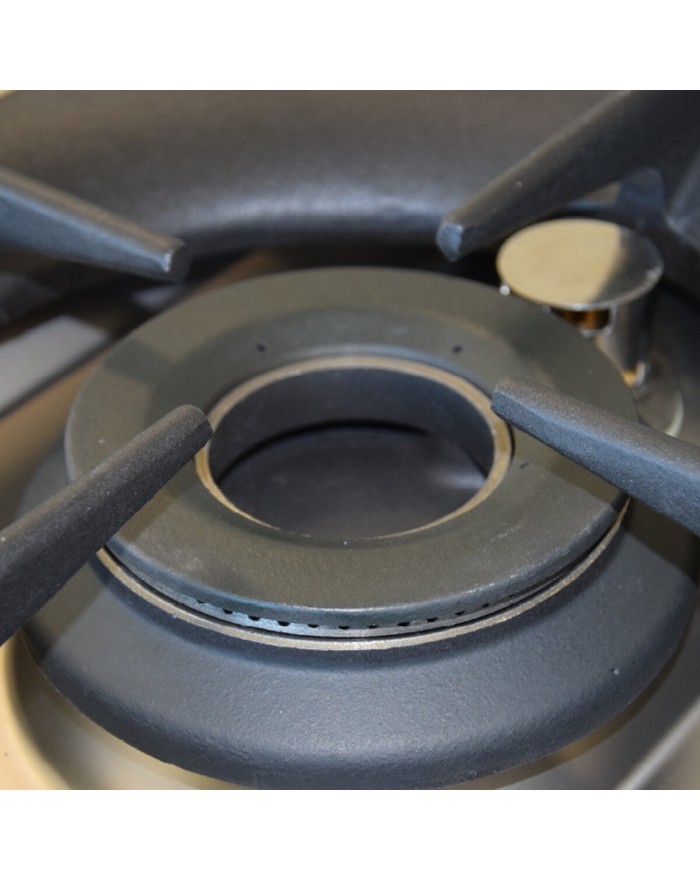

High power cast iron burners 3.5- 5.7 and 7 kW.

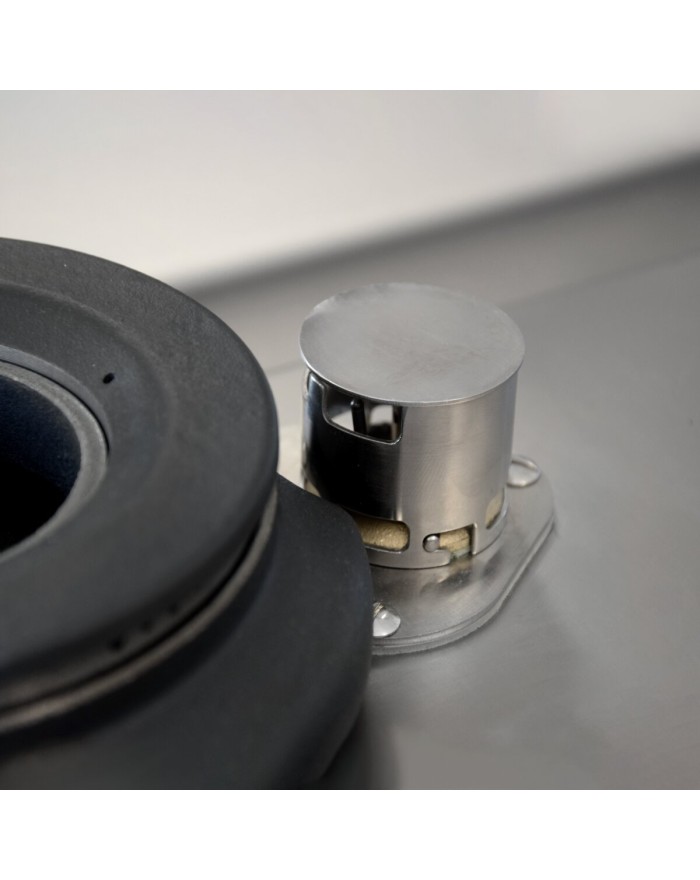

Protected pilot flame with removable and easily washable protection.

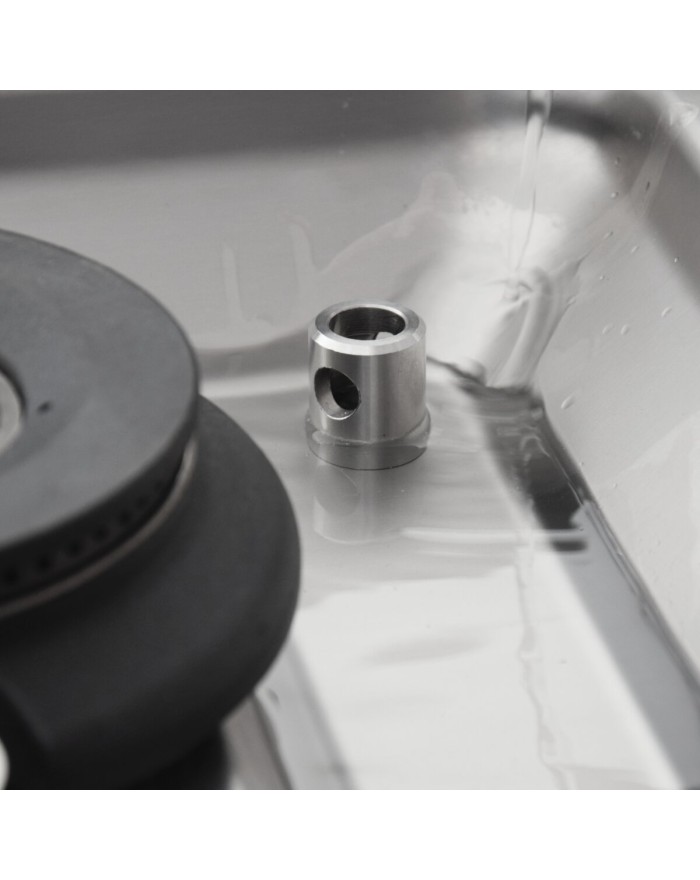

Self-cleaning version with liquid drain hole, electric ignition and flat connection kit

Q70PCV/G8008
CR1012329 - Standard Standard

Data sheet

Commercial code
Q70PCV/G8008
Product type
STANDARD
Company
0232
Material type
ZPF
Commercial Line
QUEEN
Definition
Q70PCV/G8008 4F SUPER POTENZIATA A/G
Packaging width
850
Depth
700mm
Packaging height
1170
Height
870mm
Width
800mm
Volume
0.487m3
Packaging length
840
Gas power Kw
28,00Kw
Alimentazione
GAS
Gas power (G25.3/25 mbar)
28,00Kw
N. Fires/Plates
QUATTRO FUOCHI
Gas power Kcal
24080Kcal
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Gross volume
0836
Net weight
73Kg
Gross weight
83.4Kg
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1
Model
Q70PCV/G8008
Certified model
Q70PCV/G8008
CODE
CR1012329
CE-certified
CE-0085BU0310

Specific References

mpn
Q70PCV/G8008
