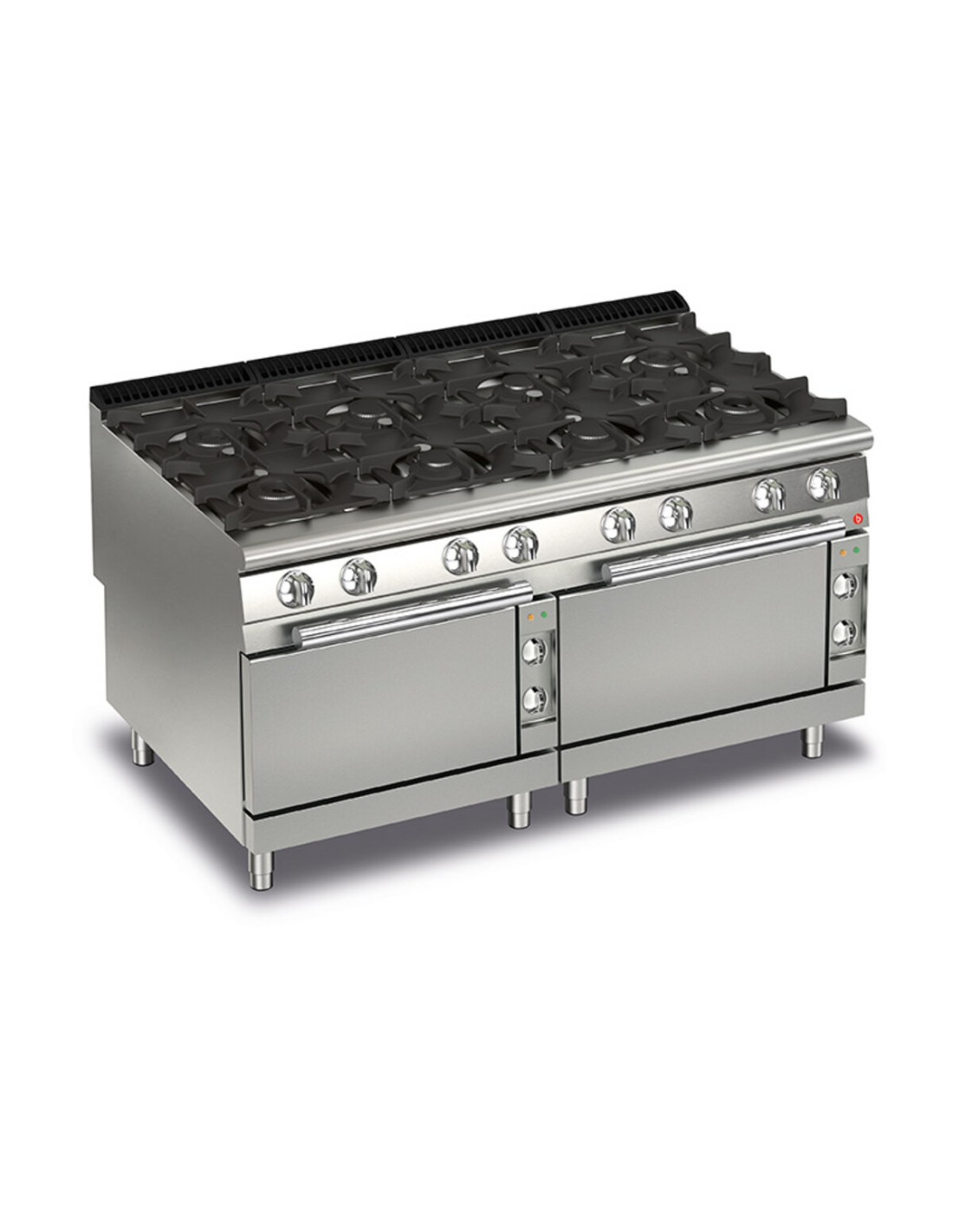

8-BURNER GAS COOKER ON 2 ELECTRIC OVENS
Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.
DWG-3D
Pictures
Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.Entirely moulded top made from thick stainless steel plate.

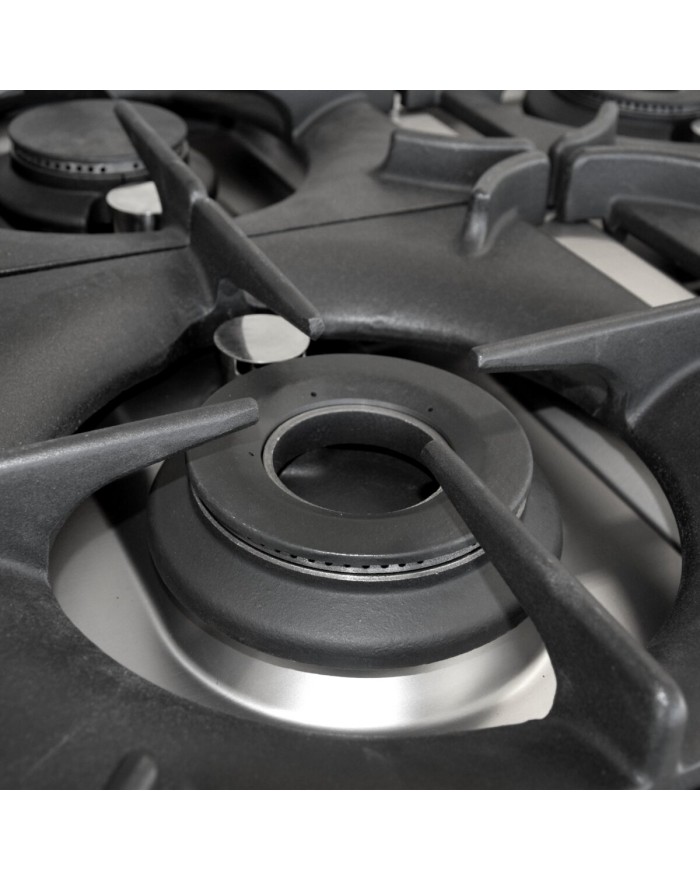

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.
Optional stainless rod grates available.

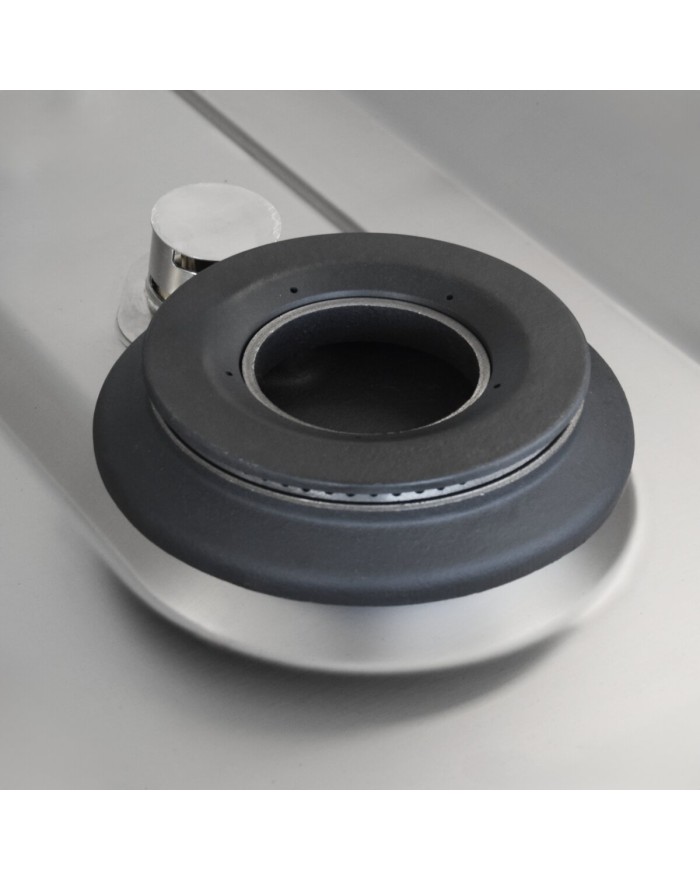

High power cast-iron burners (3.5- 5.7- 7 and 10 kW). Piezoelectric ignition of burners available as an option.
Removable stainless steel bi-fire bowl accessory.
Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Entirely moulded top made from thick stainless steel plate.
Enamelled cast-iron grills with long spokes for easy movement of pans between fires.
High power cast iron burners 3.5- 5.7- 7 and 10 kW.

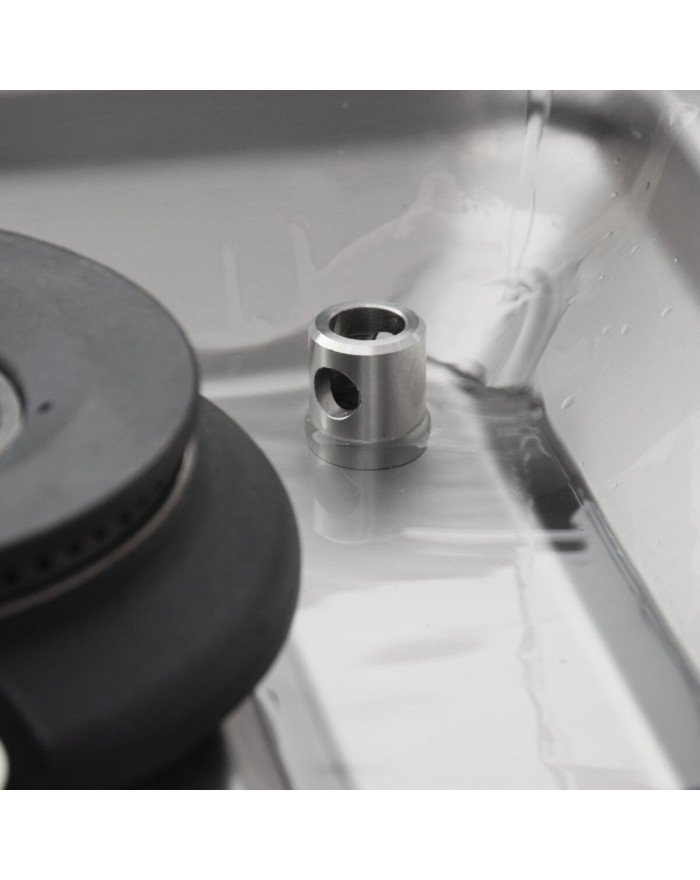

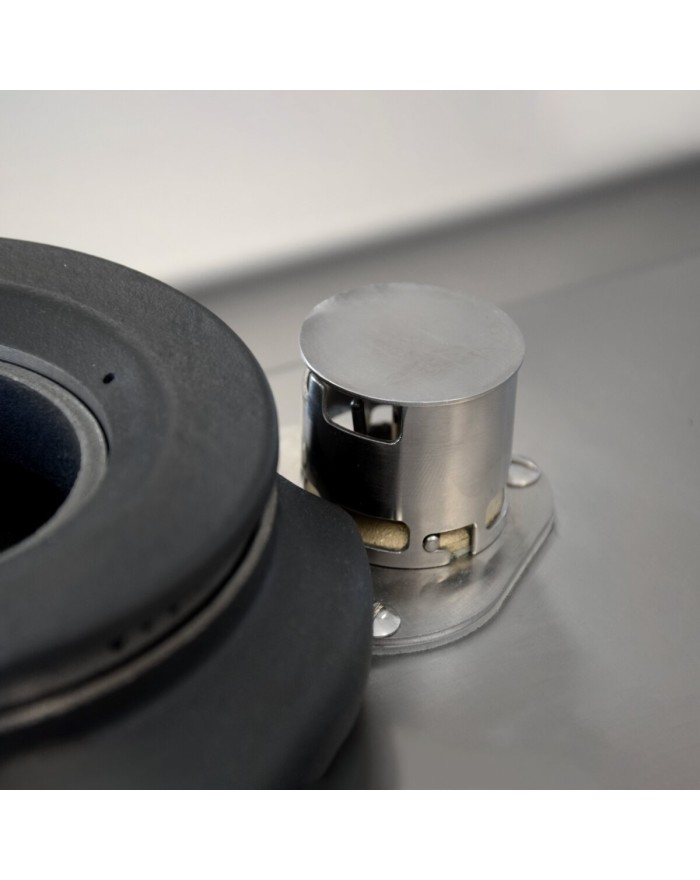

Protected pilot flame with removable and easily washable protection.
Self-cleaning version with liquid drain hole, electric ignition and flat connection kit AVAILABLE ON REQUEST
Q90PCF/GE1601
CR1015749 - Standard Standard
Data sheet
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Model
- Q90PCF/GE1601
- CODE
- CR1015749
- Commercial code
- Q90PCF/GE1601
- Material type
- ZPF
- Definition
- Q90PCF/GE1601 8F C/FORNO ELE
- Height
- 870mm
- Width
- 1600mm
- Depth
- 900mm
- Volume
- 1.253m3
- Gas power Kw
- 46,40Kw
- Gas power (G25.3/25 mbar)
- 46,40Kw
- Gas power Kcal
- 39904Kcal
- Gross volume
- 1900
- Net weight
- 240Kg
- Gross weight
- 252Kg
- Production site
- BELLUNO
- Chimney type
- A1
- Certified model
- Q90PCF/GE1601
- CE-certified
- CE-0085BS0151
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 1020
- Packaging height
- 1040
- Packaging length
- 840
- Alimentazione
- MISTA
- Electrical power
- 12,000Kw
380-415V 3N - Frequency
- 50-60 HzHz
- IP grade
- IPX4
- Configurazione
- 8 FIRES 7 + 5.7 + 3.5 + 7 + 3.5 + 5.7 + 7
Specific References
- mpn
- Q90PCF/GE1601
