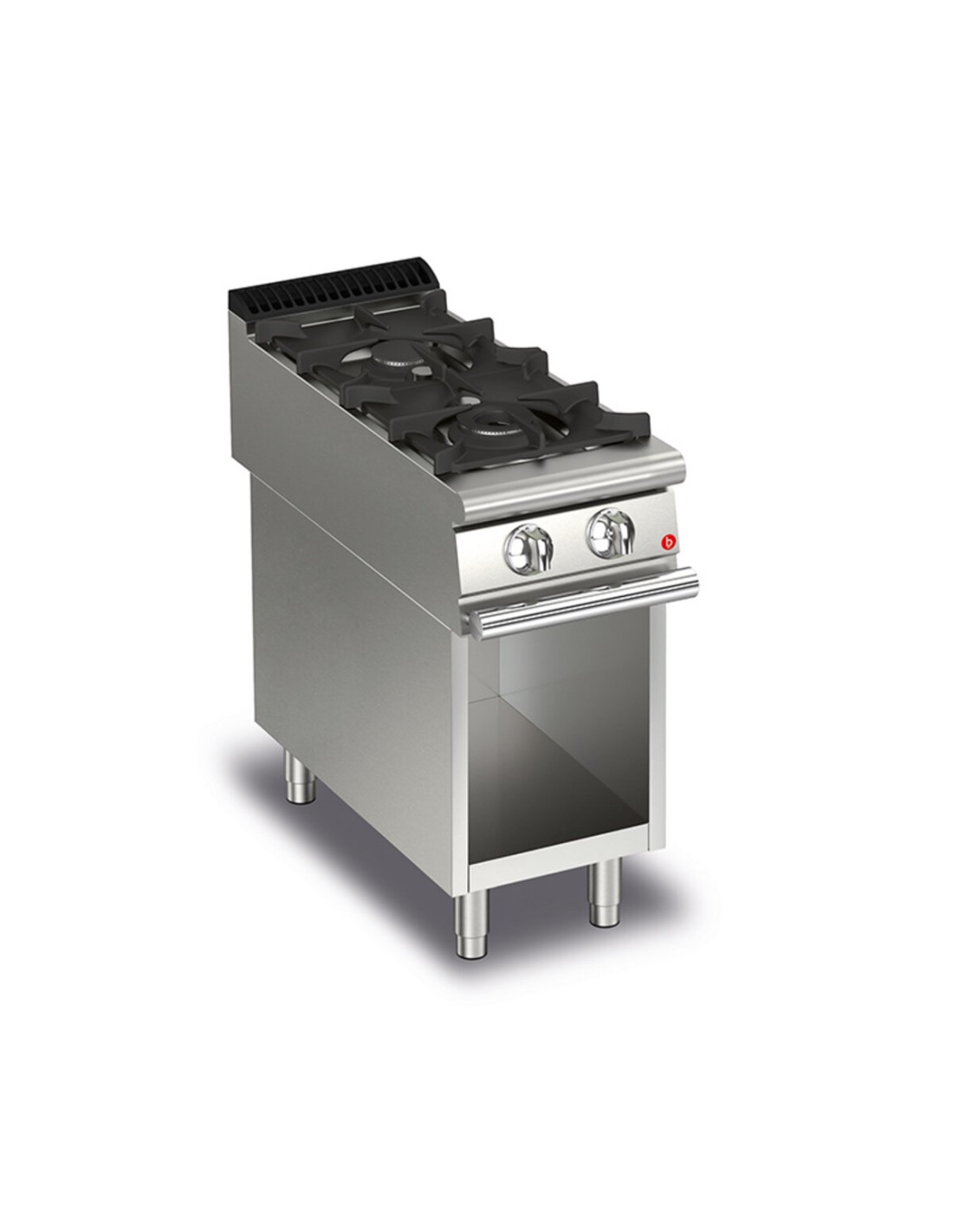

2-BURNER GAS COOKER ON OPEN COMPARTMENT
Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.
Data Sheet
DWG-3D
Pictures
Gas Ranges: One-piece pressed AISI 304 stainless steel top, high-power cast iron burners (3.5 - 5.7 - 7 - 10 kW), protected pilot flame with removable, easy-to-clean cover, acid-resistant grates, water jet protection (IPX5), designed for durability, easy cleaning, and intensive use in professional kitchens.Entirely moulded top made from thick stainless steel plate.

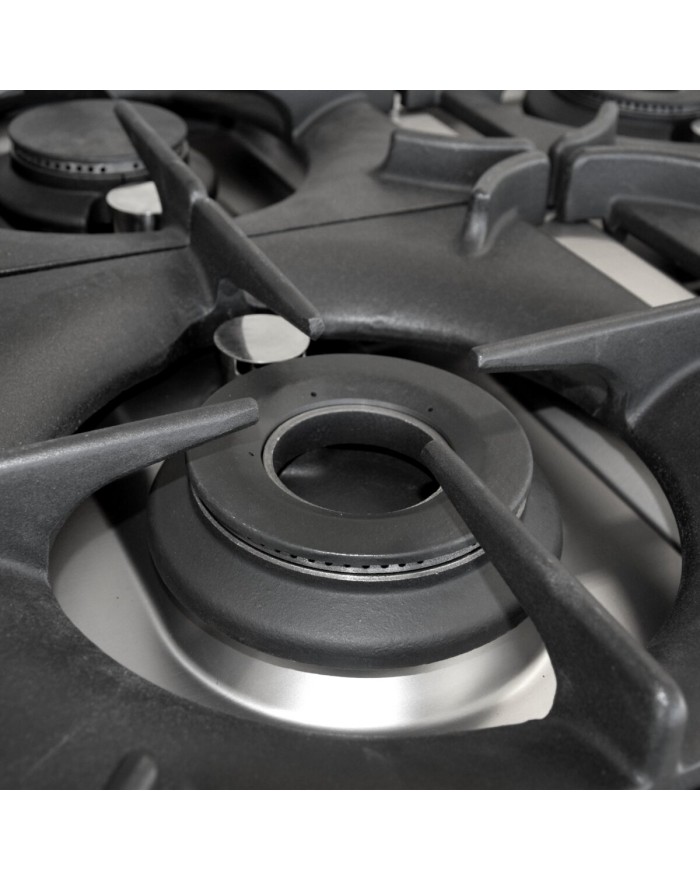

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.
Optional stainless rod grates available.

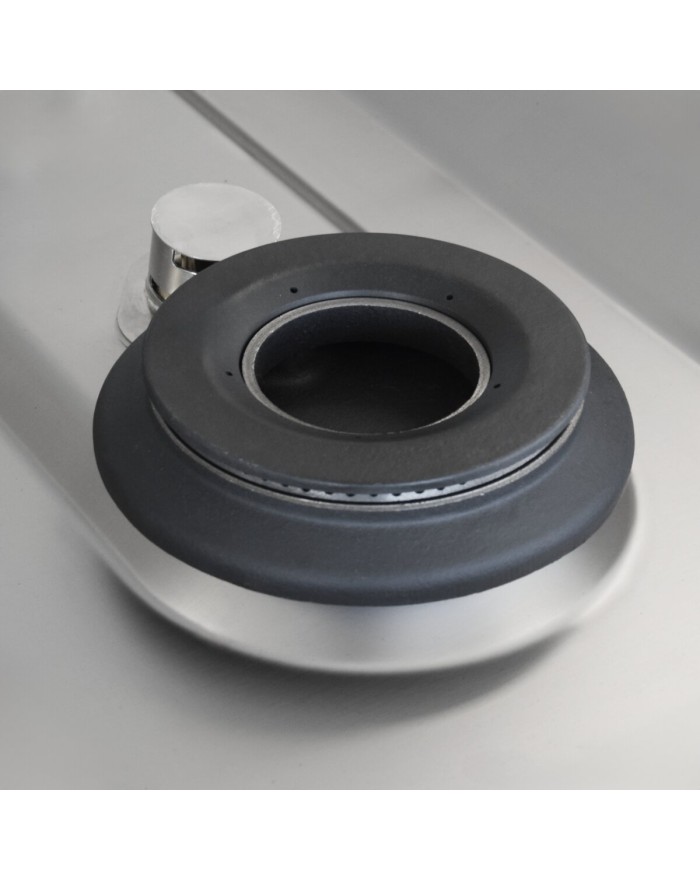

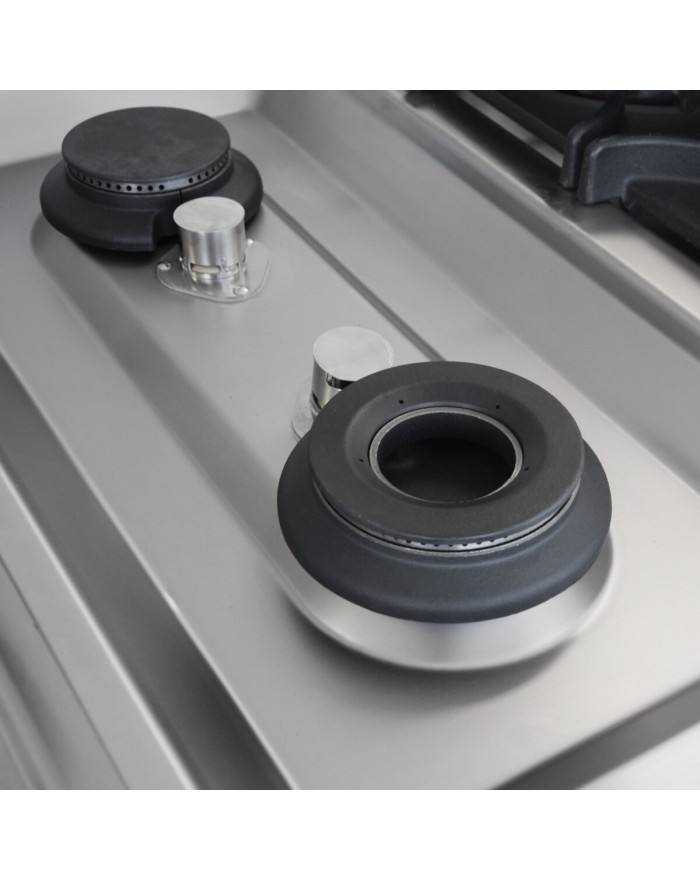

High power cast-iron burners (3.5- 5.7- 7 and 10 kW). Piezoelectric ignition of burners available as an option.
Removable stainless steel bi-fire bowl accessory.
Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Entirely moulded top made from thick stainless steel plate.
Enamelled cast-iron grills with long spokes for easy movement of pans between fires.
High power cast iron burners 3.5- 5.7- 7 and 10 kW.

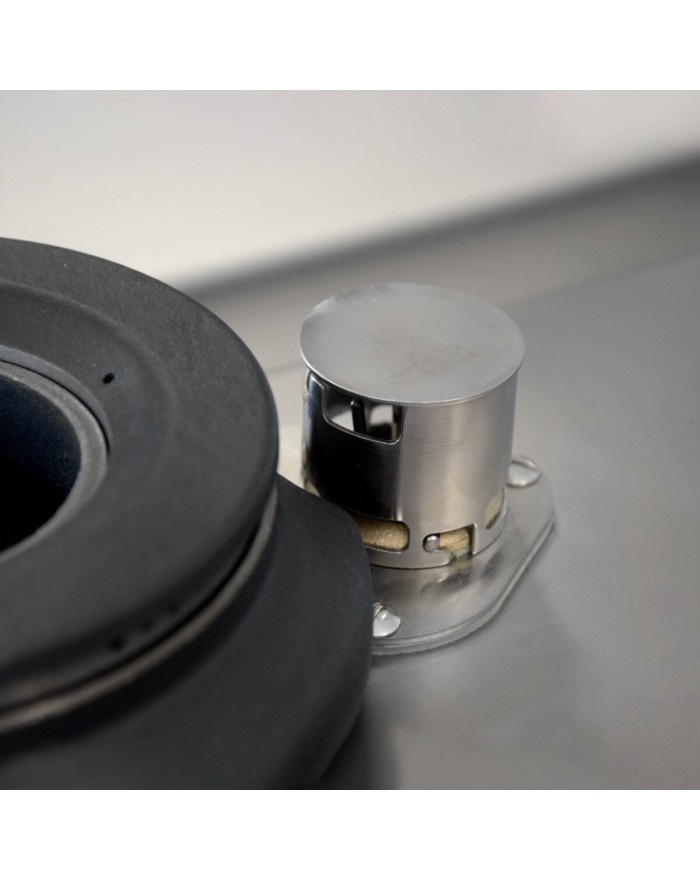

Protected pilot flame with removable and easily washable protection.
Self-cleaning version with liquid drain hole, electric ignition and flat connection kit AVAILABLE ON REQUEST
Q90PCV/G4001
CR1015489 - Standard Standard
Data sheet
- Gross weight
- 58Kg
- Production site
- BELLUNO
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Chimney type
- A1
- Model
- Q90PCV/G4001
- Certified model
- Q90PCV/G4001
- CODE
- CR1015489
- CE-certified
- CE-0085BS0151
- Commercial code
- Q90PCV/G4001
- Product type
- STANDARD
- Material type
- ZPF
- Company
- 0232
- Definition
- Q90PCV/G4001 2 FUOCHI A/G
- Commercial Line
- QUEEN
- Depth
- 900mm
- Packaging width
- 1020
- Height
- 870mm
- Packaging height
- 1160000
- Volume
- 0.313m3
- Width
- 400mm
- Gas power Kw
- 10,50Kw
- Packaging length
- 440
- Alimentazione
- GAS
- Gas power (G25.3/25 mbar)
- 10,50Kw
- N. Fires/Plates
- DUE FUOCHI
- Gas power Kcal
- 9030Kcal
- Gas/refrigerant type
- METANO "H E" G20 20/25mbar
- Gross volume
- 0522
- Configurazione
- 2 GAS 7 + 3.5
- Net weight
- 48Kg
Specific References
- mpn
- Q90PCV/G4001
