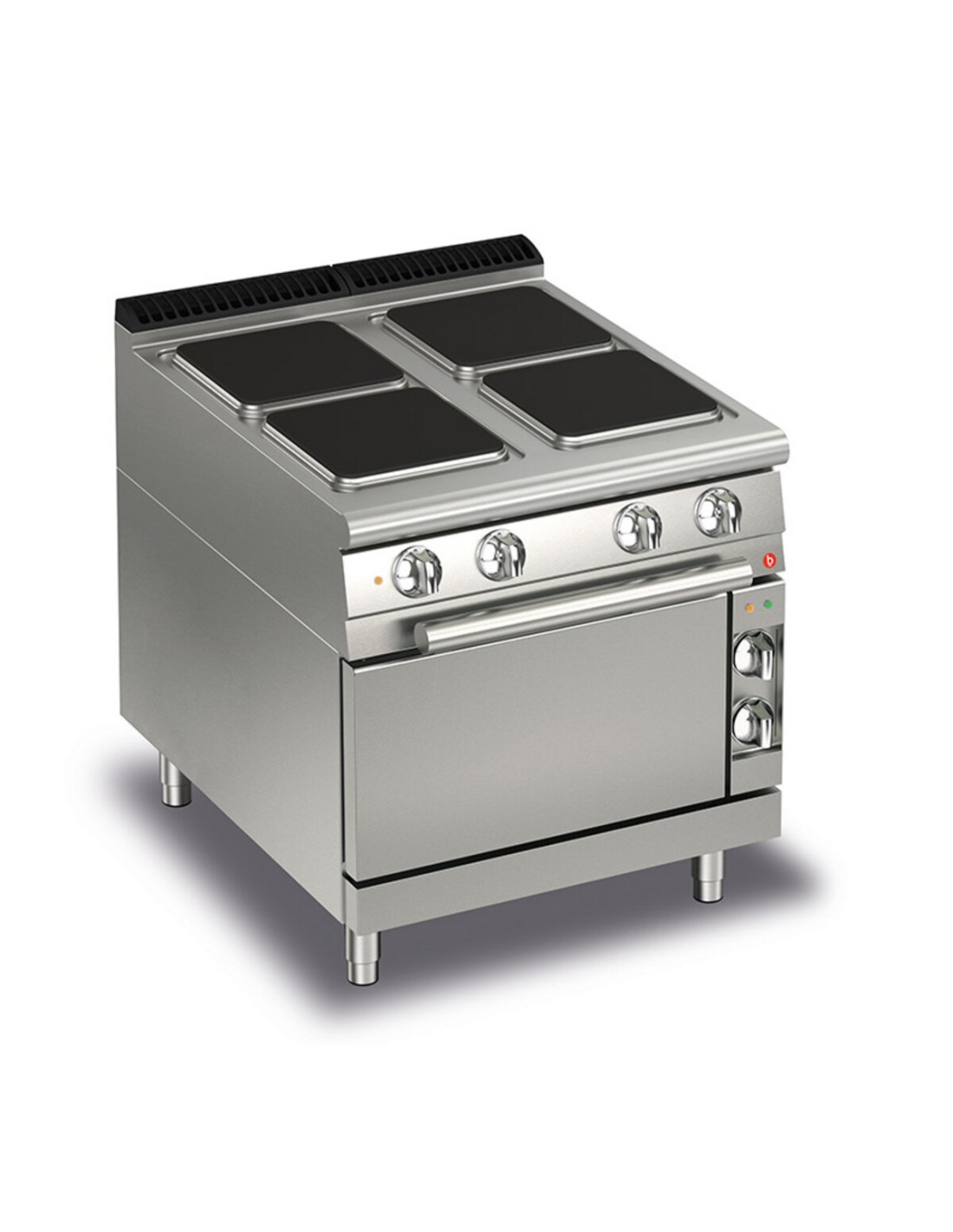

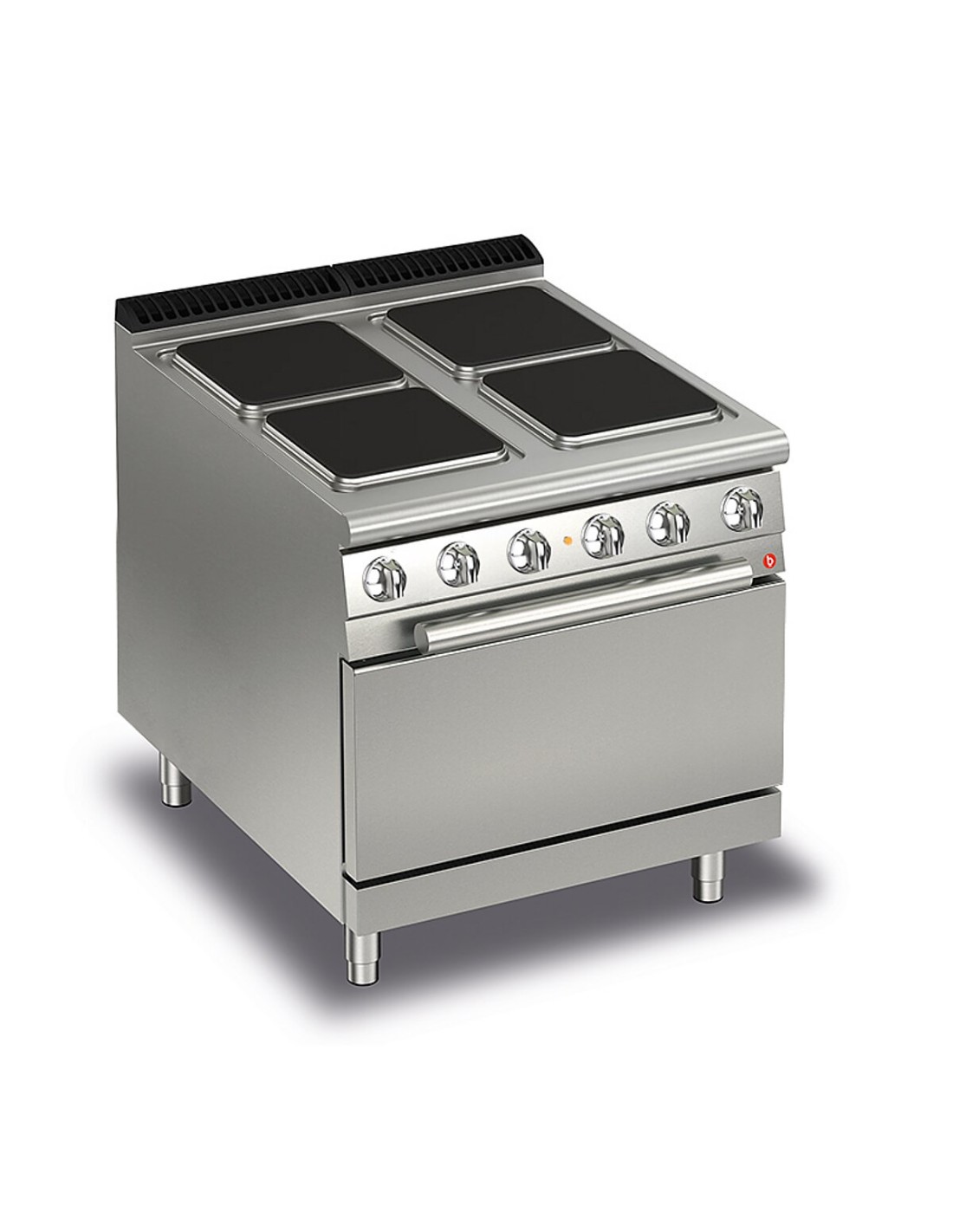

KITCHEN 4 ELECTRIC SQUARE PLATES ON ELECTRIC OVEN

Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 7 , ELECTRIC RANGES WITH CAST IRON PLATE
Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.All-molded hob made from a single sheet of thick stainless steel. Cast-iron radiant plates, fixed watertight to eliminate any liquid infiltration on electrical wiring. 6-position, ergonomic, recessed and tilted power output knobs. Warning lights indicating "plates under tension." Electric oven Stainless steel cooking chamber (57.2x58x30 cm), thermally insulated and equipped with 3 anti-tip guides for Gastronorm 1/1 containers. Stainless steel door and counter door, perfectly insulated and mounted on self-balancing hinges. Ergonomic full-length, thermally insulated handle. The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Ø 22 cm cast-iron heating plates with 2.6 kW power, hermetically attached to the flatbed.

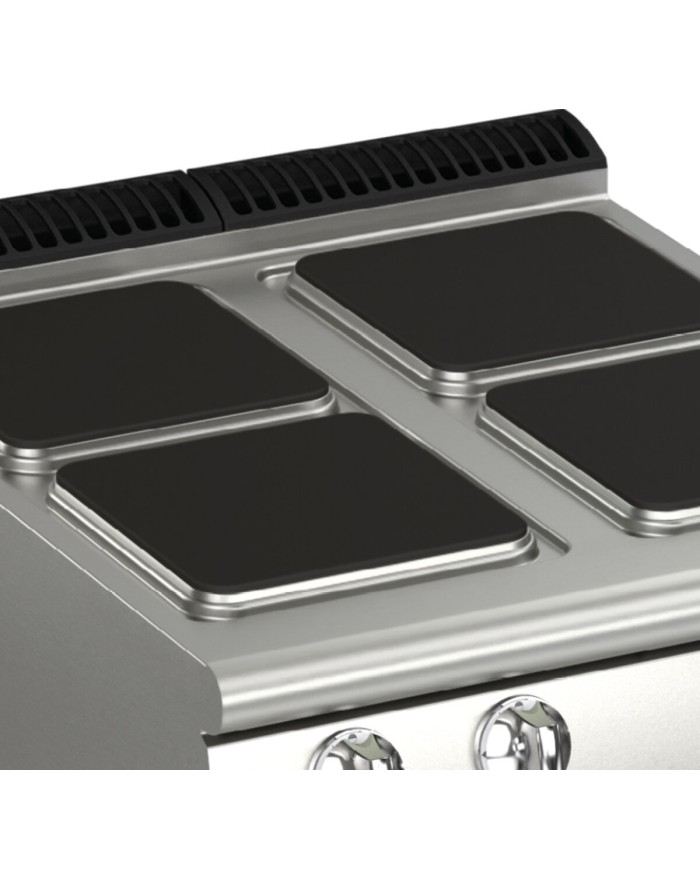

22x22 cast iron heating plates with 2.6 kW of power, hermetically attached to the molded top

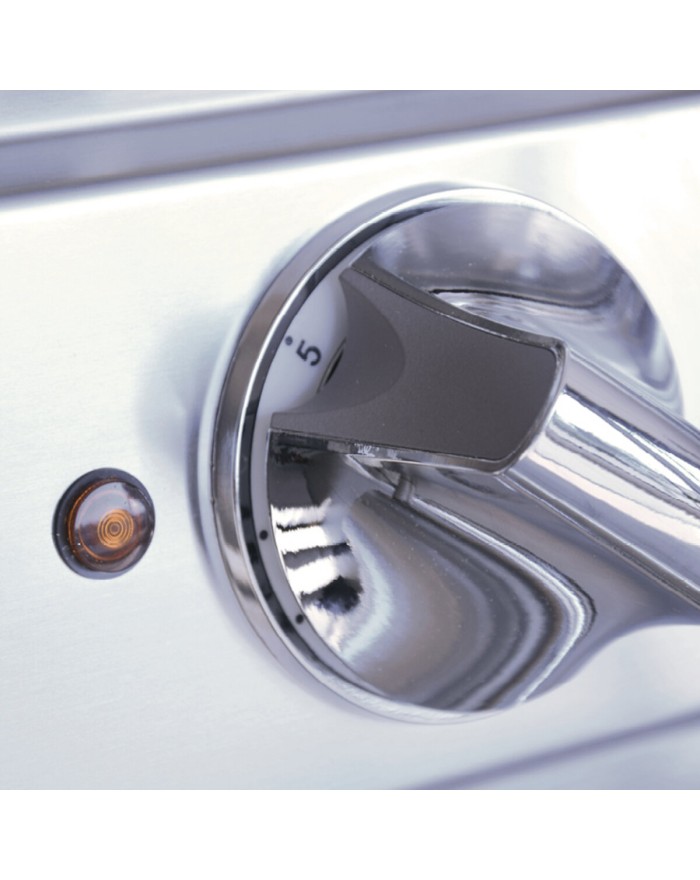

The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard.

Q70PCF/E801
CR1012759 - Standard Standard

Data sheet

Production site
BELLUNO
N. Fires/Plates
QUATTRO FUOCHI
Product variant
PIASTRE EL.TONDE
Certified model
Q70PCF/E801
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
Q70PCF/E801
Packaging width
860
CODE
CR1012759
Packaging height
1150
Commercial code
Q70PCF/E801
Width
800mm
Material type
ZPF
Packaging length
860
Definition
Q70PCF/E801 4 P.EL.Q. C/FORNO EL.
Alimentazione
ELETTRICA
Depth
700mm
Electrical power
16,400Kw
380-415V 3N
Height
870mm
Frequency
50-60 HzHz
Volume
0.487m3
Gross volume
0850
IP grade
IPX5
Net weight
118Kg
Gross weight
125.4Kg
Voltage
400

Specific References

mpn
Q70PCF/E801
