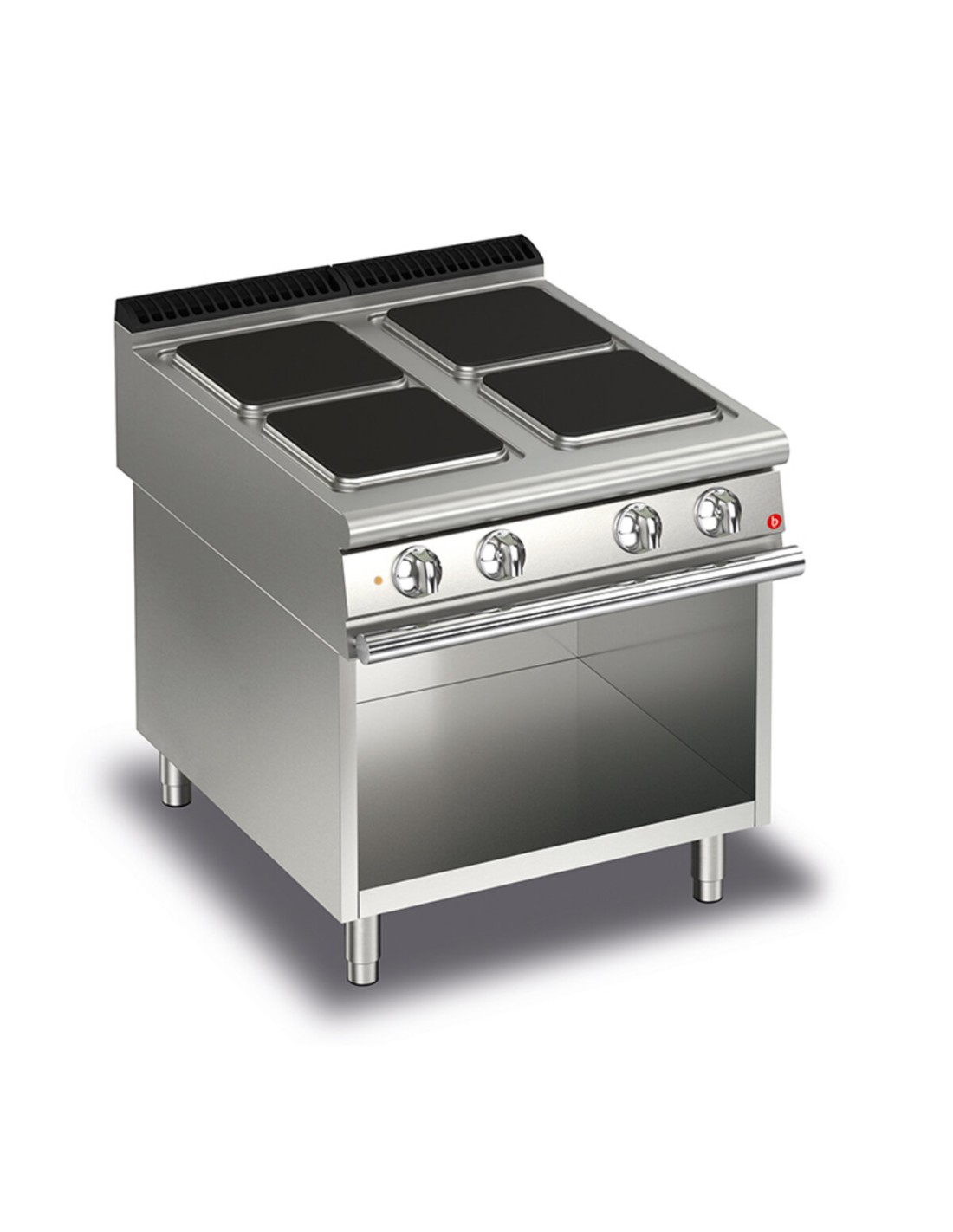

KITCHEN 4 ELECTRIC SQUARE PLATES ON OPEN COMPARTMENT

Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , ELECTRIC RANGES WITH CAST IRON PLATE
Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.All-molded hob made from a single sheet of thick stainless steel. Cast-iron radiant plates, fixed watertight to eliminate any liquid infiltration on electrical wiring. 6-position, ergonomic, recessed and tilted power output knobs. Warning lights indicating "plates under tension." Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°C to 300°C. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Square plates of 30x30 each, fixed watertight on the worktop.

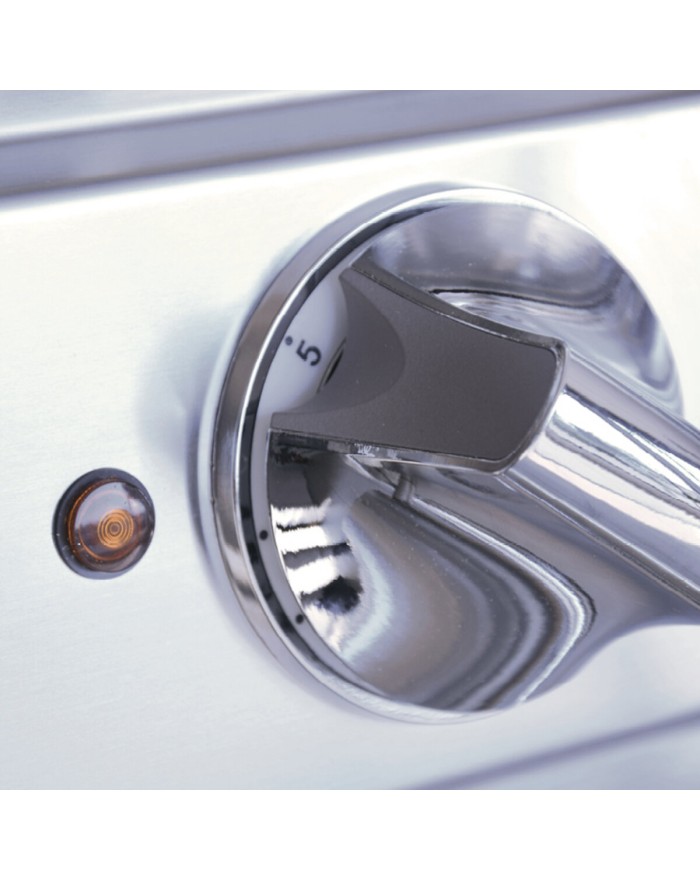

The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard.



Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme.

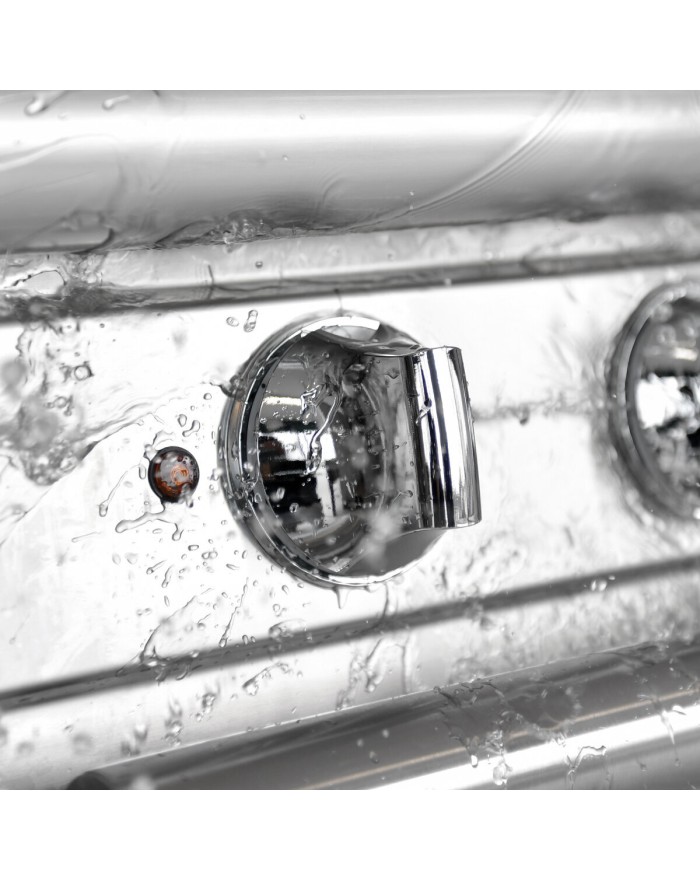

Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.

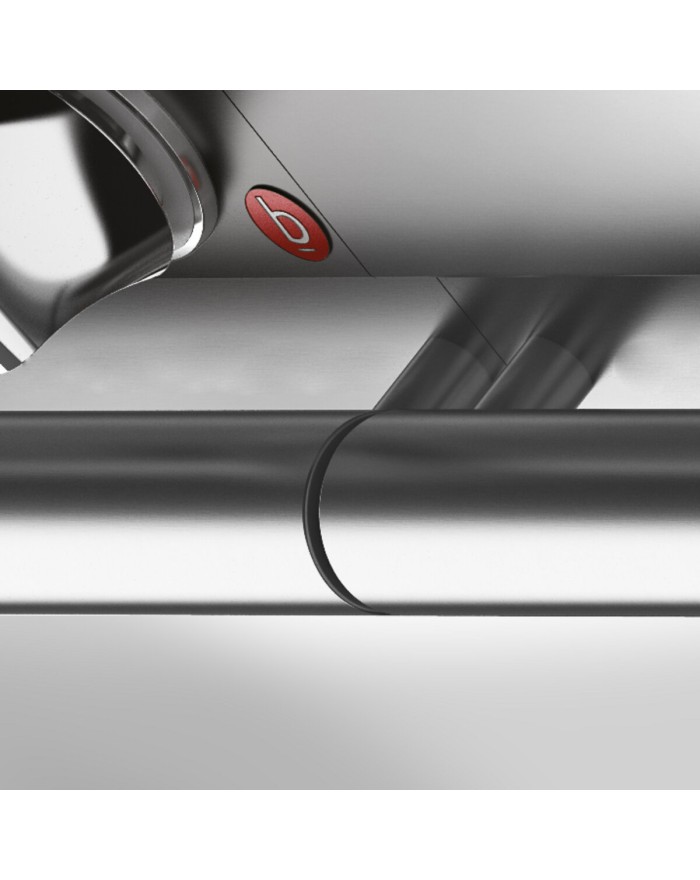

The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

Q90PCV/E801
CR1015819 - Standard Standard

Data sheet

Certified model
Q90PCV/E801
Configurazione
4 30x30
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
Q90PCV/E801
Packaging width
1020
CODE
CR1015819
Commercial code
Q90PCV/E801
Packaging height
1150000
Material type
ZPF
Width
800mm
Definition
Q90PCV/E801 4 P.EL.Q. A/G
Packaging length
860
Depth
900mm
PROMO
RAPIDO
Height
870mm
Alimentazione
ELETTRICA
Volume
0.626m3
Electrical power
16,000Kw
380-415V 3N
Gross volume
1010
Frequency
50-60 HzHz
Net weight
95.6Kg
Gross weight
105.6Kg
IP grade
IPX5
Production site
BELLUNO
Voltage
400
Product variant
PIASTRE EL.QUADRE
N. Fires/Plates
QUATTRO FUOCHI

Specific References

mpn
Q90PCV/E801
