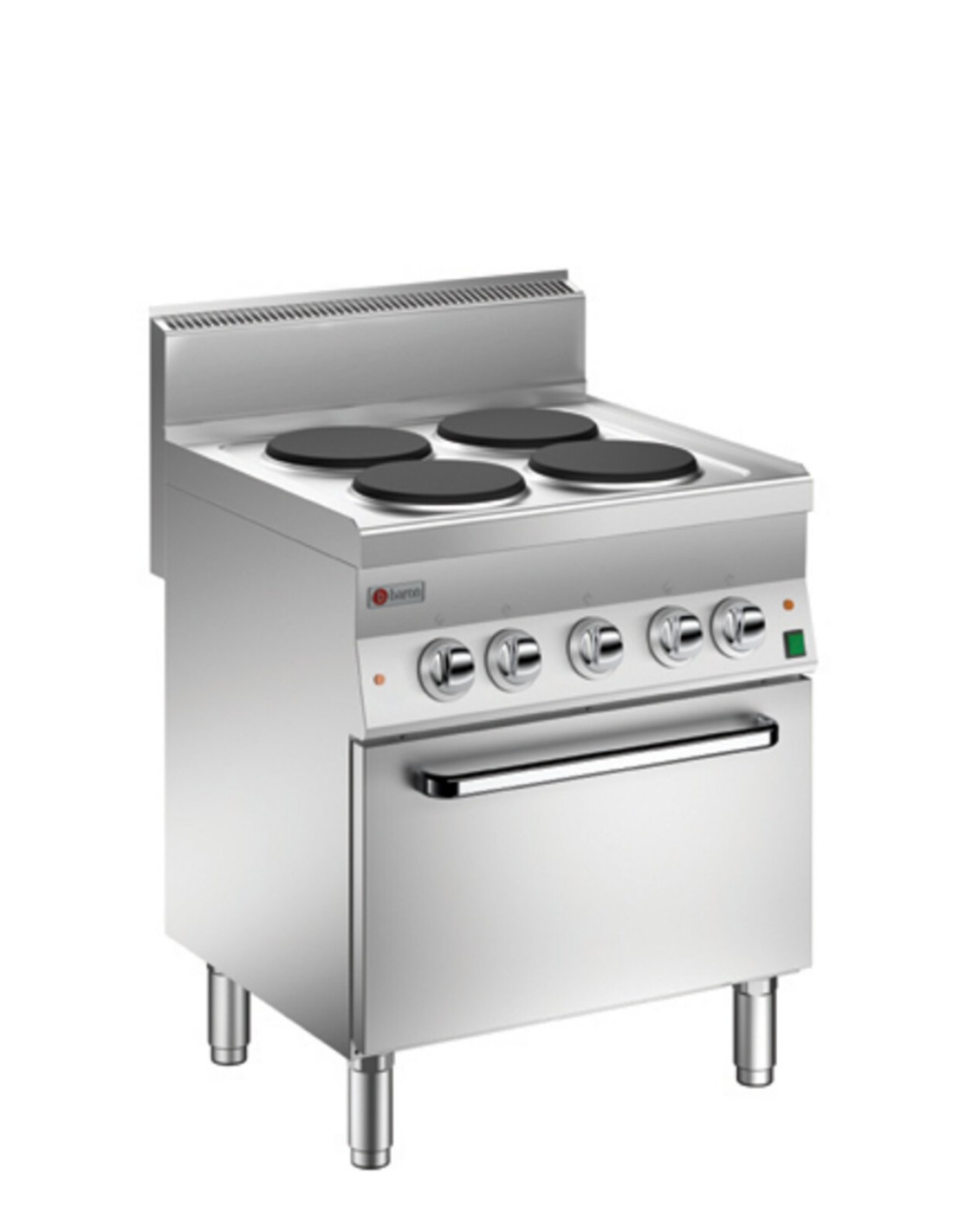

KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN

The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.
Print

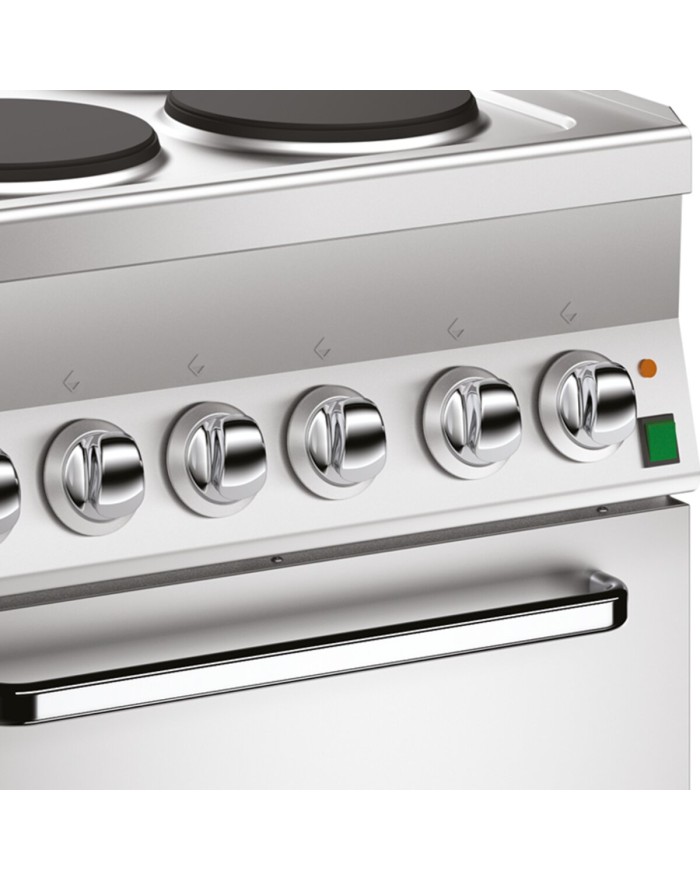

Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/EFEV700P
CR0855809

Data sheet

Model
6NPC/EFEV700P
Code
CR0855809
Material type
ZPF
Definition
4 PIASTRE E.F.EL/V.60 M70 6NPC/EFEV700P
Width
700mm
Height
870mm
Depth
600mm
Volume
0.365m3
Electrical power
14.6Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0554
Net weight
63.2Kg
Gross weight
77Kg
IP grade
IPX3
Certified model
6NPC/EFEV700P
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
740
Packaging height
1170
Packaging length
640
Alimentazione
ELETTRICA
Commercial code
6NPC/EFEV700P
Power supply 2
220-240V 3
