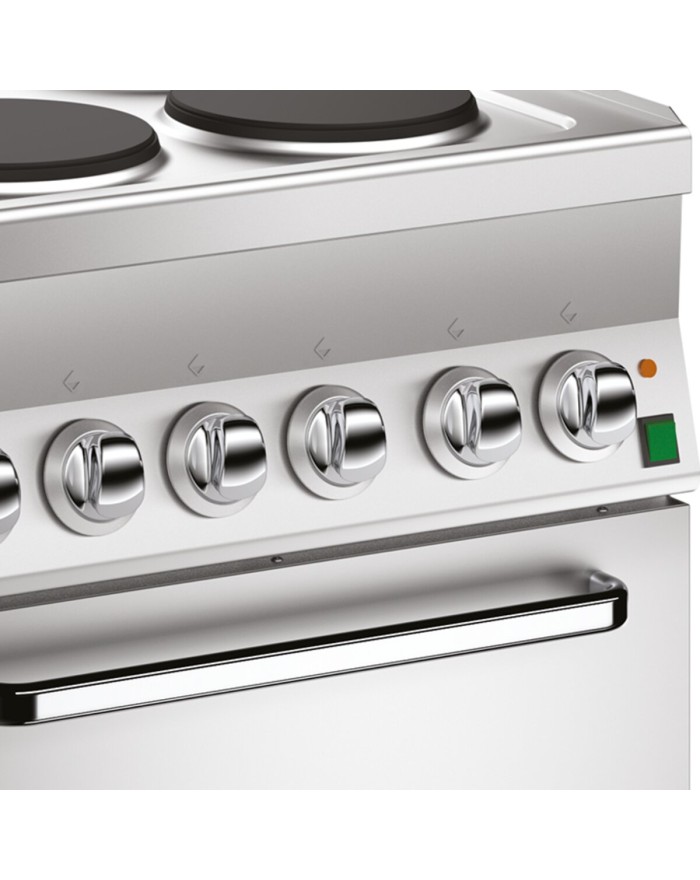

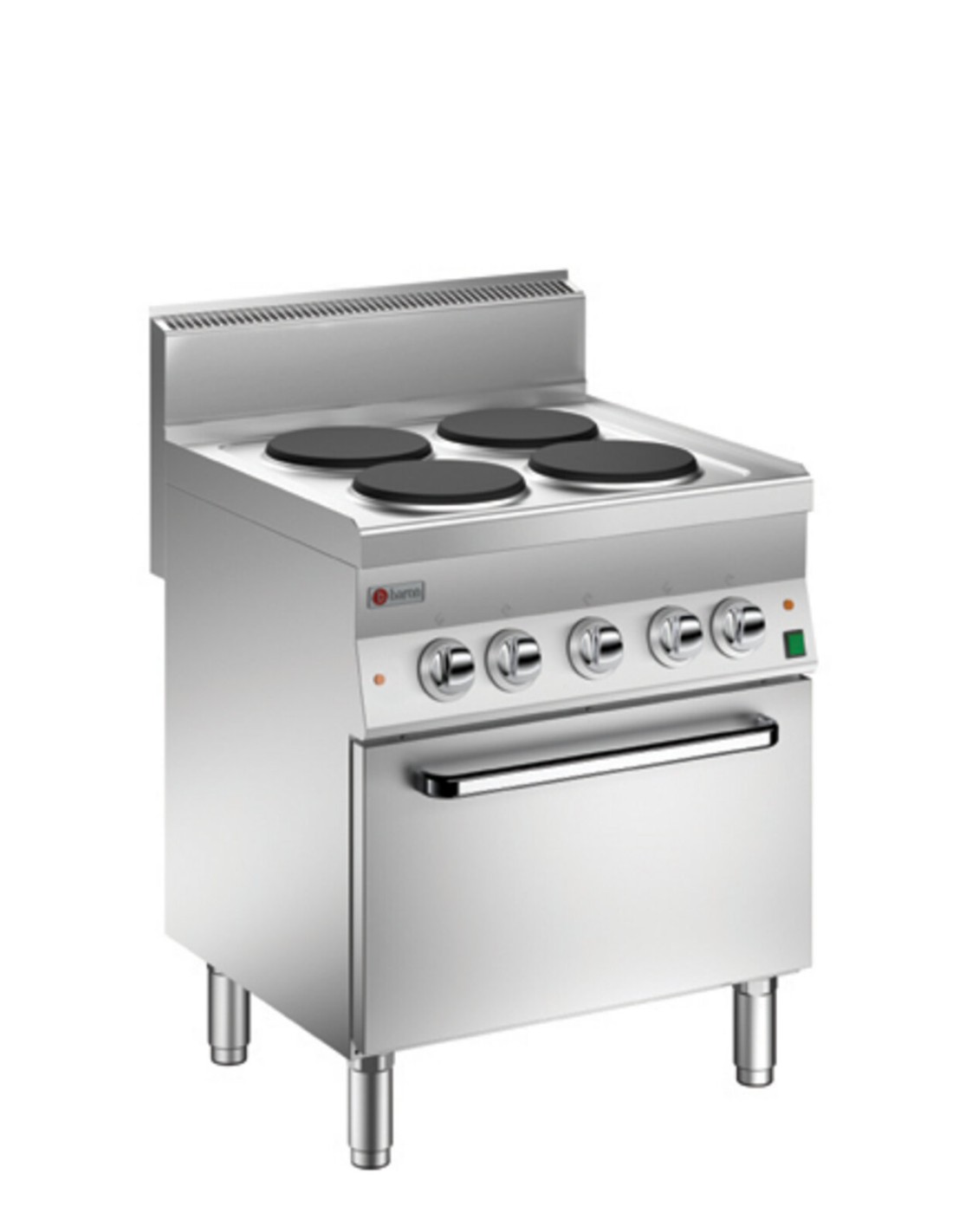

KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN

The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.
Print
Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/EFEV700
CR0855799

Data sheet

Model
6NPC/EFEV700
Code
CR0855799
Material type
ZPF
Definition
4 PIASTRE E.FOR.EL/V.60 M70 6NPC/EFEV700
Width
700mm
Height
870mm
Depth
600mm
Volume
0.365m3
Electrical power
12.4Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0560
Net weight
65Kg
Gross weight
76Kg
IP grade
IPX3
Certified model
6NPC/EFEV700
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
760
Packaging height
1170
Packaging length
630
Alimentazione
ELETTRICA
Commercial code
6NPC/EFEV700
Power supply 2
220-240V 3
