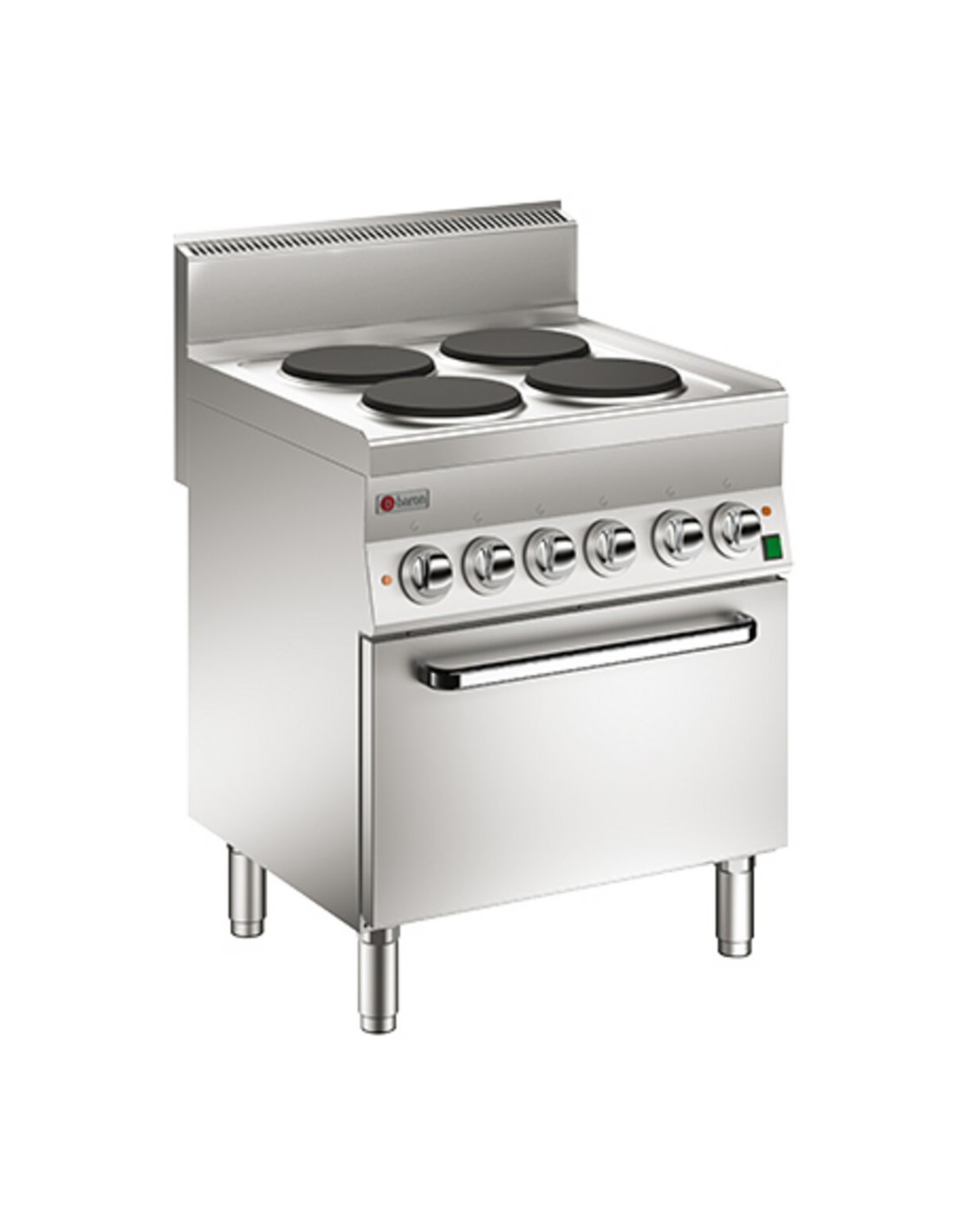

KITCHEN 4 ELECTRIC HOTPLATES ON STATIC ELECTRIC OVEN

The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.
Print

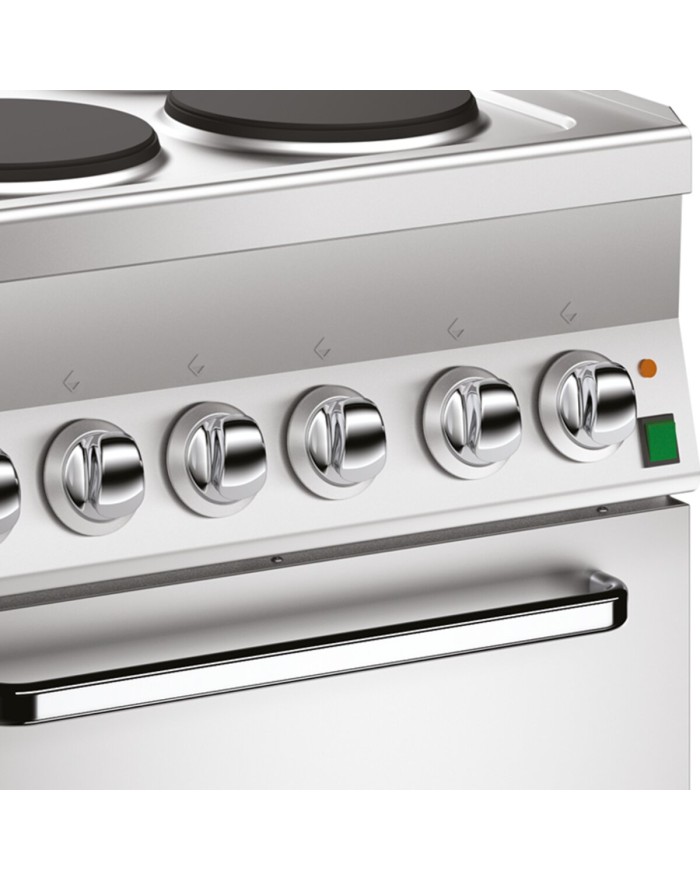

Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/EFE700
CR0855779

Data sheet

Model
6NPC/EFE700
Code
CR0855779
Material type
ZPF
Definition
4 PIASTRE E.FOR.EL/ST.60 M70 6NPC/EFE700
Width
700mm
Height
870mm
Depth
600mm
Volume
0.365m3
Electrical power
12.4Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0600
Net weight
81.2Kg
Gross weight
95Kg
IP grade
IPX3
Certified model
6NPC/EFE700
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
750
Packaging height
1150
Packaging length
650
Alimentazione
ELETTRICA
Commercial code
6NPC/EFE700
Power supply 2
220-240V 3

Download

CR0855779_it.pdf

Download (702.33KB)

CR0855779_de.pdf

Download (703.97KB)

CR0855779_en.pdf

Download (701.43KB)

CR0855779_es.pdf

Download (702.32KB)

CR0855779_fr.pdf

Download (703.85KB)
