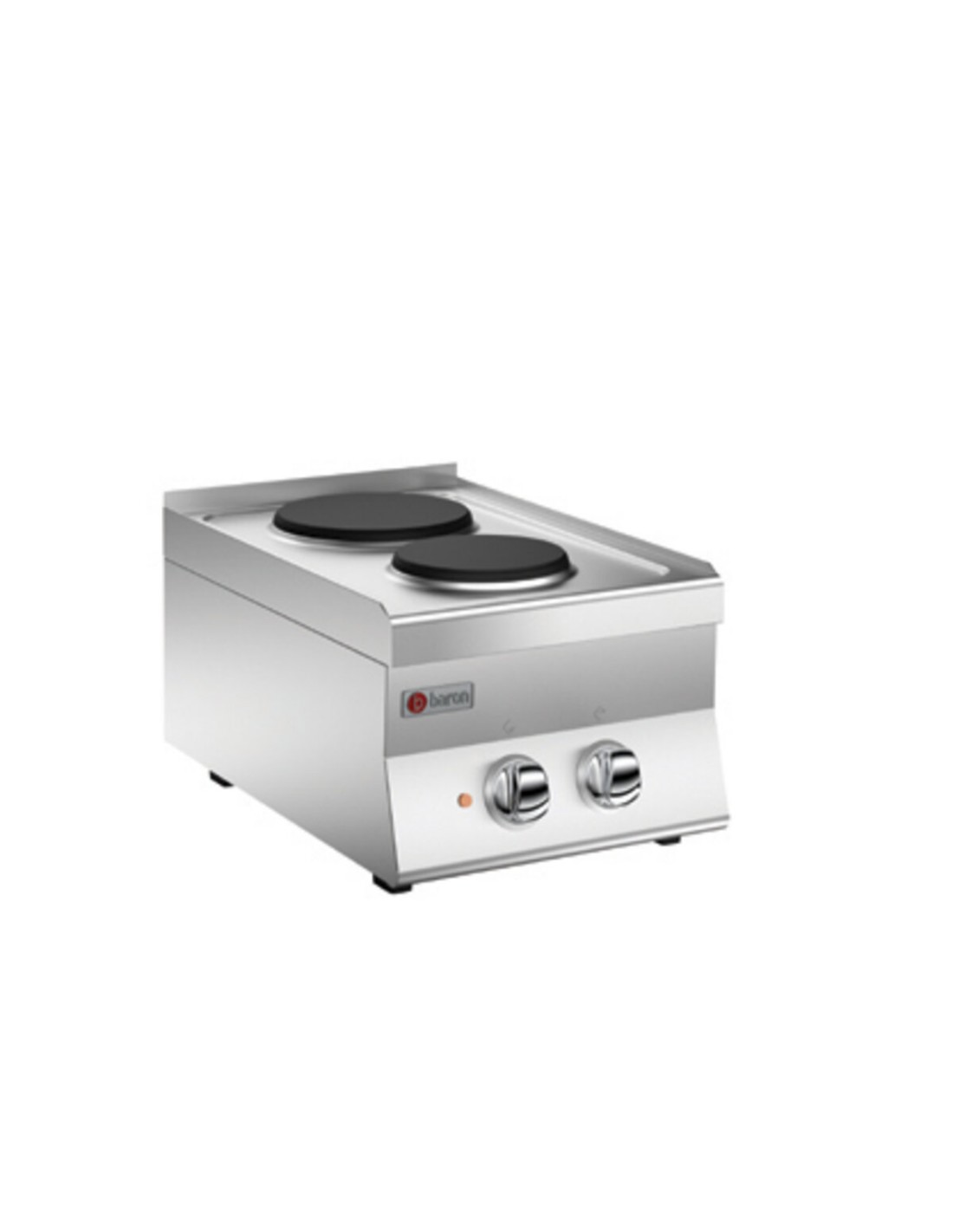

KITCHEN 2 ELECTRIC HOTPLATES - TOP VERSION


Print
Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/E400P
CR0855749

Data sheet

Model
6NPC/E400P
Code
CR0855749
Material type
ZPF
Definition
2 PIASTRE EL./P TONDE 60 M40 6NPC/E400P
Width
400mm
Height
295mm
Depth
600mm
Volume
0.071m3
Electrical power
5.2Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0159
Net weight
16.6Kg
Gross weight
22Kg
IP grade
IPX4
Certified model
6NPC/E400P
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
630
Packaging height
400
Packaging length
630
Alimentazione
ELETTRICA
Commercial code
6NPC/E400P
Power supply 2
220-240V 3
Power supply 3
220-240V 1N
