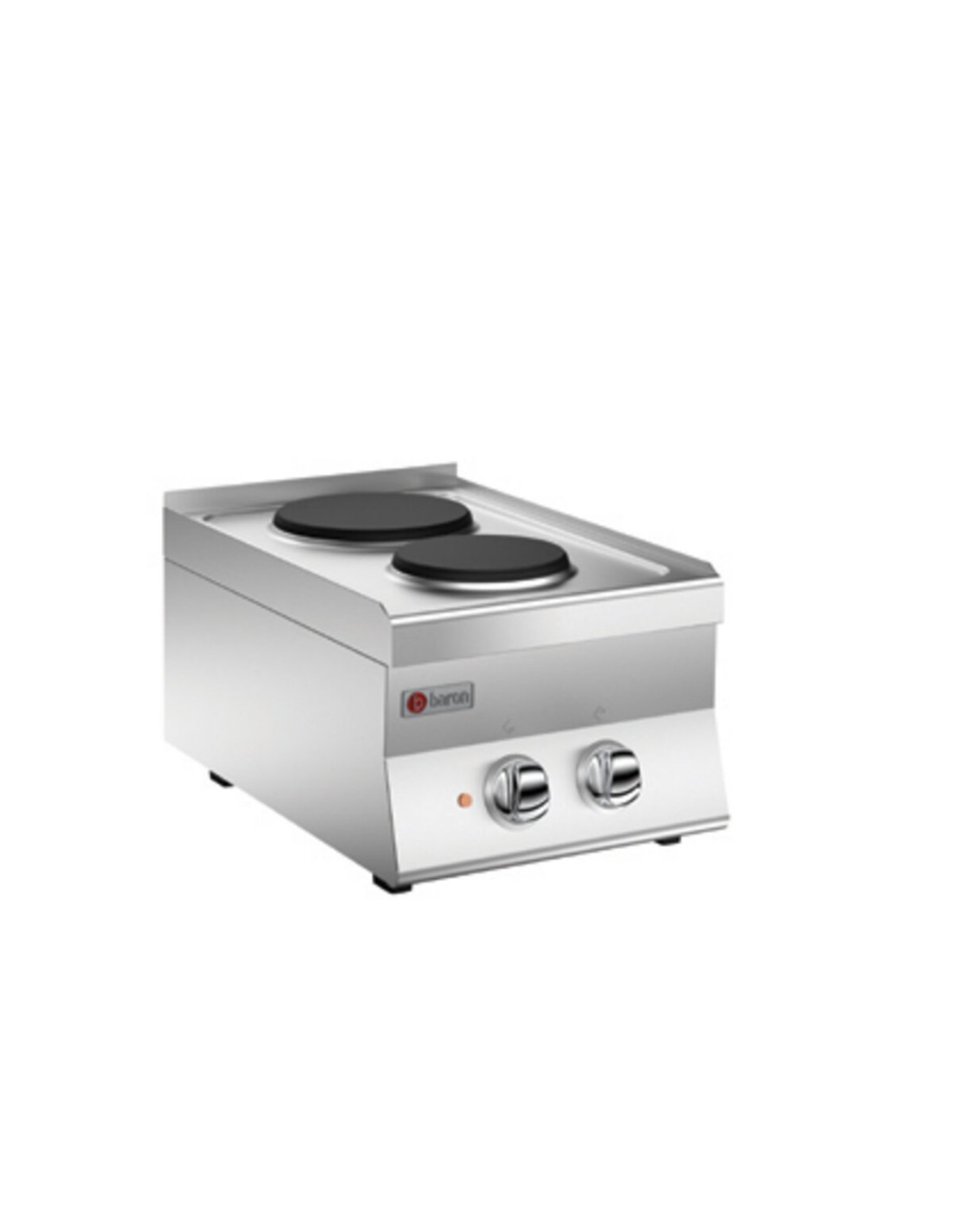

KITCHEN 2 ELECTRIC HOTPLATES - TOP VERSION


Print
Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/E400
CR0855739

Data sheet

Model
6NPC/E400
Code
CR0855739
Material type
ZPF
Definition
2 PIASTRE EL.TONDE 60 M40 6NPC/E400
Width
400mm
Height
295mm
Depth
600mm
Volume
0.071m3
Electrical power
4.1Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0110
Net weight
12.4Kg
Gross weight
18Kg
IP grade
IPX4
Certified model
6NPC/E400
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
440
Packaging height
400
Packaging length
630
Alimentazione
ELETTRICA
Commercial code
6NPC/E400
Power supply 2
220-240V 3
Power supply 3
220-240V 1N
