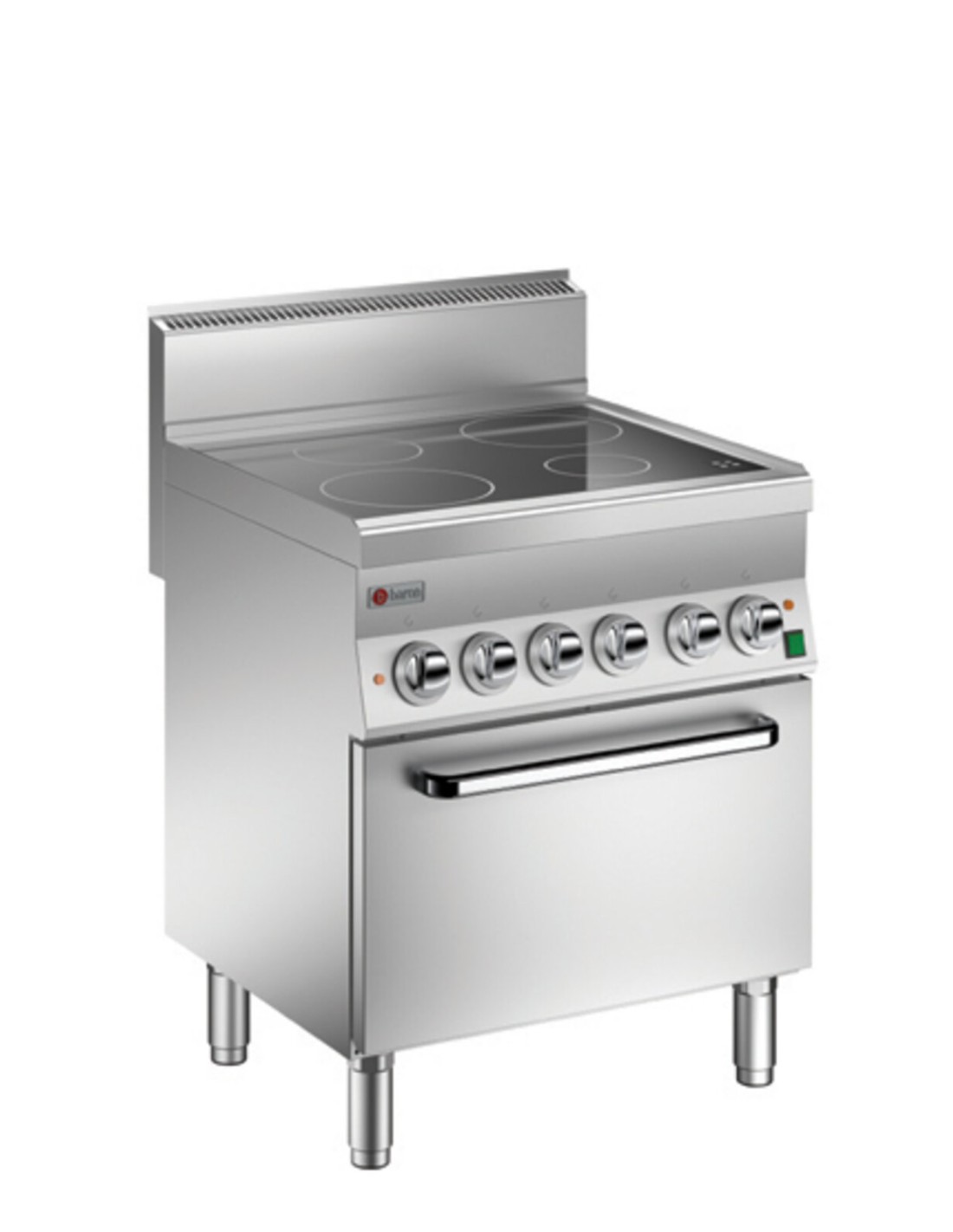

4-ZONE ELECTRIC GLASS-CERAMIC COOKER ON ELECTRIC OVEN

The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.
Print
Kitchens with glass-ceramic countertops are available with 2 or 4 cooking zones that are marked with a circular screen print. The energy controller allows you to set the temperature, and an indicator lamp signals any residual heat on the top. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


The glass-ceramic cookers are available in two versions: standard with a total output of 16.4 kW and enhanced with 18.4 kW in total.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/IFEV722
CR0855859

Data sheet

Model
6NPC/IFEV722
Code
CR0855859
Material type
ZPF
Definition
IRRAGGIAM.4 Z.F.EL/V.60 M70 6NPC/IFEV722
Width
700mm
Height
870mm
Depth
600mm
Volume
0.365m3
Electrical power
12.4Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0774
Net weight
70Kg
Gross weight
79.6Kg
IP grade
IPX3
Certified model
6NPC/IFEV722
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
770
Packaging height
1340
Packaging length
750
Alimentazione
ELETTRICA
Commercial code
6NPC/IFEV722
Power supply 2
220-240V 3
