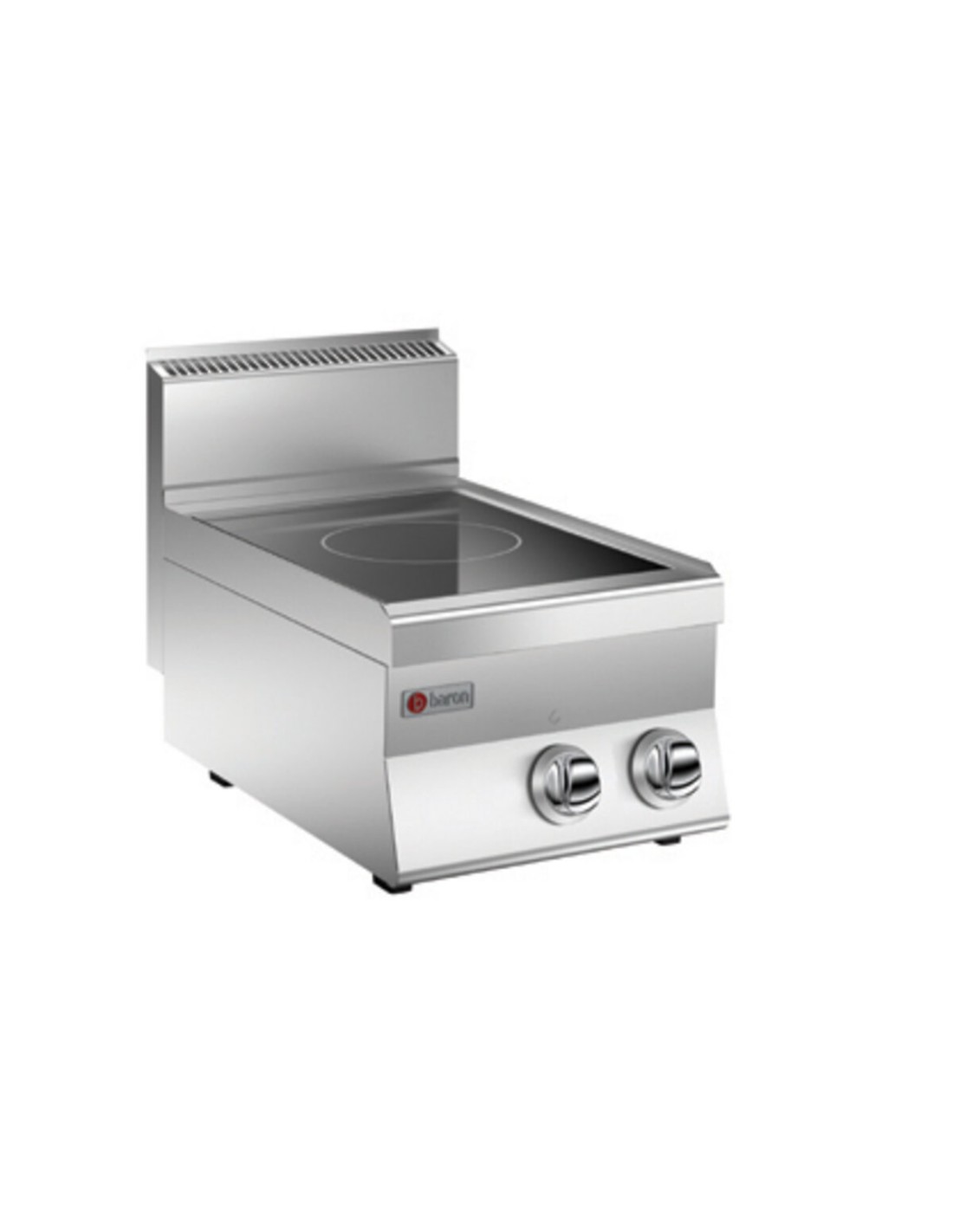

2-ZONE ELECTRIC GLASS-CERAMIC COOKER - TOP VERSION


Print
Kitchens with glass-ceramic countertops are available with 2 or 4 cooking zones that are marked with a circular screen print. The energy controller allows you to set the temperature, and an indicator lamp signals any residual heat on the top. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C.


The glass-ceramic cookers are available in two versions: standard with a total output of 16.4 kW and enhanced with 18.4 kW in total.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NPC/I411
CR0855819

Data sheet

Model
6NPC/I411
Code
CR0855819
Material type
ZPF
Definition
IRRAGGIAMENTO 2 Z. 60 M40 6NPC/I411
Width
400mm
Height
295mm
Depth
600mm
Volume
0.071m3
Electrical power
4.3Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0106
Net weight
10.4Kg
Gross weight
20.8Kg
IP grade
IPX4
Certified model
6NPC/I411
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
630
Packaging height
390
Packaging length
430
Alimentazione
ELETTRICA
Commercial code
6NPC/I411
Power supply 2
220-240V 3
Power supply 3
220-240V 1N
