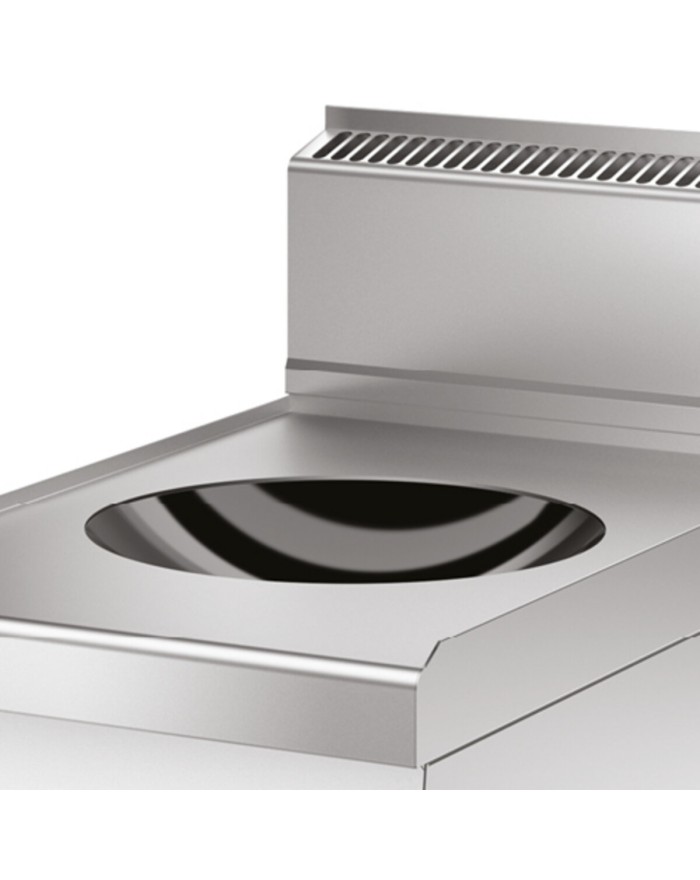

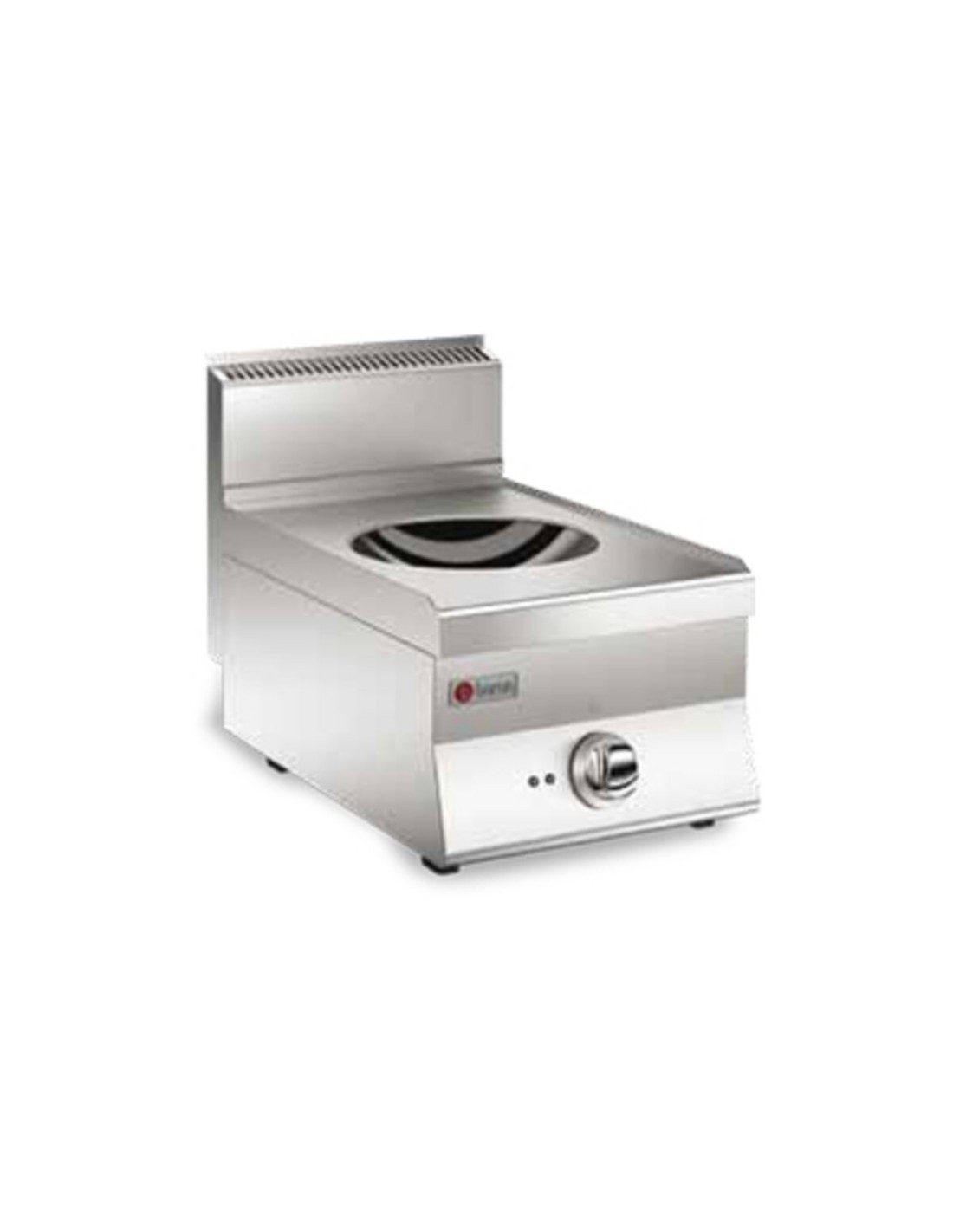

ELECTRIC INDUCTION COOKER WOK 1 ZONE - TOP VERSION

A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.
Print
Induction cookers are available with 1 or 2 zones (diam 220 mm) of cooking and in WOK version (diam 300 mm) for a power of 5kW per zone. The equipment is equipped with pot presence detector device and operation indicator light. A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.


The cooking zones are marked with a circular silkscreen printing with a diameter of 22 cm (30 cm for the wok), for a power of 5 kW per zone.



A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.

6NPC/WOK411
CR0856259

Data sheet

Model
6NPC/WOK411
Code
CR0856259
Material type
ZPF
Definition
WOK 1 ZONA 60 M40 6NPC/WOK411
Width
400mm
Height
295mm
Depth
600mm
Volume
0.071m3
Electrical power
5Kw
380-415V 3N
Frequency
50/60 HzHz
Gross volume
0105
Net weight
10.4Kg
Gross weight
16Kg
IP grade
IPX3
Certified model
6NPC/WOK411
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
630
Packaging height
390
Packaging length
430
Alimentazione
ELETTRICA
Commercial code
6NPC/WOK411
