2-ZONE ELECTRIC INDUCTION COOKER - TOP VERSION

A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.
Print

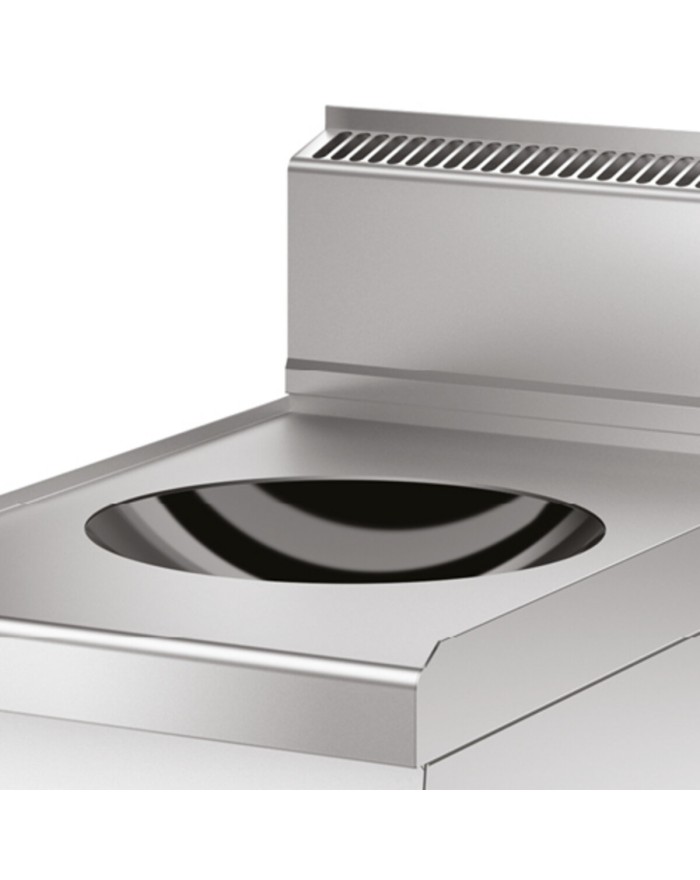

Induction cookers are available with 1 or 2 zones (diam 220 mm) of cooking and in WOK version (diam 300 mm) for a power of 5kW per zone. The equipment is equipped with pot presence detector device and operation indicator light. A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.


The cooking zones are marked with a circular silkscreen printing with a diameter of 22 cm (30 cm for the wok), for a power of 5 kW per zone.



A device detects the presence of the pan and activates the heating; in the event of abnormal use, however, a special overheating protection device blocks the operation.

6NPC/IND722
CR0855889

Data sheet

Model
6NPC/IND722
Code
CR0855889
Material type
ZPF
Definition
INDUZIONE 2 ZONE 60 M70 6NPC/IND722
Width
700mm
Height
295mm
Depth
600mm
Volume
0.124m3
Electrical power
10Kw
400V 3N
Frequency
50/60 HzHz
Gross volume
0000
Net weight
17Kg
Gross weight
20Kg
IP grade
IPX3
Certified model
6NPC/IND722
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Alimentazione
ELETTRICA
Commercial code
6NPC/IND722

Download

CR0855889_it.pdf

Download (558.06KB)

CR0855889_de.pdf

Download (559.71KB)

CR0855889_en.pdf

Download (557.21KB)

CR0855889_es.pdf

Download (558.44KB)

CR0855889_fr.pdf

Download (560.28KB)
