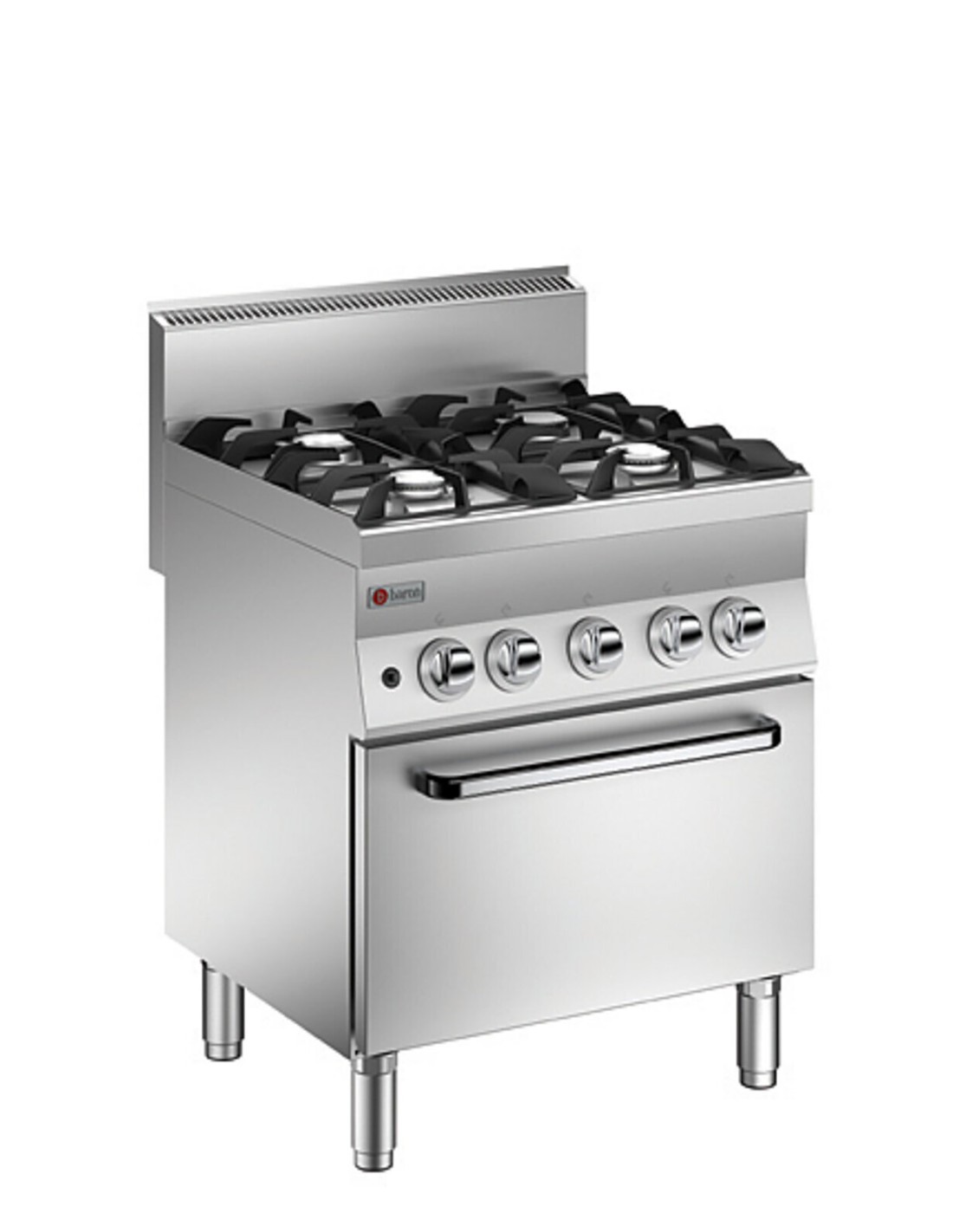

4-BURNER GAS COOKER ON VENTILATED ELECTRIC OVEN - 19.1 KW

Tipo Alimentazione
Promo
Print
Home , COOKING , SERIE 600 , GAS RANGES
Hobs have power ratings that are characteristic of large models. Burners of 3.85 kW and 5.7 kW (7kw in the upgraded version). The cooktop is stamped in one piece, made of AISI 304 18/10 stainless steel with Scotch Brite finish, with large radii and large capacity for collecting overflowing liquids. Enameled cast-iron grills to ensure long service life. Gas cooktops are designed with pilot flame, thermocouple and valved faucet to ensure maximum safety. Indicator lamp to signal energized equipment. GN 1/1 size ovens are available gas with adjustable temperature from 140-280°C, and electric both static and ventilated with adjustable temperature from 110 - 280°C. Burners with 3.5kW and 5.5kW power ratings, valve taps and stabilised flame thermocouple for maximum safety. GN 1/1 ovens with stainless steel inner walls in the static gas version and electric and ventilated ovens with armoured heating elements on the top and bottom. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


Cast-iron grids on the top with long spokes allow even small pots to be placed on them.

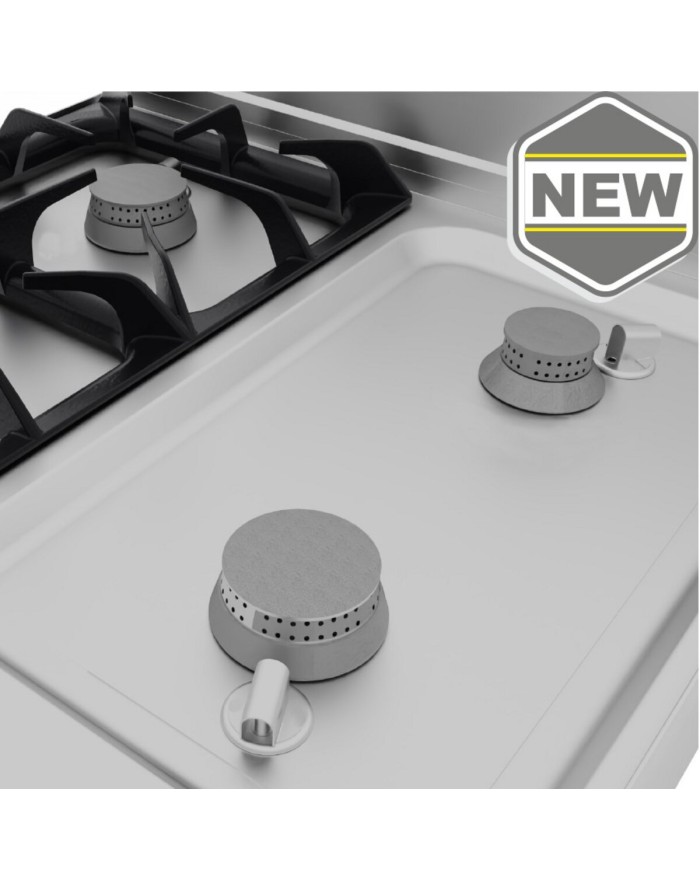

Burners with power ratings of 3.85kW and 5.7kW (7kw in the enhanced version), valved taps and stabilized flame thermocouple to ensure maximum safety.

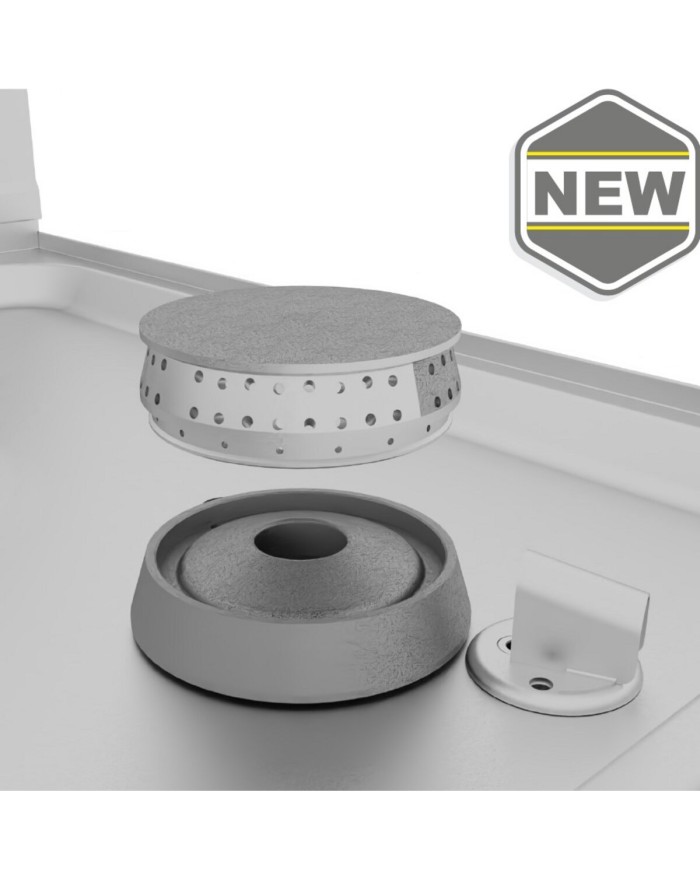

Cast-iron burner with removable crown for easy cleaning and separate pilot flame for optimal operation.

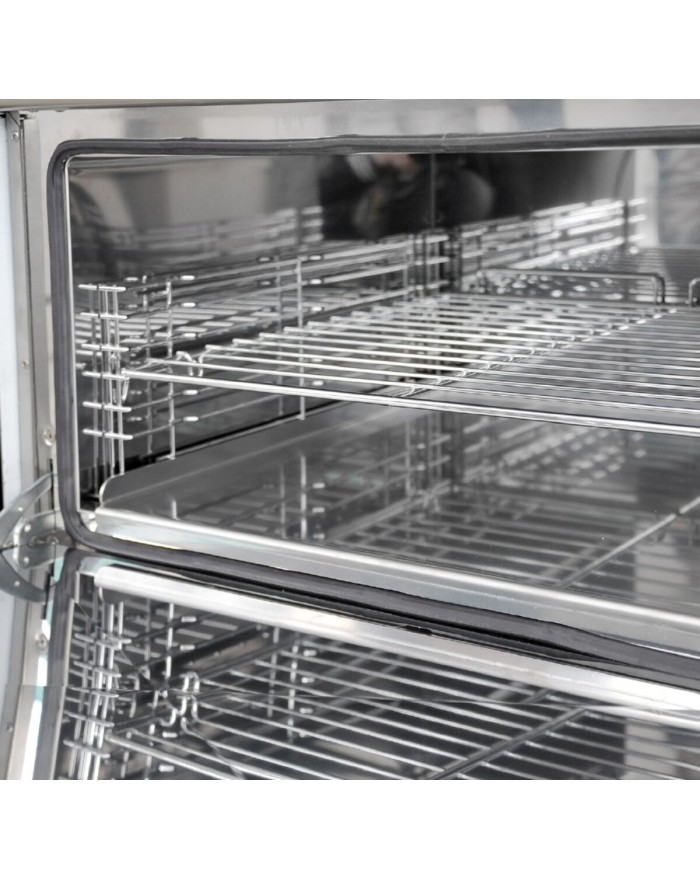

GN 1/1 ovens with stainless steel inner walls in the static gas version and static and ventilated electric ovens with armoured heating elements on the top and bottom.

N6PC/GFEV722
CR1355649 - Standard Standard

Data sheet

II2H3+
ES/GB/GR/IE/IT/PT/SK
Model
N6PC/GFEV722
CODE
CR1355649
Commercial code
N6PC/GFEV722
Material type
ZPF
Definition
N6PC/GFEV722 4 FUOCHI FORNO EL/V.60 M70
Height
870mm
Width
700mm
Depth
650mm
Volume
0.396m3
Gas power Kw
19,10Kw
Gas power (G25.3/25 mbar)
18,40Kw
Gas power Kcal
15824Kcal
Gross volume
0570
Net weight
64.2Kg
Gross weight
78Kg
Chimney type
A1
Certified model
N6PC/GFEV722
CE-certified
CE-0085DL0222
Production start year
2022
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
650
Packaging height
1170
Packaging length
750
Alimentazione
MISTA
Electrical power
4,200Kw
380-415V 3N
Frequency
50-60 HzHz
IP grade
IPX3
N. Fires/Plates
QUATTRO FUOCHI
Power supply 2
220-240V 3

Specific References

mpn
N6PC/GFEV722
