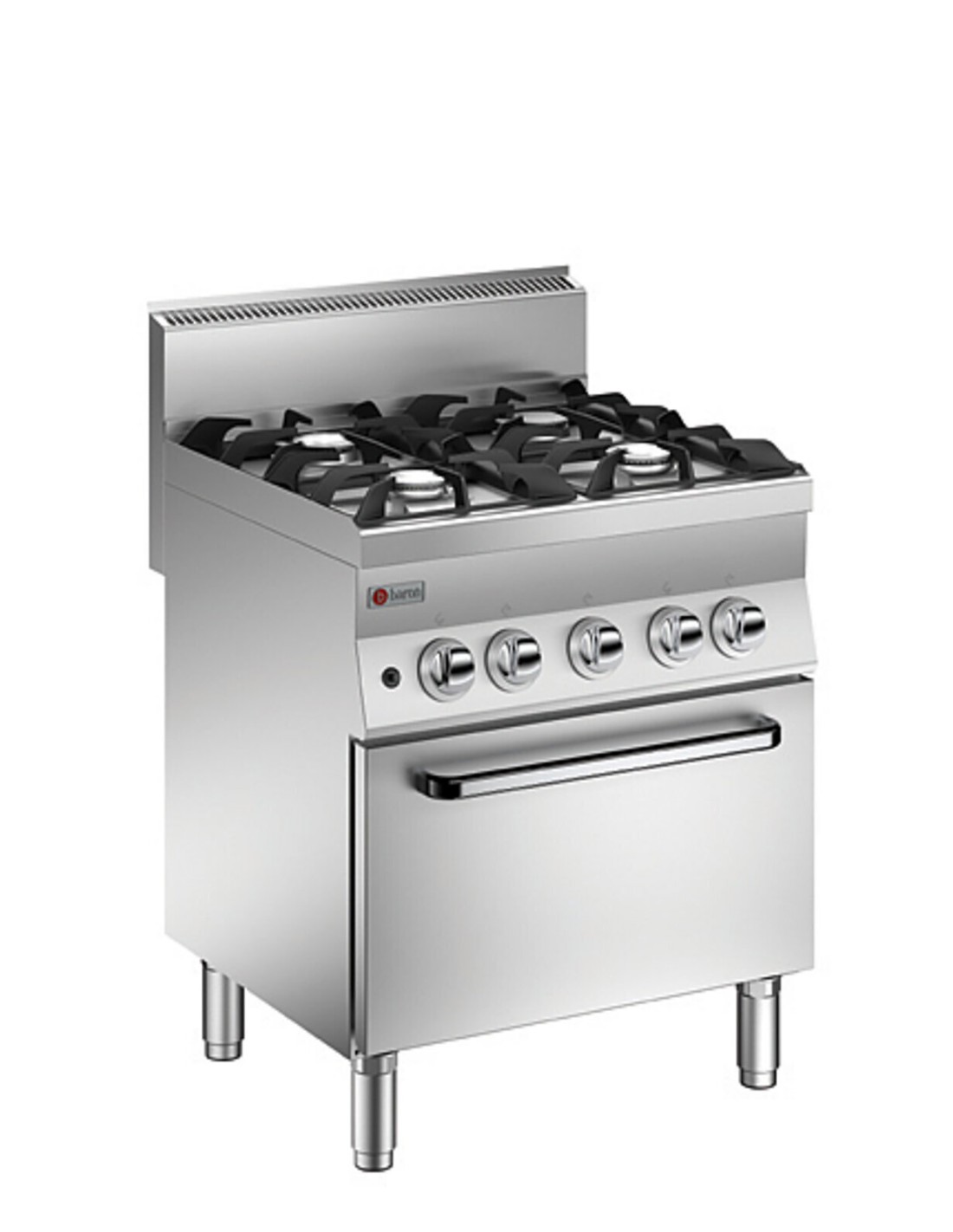

4-Burner GAS Hob ON GAS OVEN - 19.1 KW + 5 OVEN

Tipo Alimentazione
Promo
Print
Home , COOKING , SERIE 600 , GAS RANGES
Hobs have power ratings that are characteristic of large models. Burners of 3.85 kW and 5.7 kW (7kw in the upgraded version). The cooktop is stamped in one piece, made of AISI 304 18/10 stainless steel with Scotch Brite finish, with large radii and large capacity for collecting overflowing liquids. Enameled cast-iron grills to ensure long service life. Gas cooktops are designed with pilot flame, thermocouple and valved faucet to ensure maximum safety. Indicator lamp to signal energized equipment. GN 1/1 size ovens are available gas with adjustable temperature from 140-280°C, and electric both static and ventilated with adjustable temperature from 110 - 280°C. Burners with 3.5kW and 5.5kW power ratings, valve taps and stabilised flame thermocouple for maximum safety. GN 1/1 ovens with stainless steel inner walls in the static gas version and electric and ventilated ovens with armoured heating elements on the top and bottom. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


Cast-iron grids on the top with long spokes allow even small pots to be placed on them.

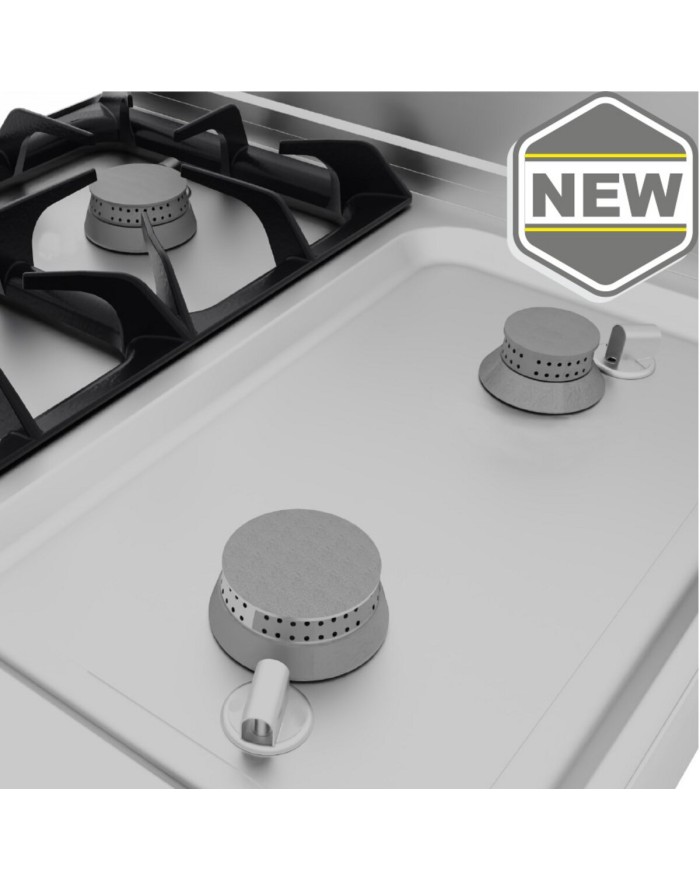

Burners with power ratings of 3.85kW and 5.7kW (7kw in the enhanced version), valved taps and stabilized flame thermocouple to ensure maximum safety.

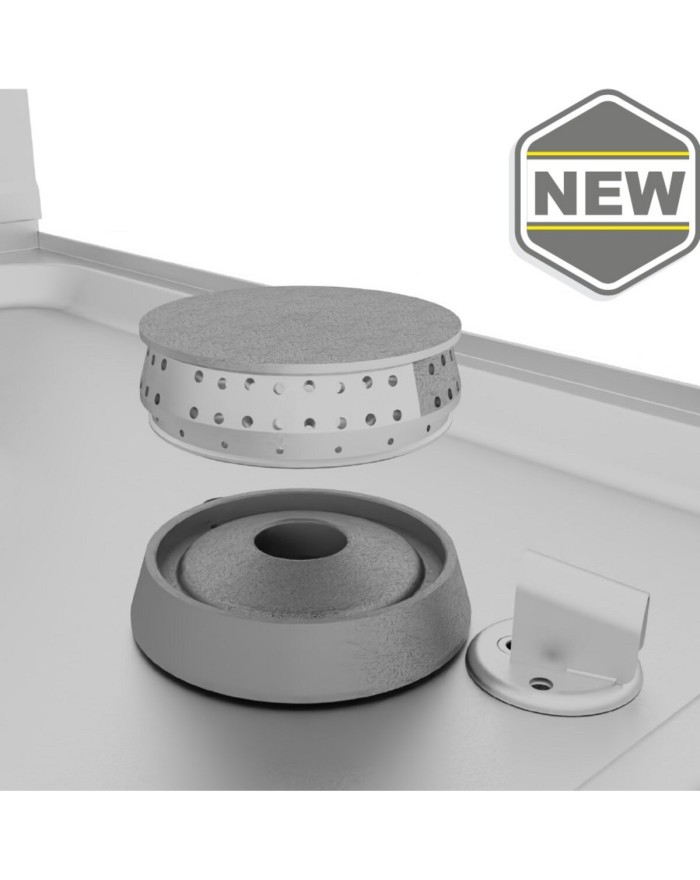

Cast-iron burner with removable crown for easy cleaning and separate pilot flame for optimal operation.

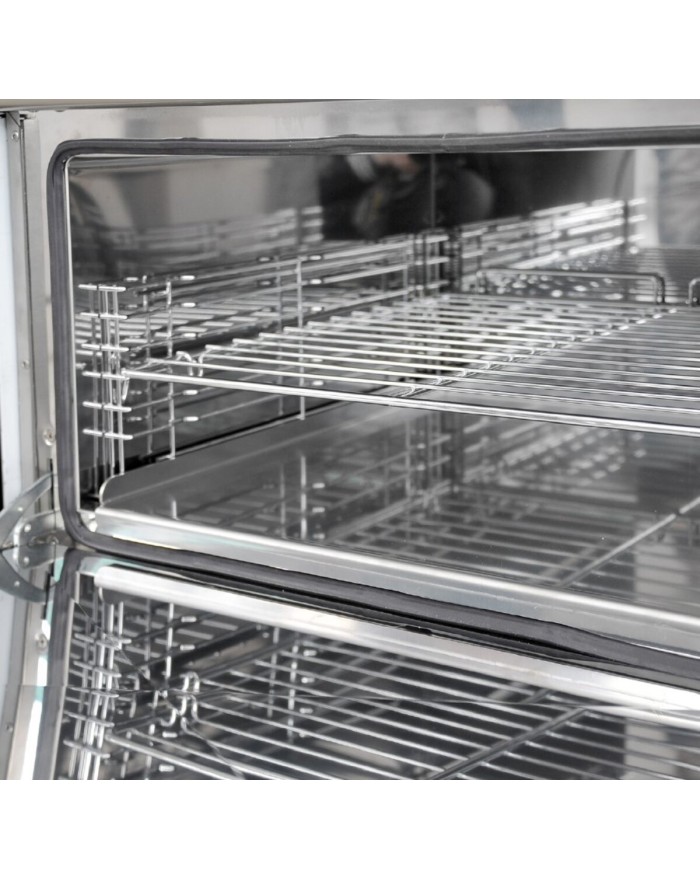

GN 1/1 ovens with stainless steel inner walls in the static gas version and static and ventilated electric ovens with armoured heating elements on the top and bottom.

N6PC/GF722
CR1355629 - Standard Standard

Data sheet

Gross volume
0635
N. Fires/Plates
QUATTRO FUOCHI
Net weight
66.2Kg
Gross weight
80Kg
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1
Model
N6PC/GF722
Certified model
N6PC/GF722
CODE
CR1355629
CE-certified
CE-0085DL0222
Commercial code
N6PC/GF722
Production start year
2022
Material type
ZPF
Product type
STANDARD
Definition
N6PC/GF722 4 FUOCHI FORNO G.60 M70
Company
0232
Depth
650mm
Commercial Line
SERIE 600
Height
830mm
Packaging width
740
Volume
0.378m3
Packaging height
1160
Gas power Kw
24,10Kw
Width
700mm
Gas power (G25.3/25 mbar)
23,40Kw
Packaging length
740000
Gas power Kcal
20124Kcal
Alimentazione
GAS

Specific References

mpn
N6PC/GF722
