2-BURNER GAS COOKER - TOP VERSION - 19.1 KW


Tipo Alimentazione
Print
Hobs have power ratings that are characteristic of large models. Burners of 3.85 kW and 5.7 kW (7kw in the upgraded version). The cooktop is stamped in one piece, made of AISI 304 18/10 stainless steel with Scotch Brite finish, with large radii and large capacity for collecting overflowing liquids. Enameled cast-iron grills to ensure long service life. Gas cooktops are designed with pilot flame, thermocouple and valved faucet to ensure maximum safety. Indicator lamp to signal energized equipment. GN 1/1 size ovens are available gas with adjustable temperature from 140-280°C, and electric both static and ventilated with adjustable temperature from 110 - 280°C.

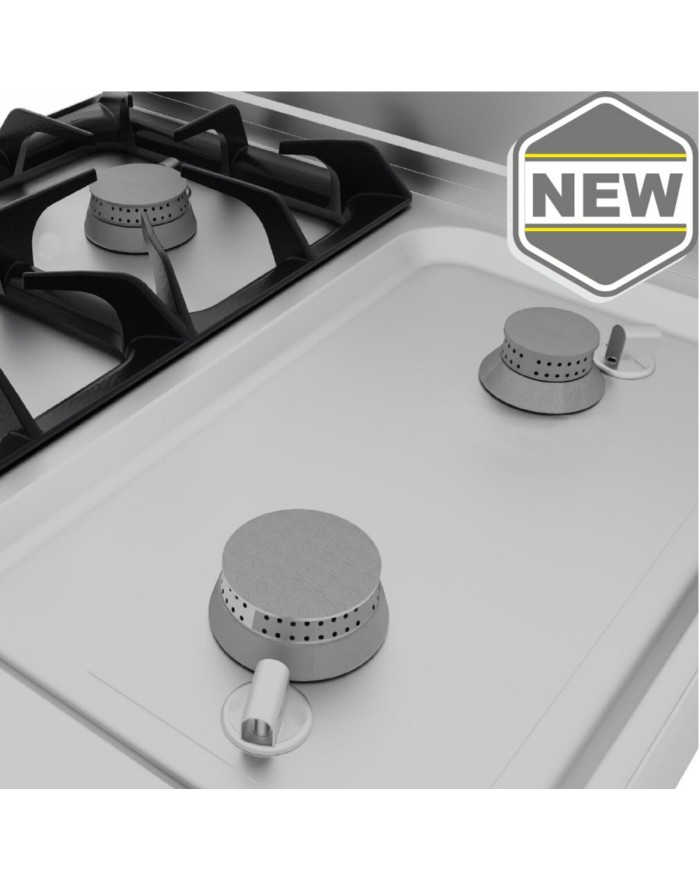

Cast-iron grids on the top with long spokes allow even small pots to be placed on them.



Burners with power ratings of 3.85kW and 5.7kW (7kw in the enhanced version), valved taps and stabilized flame thermocouple to ensure maximum safety.

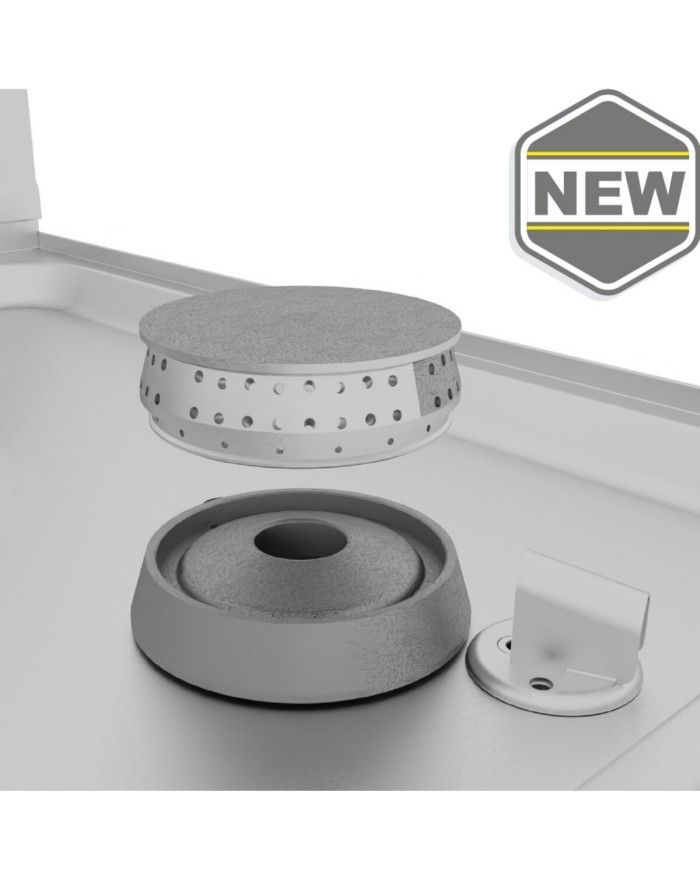

Cast-iron burner with removable crown for easy cleaning and separate pilot flame for optimal operation.

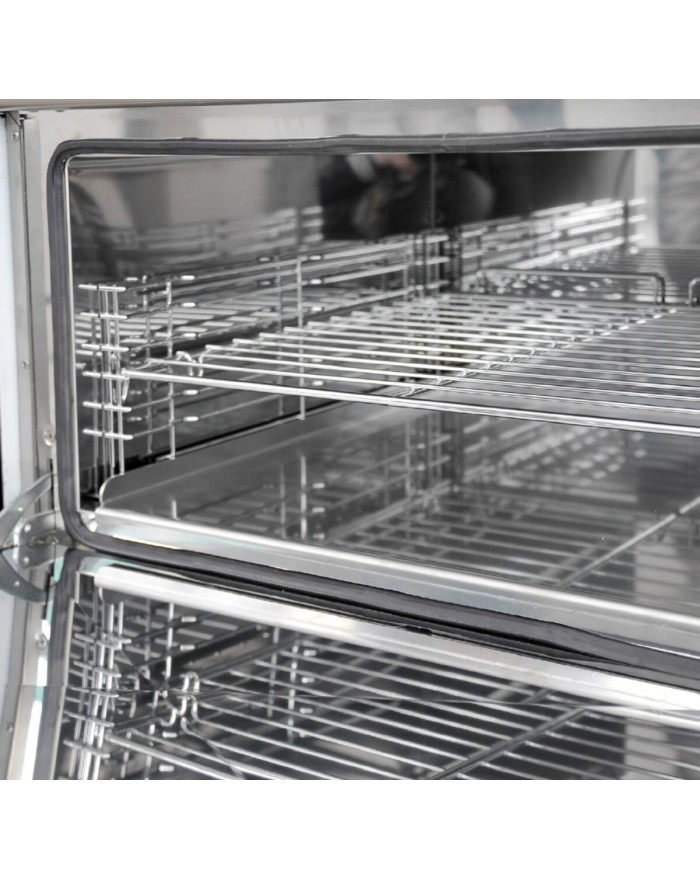

GN 1/1 ovens with stainless steel inner walls in the static gas version and static and ventilated electric ovens with armoured heating elements on the top and bottom.

N6PC/G822
CR1355619 - Metano Standard

Data sheet

Model
N6PC/G822
Code
CR1355619
Material type
ZPF
Definition
N6PC/G822 4 FUOCHI 60 M80
Width
800mm
Height
295mm
Depth
650mm
Volume
0.153m3
Gross volume
0233
Net weight
33Kg
Gross weight
41.8Kg
Certified model
N6PC/G822
CE-certified
CE-0085DL0222
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
780
Packaging height
680
Packaging length
440
Alimentazione
GAS
Commercial code
N6PC/G822
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
19.1Kw
Gas power (G25.3/25 mbar)
18,40Kw
Gas power Kcal
15824Kcal
N. Fires/Plates
QUATTRO FUOCHI
Chimney type
A1
Production start year
2022

Specific References

mpn
N6PC/G822

Download

CR1355619_it.pdf

Download (1.03MB)

CR1355619_de.pdf

Download (1.03MB)

CR1355619_en.pdf

Download (1.02MB)

CR1355619_es.pdf

Download (1.03MB)

CR1355619_fr.pdf

Download (1.03MB)
