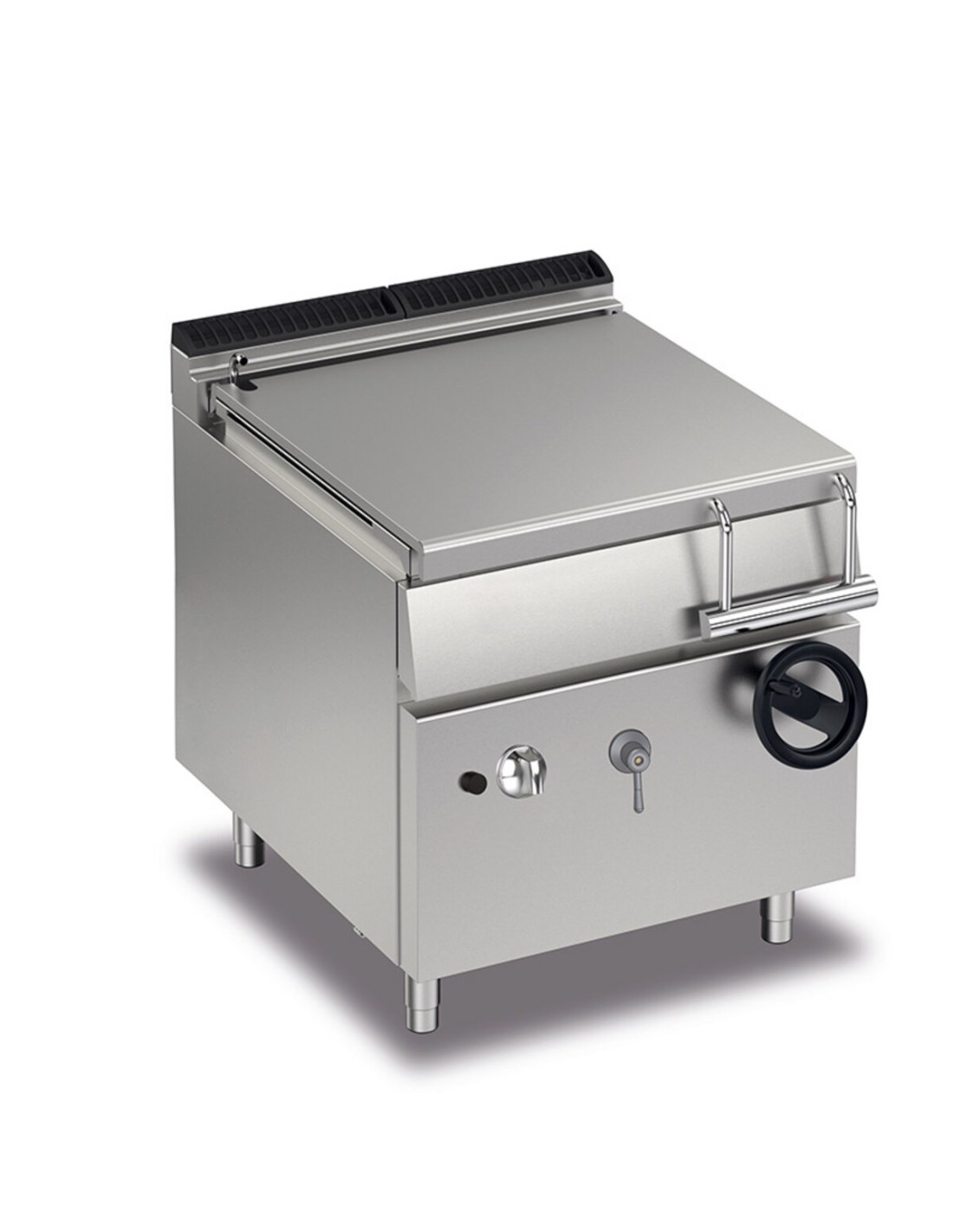

43lt MANUAL TILTING GAS BRATT PAN - STAINLESS STEEL TANK

Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 7 , TILTING BRATT PANS
Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with 2 mm thickness Available with iron, and stainless steel tanks . Robust, double-walled, self-balancing lids made of stainless steel to reduce heat loss. Water loading via solenoid valve. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C. Gas version Heating by steel burner chromium-plated. Safety valve with thermocouple, electric ignition. Manual or motorised lifting. Electric version Heating via armoured incoloy heating elements. Large-radius tilting tank. Water filling via solenoid valve and fixed tap at the top. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Self-balancing lids.

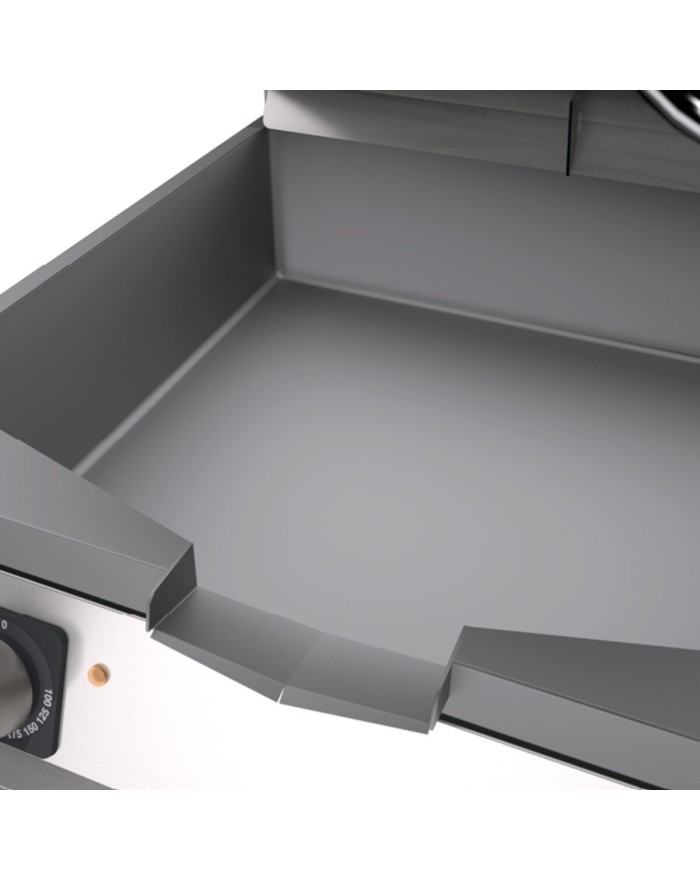

Large-radius tilting tank.



The 8 rows of flame in the M80 model and 12 in the M120 ensure uniformity in cooking. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C.

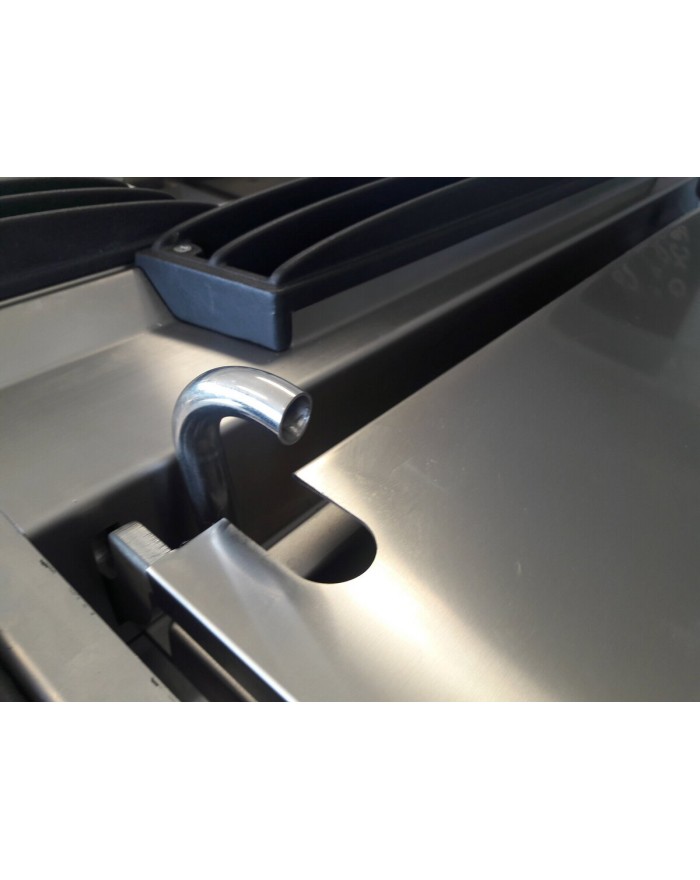

Water filling via solenoid valve and fixed tap at the top.

Q70BR/G80
CR1014689 - Standard Standard

Data sheet

Materiale Piastra
AISIDUPLEX
Gas power Kcal
11180Kcal
III1a2H3B-P
DK
Gross volume
0836
Net weight
117Kg
Gross weight
129.2Kg
Chimney type
A1
II2H3+
ES/GB/GR/IE/IT/PT/SK
Certified model
Q70BR/G80
Model
Q70BR/G80
CE-certified
CE-0085BT0250
CODE
CR1014689
Product type
STANDARD
Company
0232
Commercial code
Q70BR/G80
Commercial Line
QUEEN
Material type
ZPF
Packaging width
850
Definition
Q70BR/G80 BRASIERA GAS M80 INOX 43 LT
Packaging height
1170
Depth
700mm
Width
800mm
Height
870mm
Packaging length
840
Volume
0.487m3
Alimentazione
GAS
Gas power Kw
14,00Kw
Capacità litri
43L
Gas power (G25.3/25 mbar)
13,00Kw

Specific References

mpn
Q70BR/G80
