80lt MANUAL ELECTRIC TILTING BRATT PAN - IRON TANK

Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , TILTING BRATT PANS
Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with 2 mm thickness Available with iron and stainless steel tanks. Robust, double-walled, self-balancing lids made of stainless steel to reduce heat loss. Water loading via solenoid valve. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C. Gas version Heating by chrome-plated steel burner. Safety valve with thermocouple, electric ignition. Manual or motorised lifting. Electric version Heating via armoured incoloy heating elements. Large-radius tilting tank. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Self-balancing lids.

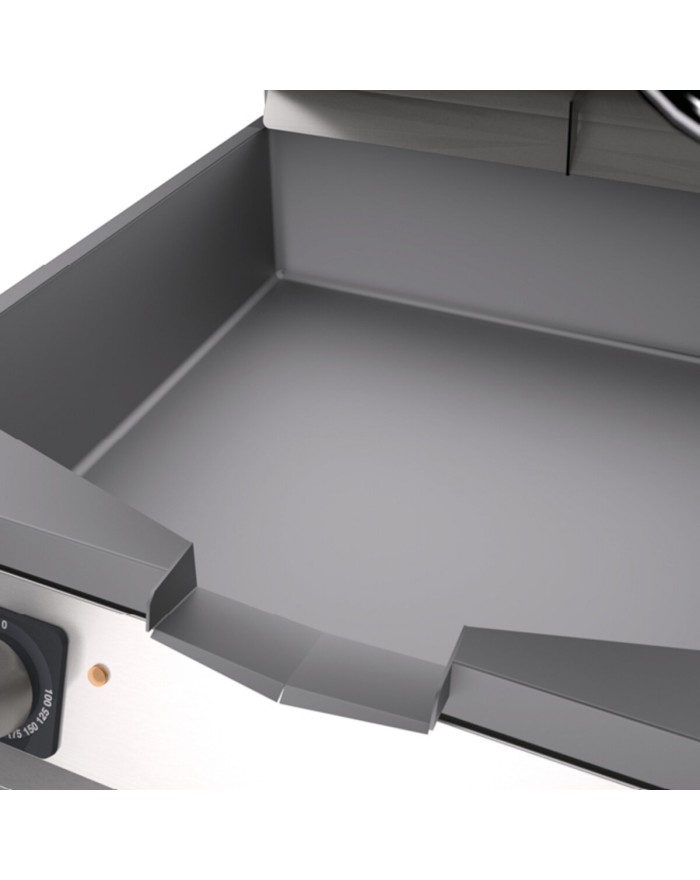

Large-radius tilting tank.



The 8 rows of flame in the M80 model and 12 in the M120 ensure uniformity in cooking. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C.

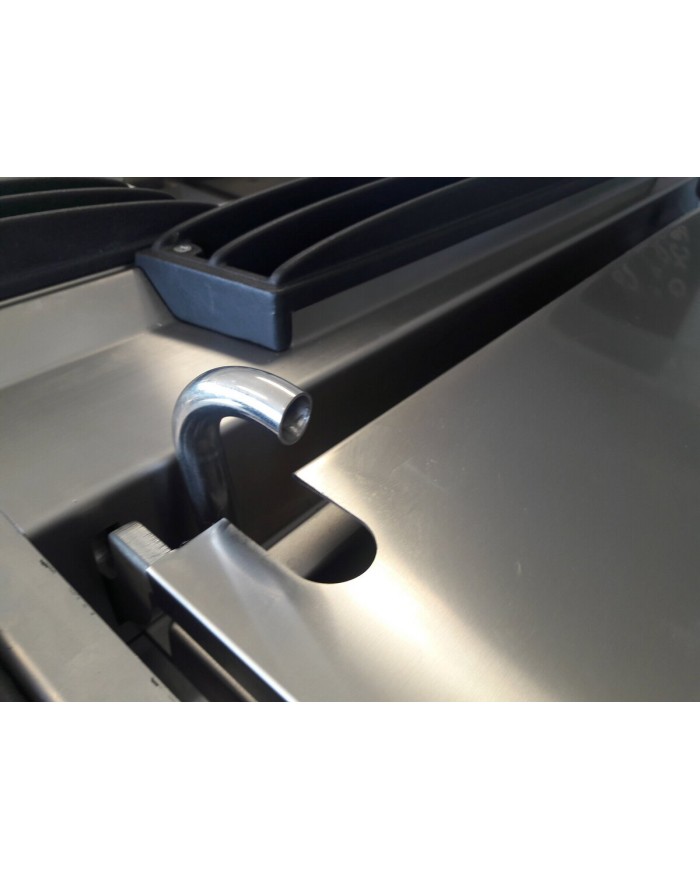

Water filling via solenoid valve and fixed tap at the top.

Q90BR/E81
CR1018139 - Standard Standard

Data sheet

Packaging height
1150
Width
800mm
Model
Q90BR/E81
Packaging length
860
CODE
CR1018139
Alimentazione
ELETTRICA
Material type
ZPF
Electrical power
9,000Kw
380-415V 3N
Definition
Q90BR/E81 BRASIERA EL.M80 VASCA FERRO
Frequency
50-60 HzHz
Depth
900mm
Capacity
80
Height
870mm
Volume
0.626m3
IP grade
IPX5
Gross volume
1010
Capacità litri
80L
Net weight
139.8Kg
Materiale Piastra
IRON
Gross weight
155Kg
Certified model
Q90BR/E81
CE-certified
-
Company
0232
Commercial Line
QUEEN
Packaging width
1020

Specific References

mpn
Q90BR/E81
