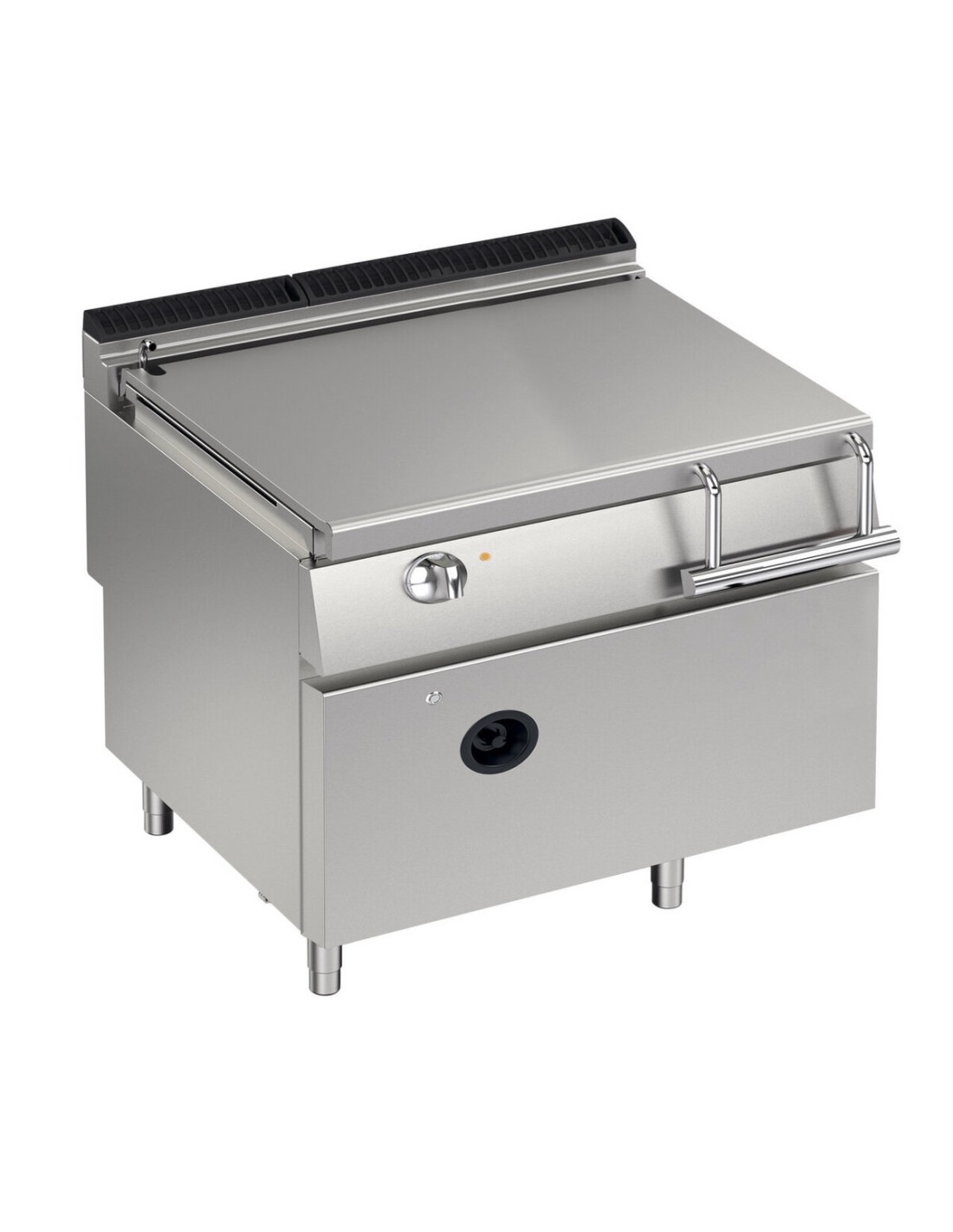

120lt MOTORISED TILTING GAS BRATT PAN - DUPLEX TANK

Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , TILTING BRATT PANS
Multi-purpose Bratt Pan: Stainless steel basin, uniform heating with armored resistances, temperature control from 50-300°C, ideal for sauces, braised dishes, and shallow oil cooking.Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with 2 mm thickness Available with iron and stainless steel tanks. Robust, double-walled, self-balancing lids made of stainless steel to reduce heat loss. Water loading via solenoid valve. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C. Gas version Heating by chrome-plated steel burner. Safety valve with thermocouple, electric ignition. Manual or motorised lifting. Electric version Heating via armoured incoloy heating elements. Large-radius tilting tank. The 8 flame rows in the M80 model and 12 in the M120 guarantee uniformity in cooking. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Self-balancing lids.

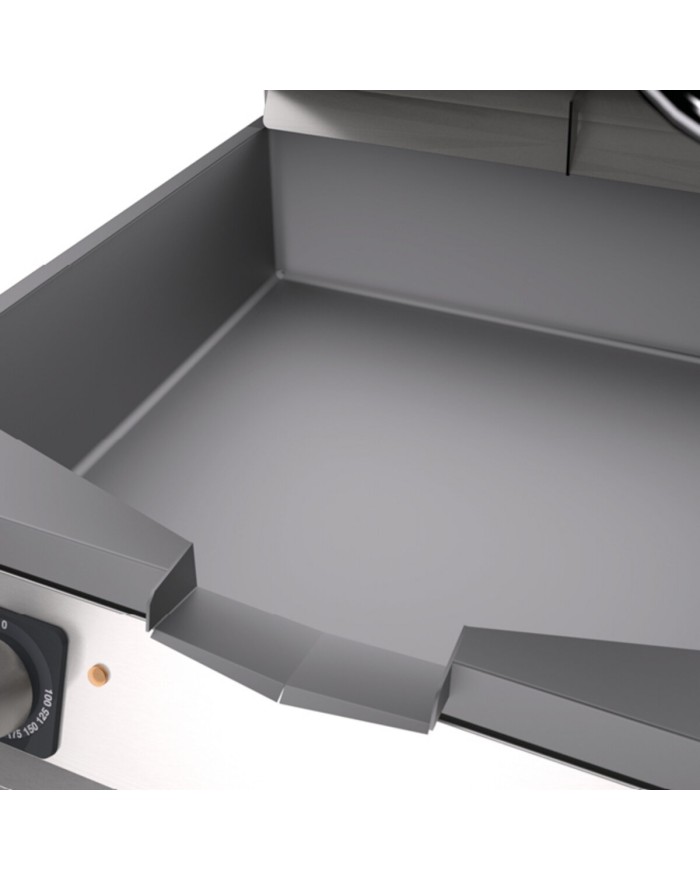

Large-radius tilting tank.

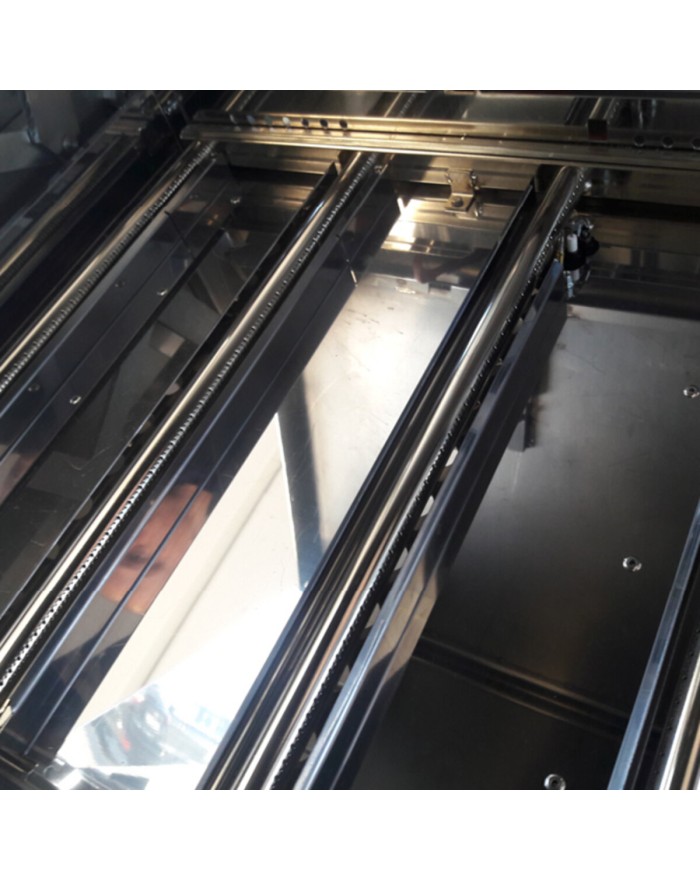

The 8 rows of flame in the M80 model and 12 in the M120 ensure uniformity in cooking. Cooking temperature controlled by thermostat with adjustment from 100 to 280°C.

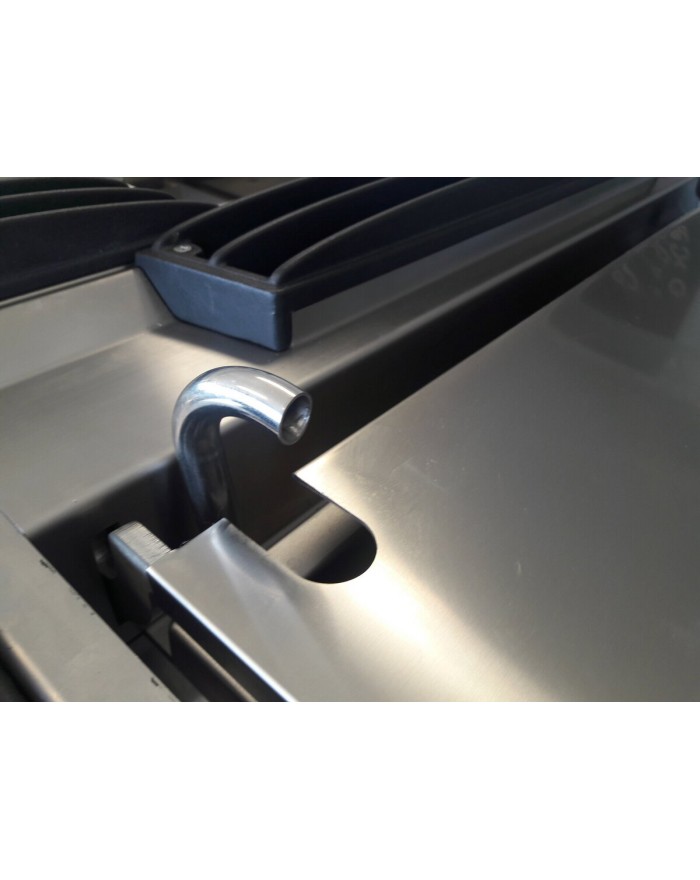

Water filling via solenoid valve and fixed tap at the top.

Q90BR/GM120
CR1018229 - Standard Standard

Data sheet

CODE
CR1018229
Company
0232
Material type
ZPF
Commercial Line
QUEEN
Definition
Q90BR/GM120 BRASIERA GAS M120 MOT.DUPLEX
Packaging width
1020
Depth
900mm
Packaging height
1150
Height
870mm
Width
1200mm
Volume
0.94m3
Packaging length
1260
Gas power Kw
24,00Kw
AGA Certificate
SI
Gas power (G25.3/25 mbar)
20,00Kw
Alimentazione
MISTA
Gas power Kcal
17200Kcal
Electrical power
0,120Kw
220-240V 1N
Gross volume
1478
Frequency
50 HzHz
Net weight
201Kg
Capacity
120
Gross weight
217Kg
Chimney type
A1
IP grade
IPX5
Certified model
Q90BR/GM120
Capacità litri
120L
II2H3+
ES/GB/GR/IE/IT/PT/SK
CE-certified
CE-0085BT0250
Materiale Piastra
AISIDUPLEX
Model
Q90BR/GM120
Product type
STANDARD

Specific References

mpn
Q90BR/GM120
